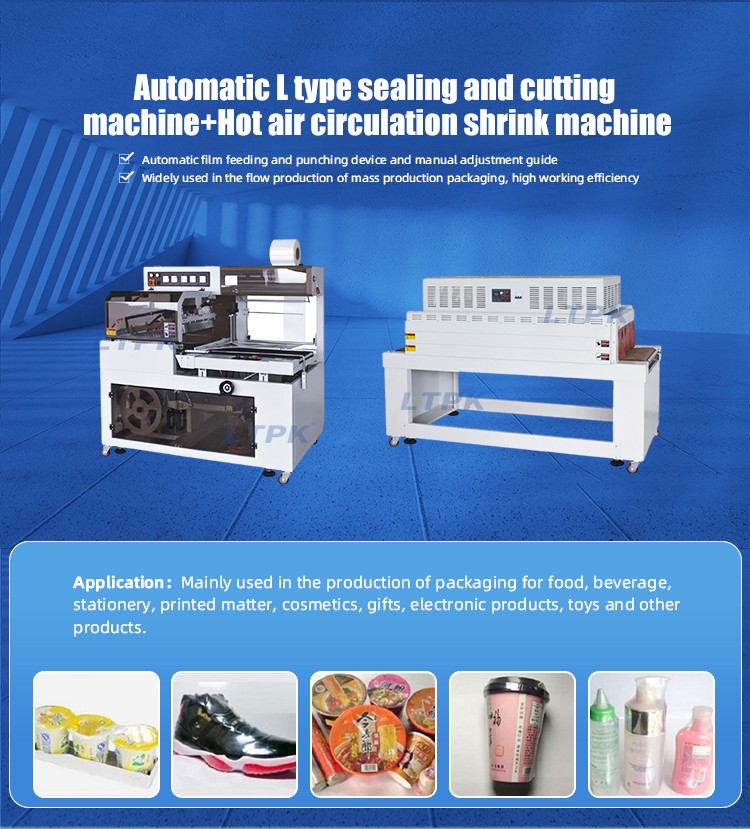

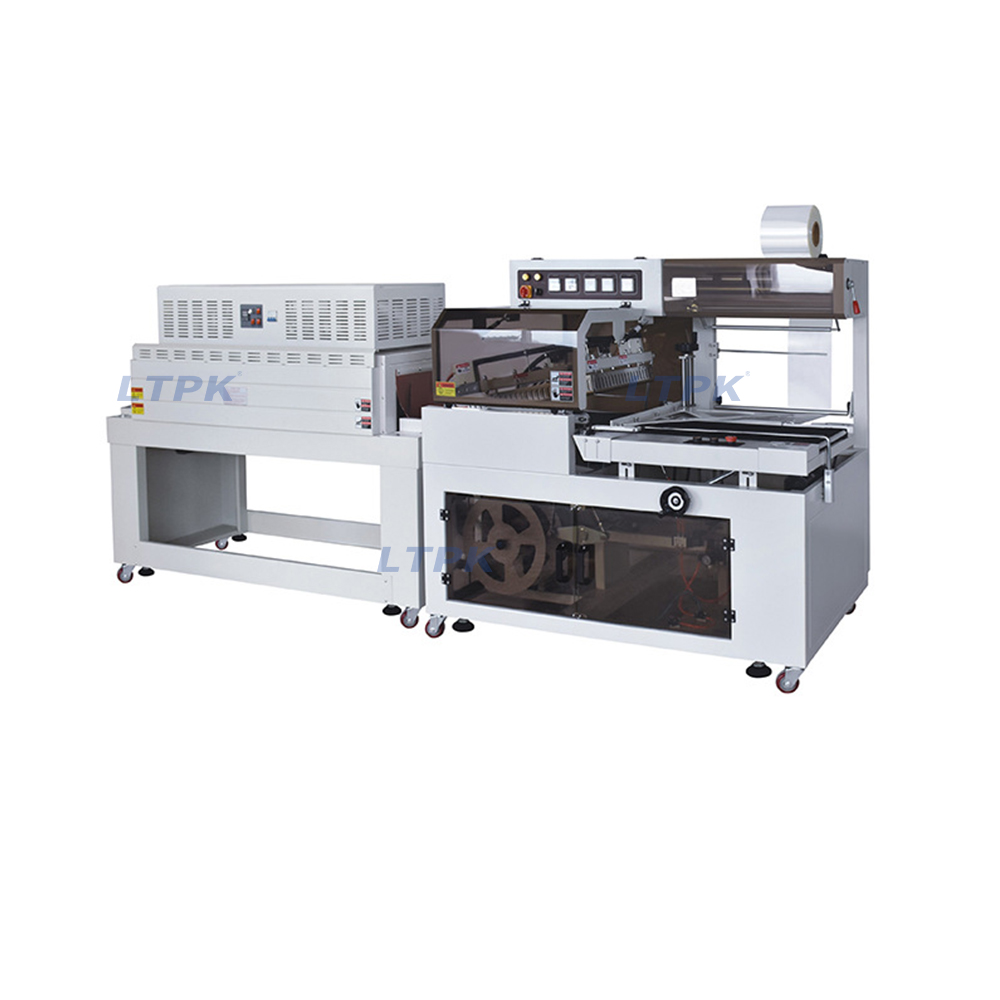

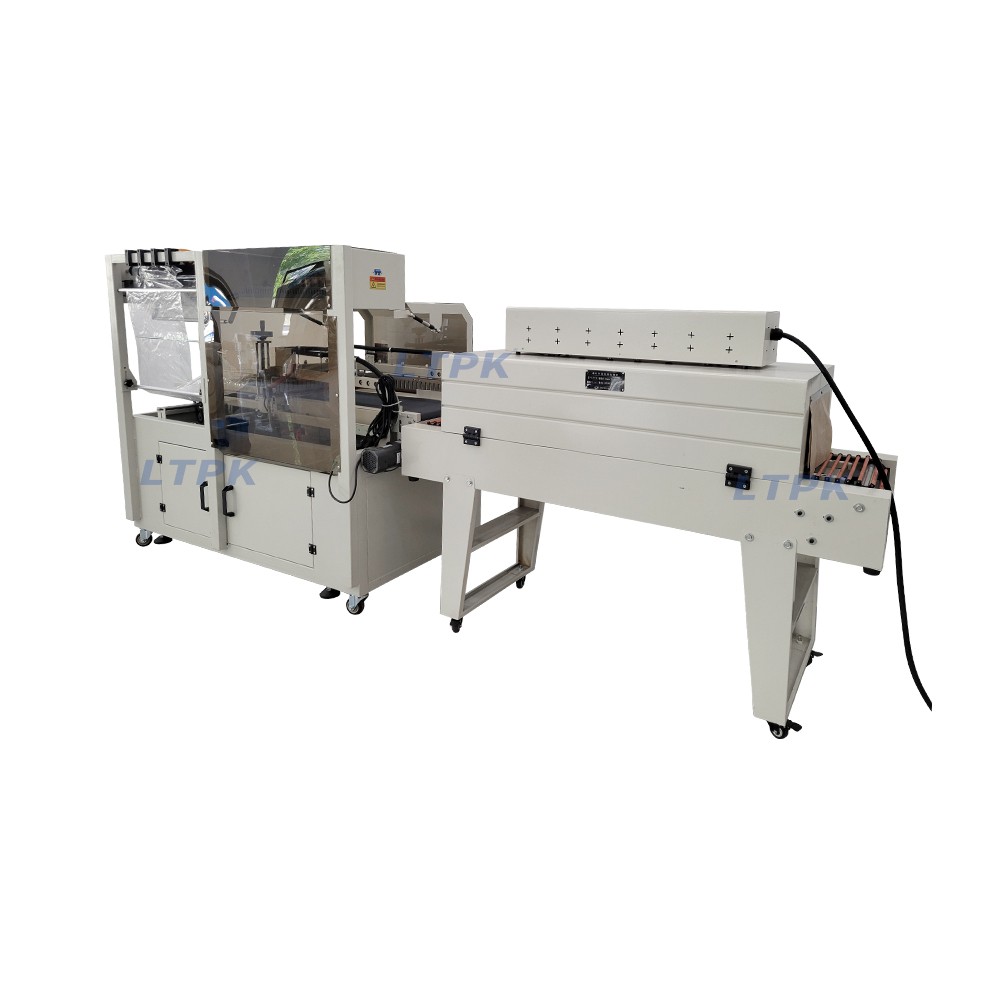

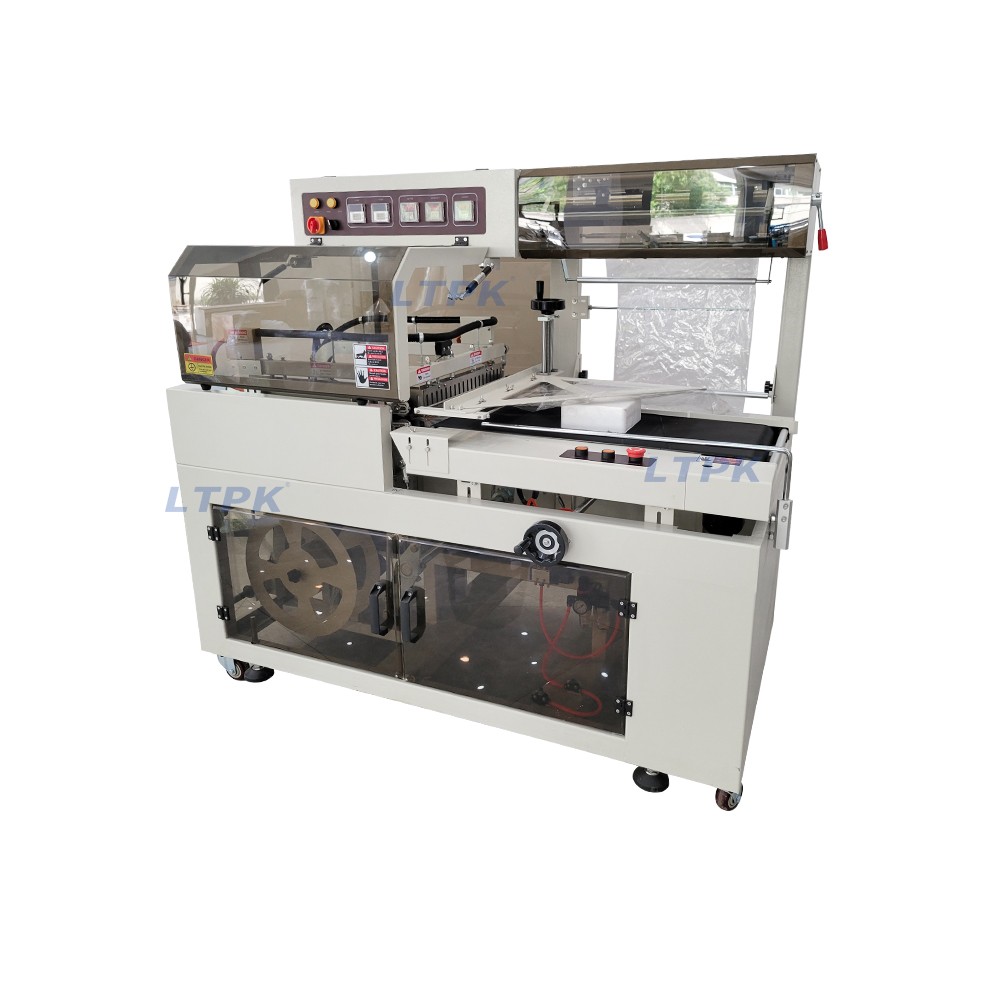

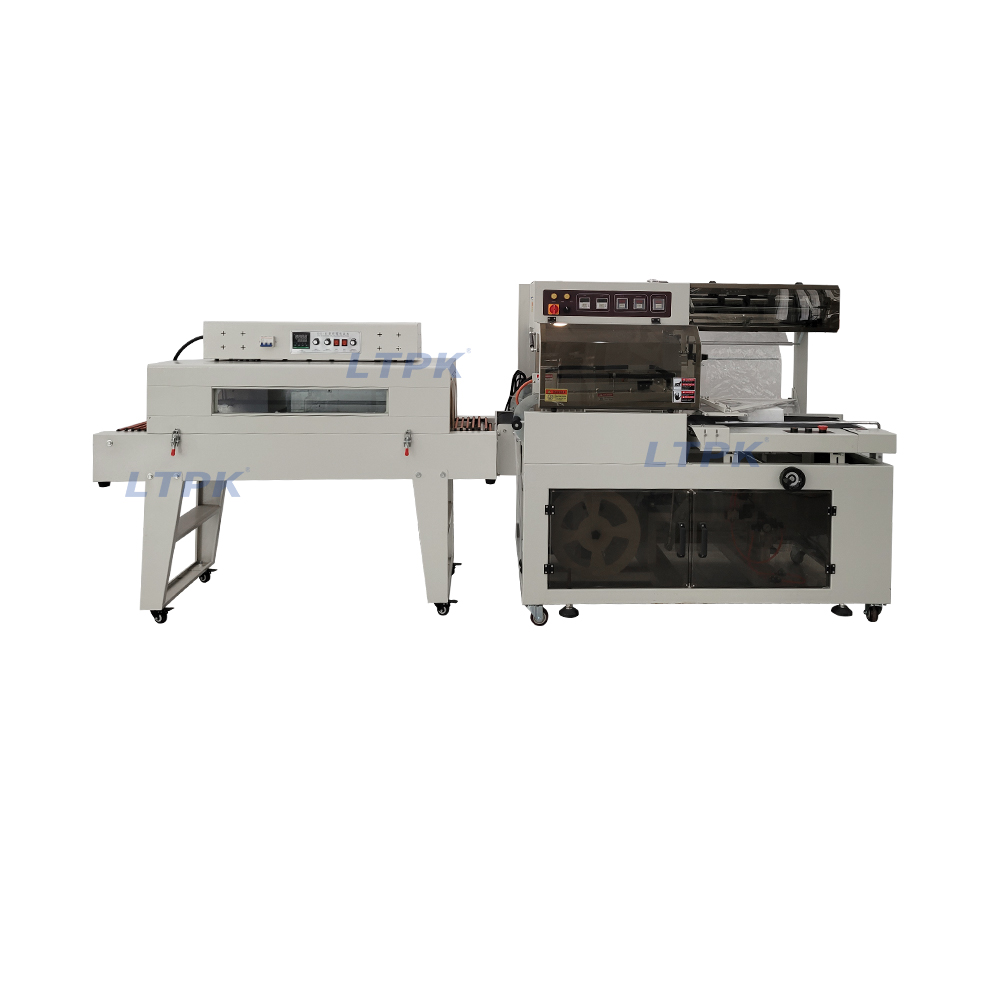

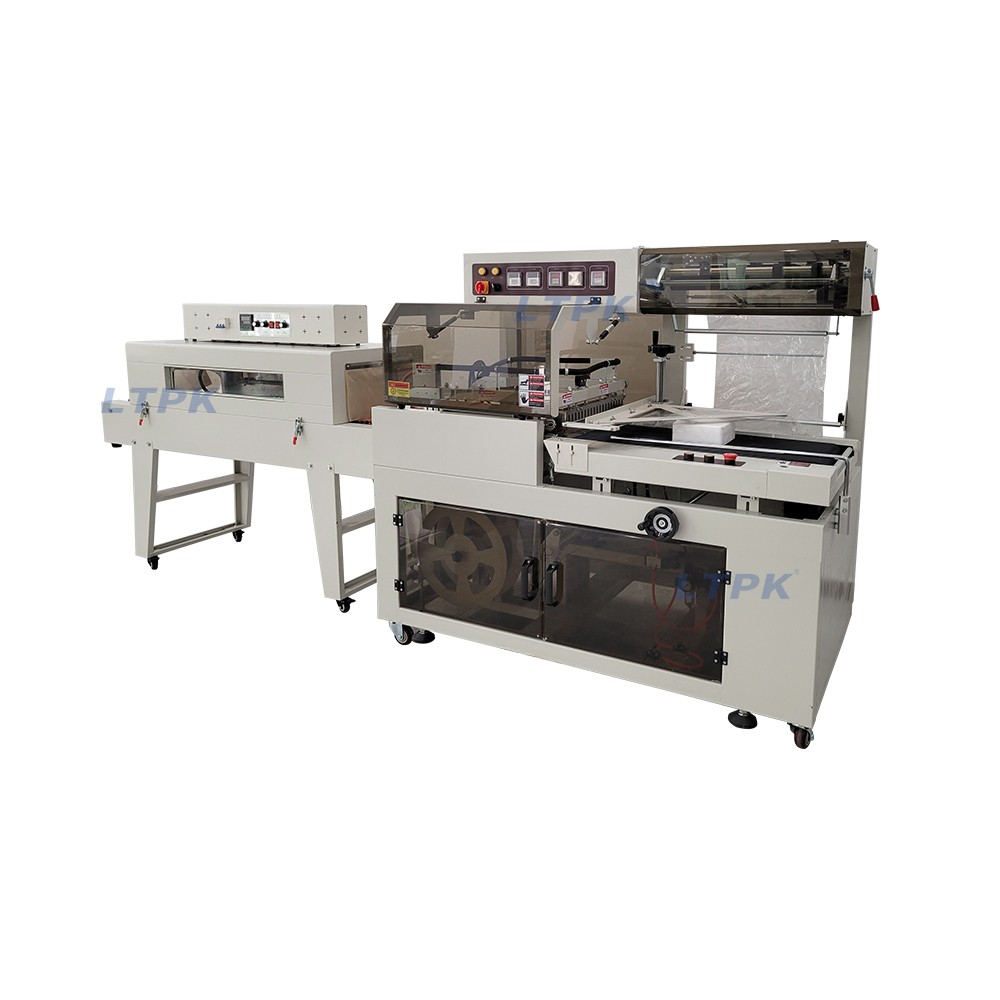

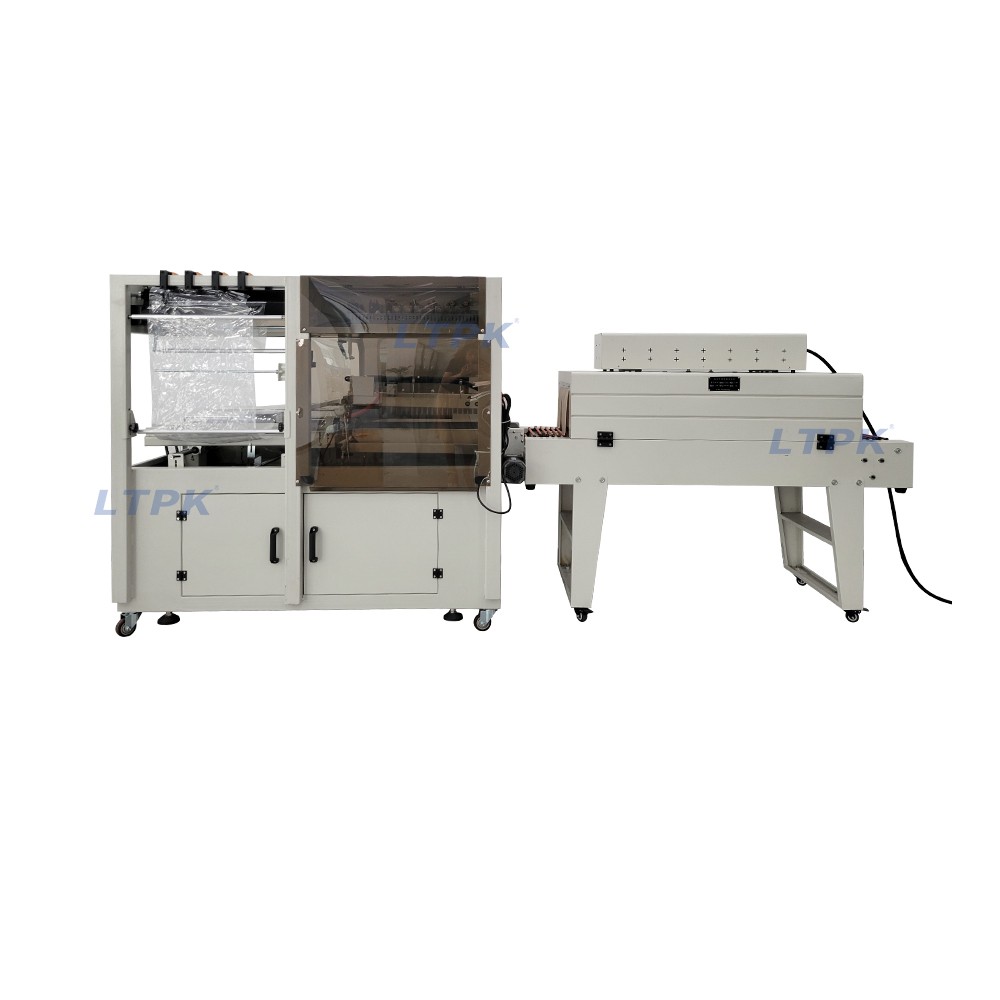

FQL750A BS7535LN Automatic L type sealing and cutting machine and Hot air circulation shrink machine

FQL750A BS7535LN Automatic L type sealing and cutting machine and Hot air circulation shrink machine

Model:FQL750A/BS7535LN
Power supply:220V 50/60Hz/380V 50/60Hz
Power:1.35KW/18KW
Max packaging size:L640*W540*H140mm
Cutter size/Heat tunnel size:760*640mm 1600*750*350mm
Packing speed/Conveying speed:15-30bags/min 0-10m/min(adjustable)
Conveying weight:30kg
Film material:POF PVC POF PP
Air pressure:0.5Mpa
Size:2260*1320*1550mm/2000*1000*1550mm
Weight :400kg/240kg

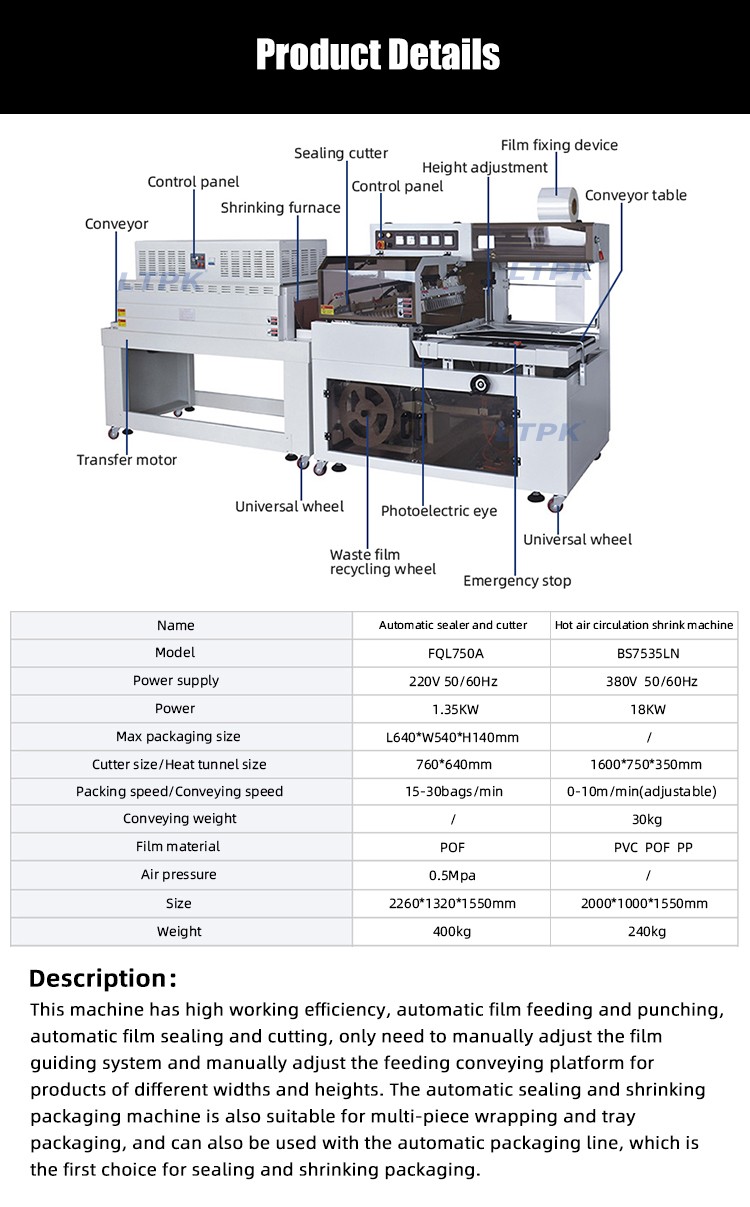

Description

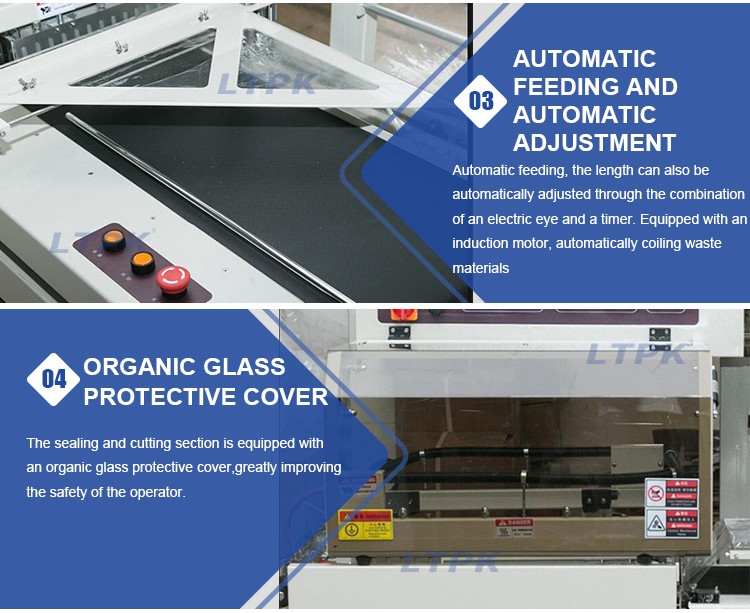

This machine has high working efficiency, automatic film feeding and punching, automatic film sealing and cutting, only need to manually adjust the film guiding system and manually adjust the feeding conveying platform for products of different widths and heights. The automatic sealing and shrinking packaging machine is also suitable for multi-piece wrapping and tray packaging, and can also be used with the automatic packaging line, which is the first choice for sealing and shrinking packaging.

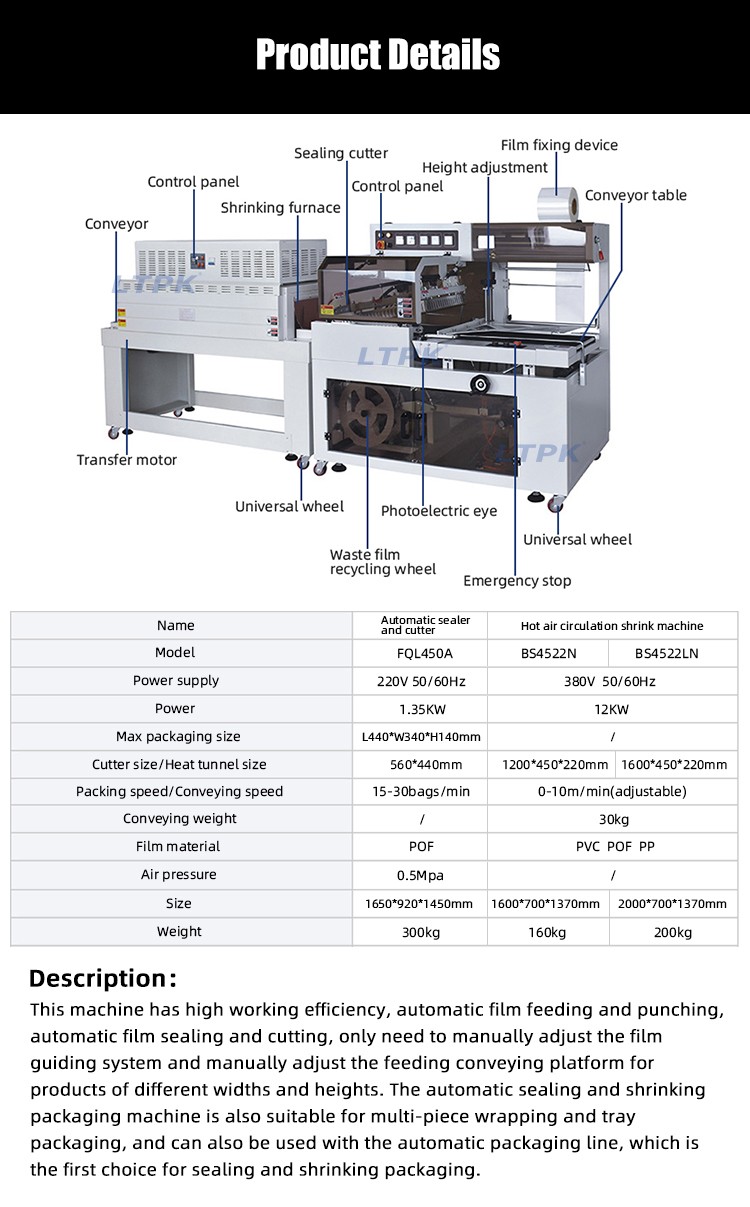

Technical Parameters

Name	Automatic sealer and cutter	Hot air circulation shrink machine
Model	FQL450A	BS4522N	BS4522LN
Power supply	220V 50/60Hz	380V 50/60Hz
Power	1.35KW	12KW
Max packaging size	L440W340H140mm	/
Cutter size/Heat tunnel size	560*440mm	1200450220mm	1600450220mm
Packing speed/Conveying speed	15-30bags/min	0-10m/min(adjustable)
Conveying weight	/	30kg
Film material	POF	PVC POF PP
Air pressure	0.5Mpa	/
Size	16509201450mm	16007001370mm	20007001370mm
Weight	300kg	160kg	200kg

Name	Automatic sealer and cutter	Hot air circulation shrink machine
Model	FQL550A	BS5530LN
Power supply	220V 50/60Hz	380V 50/60Hz
Power	1.35KW	16KW
Max packaging size	L540W440H140mm	/
Cutter size/Heat tunnel size	660*540mm	1600550300mm
Packing speed/Conveying speed	15-30bags/min	0-10m/min(adjustable)
Conveying weight	/	30kg
Film material	POF	PVC POF PP
Air pressure	0.5Mpa	/
Size	186010201550mm	20008001450mm
Weight	350kg	220kg

Name	Automatic sealer and cutter	Hot air circulation shrink machine
Model	FQL750A	BS7535LN
Power supply	220V 50/60Hz	380V 50/60Hz
Power	1.35KW	18KW
Max packaging size	L640W540H140mm	/
Cutter size/Heat tunnel size	760*640mm	1600750350mm
Packing speed/Conveying speed	15-30bags/min	0-10m/min(adjustable)
Conveying weight	/	30kg
Film material	POF	PVC POF PP
Air pressure	0.5Mpa	/
Size	226013201550mm	200010001550mm
Weight	400kg	240kg

Application

Mainly used in the production of packaging for food, beverage, stationery, printed matter, cosmetics, gifts, electronic products, toys and other products.
