Description

This machine adopts the principle of electromagnetic induction heating, which uses non-contact induction heating to instantly melt the adhesive layer of the sealing film on the aluminum foil at high temperature. After cooling, the sealing film is bonded to the bottle mouth to complete the sealing. Induction sealing has no contact, fast sealing speed, and good product sealing.

Technical parameters

Model:LGYS-3000

Power supply:220/110V

Power:3000W

Sealing diameter:20-150mm(need to adjust the sealing head)

Bottle height:40-300mm

Sealing speed:5-18m/min

Conveyor belt bearing:≤50kg

Cooling method:water cooling

Host weight:60kg/78kg

Conveyor:optional

Host size:68*97*145cm

Application

Suitable for sealing bottles made of non-metallic materials such as plastic and glass. Widely used in industries such as food, beverages, fats, and daily chemicals.

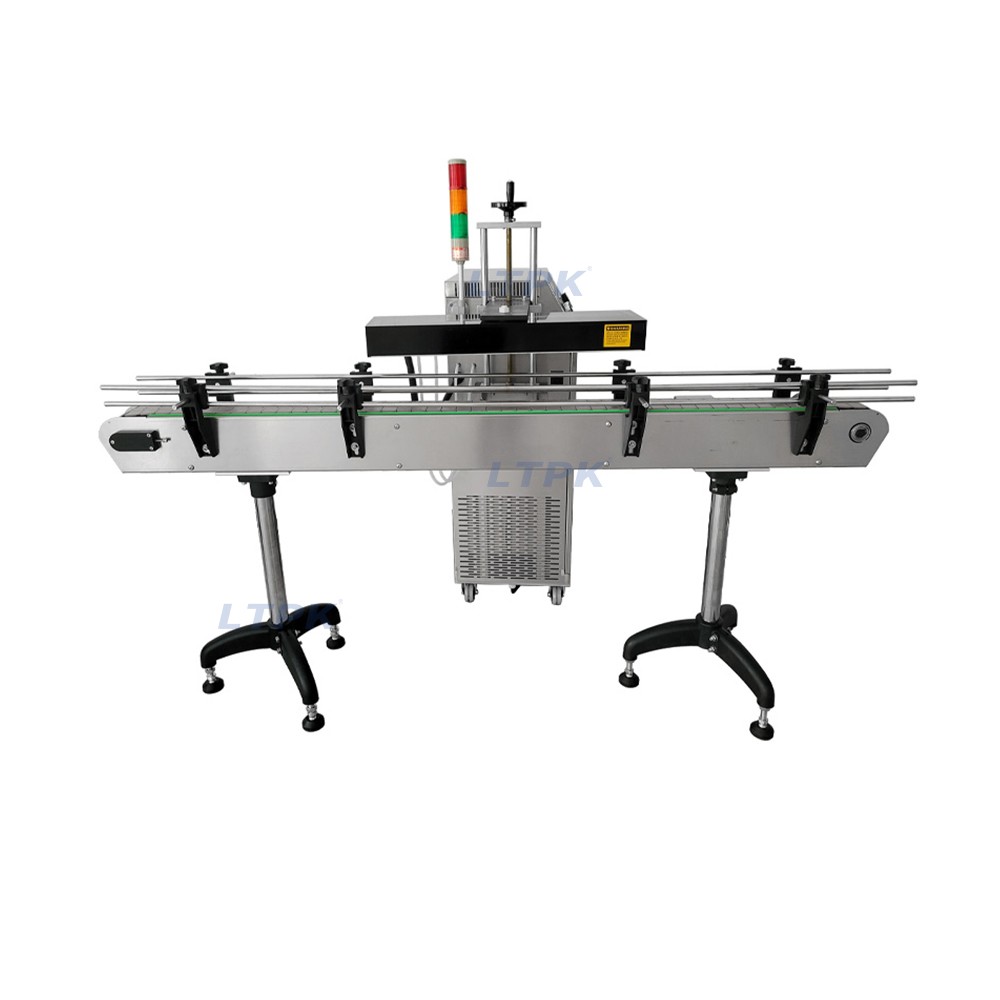

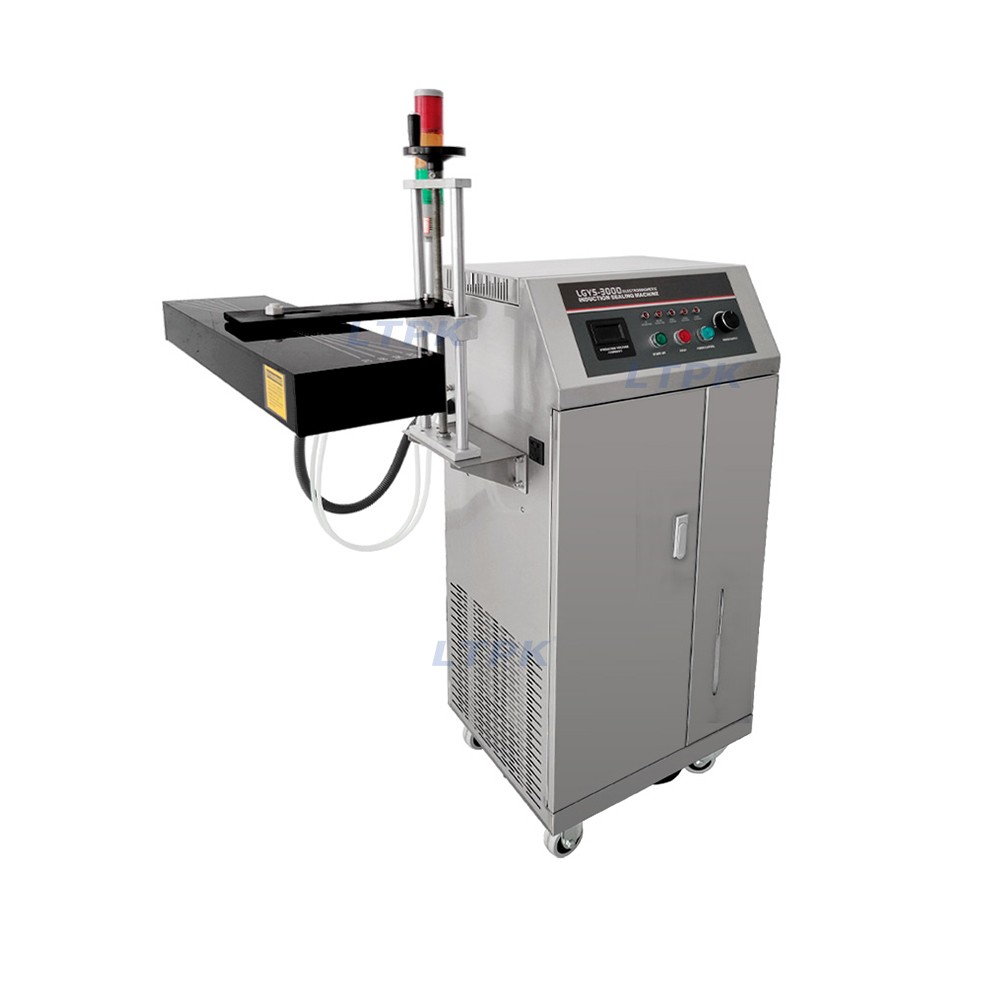

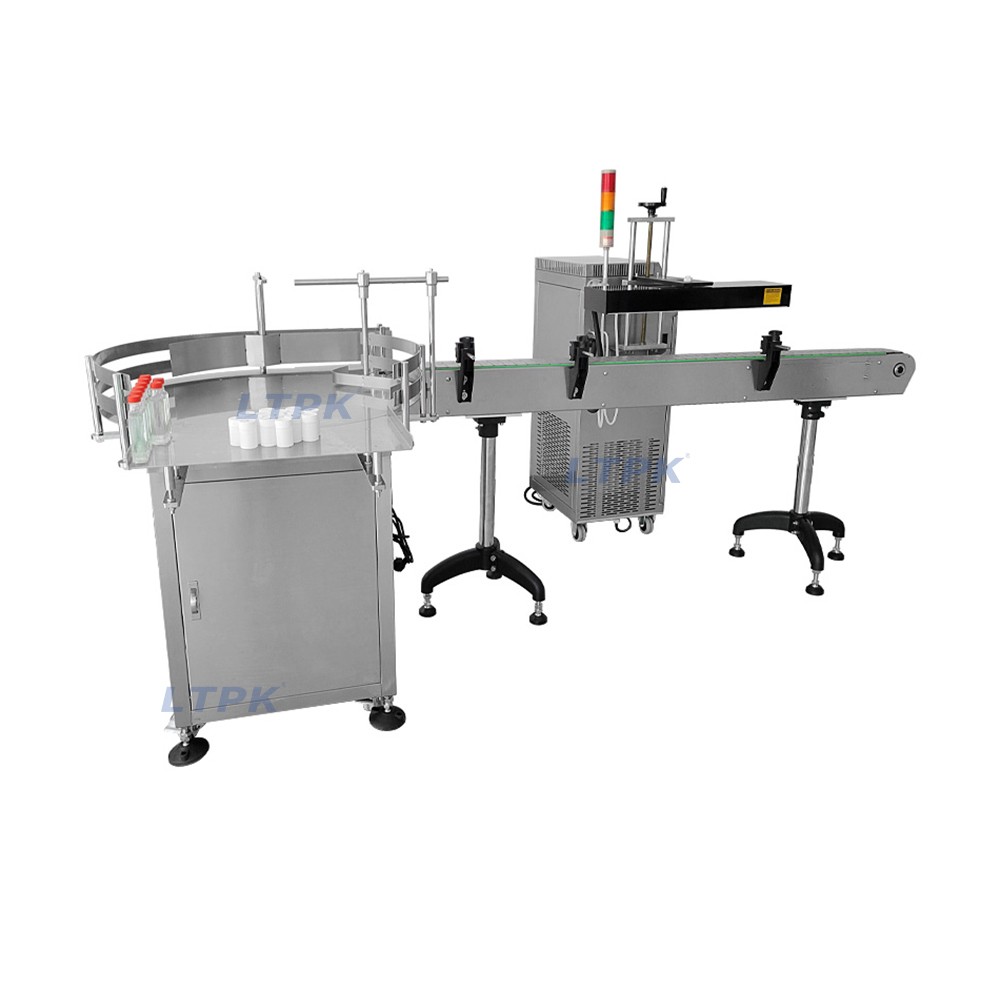

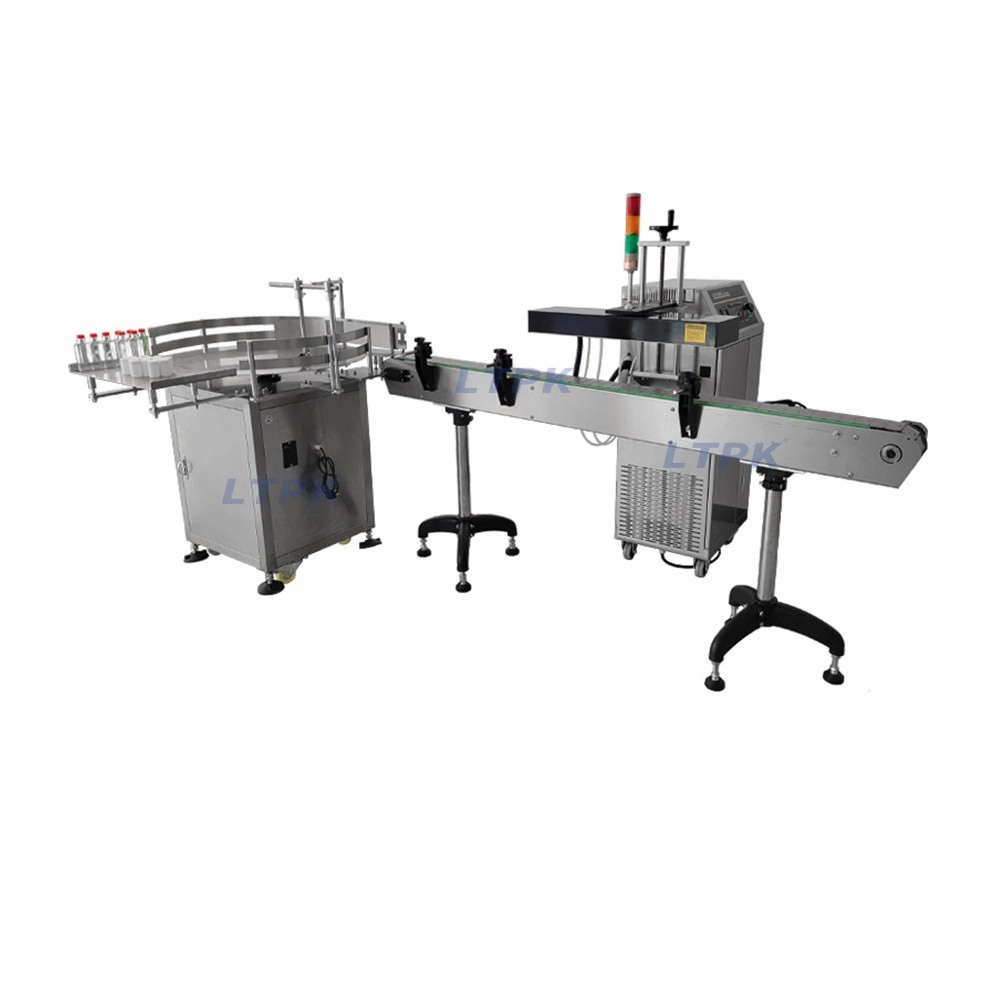

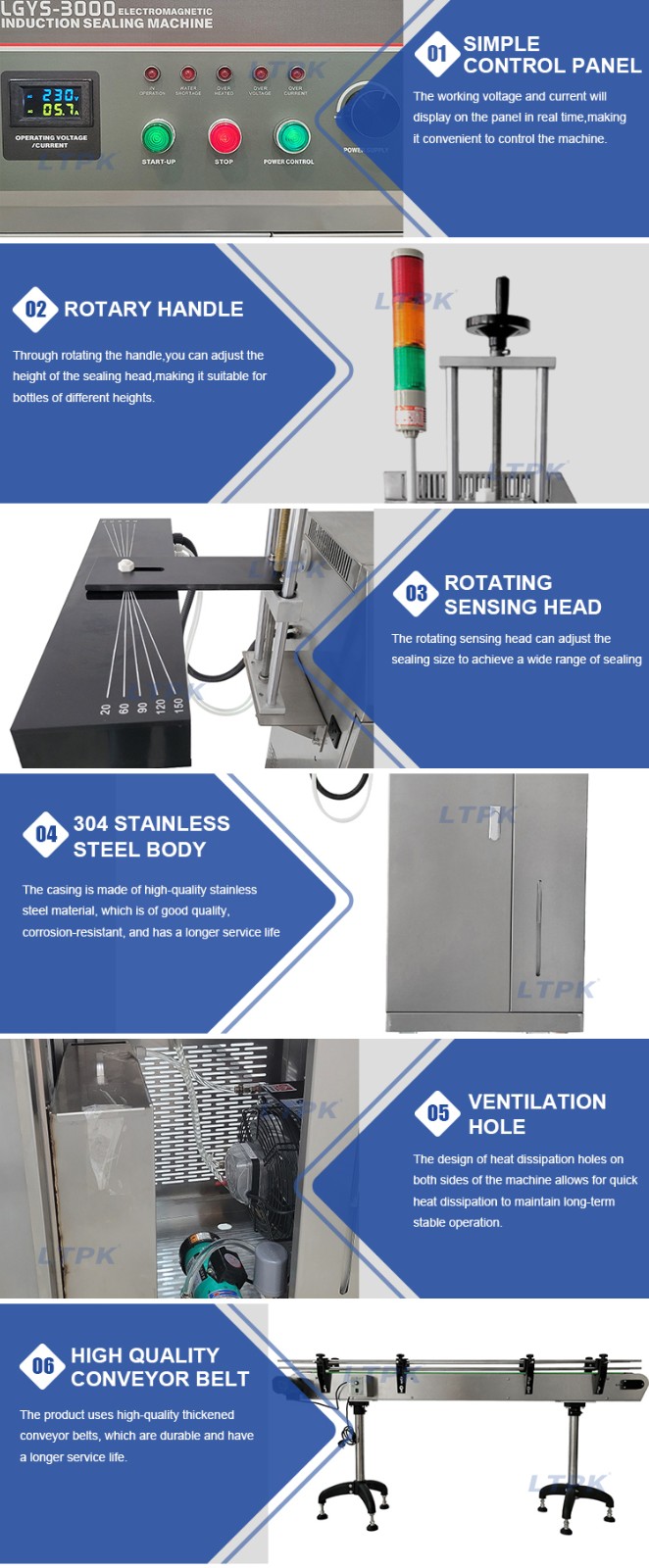

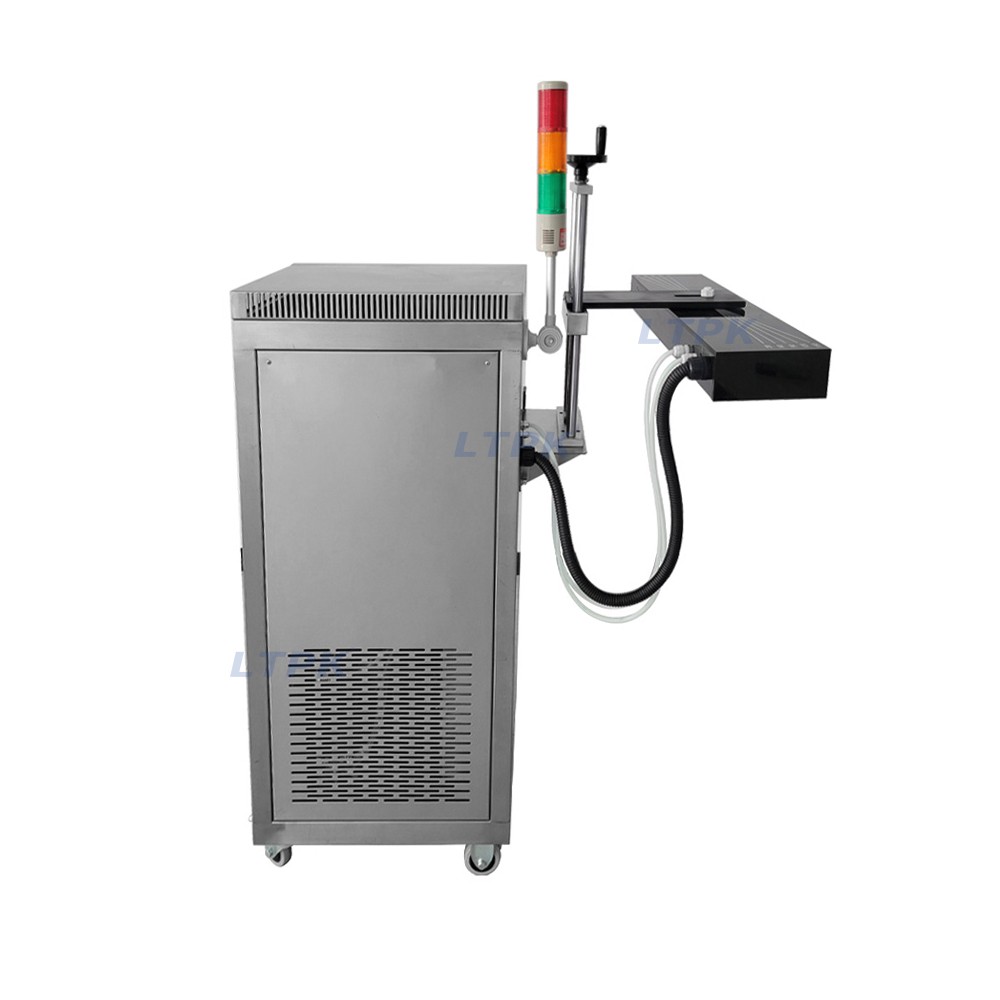

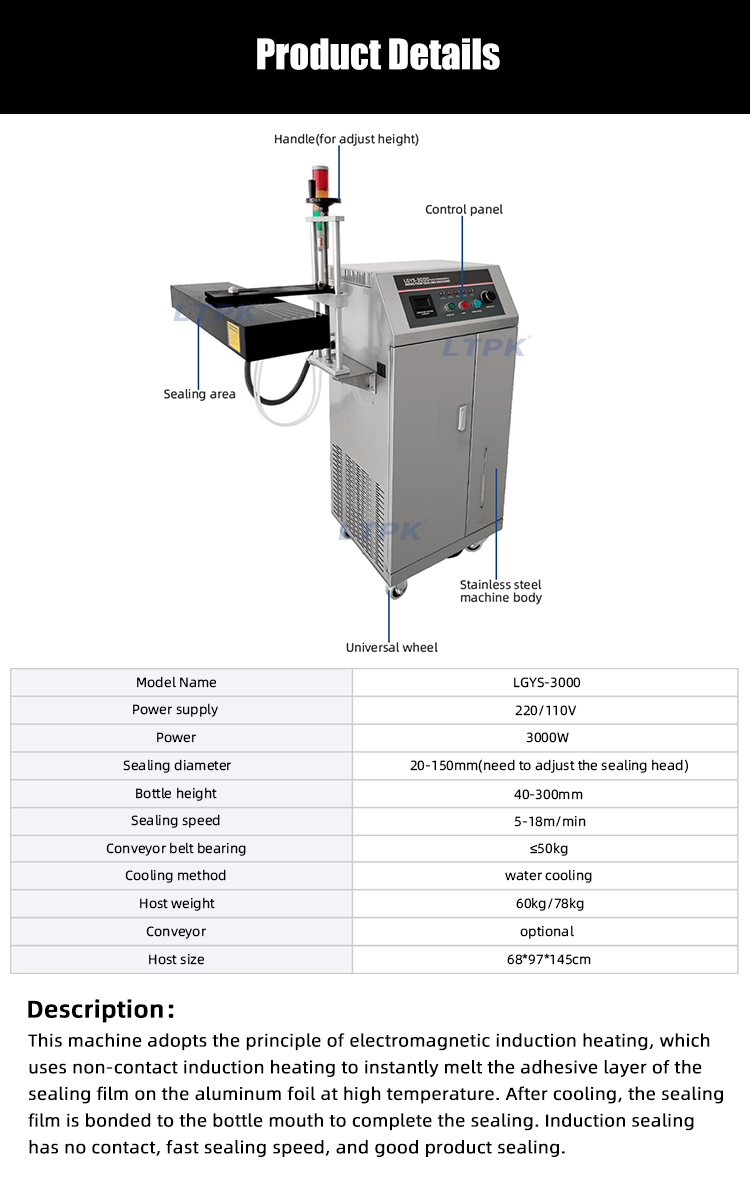

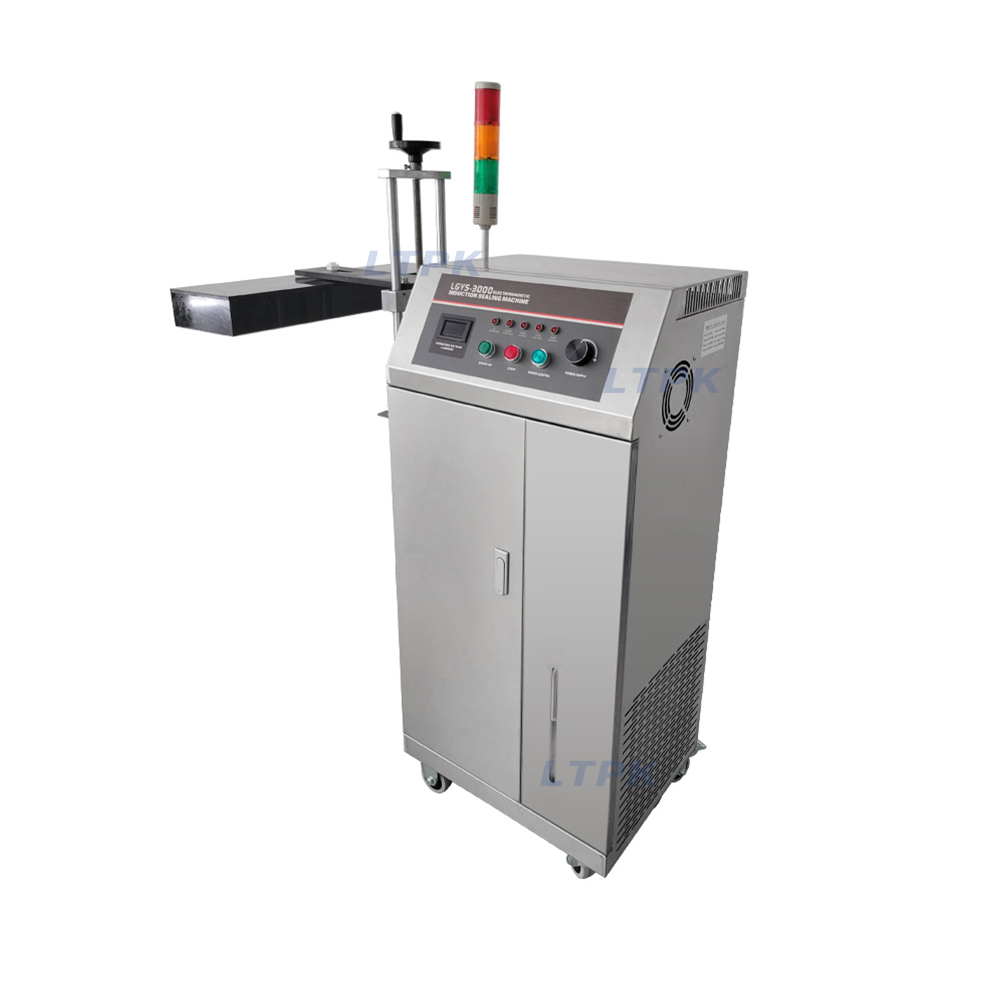

Detail Images
