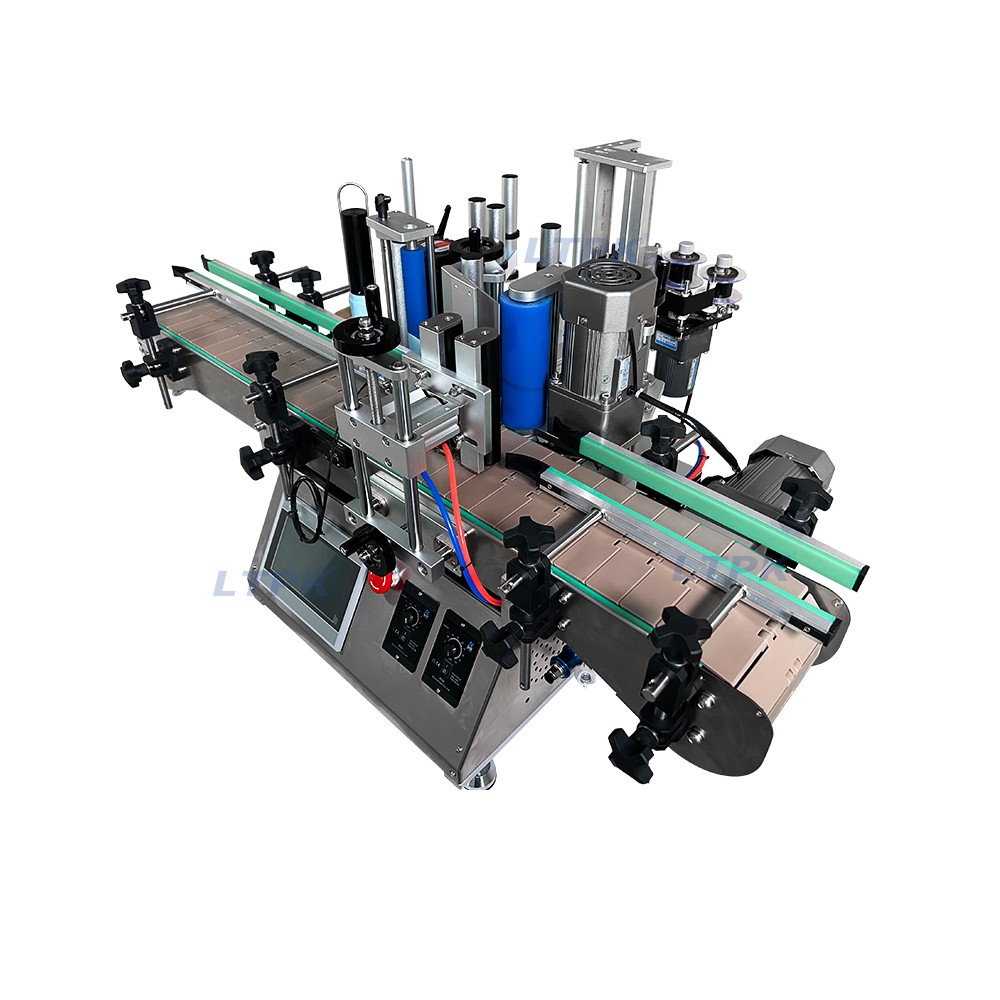

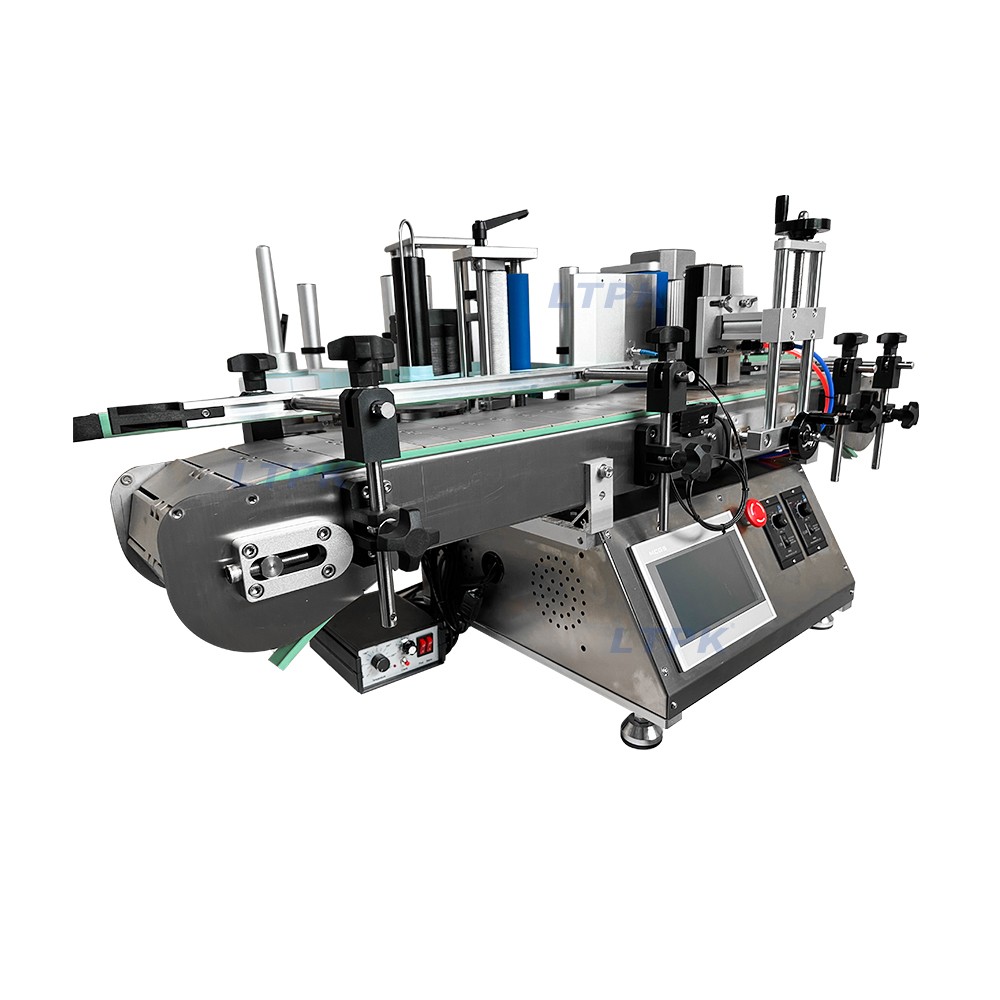

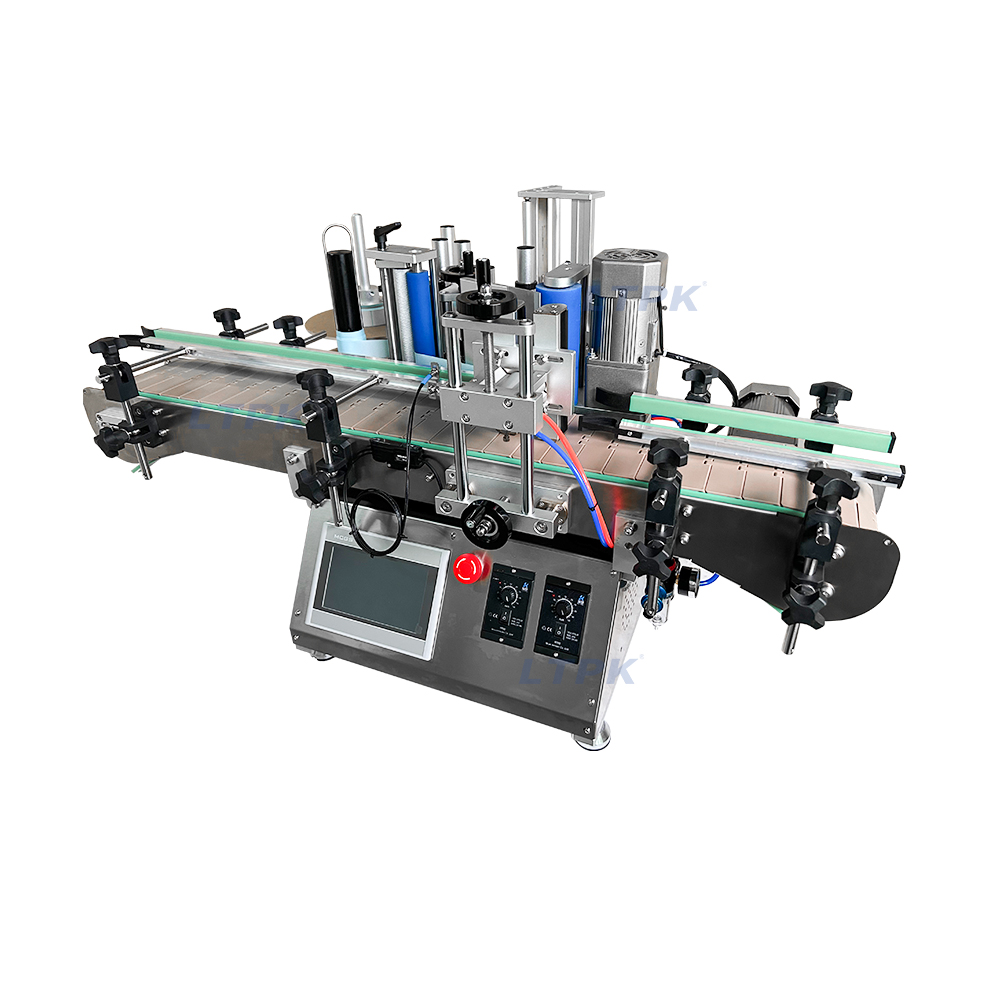

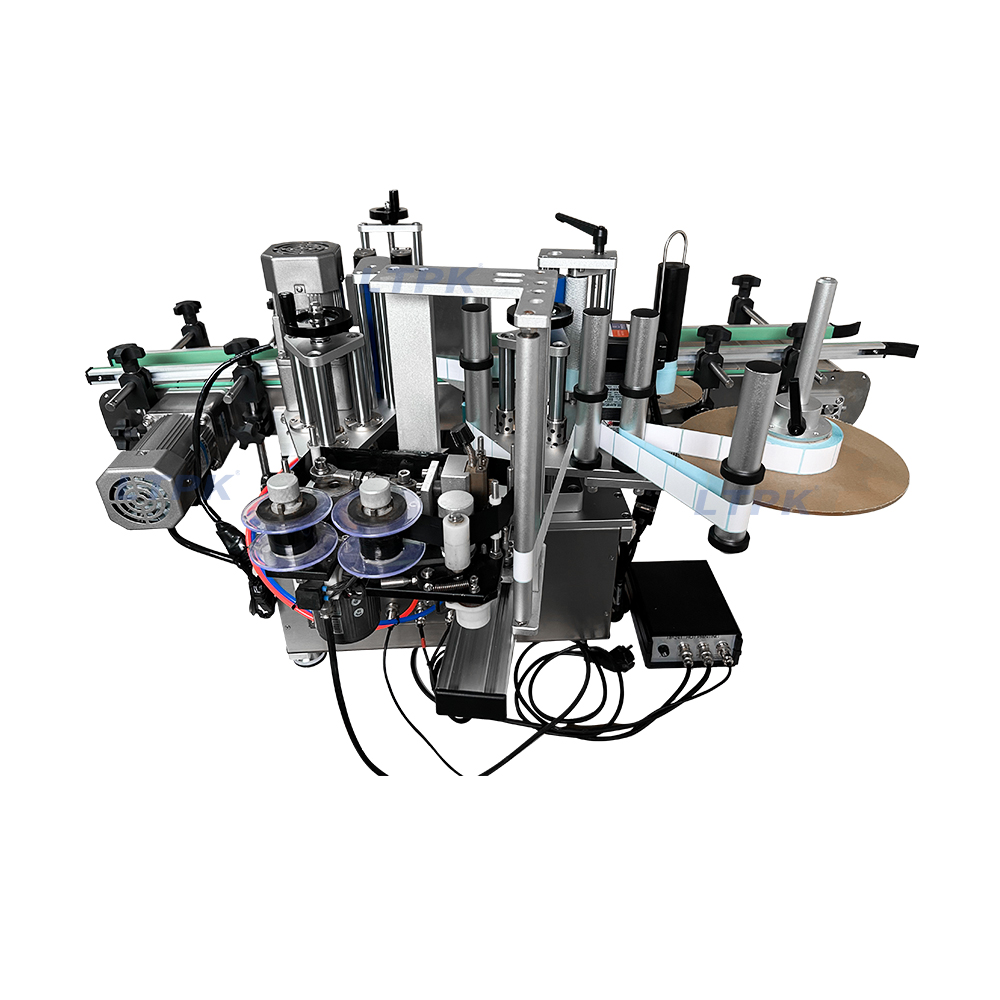

LT-150C Automatic Desktop Position Labeler Wine Beer Tin Can Jar Round Bottle Labeling Machine With Date Coding Printer

Description

This automatic bottle labeling machine is with a conveyor and it has similar functions like the full automatic labeling machine. This round bottle labeling machine can be used for double side labeling. The desktop type labeling machine can save working space. It is widely used to label round bottles like wine bottles, toner bottles, food cans etc.

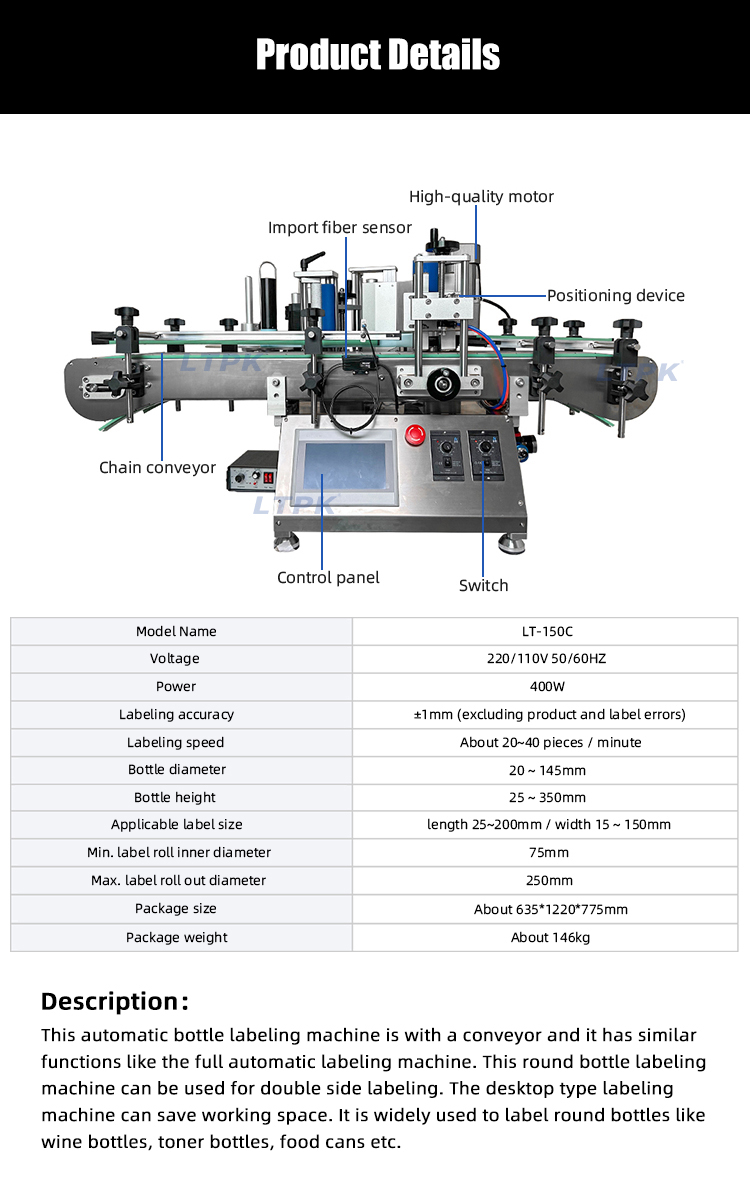

Technical Parameters

Model:LT-150C

Power:220V / 50Hz 400w

Labeling accuracy:±1mm (excluding product and label errors)

Labeling speed:About 25~50 pieces / minute

Applicable product size:Φ20 ~ 125mm / height 25 ~ 350mm

Applicable label size:length 25~200mm / width 15 ~ 150mm

Min.label roll inner diameter:75mm

Max. label roll out diameter:φ250mm

Package size:About 126*76*83cm

Package weight:About 146kg

Application

Widely used for labeling round bottles in industries such as cosmetics, daily chemicals, electronics, hardware, plastics, food, disinfectant, etc

 Feature

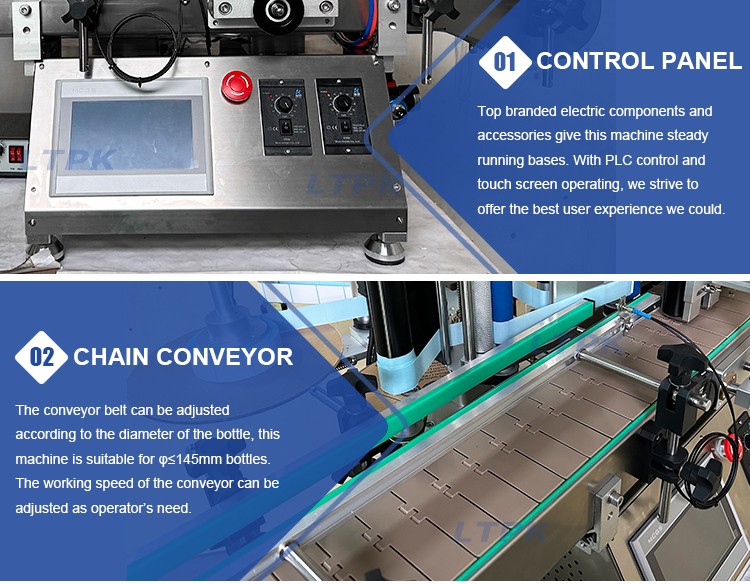

1. Upgrade the conveyor belt to a chain plate type.

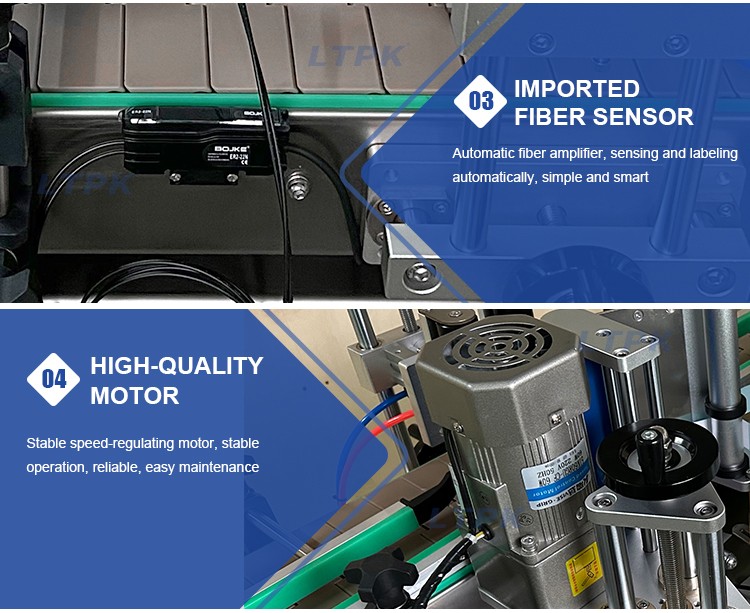

2. The stepper motor that has been marked has been upgraded to closed-loop and the brand has been upgraded to leadshine, which can achieve faster speed and higher accuracy.

3. The power supply of the stepper motor has been changed from AC power supply to DC power supply, which is more stable.

4. The labeling mechanism of the labeling platform has undergone a small and user-friendly upgrade, making it relatively more convenient to wear labels.

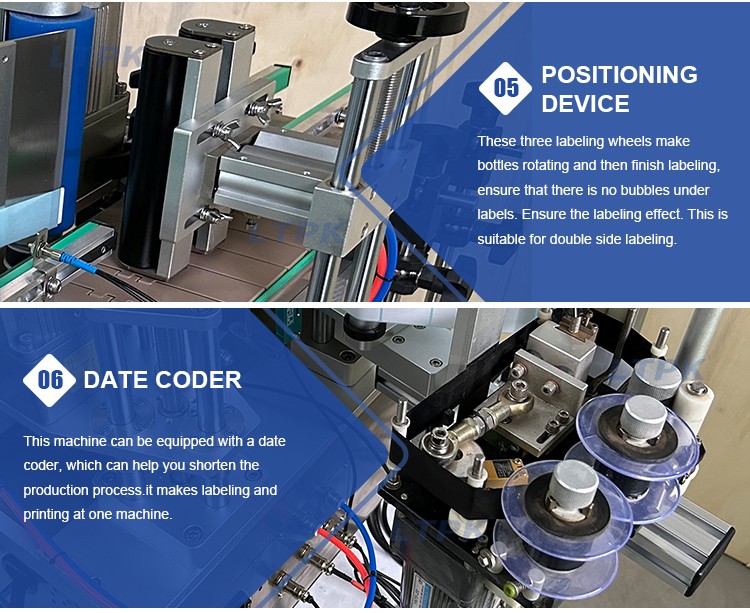

Detail Images
