LT-AAPFCL4 4 Heads Paste Piston Pump Filling Capping And Round Bottle Fixed Function Labeling Machine Line With Vibratory Bowl

Description:

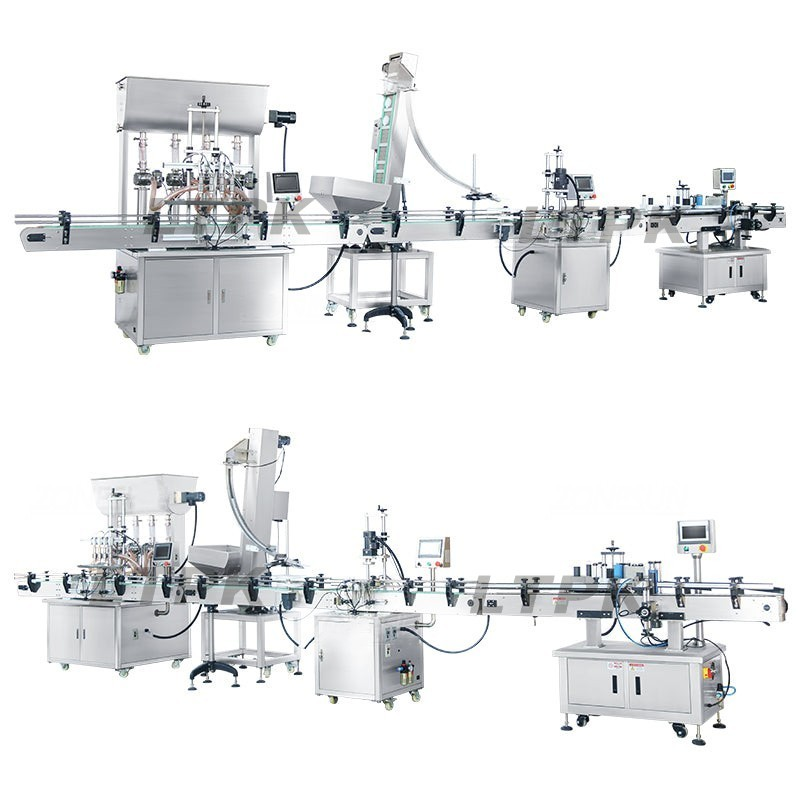

This full automatic production line is consist of bottle turntable,filling machine,cap feeding machine Capping machine,labeling machine and bottle sorting machine.It has a high degree of automation,good stability,and convenient adjustment.It is equipped with a cap feeding machine,can automatically feed bottle caps which can save labor greatly.This machine is suitable for food,daily chemical,agriculture and cosmetics industries.

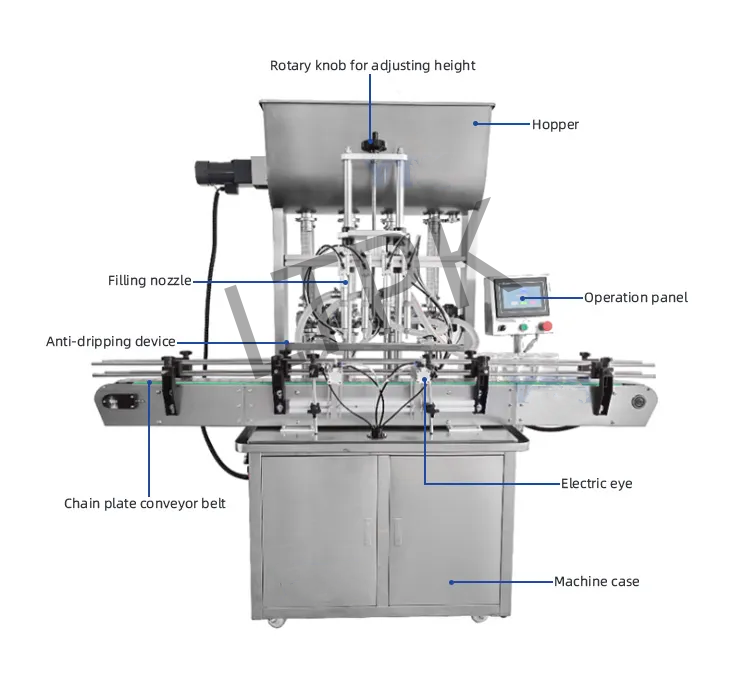

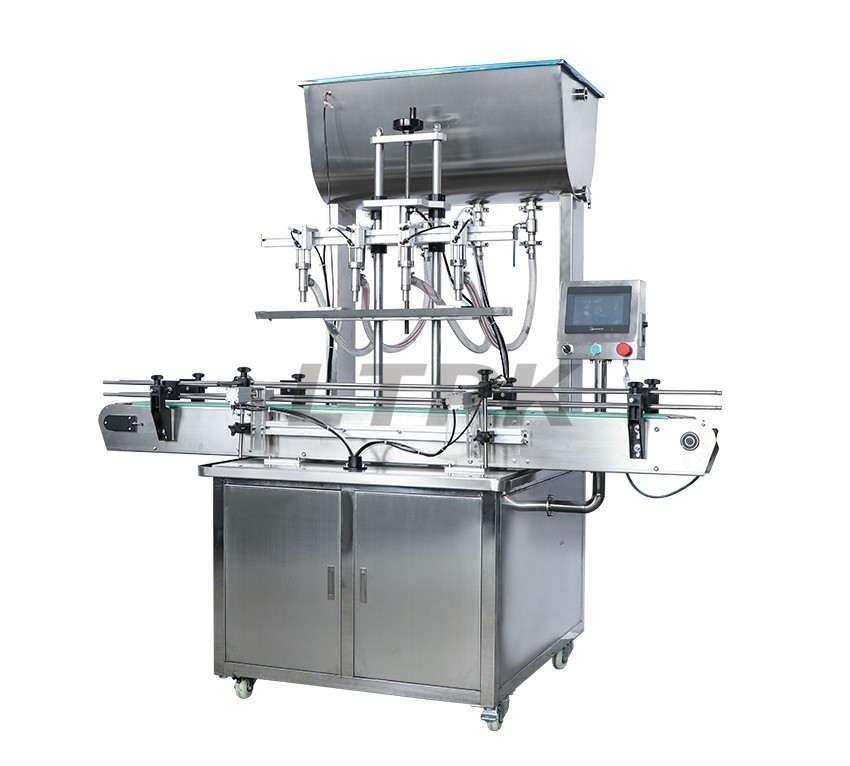

Filling Machine

Model : LT-QZDG4

Voltage :110/220V 50-60HZ 800W

Filling Range :5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working Speed(base on water) : 20-50bottles/min

Filling Accuracy: ≤±1%

Air Pressure :0.5-0.7Mpa

Machine Weight:  260kg

Package Weight: About 380kg   (100-1000ml 4Heads)

Machine Size : 2000*1200*2300mm

Package Size: About 1410*1220*2130mm   (100-1000ml 4Heads)

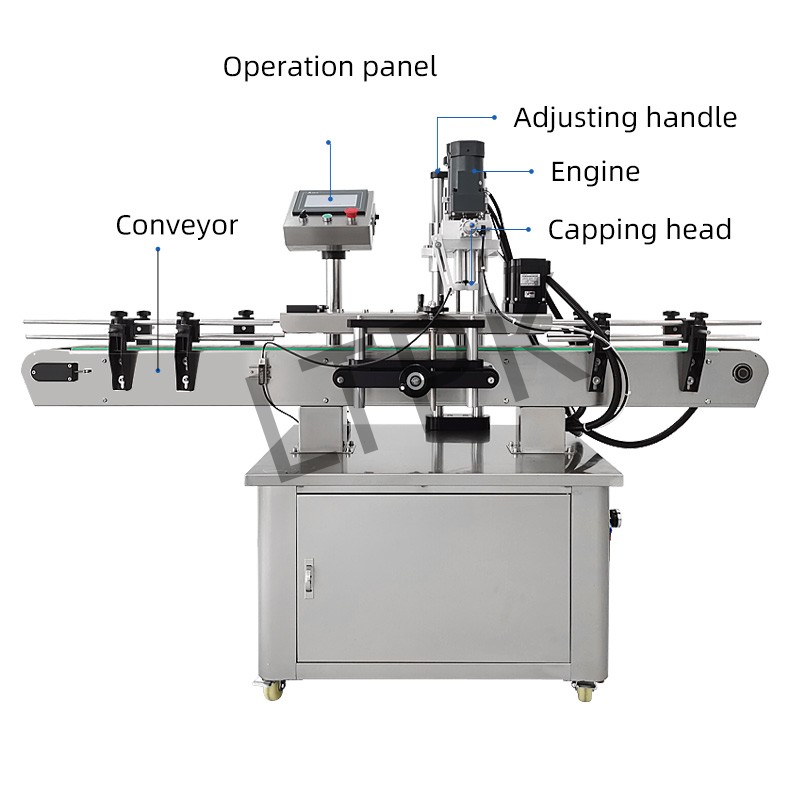

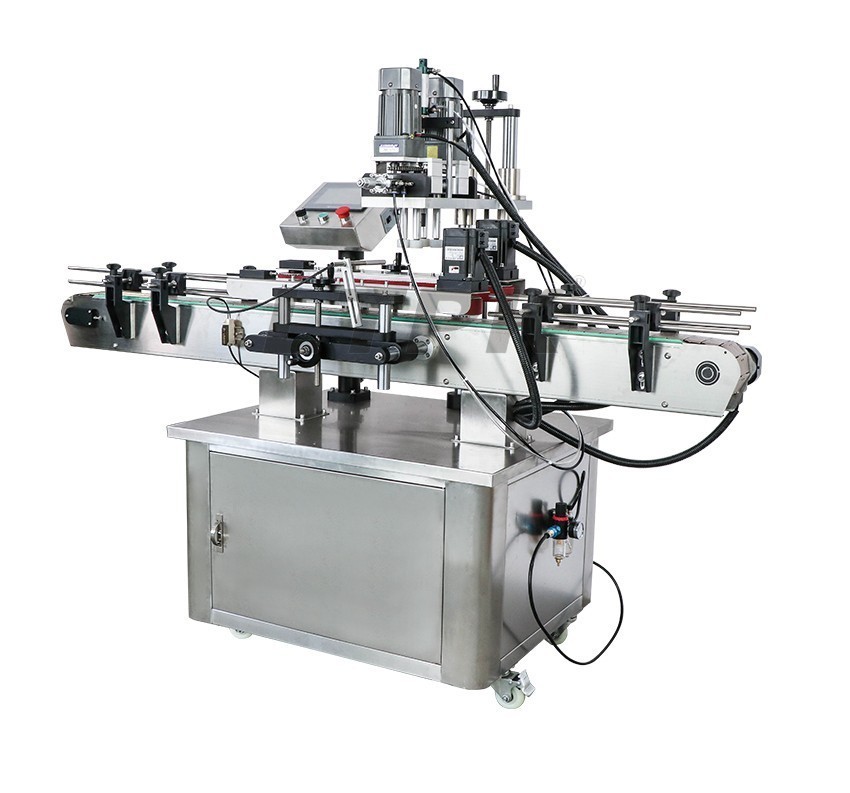

Capping Machine

Machine Model :LT-SC440

Working voltage :AC220V/110V 50-60HZ

Bottle height :≤200mm

Bottle caps diameter: customize

Working speed :20-30 bottles/minute(depending on bottle and caps)

Working pressure: 0.4-0.6 MPa

Conveyor size :100mm(W)*1950mm(L)

Package size :About 2000*820*1800mm

Net weight/Gross weight: About 211kg/272kg

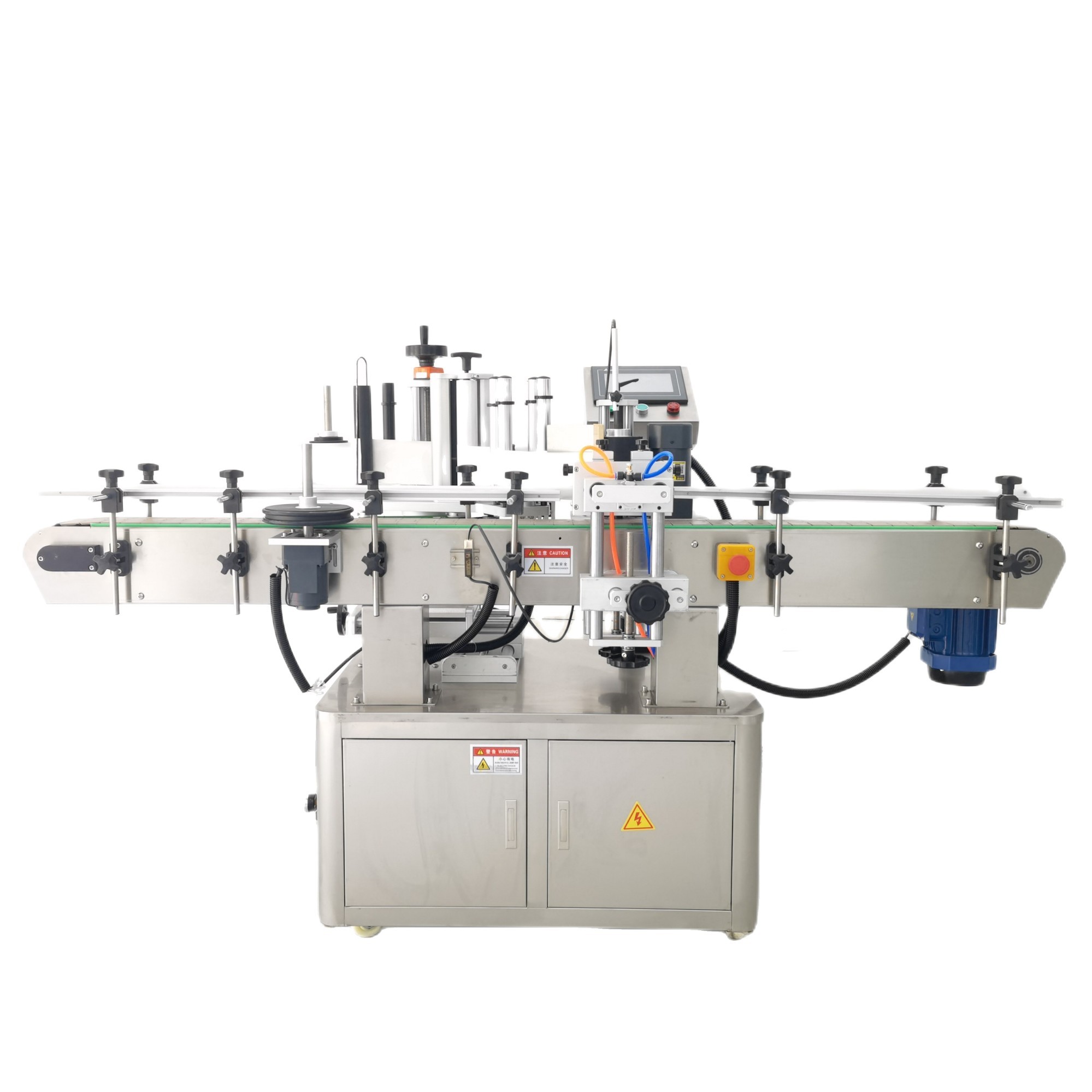

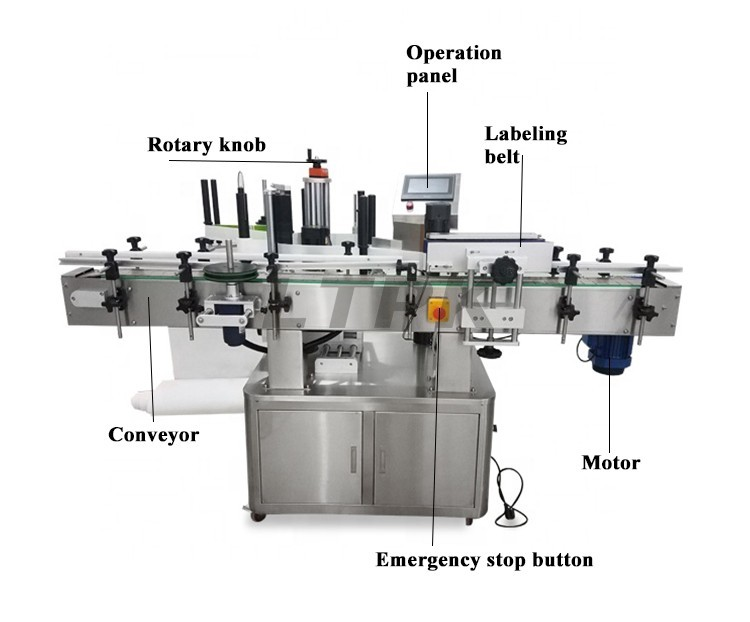

Labeling machine

Model:LT-260 Labeling Machine

Power supply: AC220V 50Hz/60Hz 1000W

Labeling capacity(bottles/min) :25-50 bottles/min(depends on bottle size)

Labeling accuracy(mm) :±1.0mm

Suitable Bottle Diameter :Φ12-100mm

Label size(mm) :(L)20-300mm (H)15-150mm

Roll inside diameter(mm): Φ76mm

Roll outside diameter(mm): Φ350mm

Conveyor Size :112*2000mm(W)

Machine size About: (L)2000*(W)820*(H)1380(mm)

Machine weight About :180kg

Packing Size :About (L)2100*(W)890*(H)1520(mm)

Package weight :About 250kg
