Description

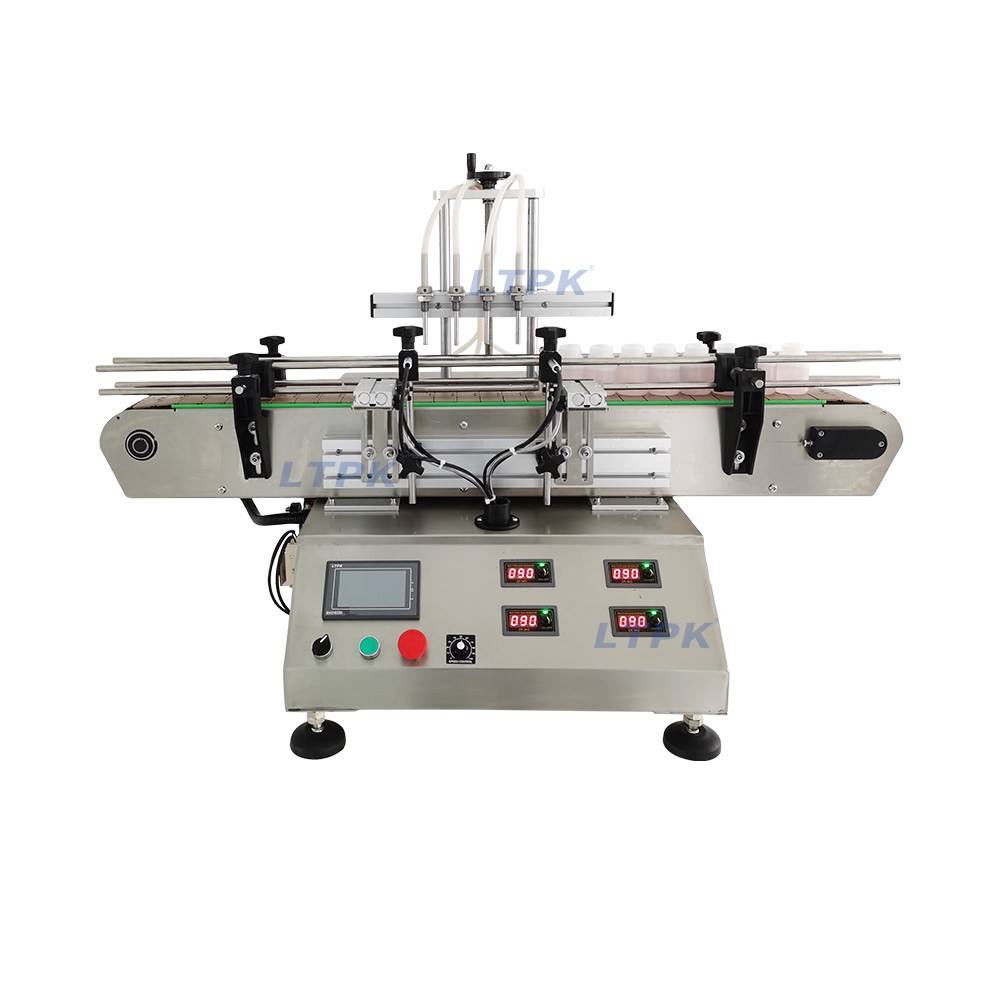

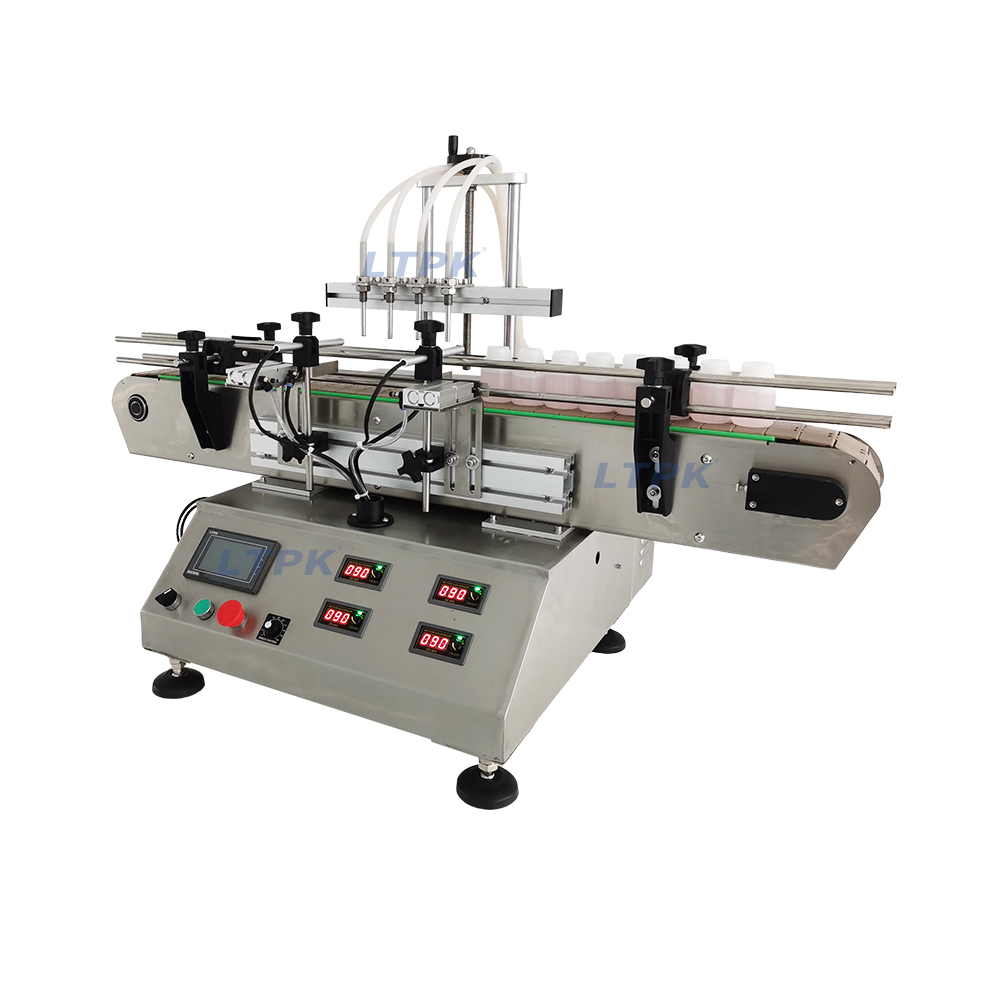

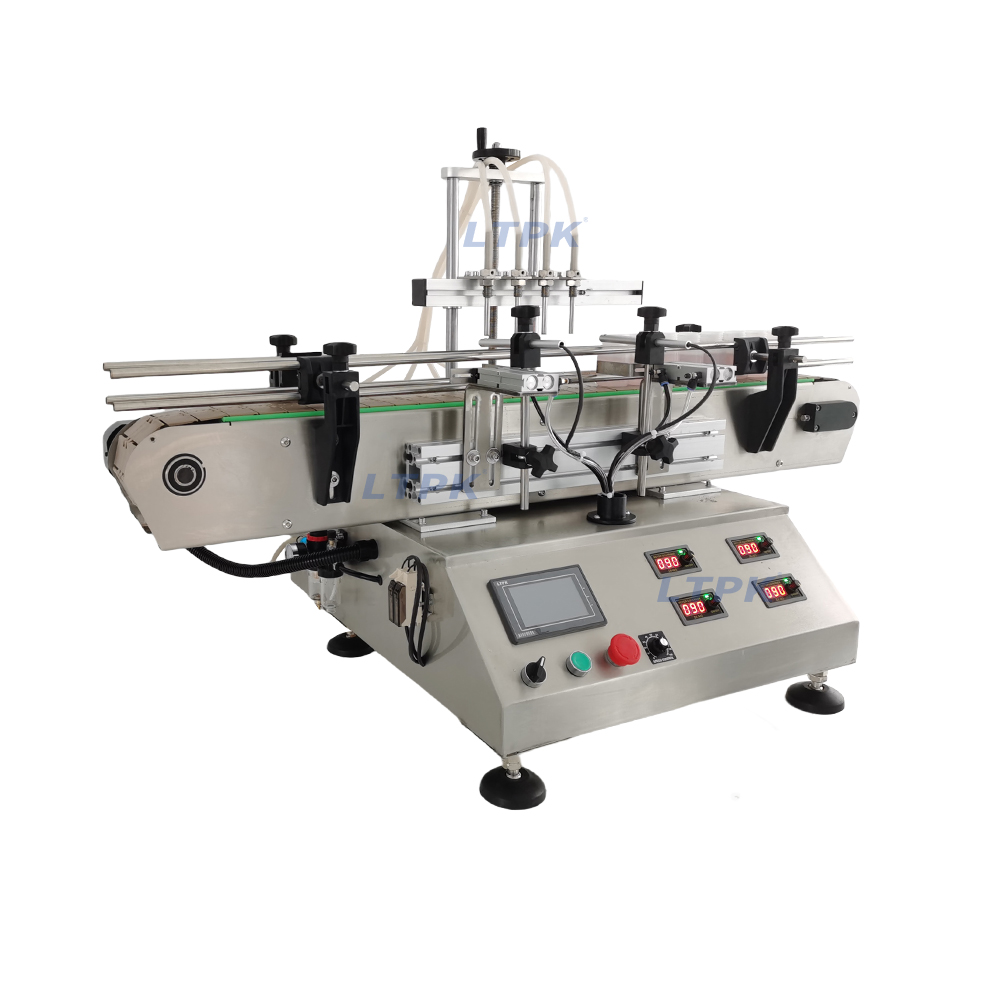

The four head magnetic pump filling machine adopts microcomputer control,the working time and intermittent time of the pump are controlled by microcomputer,high degree of automation, simple and convenient to operate;The magnetic pump filling machine can not only be used alone, but also can be combined with Capping machine equipment to form the filling and capping production line.

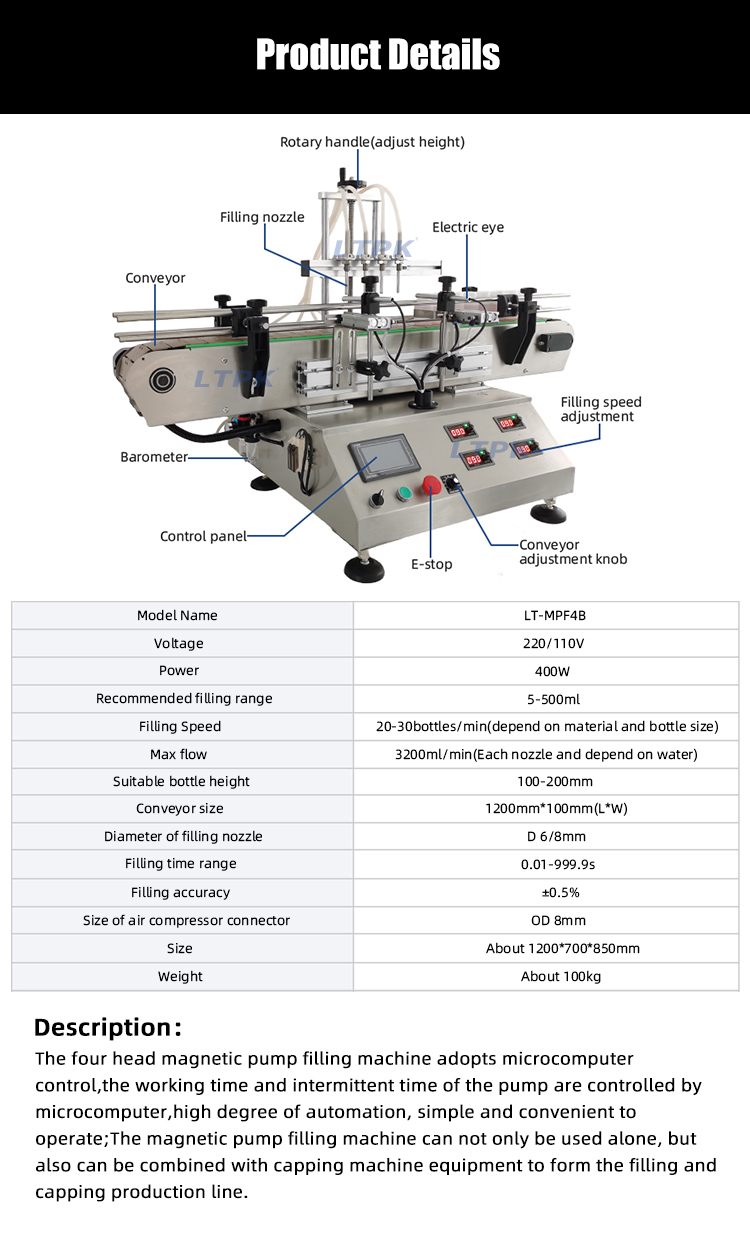

Technical Parameters

Model:LT-MPF4B

Voltage:220V/110V

Power :400W

Recommended filling range :5-500ml

Filling Speed :20-30bottles/min(depend on material and bottle size)

Max flow: 3200ml/min(Each nozzle and depend on water)

Suitable bottle height: 100-200mm

Conveyor size: 1200mm*100mm(L*W)

Diameter of filling nozzle :OD 6/8mm

Filling time range: 0.01-999.9s

Filling accuracy :±0.5%

Size of air compressor connector: OD 8mm

Size: About 1200*700*850mm

Weight:  About 100kg

Application
Wide range of application, filling of various liquids. Such as beverage, milk, soy sauce, alcohol, wine,oral liquid,essential oil,solution,eye drops,inks,perfume etc. Suitable for various industries, such as food, chemical, catering, daily chemical, etc.

Detail Images
