Description

This automatic bottle labeling machine is with a conveyor and it has similar functions like the full automatic labeling machine.It is with a reasonable design and the dimension is not that large as the full automatic labeling machine.It is the ideal choice for most of suppliers.

Technical Parameters

Model:LT-150

Voltage:AC220V/110V 50-60HZ

Power:450W

Product:Round bottle

Labeling speed:10-40 times/min

Labeling accuracy:±1mm

Min.label roll inner diameter:76mm

Max. label roll out diameter:φ260mm

Product size (Bottle diameter):Φ20-125mm

Label size:W: 10-150mm,

L:0-200mm，

H：0-220mm

Machine size:1135*590*720mm

Machine weight:120kg

Packing size:1226*640*850mm

Application

Suitable for labeling cylindrical bottles of various specifications，such as cosmetics round bottles, wine bottles, etc. Widely used in food, cosmetics, chemical industry and other industries.

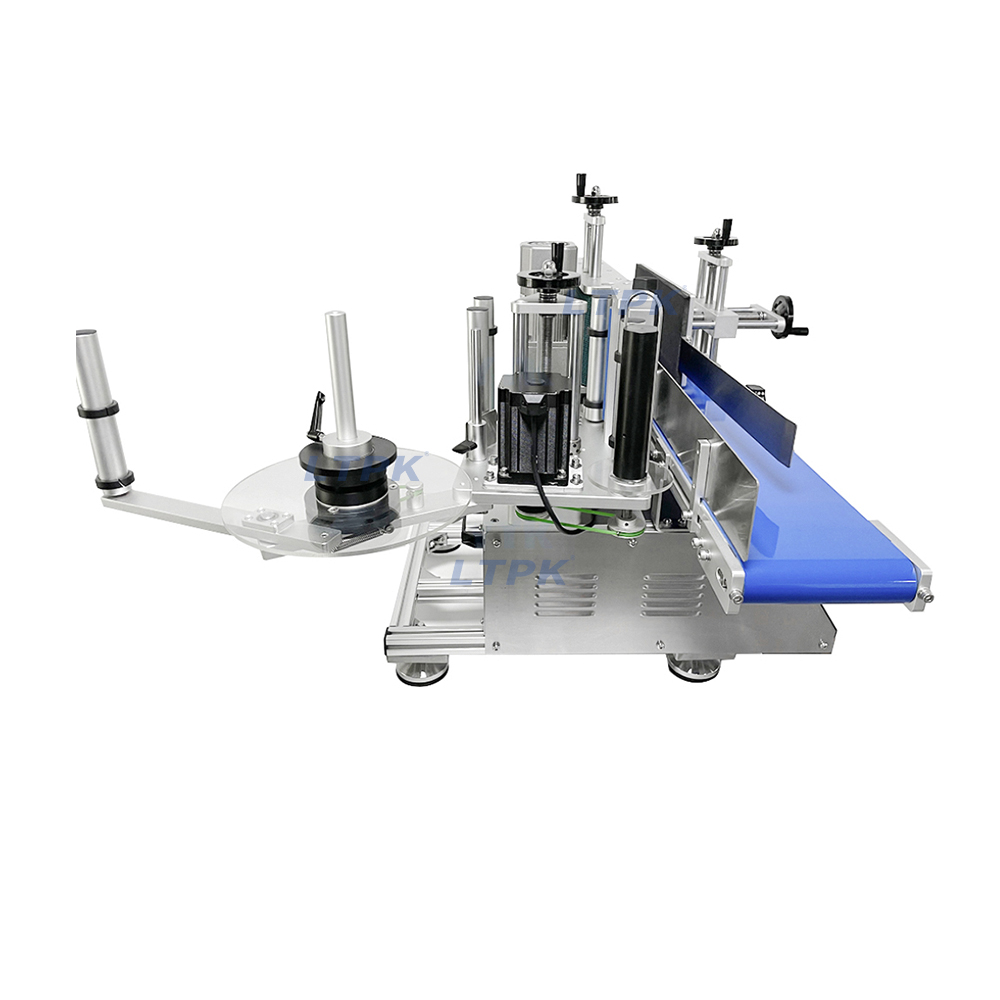

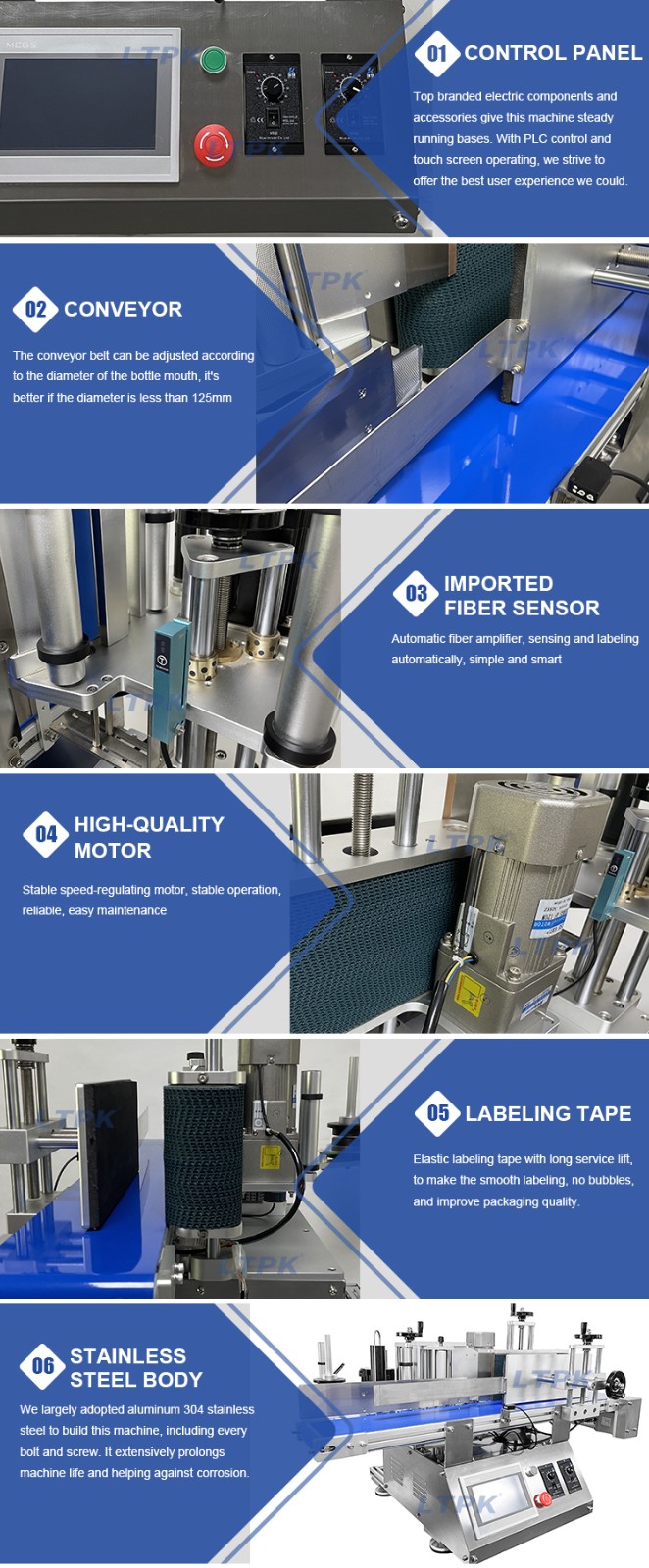

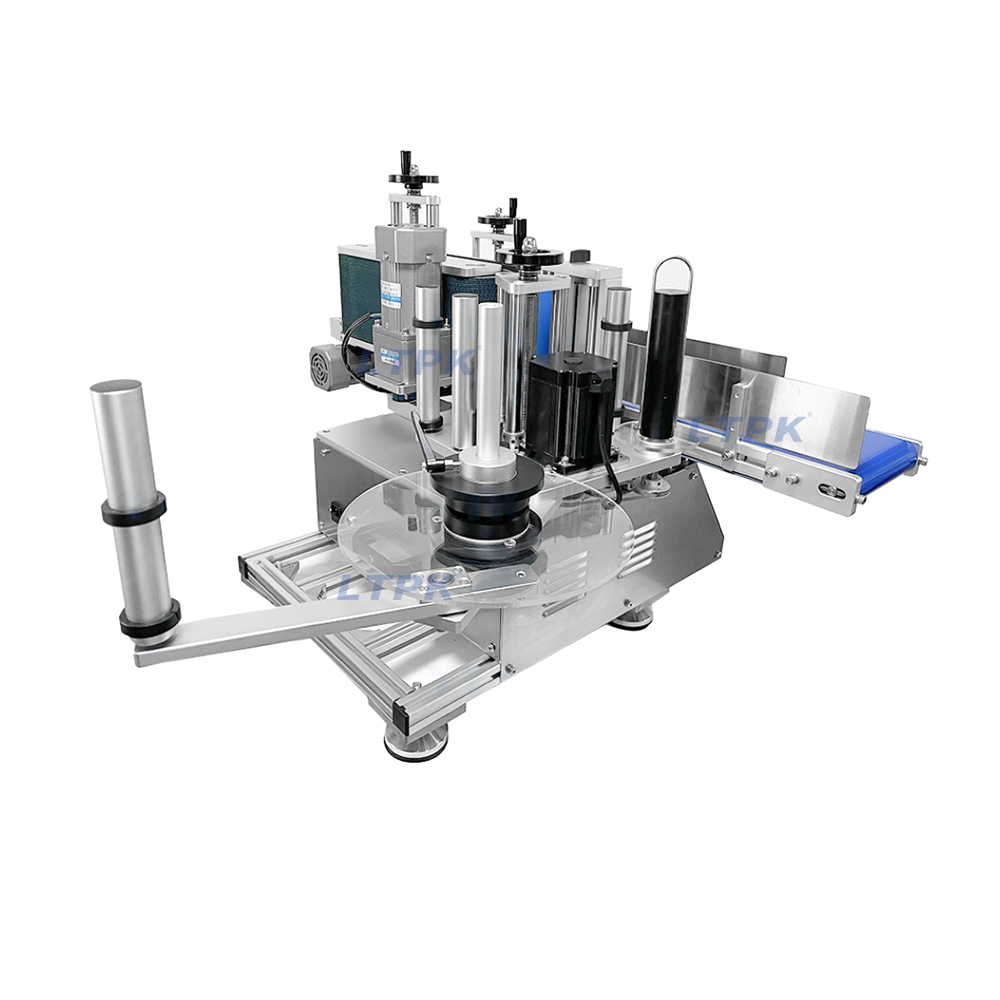

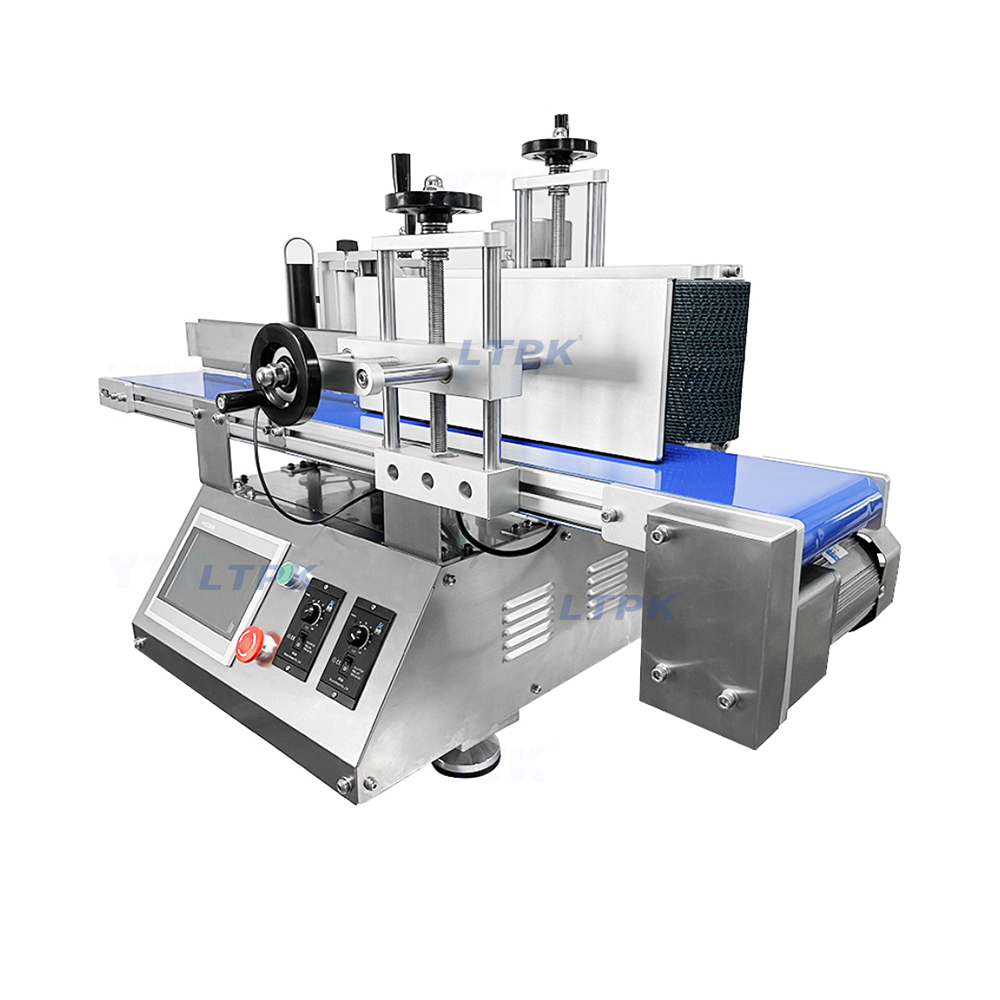

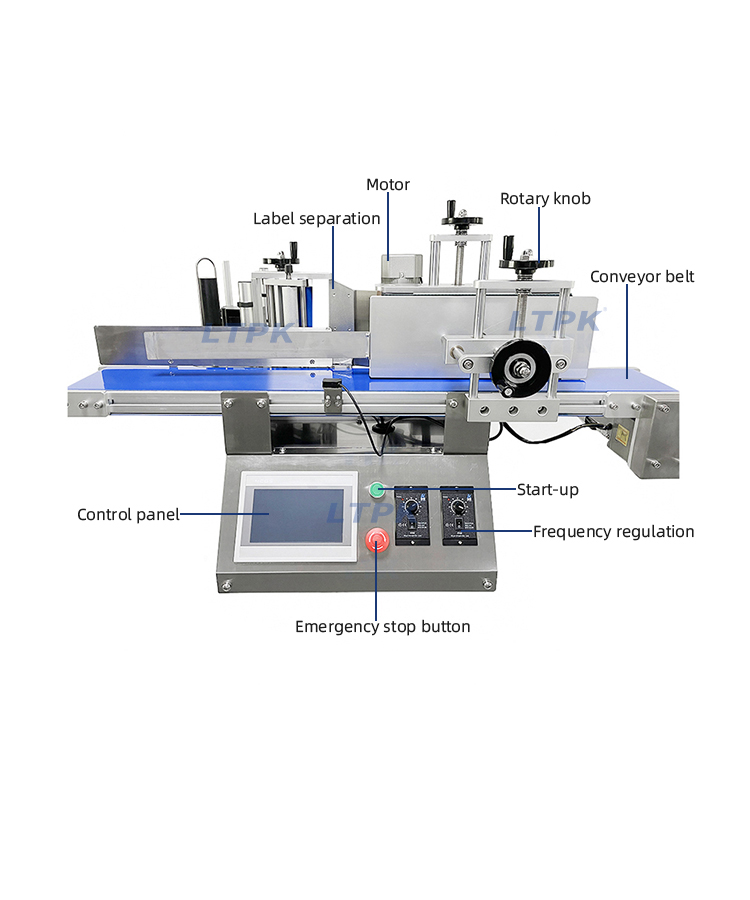

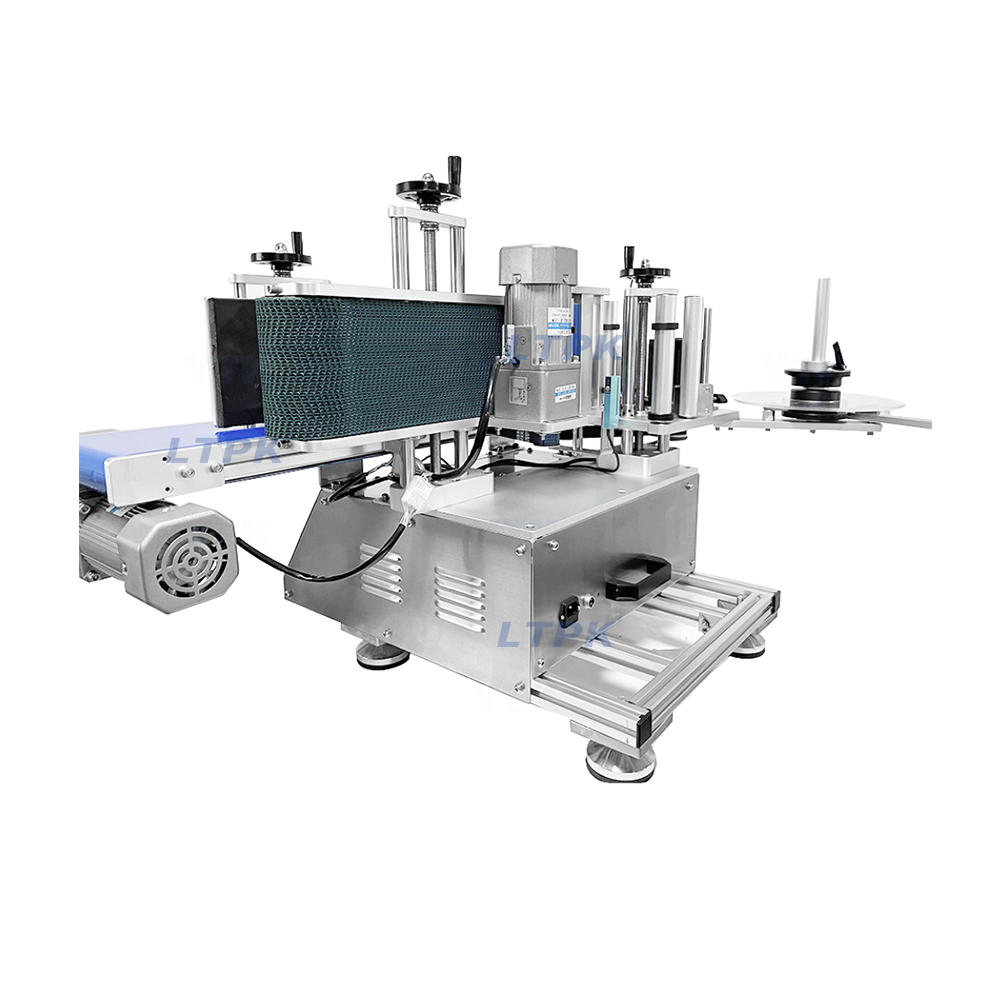

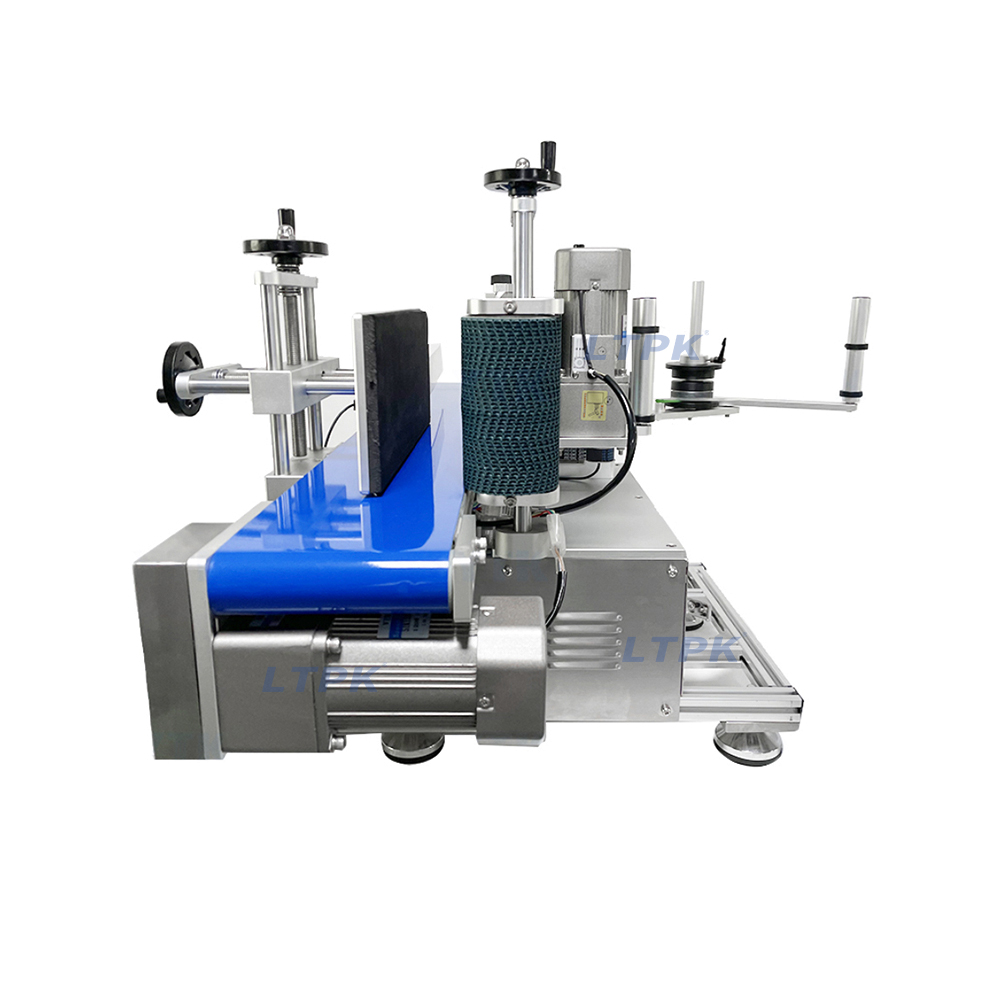

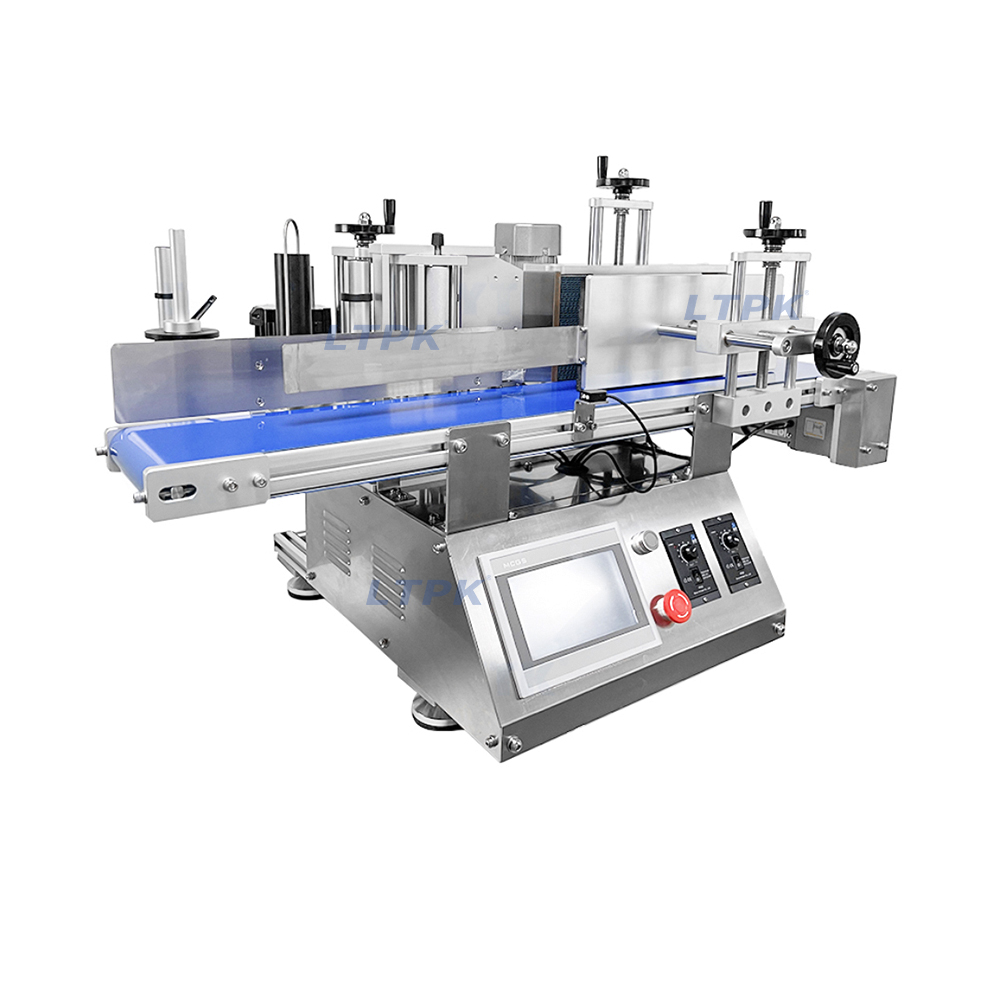

Detail Images
