GFK-160 5-3500ml Digital Control Liquid Juice Water Liquid Filling Machine WIth Food Padel

Compact Digital Control Pump Liquid Filling Machine

Controled by micro-computer, fill liquid by setting the filling time and speed.

Filling Liquid From 5-3500ml very precisely.

Digital Panel, very easy to operate.

About this item


  • Precise Liquid Filling: The digital Liquid Filling Machine is controlled by a micro-computer with high efficiency, low power consumption, and automatic counting function. The LCD screen is for you to accurately control and monitor. Filling volume: 0.18-123.2 oz/5-3500 ml; Repetitive error: <0.5%.

  • Auto & Manual Control: Two control modes help you efficiently operate the bottle filling machine. Pedal once and discharge once in manual mode while filling continuously in auto mode. The advanced pump has a maximum flow rate of 0.8 gal/min( 3.2 L/min).

  • Stainless Steel Structure: Pneumatic filling machine is made of 304 stainless steel food-grade materials, which can endure corrosion, rust, acid, and alkali. The anti-drip nozzle and filter are designed to avoid leakage and save more liquid during operation.

  • Security Design: The Liquid Filling Machine is equipped with a power switch and a power socket for power management in security. Besides, the air vents are also included to radiate quickly and help the filler work long.

  • Wide Application: This automatic liquid filling machine is widely used in pharmaceutical, cosmetic, food, pesticides, and particular industries. It is suitable for low-viscosity fluid and liquid filling, such as water, olive oil, fuel, drinks, vinegar, milk, etc.

Liquid Volumetric Filling Machine.jpg

Technical Parameters


  • Model: GFK-160

    Voltage: AC110V-140V / 60 Hz

  • Power: 30W

  • Max. Flow Rate: 0.8 gal/min / 3.2 L/min

  • Max. Suck Distance: 6.6 ft / 2 m

  • Repeat Error: < 0.5%

  • Filling Volume: 0.18-123.2 oz / 5-3500 ml

  • Filling Speed: 5-30 bottles/min

  • Nozzle Diameter: 0.31 in / 8 mm

  • Anti-Dripping Function: Available

  • Memory Function out of Power: Available

  • Suitable Soft Tube:17#(interior diameter: 6.4 mm, thickness: 1.6 mm, max pressure: 0.24Mp)

  • Product Size(L x W x H): 13.8 x 10.7 x 5.9 in / 35 x 27 x 15 cm

  • Net Weight: 12.1 lbs / 5.5 kg

    Machine Details

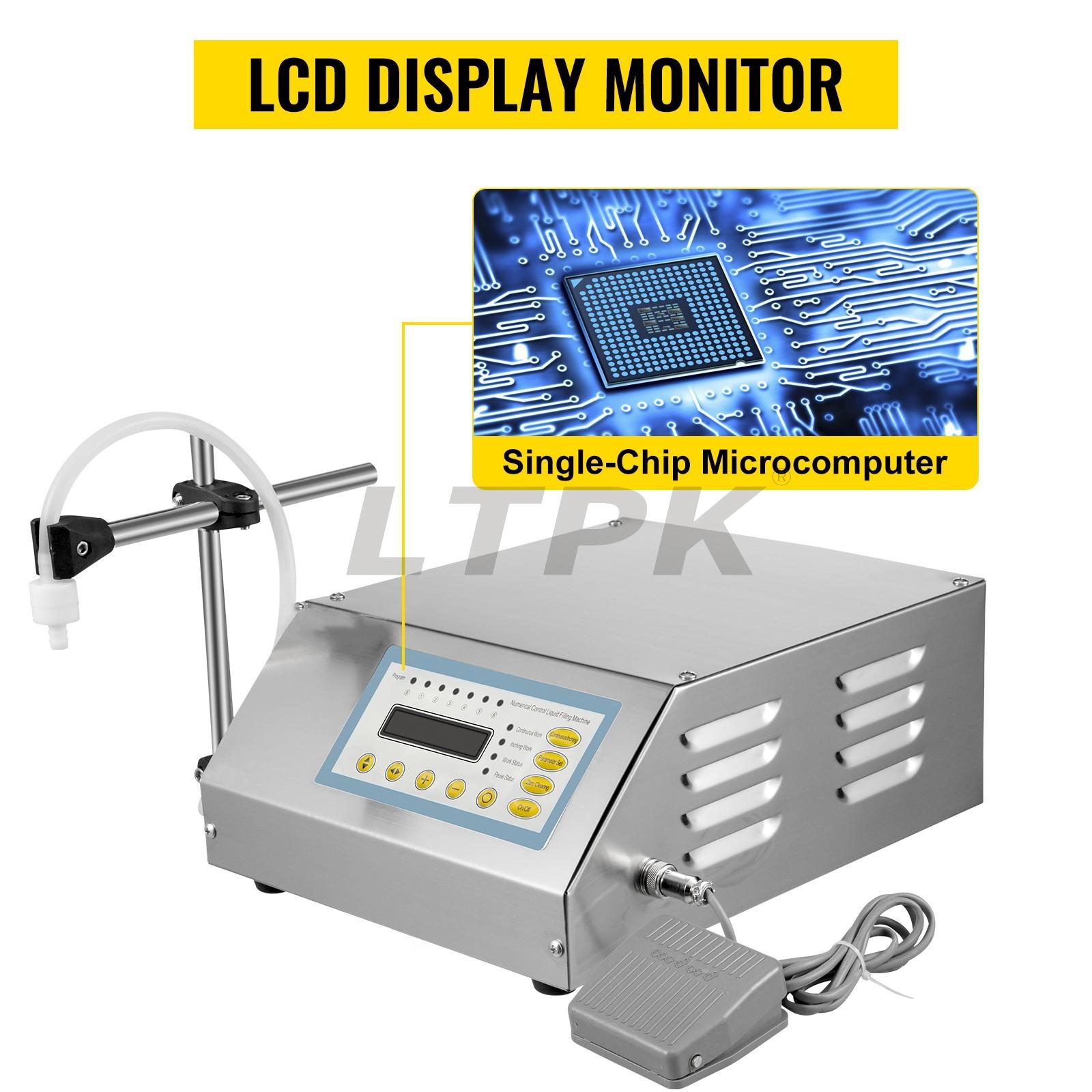

    LCD Display Monitor

Our bottle filling machine is controlled by a single-chip microcomputer, ensuring the high precision of filling. Repetitive error: <0.5%. Filling volume and speed can be arbitrarily regulated through the LED screen display. The filling volume is 0.18-123.2 oz/5-3500 ml.

automatic digital liquid filling machine.jpg

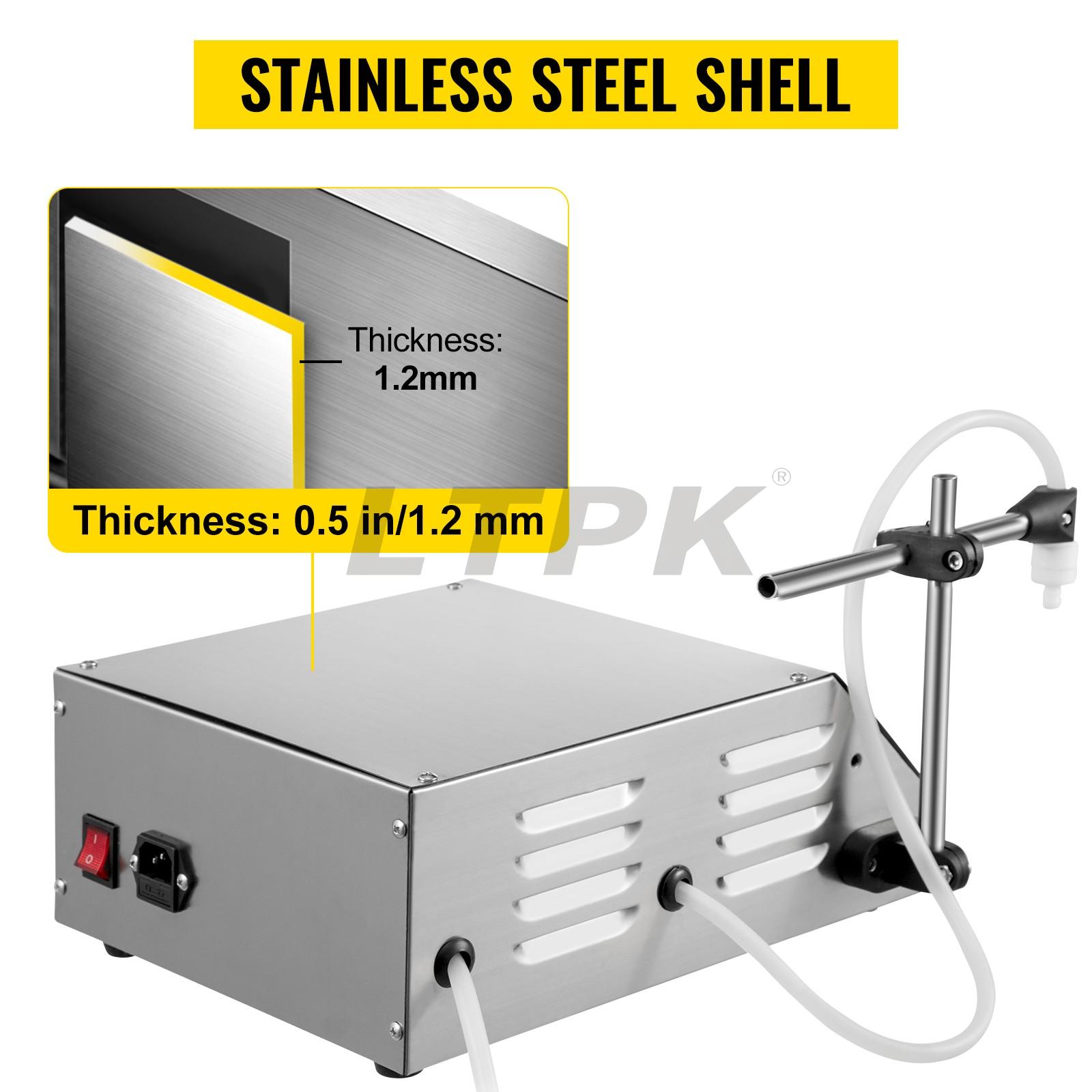

Stainless Steel Shell

All parts in contact with the product are 0.5 in/1.2 mm stainless steel. Extremely easy to operate, clean, and maintain. It's able to keep out corrosion, acid, and alkali. In addition, air vents on both sides are designed to fast heat dissipation.

Small Bottle Jar filler.jpg

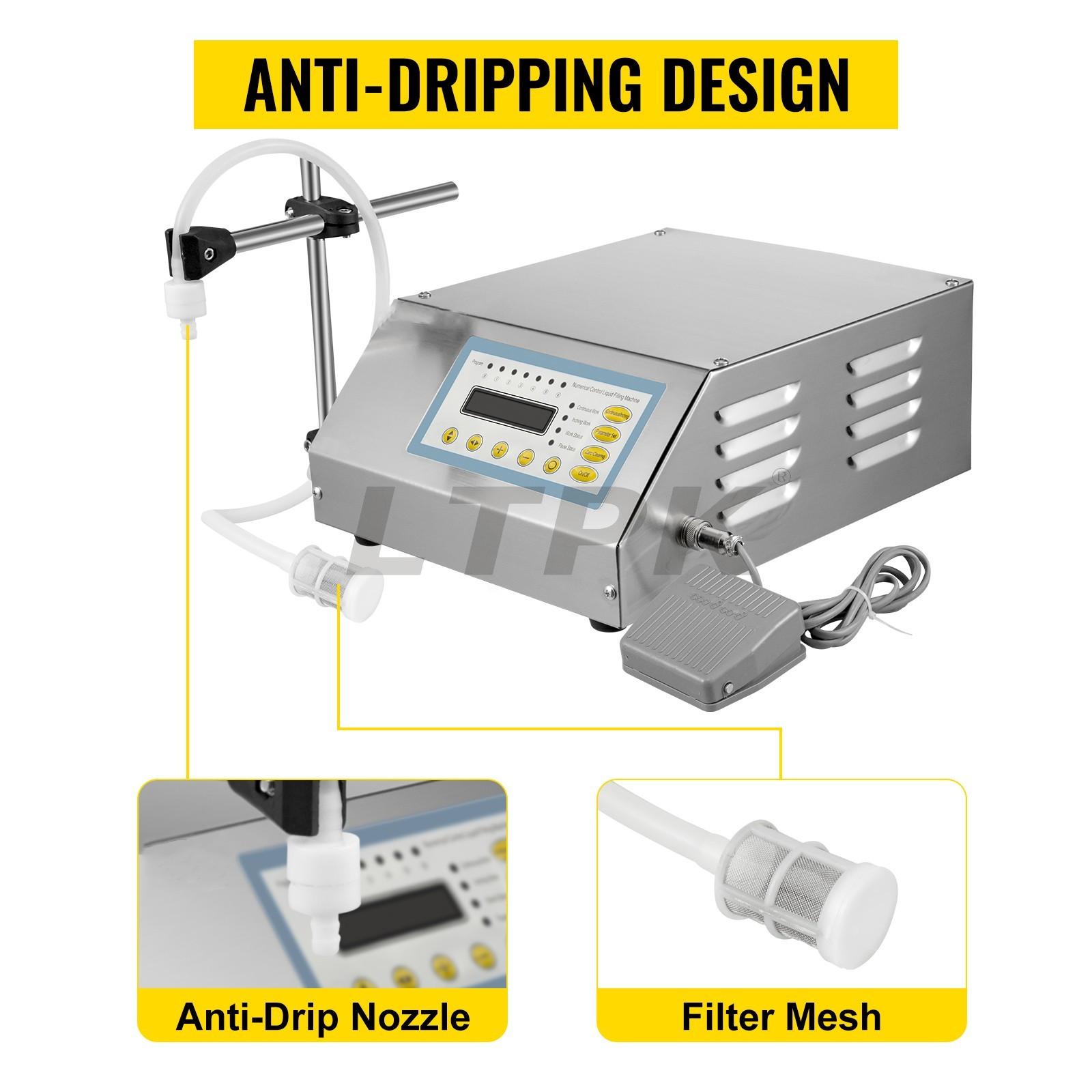

Anti-Dripping Design

The discharge nozzle adopts two anti-dripping design, which gives you high filling accuracy. There are also two filter meshes at the water inlet to filter the impurity in the liquid, making sure the purity of liquid.

Lcd Display Mini Portable Electric Perfume Water Drink Milk Bottles Filler.jpg

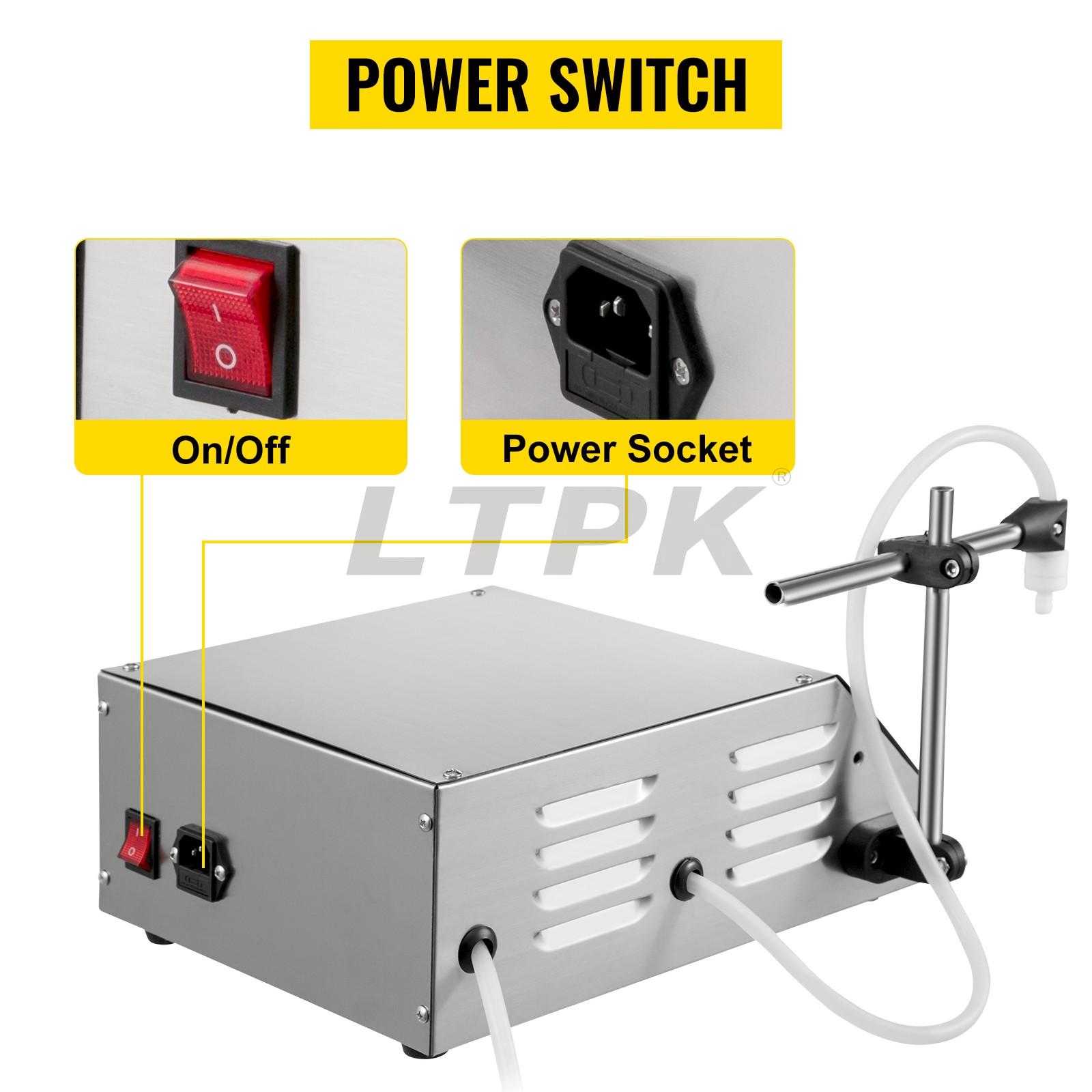

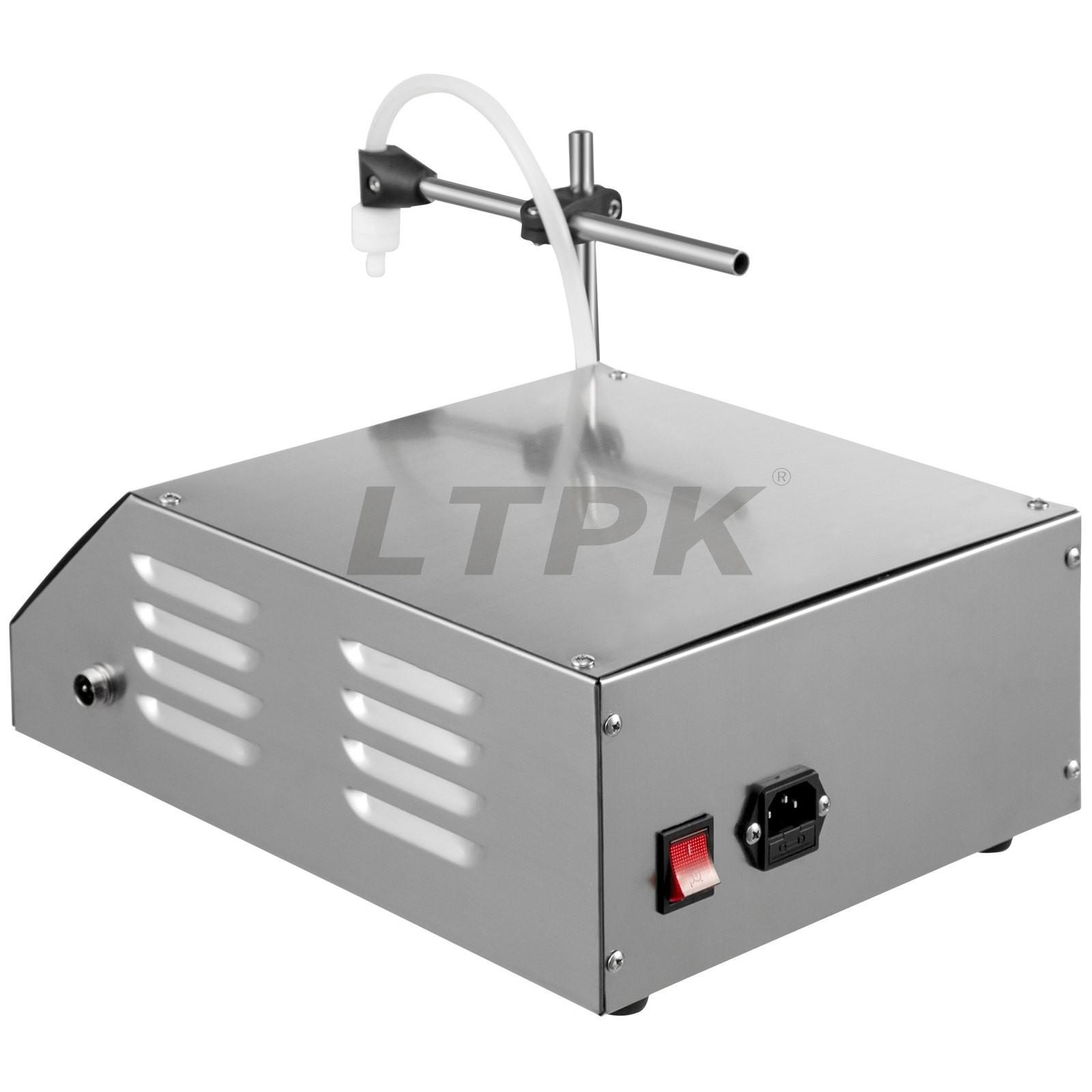

Power Switch

A built-in secure power-off is reasonable to guard the machine. It features self-absorption, heat protection, stable working, and still works well whether it continuously idles or runs with load for a long time.

GFK160  5-3500 ml Liquid Filling Machine.jpg

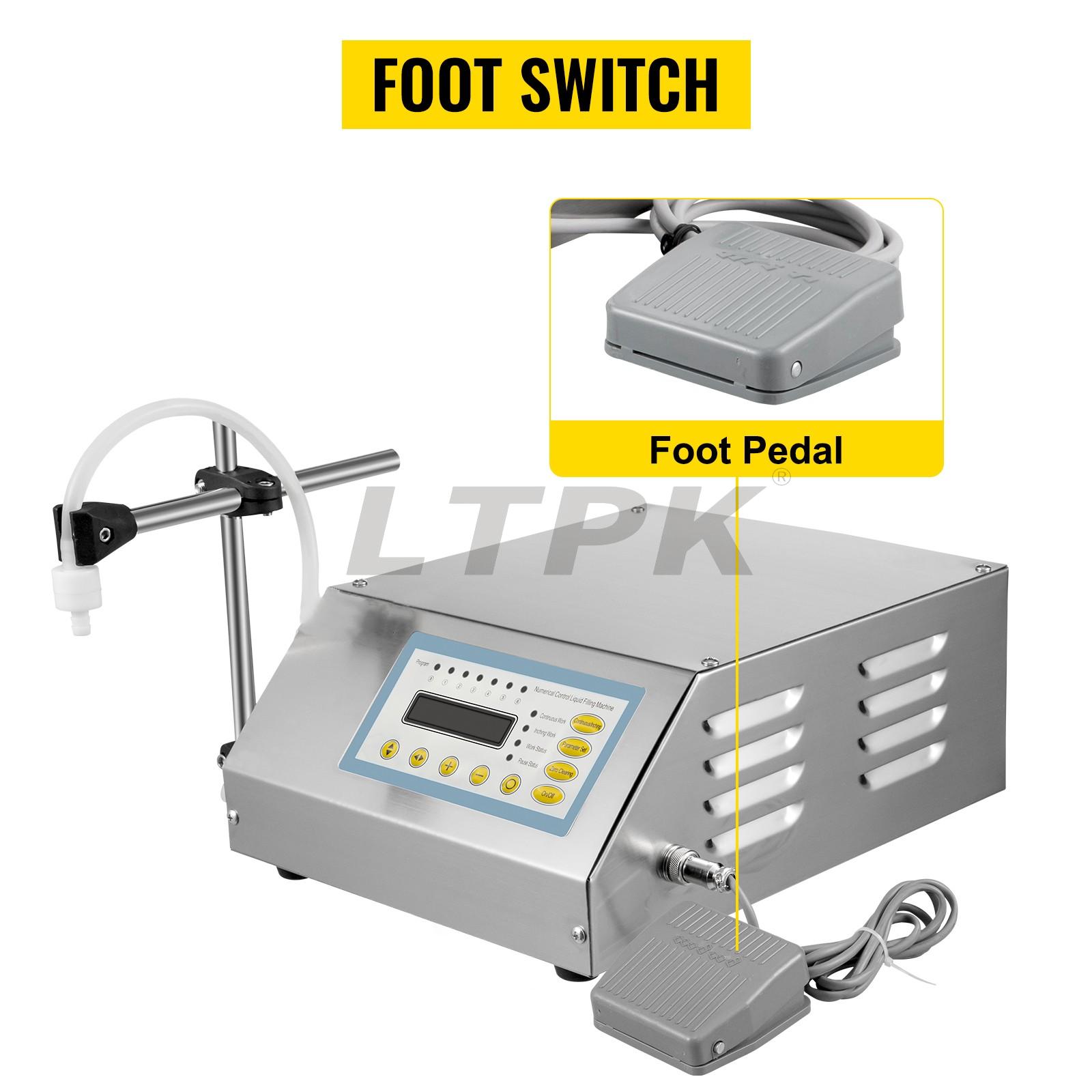

Foot Switch

The liquid filling machine is designed to have a footswitch to control the process. A footswitch plus self-priming function, no need to pour, convenient, safe to use, and also save user's energy.

digital liquid filling machine.jpg

Extensive Uses

Our filler is extensively used in the food and beverage, cosmetics, personal care, agricultural, pharmaceutical, and chemical fields. An ideal device for low viscosity fluid, particle-free liquid like water, olive oil, fuel, drinks, etc.

Water Liquid Filling Machine.jpg

Package Content

1 x Filling Machine

1 x Power Cord

1 x Screwdriver

1 x Inner Hexagonal Wrench

1 x Manual

Bottle Filling Machine Liquid Filler.jpg
