Description

The machine uses the uneven weight cap to lift the caps which match the conditions, and the unsuitable cap is lowered until it match the lifting condition and raised again. The device directly lifts the eligible caps into the conveyor track through the cap conveyor belt, then enters the screw cap machine and load the cap into the bottle mouth, and then screw cap. The entire cap sorting process does not require manual intervention.

Technical Parameters

Model ：LT-ACF02

Voltage：220V

Power：0.5KW

Working pressure：0.3-0.5Mpa

Transferring Speed：2000-2500pcs/hour

Caps Diameter：20-80 (can be customized)

Size：About 80*80*180cm

Weight ：About 130kg

Application

This machine can be used with automatic capping machine,suitable for various sizes of round caps.Widely used in industries such as medicine, food, fats, daily chemicals, pesticides, etc.

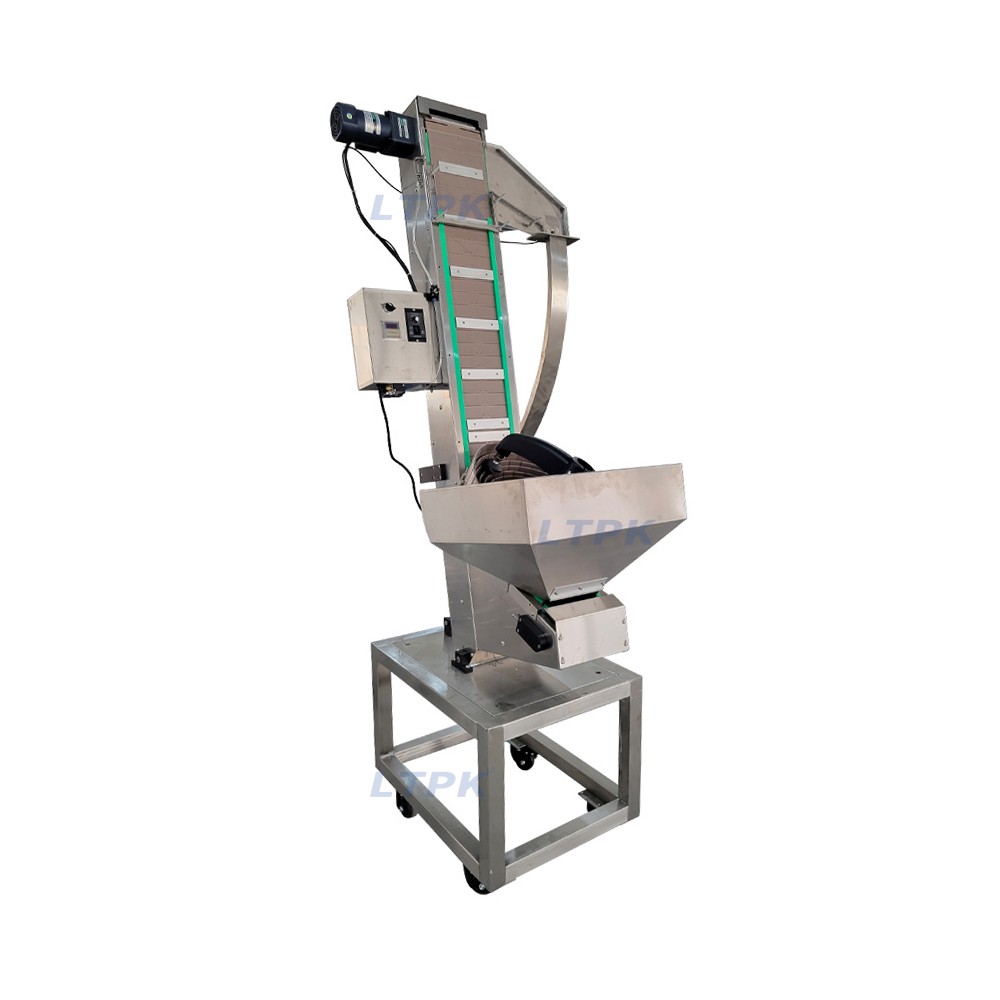

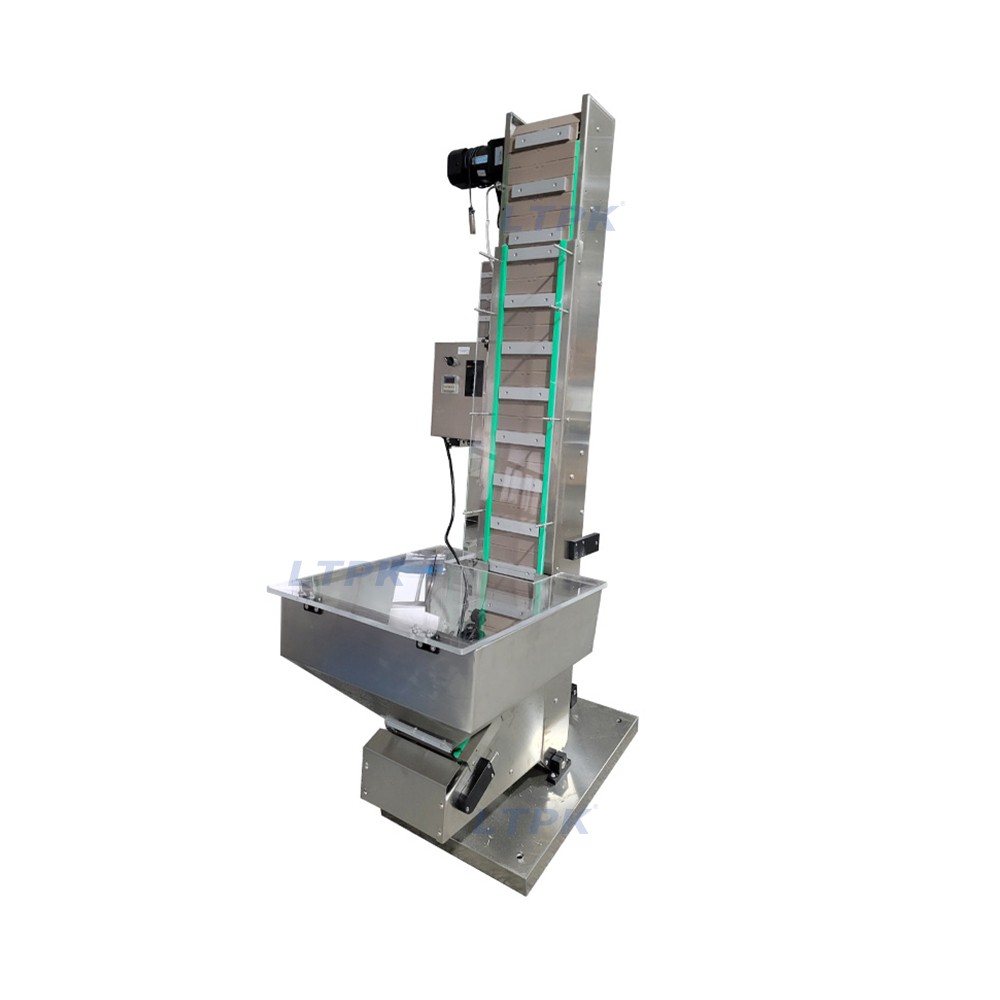

Detail Images
