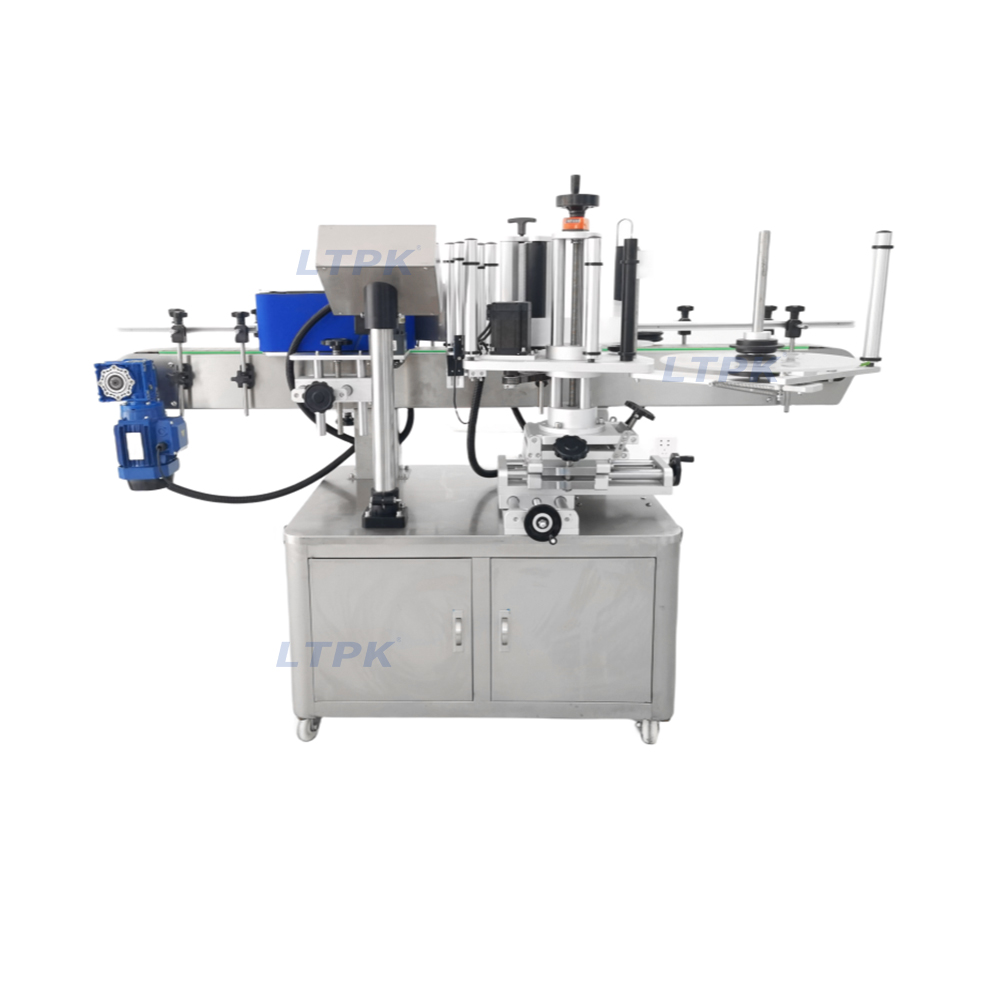

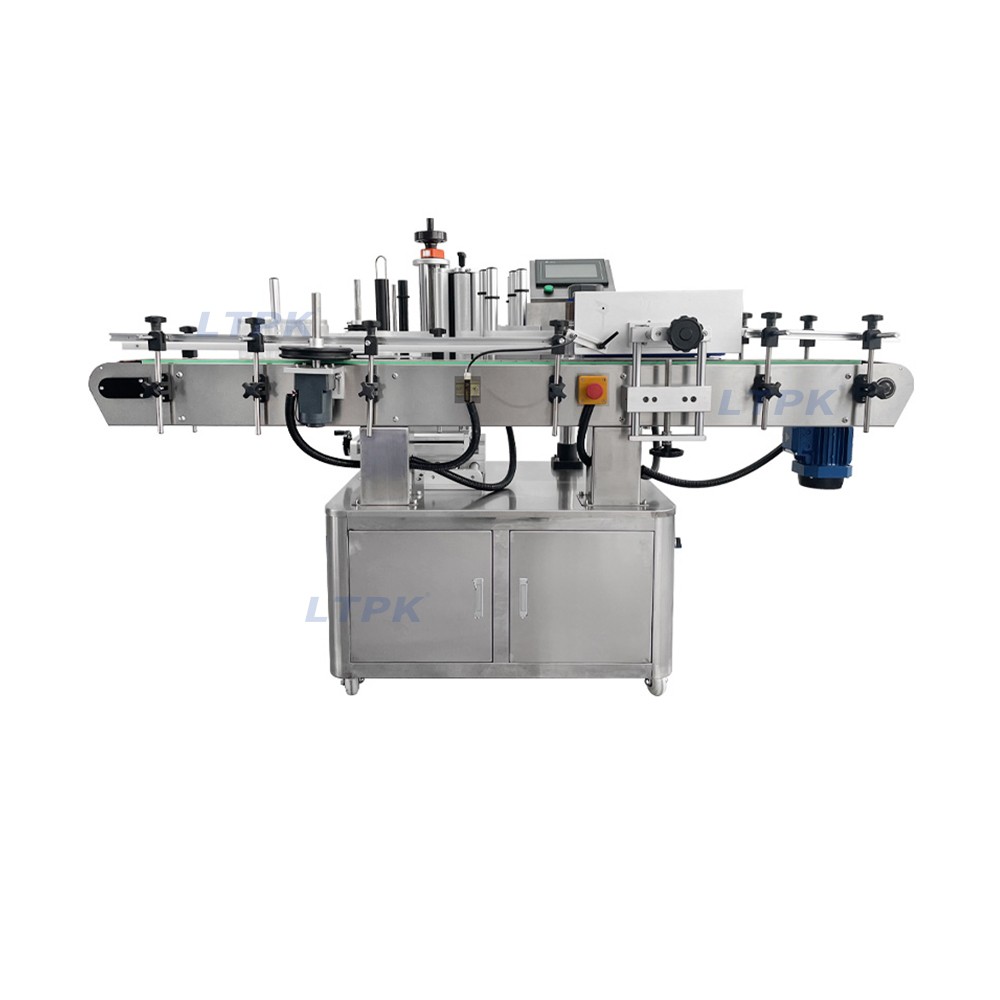

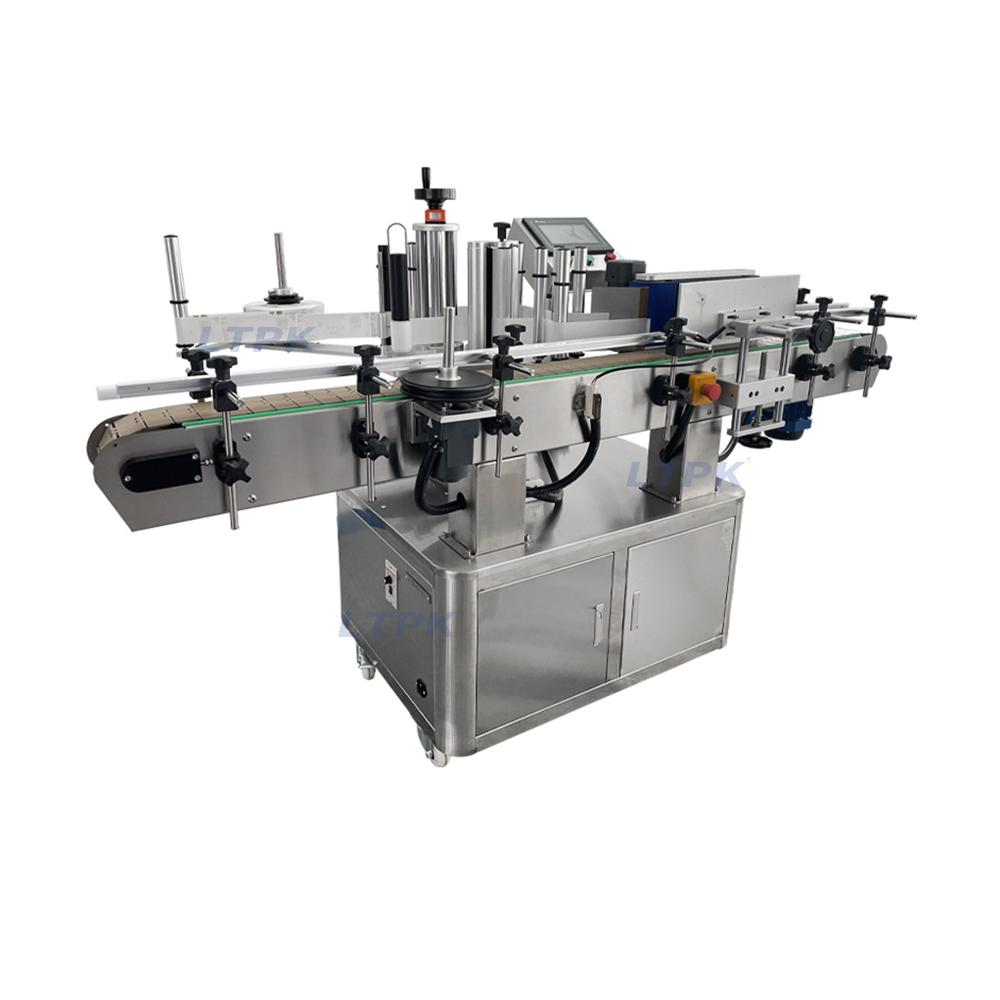

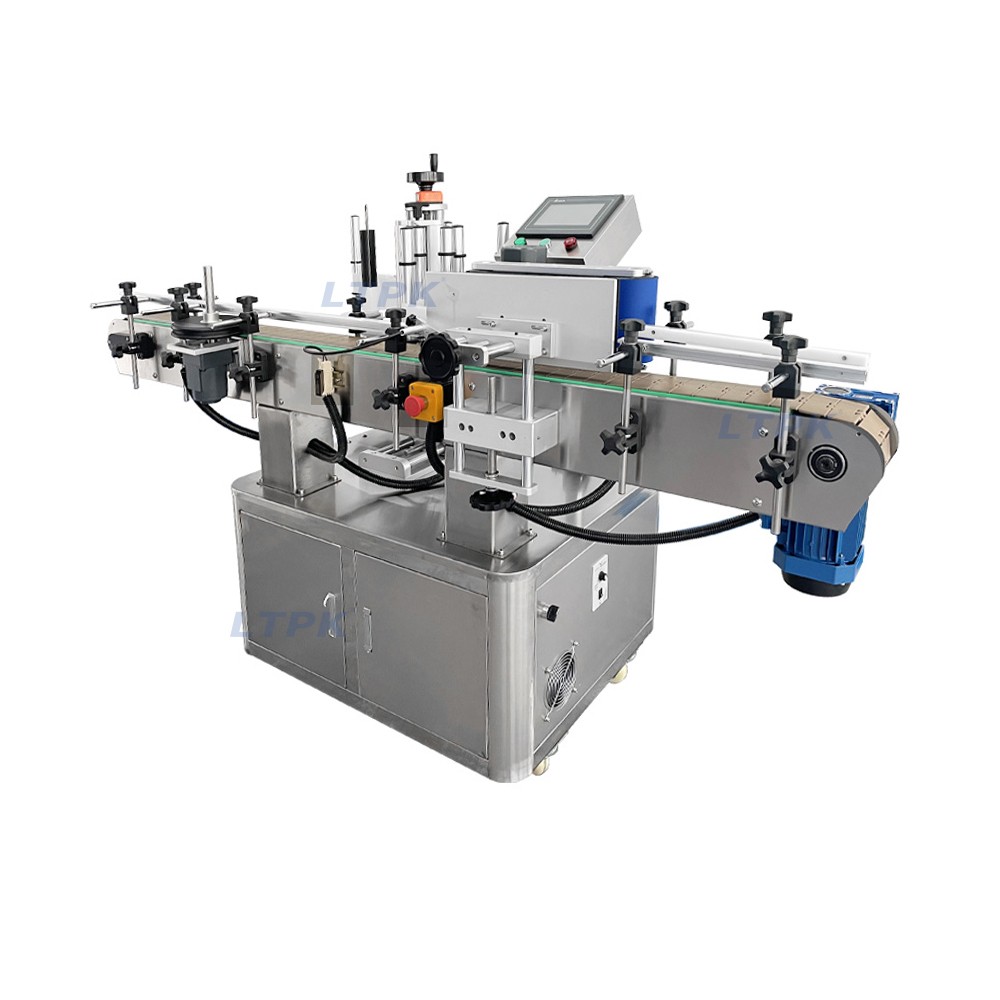

LT-220 High Speed Manufacture Automatic Glass Beer Wine Pet Jar Water Round Bottle Labeling Machine

LT-220 High Speed Manufacture Automatic Glass Beer Wine Pet Jar Water Round Bottle Labeling Machine

Model：LT-220
Label length：25~300MM
Label width：25~150MM
Suitable bottle diameter：φ20~120mm
Outside diameter of standard roll：Φ300MM
Inside diameter of standard roll ：φ76MM
Labeling accuracy ：±1MM
Voltage ：220V/110V 50-60HZ
Power：1.5KW
Conveying speed ：16m/min
Labeling speed ：20~160pcs/min
Dimension：2150*1000*1600mm
Machine Weight：About 300KG

Description

LT-220 automatic vertical labeling machine is for glass bottles, plastic bottles and other cylindrical objects, tapered objects can be customized, but also according to product needs to increase the printer; the machine design is simple, light weight, beautiful. And it can be used independently or connected with other machines into production lines.

sticker printing machine.jpg

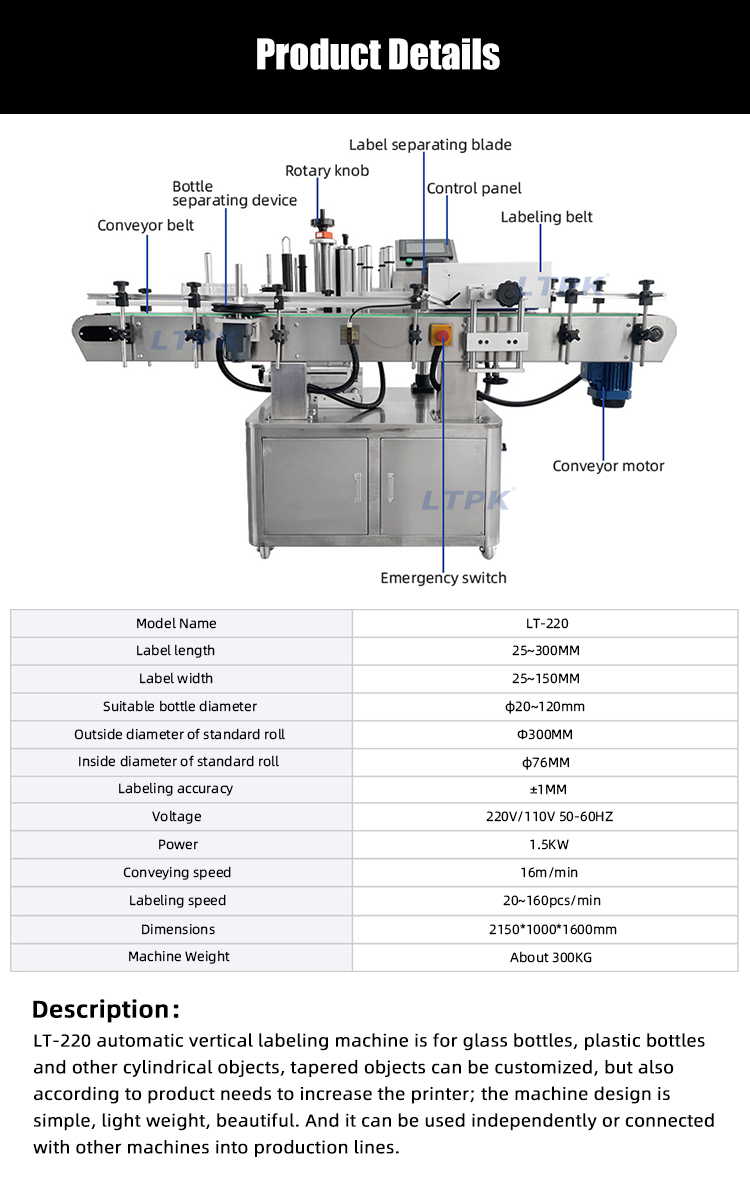

Technical Parameters

Model：LT-220

Label length：25~300MM

Label width：25~150MM

Suitable bottle diameter：φ20~120mm

Outside diameter of standard roll：Φ300MM

Inside diameter of standard roll ：φ76MM

Labeling accuracy ：±1MM

Voltage ：220V/110V 50-60HZ

Power：1.5KW

Conveying speed ：16m/min

Labeling speed ：20~160pcs/min

Dimension：2150*1000*1600mm

Machine Weight：About 300KG

automated labelling machine.jpg

Application

Suitable for labeling cylindrical bottles of various specifications，such as cosmetics round bottles, wine bottles, etc. Widely used in food, cosmetics, chemical industry and other industries.

full automatic label machine china automatic labeling machine.jpg
