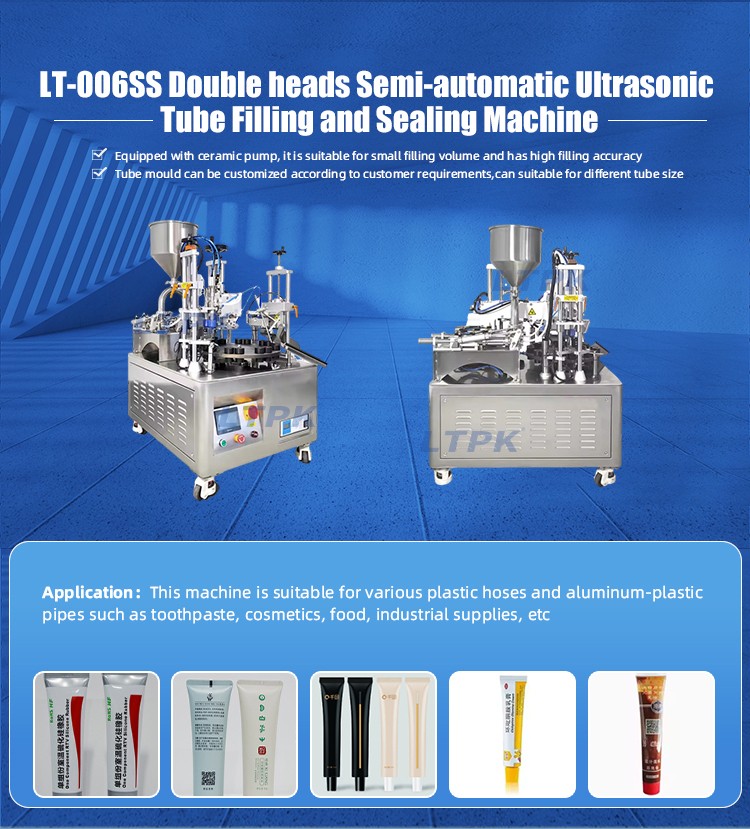

Description

Ultrasonic tube filling and sealing machine can automatically fill paste into soft tube, seal soft tube at one rotary table. Ultrasonic controlled sealing structure, this ensures packaging quality and accuracy. the use of manual tube feeding, color automatic detection, automatic filling,automatic sealing, automatic tail-cutting, PLC control, touch an machine interface. It is suitable for packaging hand cream, lip gloss, facial cleanser,etc.

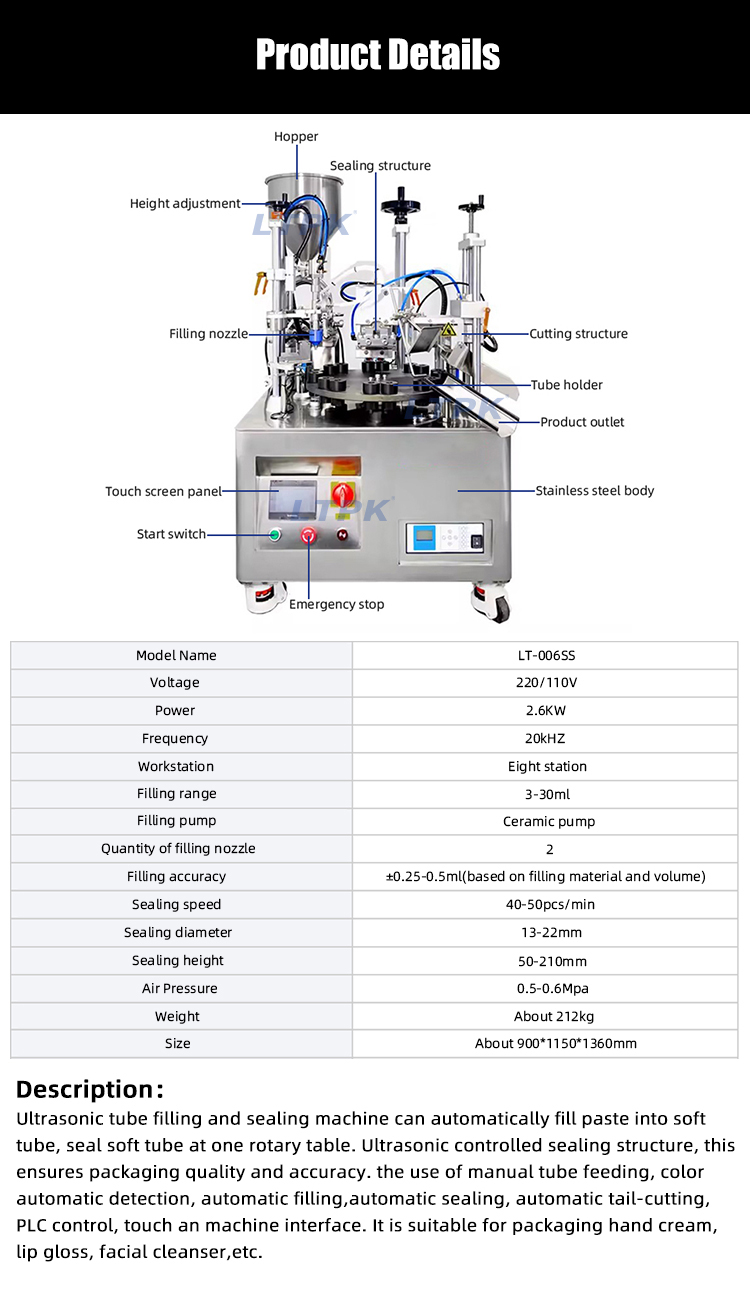

Technical Parameters

Model:LT-006SS

Voltage:220/110V

Power:2.6KW

Frequency:20kHZ

Workstation:Eight station

Filling range:3-30ml

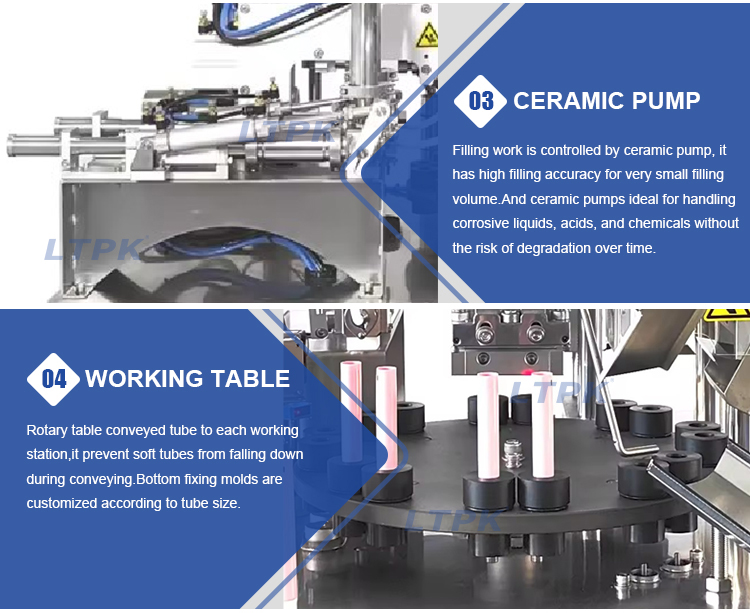

Filling pump:Ceramic pump

Quantity of filling nozzle:2

Filling accuracy:±0.25-0.5ml(based on filling material and volume)

Sealing speed:40-50pcs/min

Sealing diameter:13-22mm

Sealing height:50-210mm

Air Pressure:0.5-0.6Mpa

Weight:About 212kg

Size:About 900*1150*1360mm

Application

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

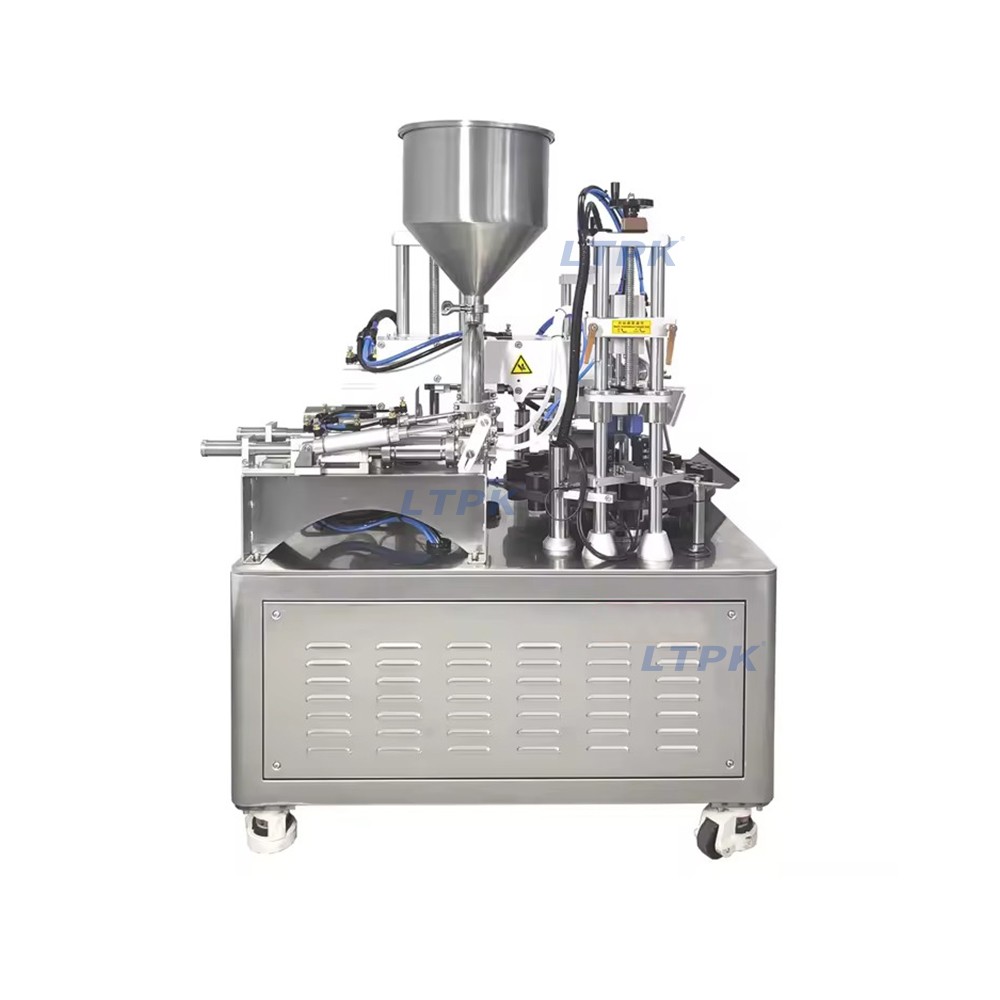

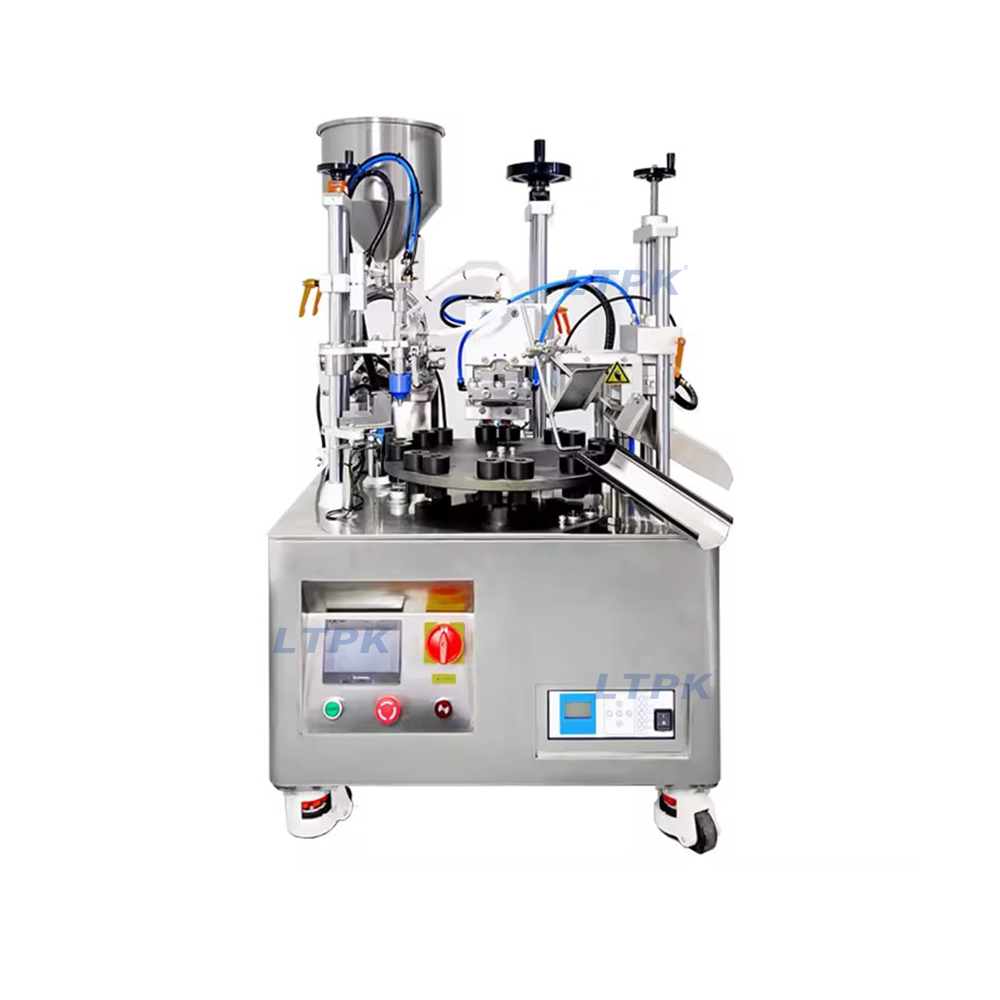

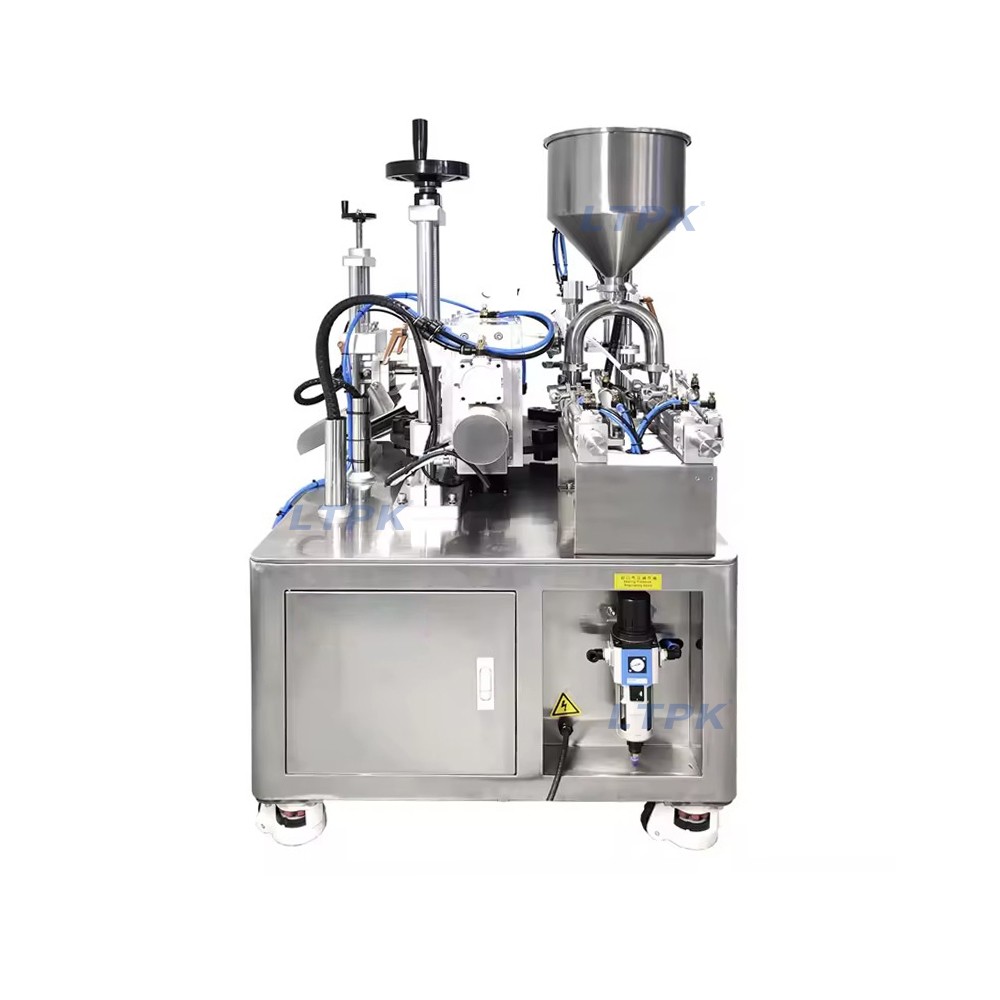

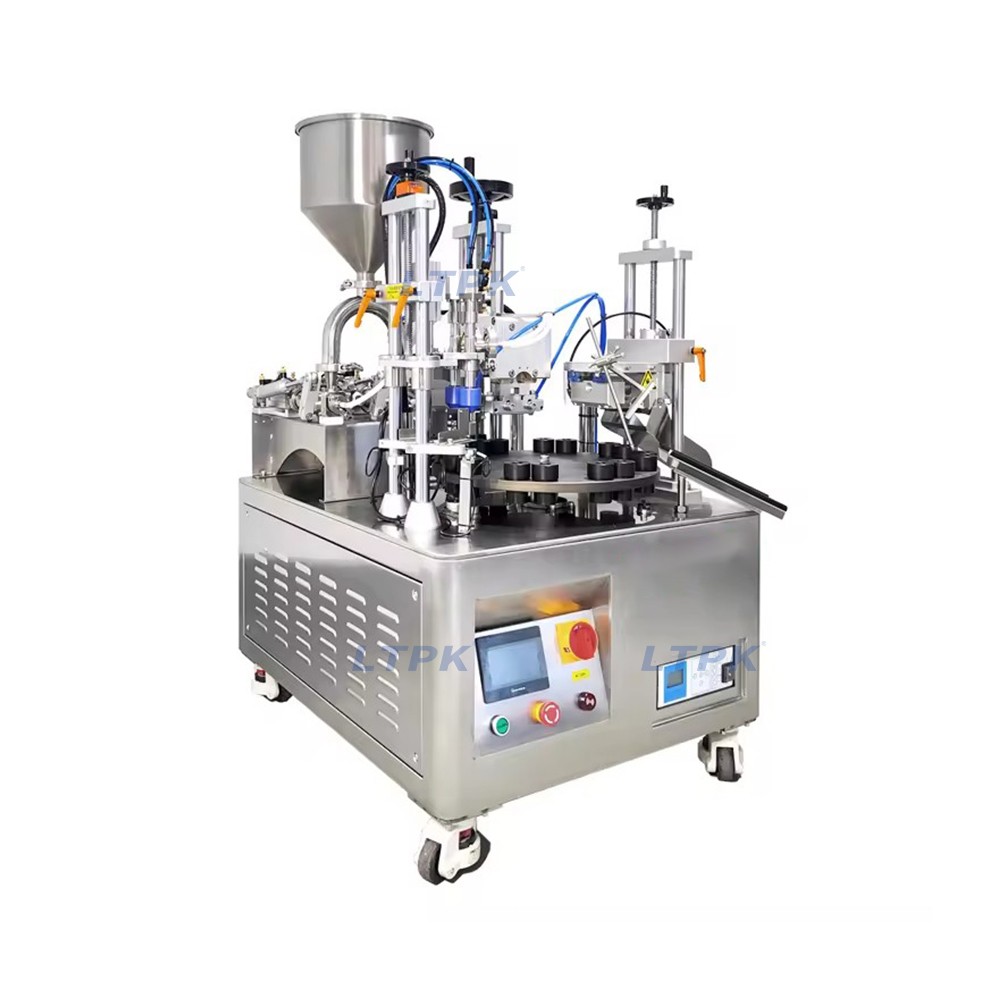

Detail Images
