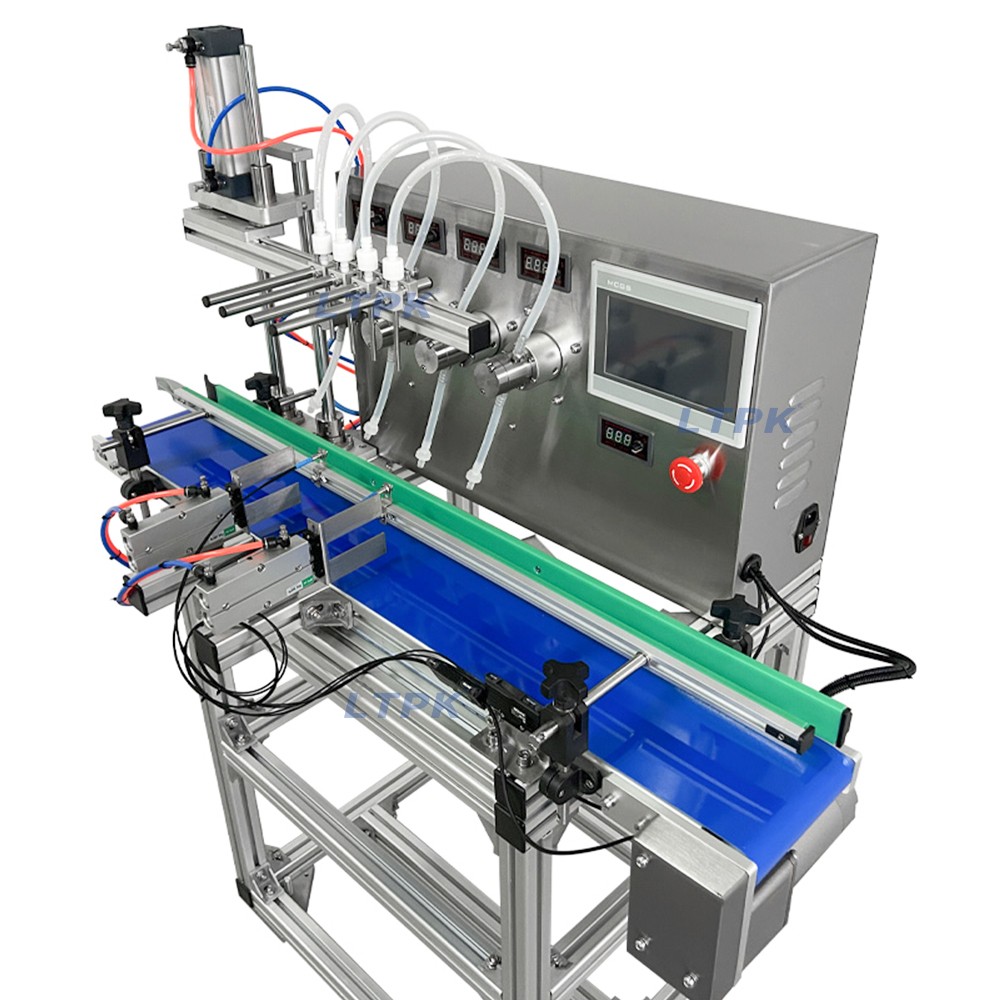

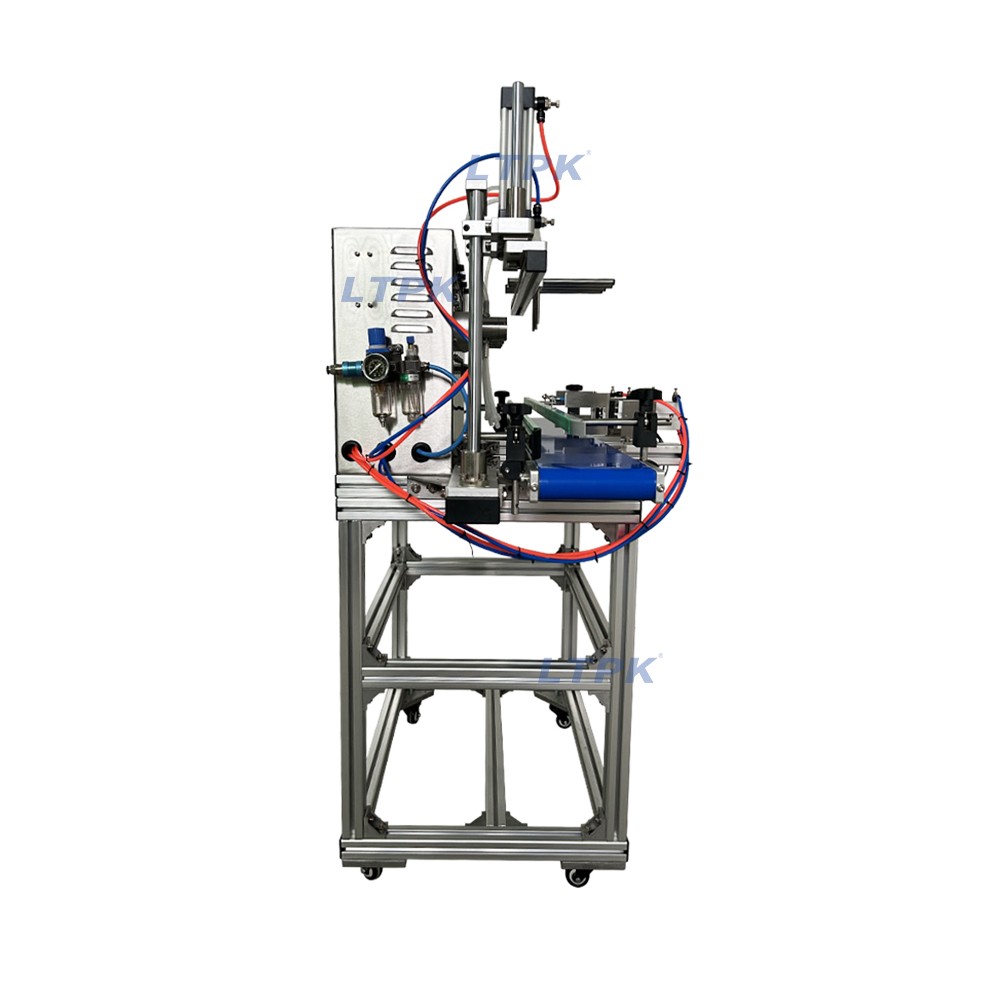

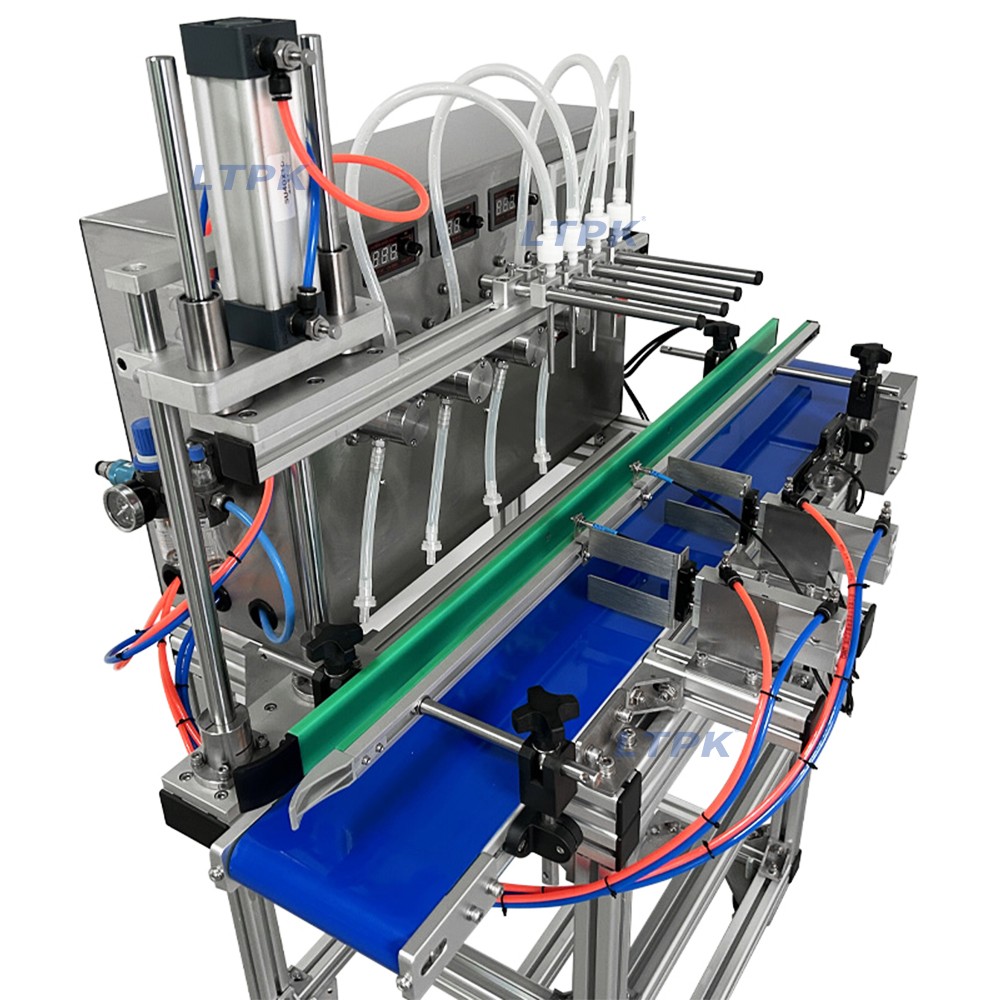

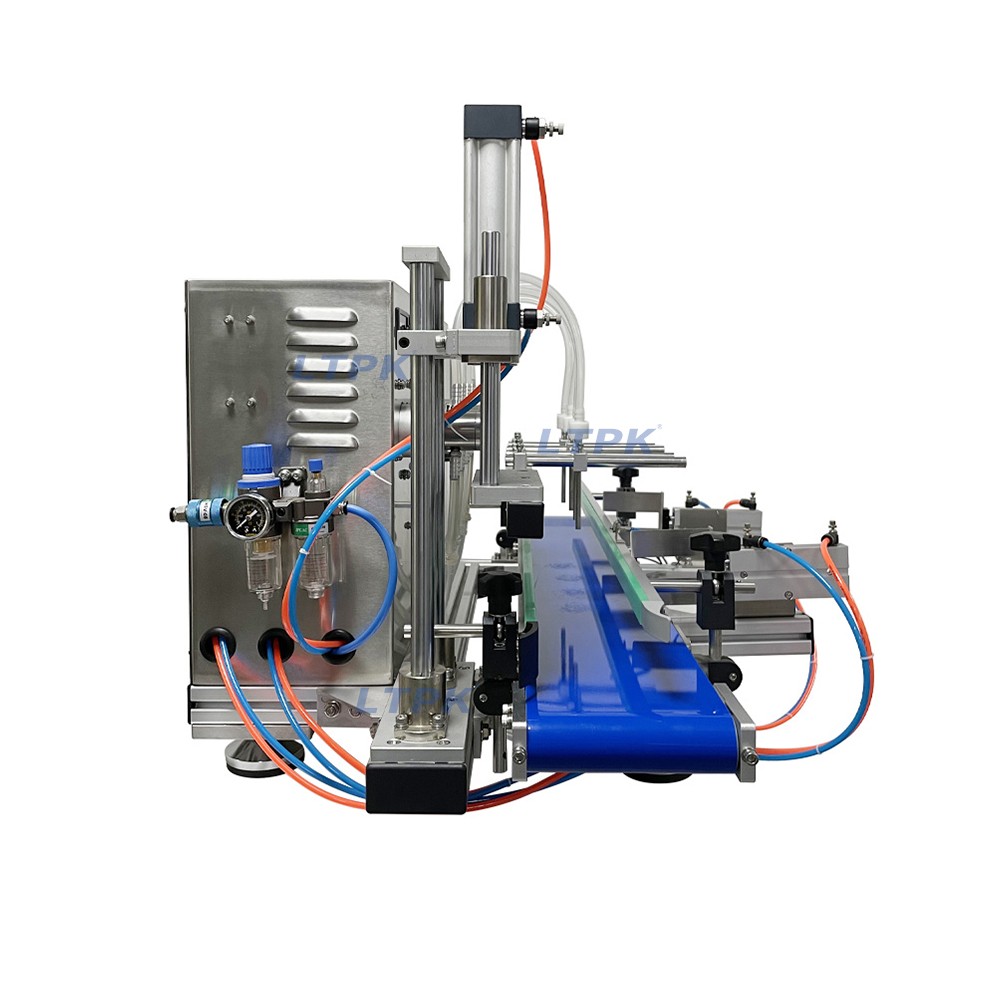

LT-MPF4 Automatic 4 Heads Horizontal Four Nozzles Washing Oral Cosmetic Liquid Soy Sauce Magnetic Pump Liquid Bottle Filling Machine

Description:

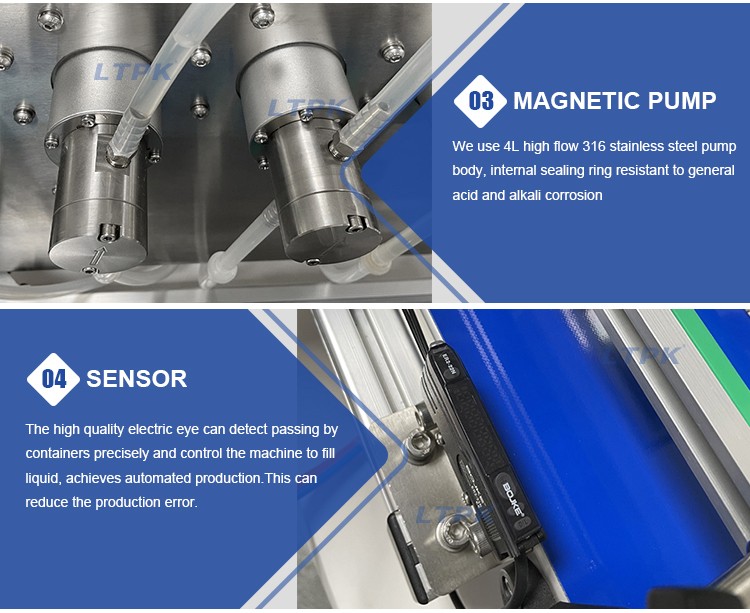

The machine adopts a 4L high flow 316 stainless steel pump body, driven by permanent magnets and micro motors. Each of the four magnetic pumps is equipped with a 120W power supply for better operation. The machine structure design is reasonable, material overflow will not affect the electrical box, and maintenance is convenient. The most important gear inside the machine is made of 316 stainless steel, which is corrosion-resistant, acid and alkali resistant, and has a longer lifespan.

Technical Parameters

Model:LT-MPF4

Machine Size:1112*550*690mm

Machine Weight:50kg

Package Size:1142*590*720mm

Package Volume Weight:98kg

Minimum Bottle Diameter:30mm

Maximum Bottle Diameter:125mm

Minimum Bottle Height:50mm

Maximum Bottle Height:200mm

Nozzle Inner/Outer Diameter:5/6mm

Application:

Suitable for various non-viscous liquid media, such as oil, milk, soybean milk, fruit juice,water, syrup, cleaning agent, organic solvent,etc.

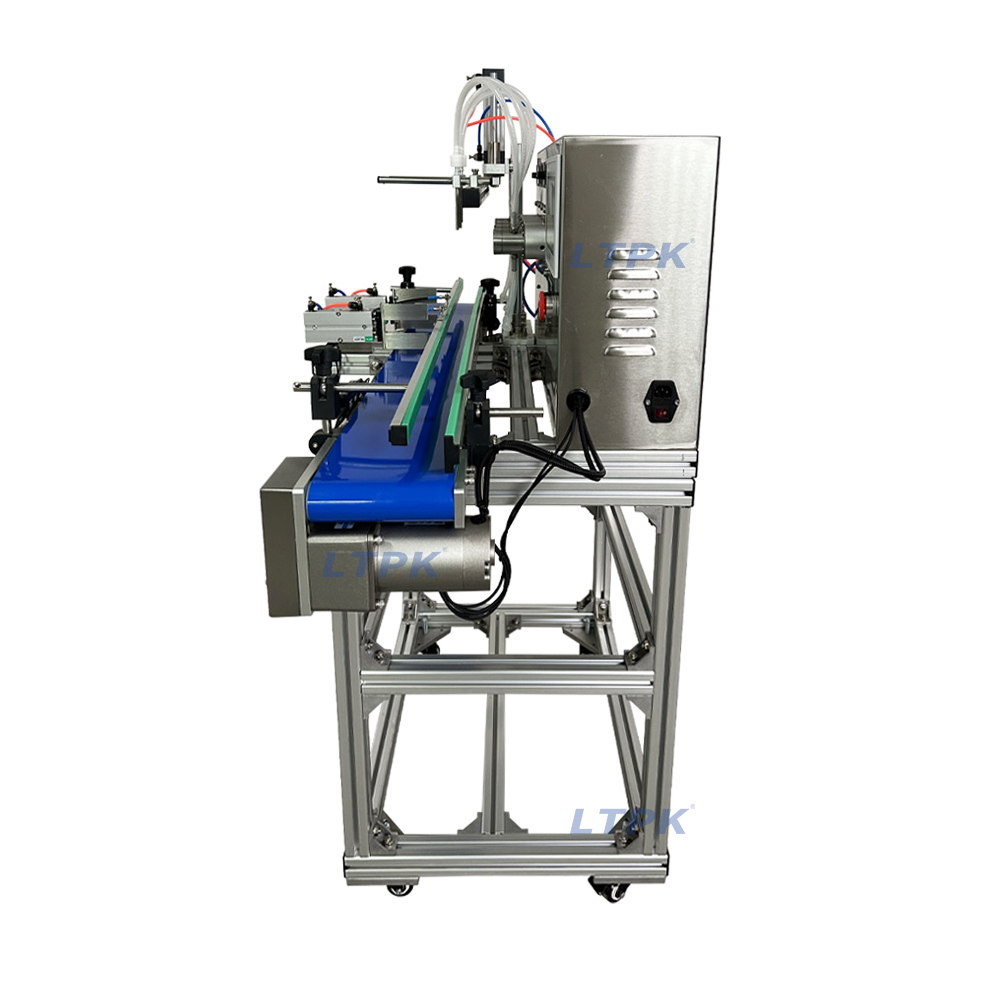

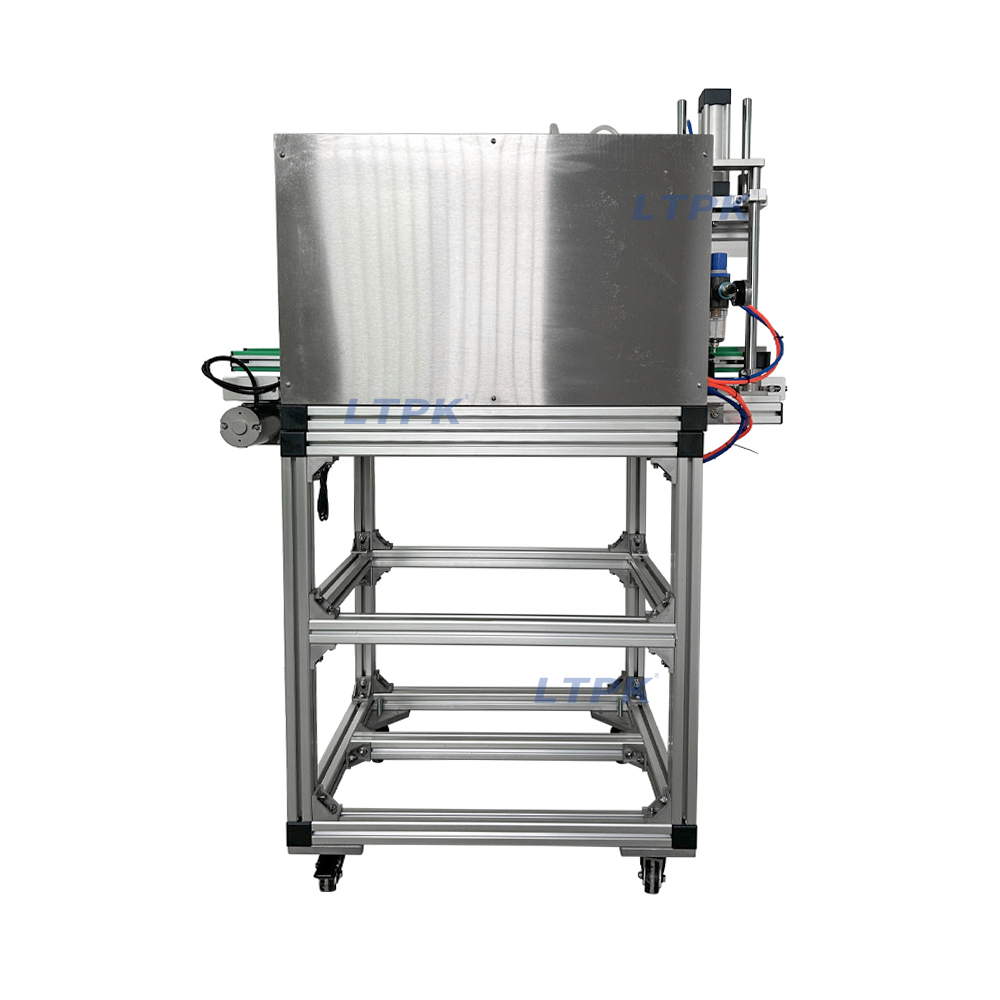

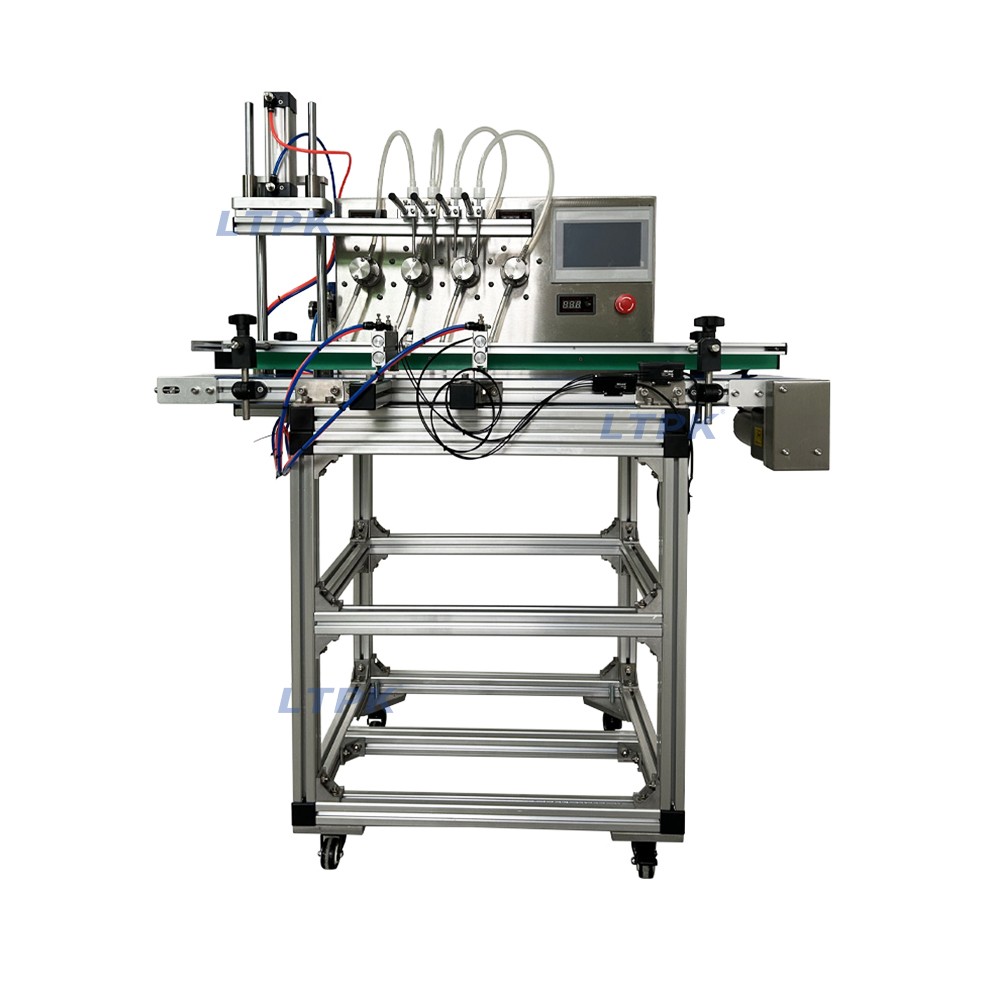

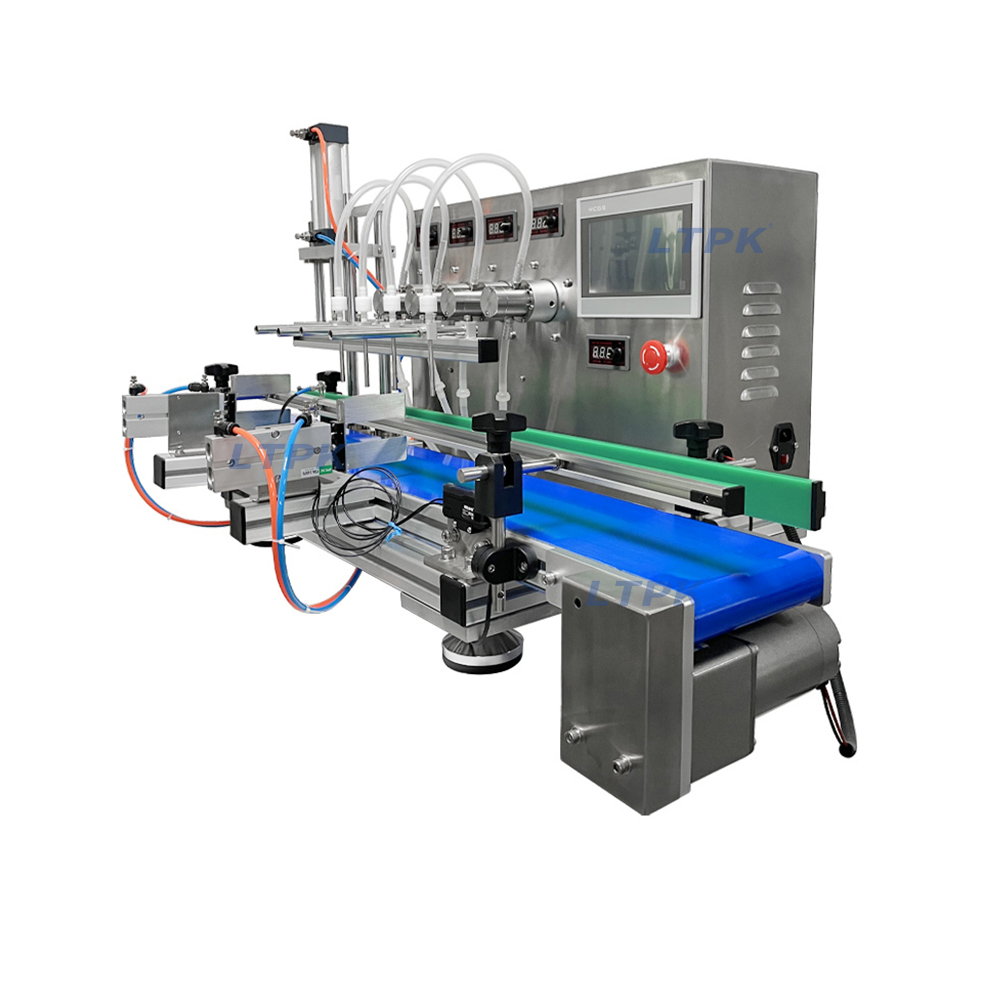

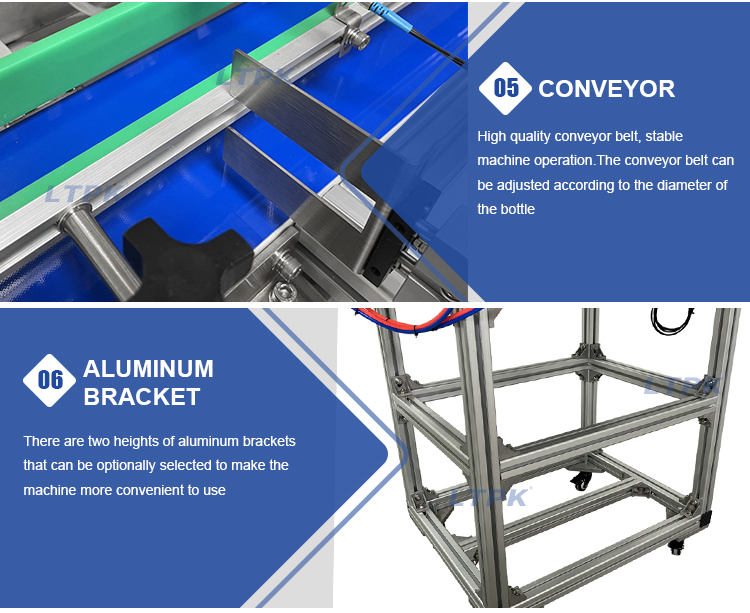

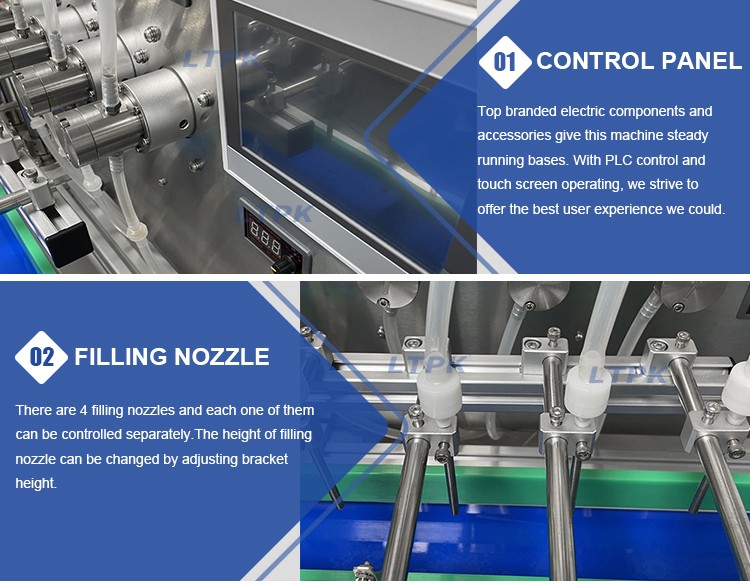

Detail Images
