Description

This 8-head automatic magnetic pump filling machine body is made of all stainless steel. It comes with automatic counting function. The performance is reliable and the measurement is accurate. It is an excellent machine for filling particle-free liquid.The filling nozzles can be customized according to your requirements(like 4 or 6),and customers can control each nozzle separately.

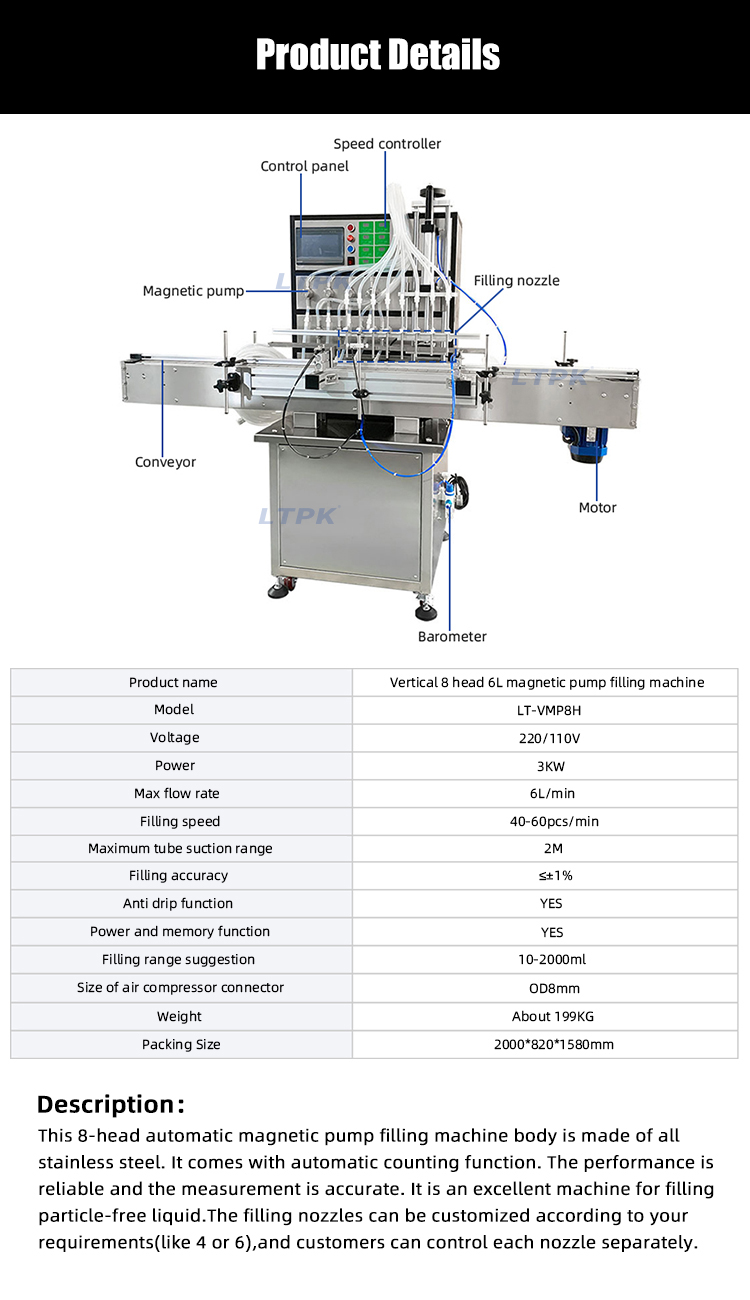

Technical Parameters

Name：Vertical 8 head 6L magnetic pump filling machine

Model：LT-VMP8H

Voltage ：220V/110V

Power：3KW

Max flow rate：6L/min

Filling speed：40-60pcs/min

Maximum tube suction range：2M

Filling accuracy ：≤±1%

Anti drip function：Yes

Power and memory function：Yes

Filling range suggestion：10-2000ml

Size of air compressor connector：OD8mm

Weight：About 199KG

Packing Size：2000*820*1580mm

Application

A wide range of applications, such as: various chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray), food (milk, soybean milk, fruit juice, fruit wine), condiments (soy sauce, vinegar, sesame oil) and other non granular liquids.

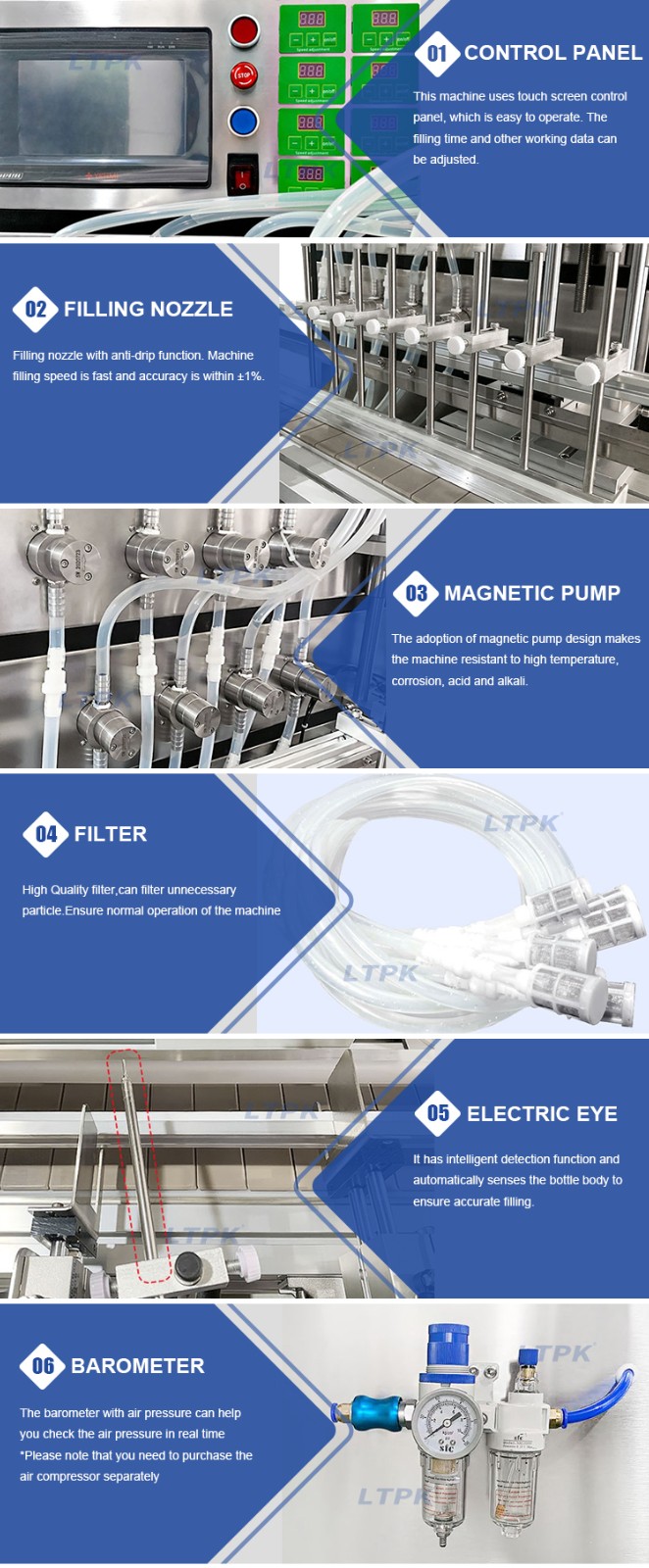

Detail Images
