Description

This semi-automatic pneumatic filling machine is mainly suitable for high viscosity paste containing particles and prone to oil-water stratification.Adopts high end gas-pressure meter,operation is more accurate,the filling volume or filling speed can be adjusted according to your needs.Each nozzle of this machine can be controlled separately.This one is with bottle holder,more reasonable design.

Technical Parameters

Machine Model:LT-LGF25-5000

Voltage:220V/50Hz 110V/60Hz

Power:100W

Energy Source:Electric and pneumatic

Air Capacity:>30L

Filling Nozzle:1 Nozzles

Filling Range:5-100mL /10-300mL / 50-500mL /100-1000mL /500-3000mL / 1000-5000mL

Filling Speed:About 12-20bottles/min

Filling Accuracy:+0.5%

Air Pressure:0.4-0.6MPa

Height of Bottle Holder:Adjustable

Package Weight：72.5kgs

Package Size：1310*575*930mm

Application

Widely used in various products,such as sweet and spicy sauce, chili sauce, beef sauce, bean paste, hot pot bottom material,edible oil, mineral water, fruit juice, shampoo, detergent, etc.

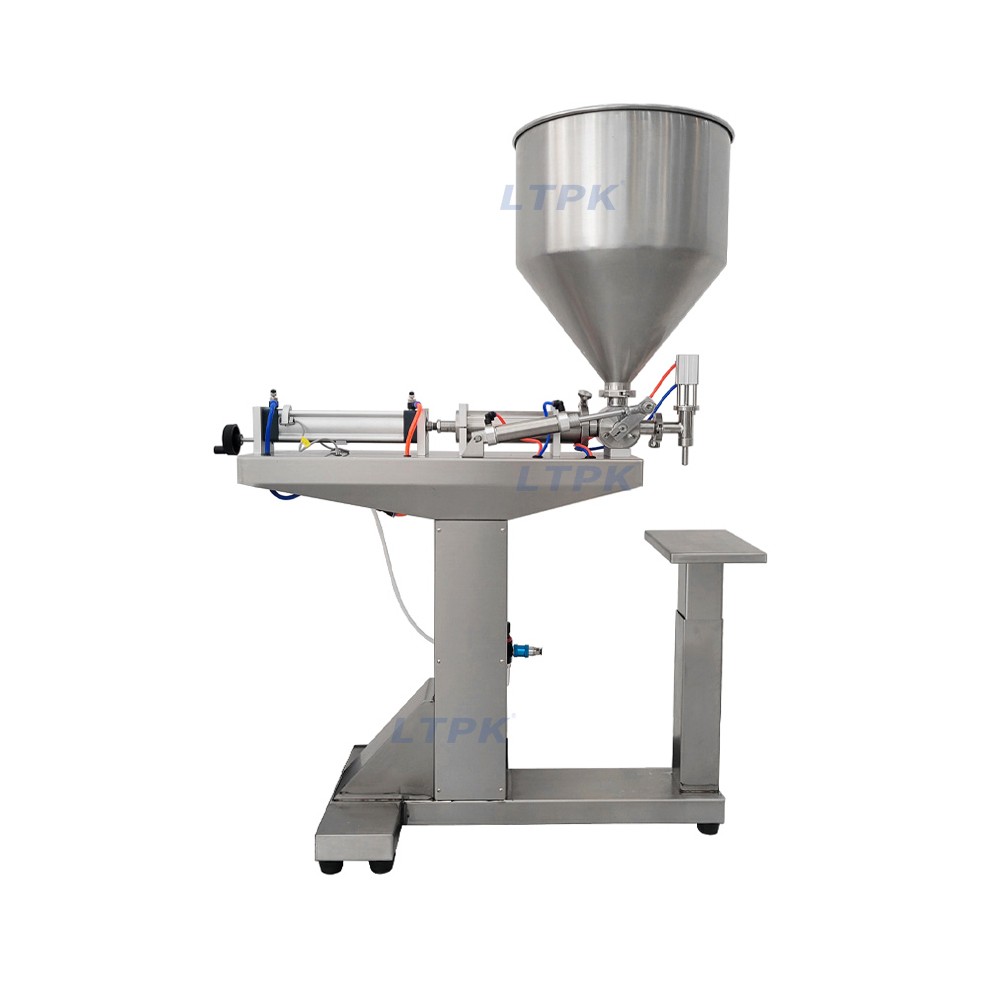

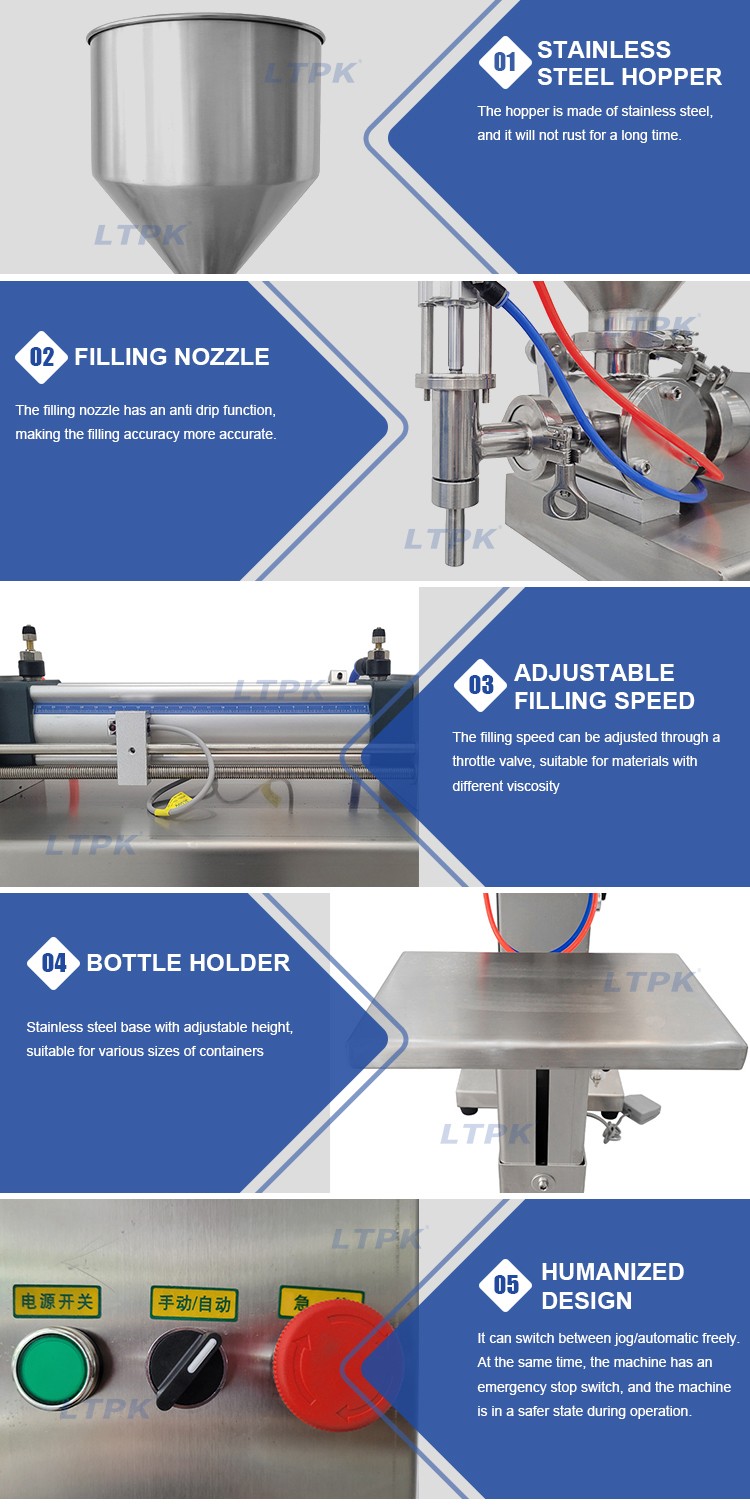

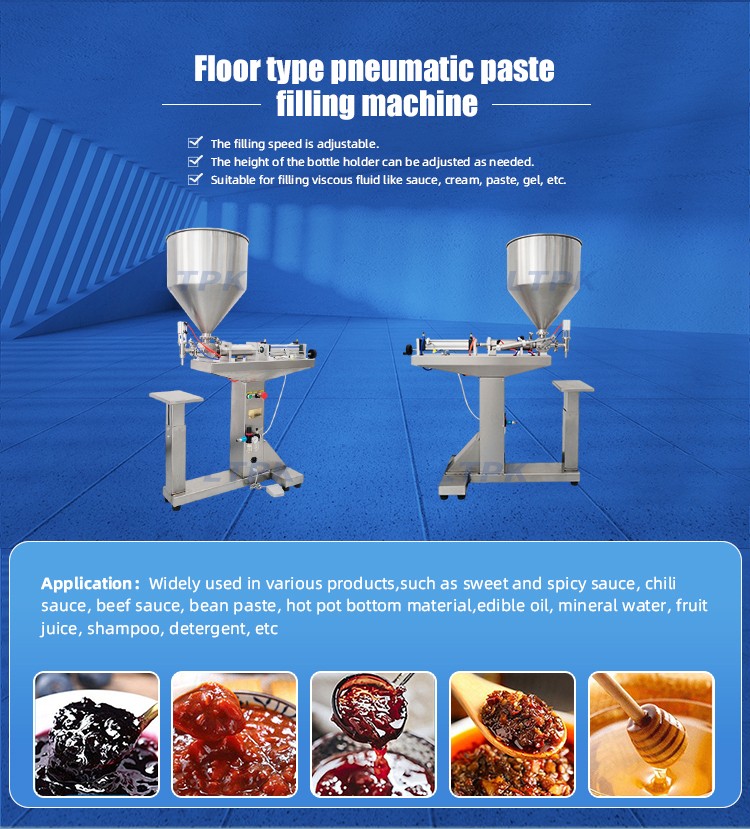

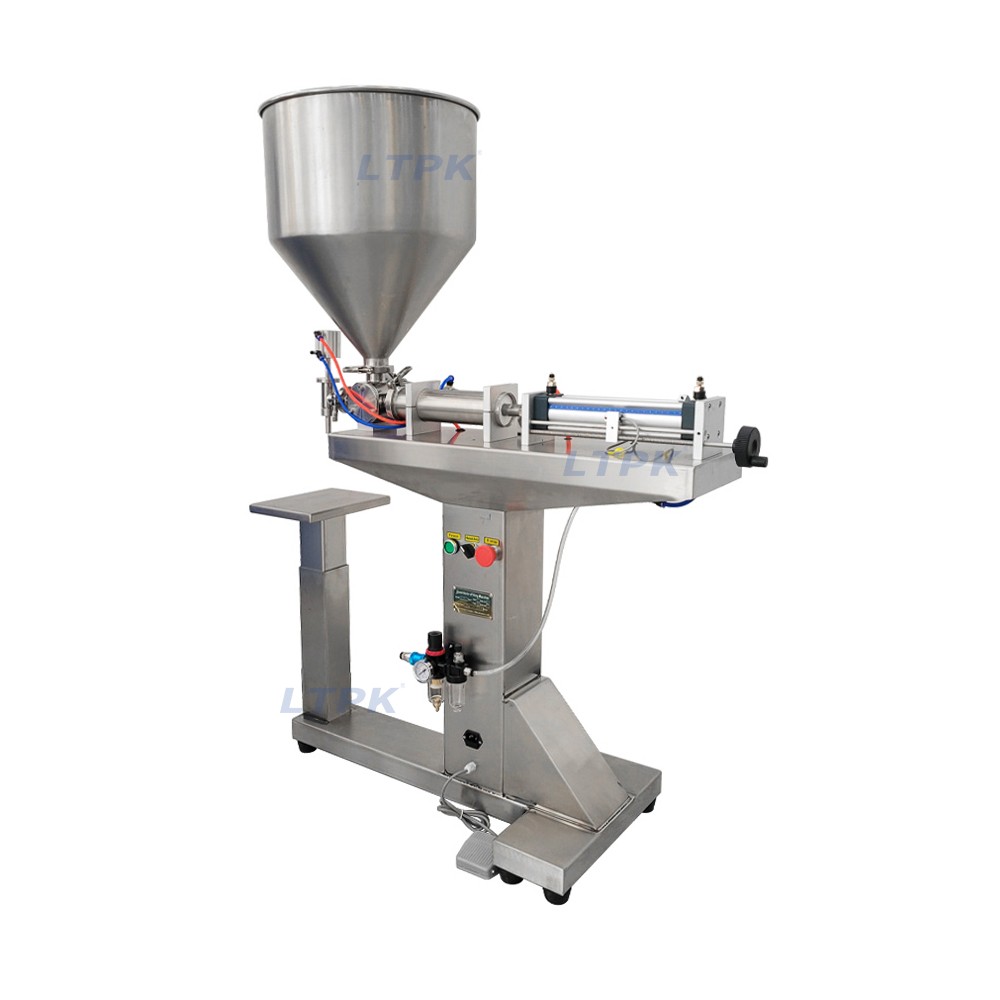

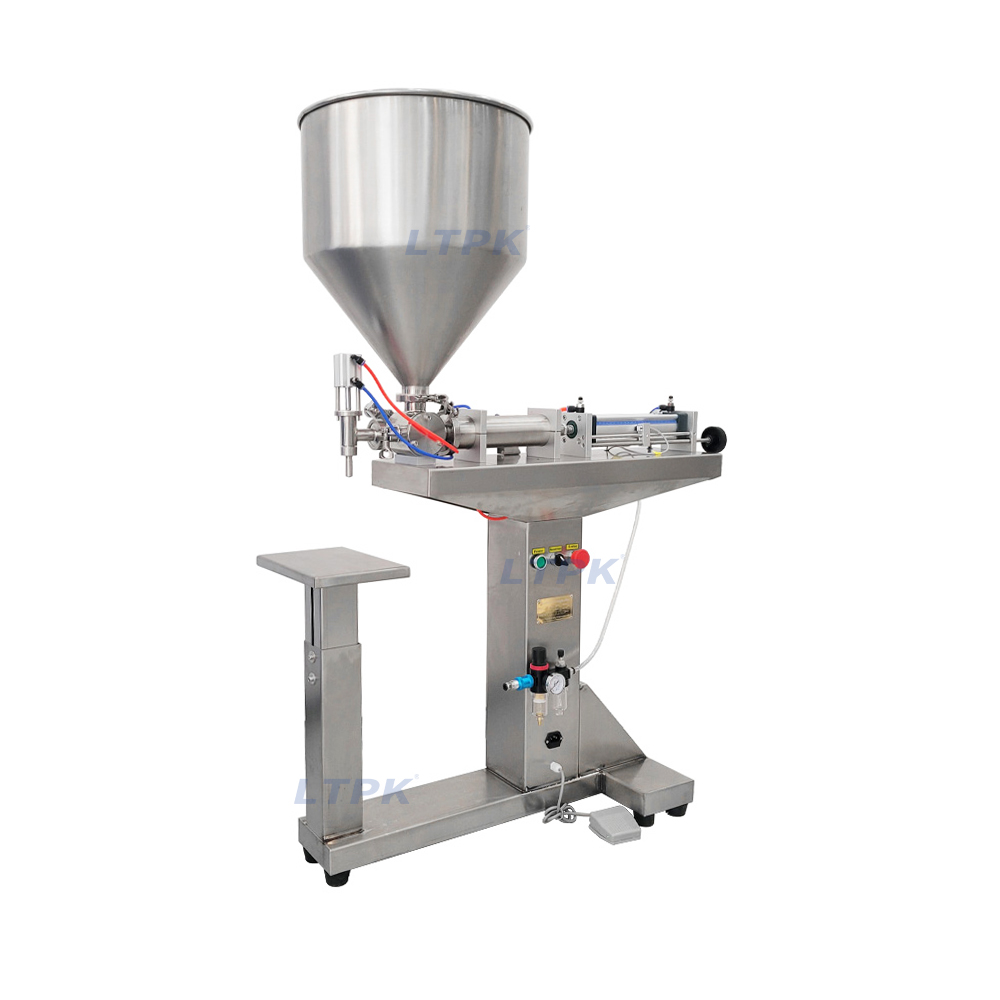

Detail Images
