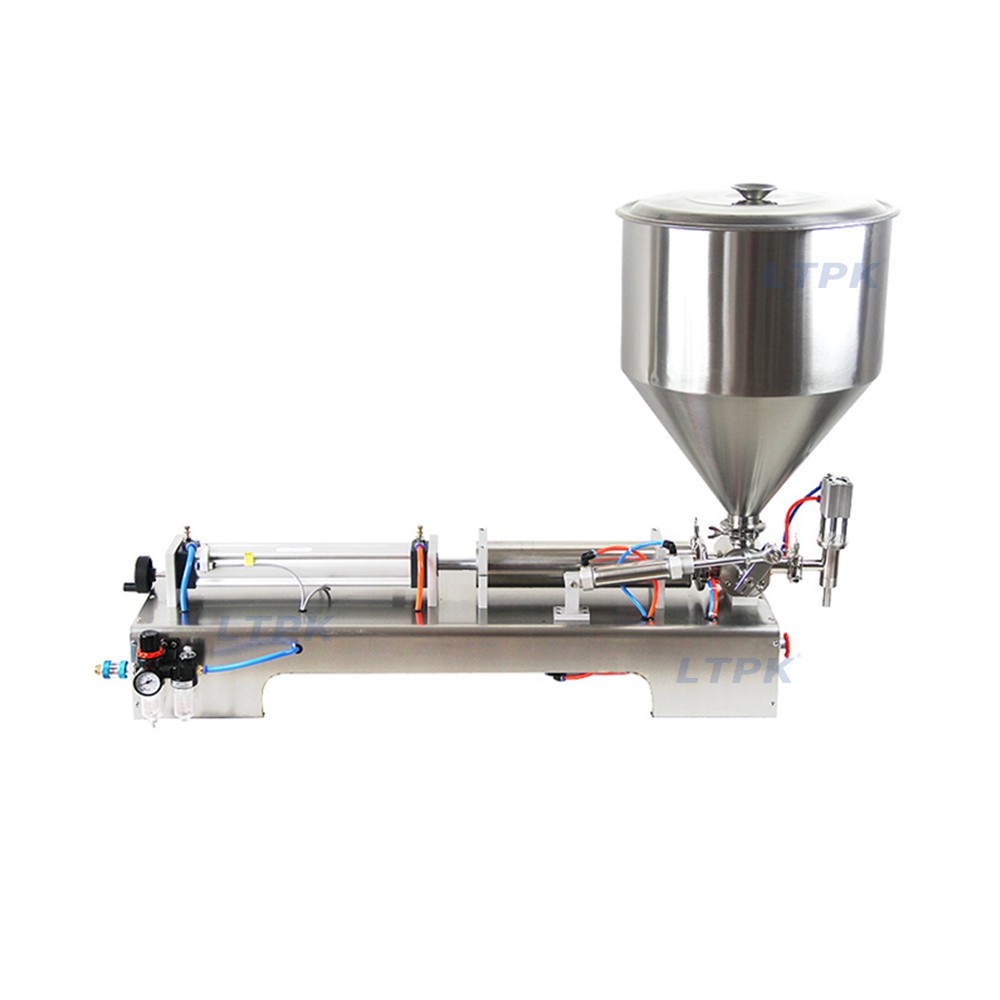

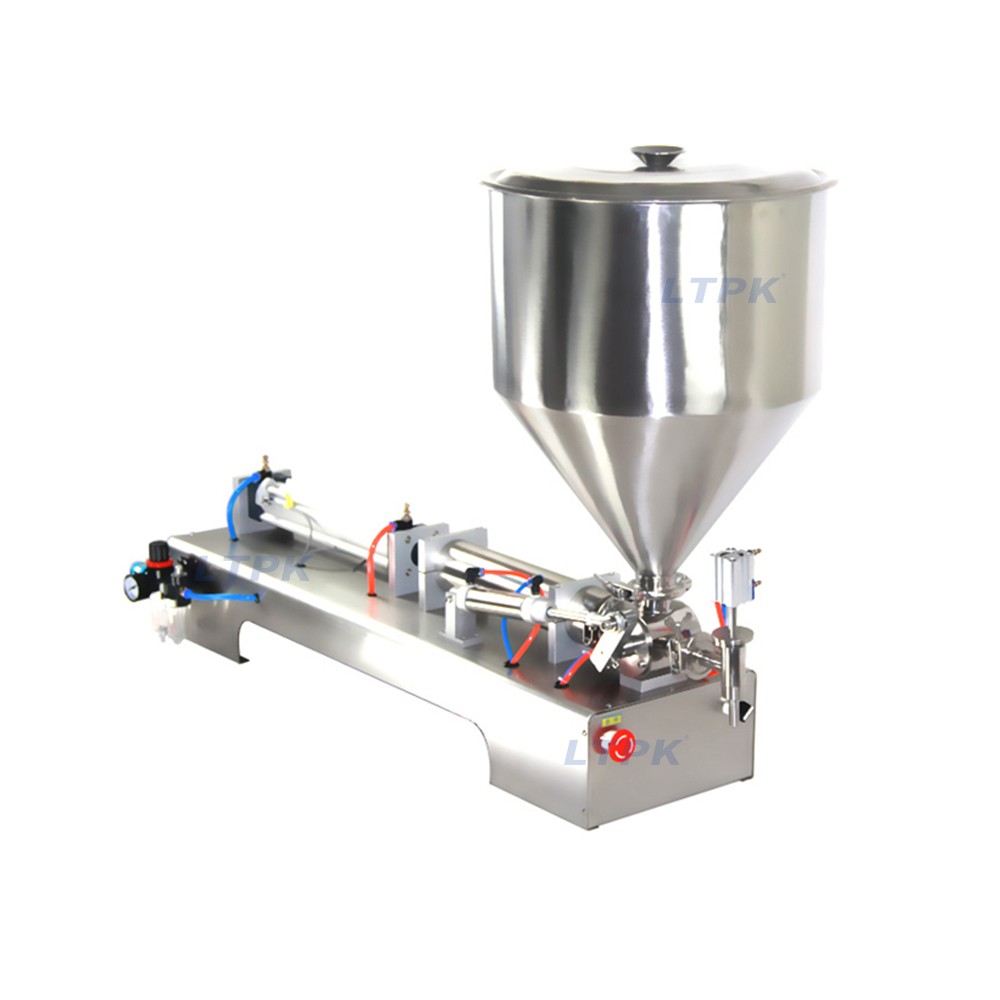

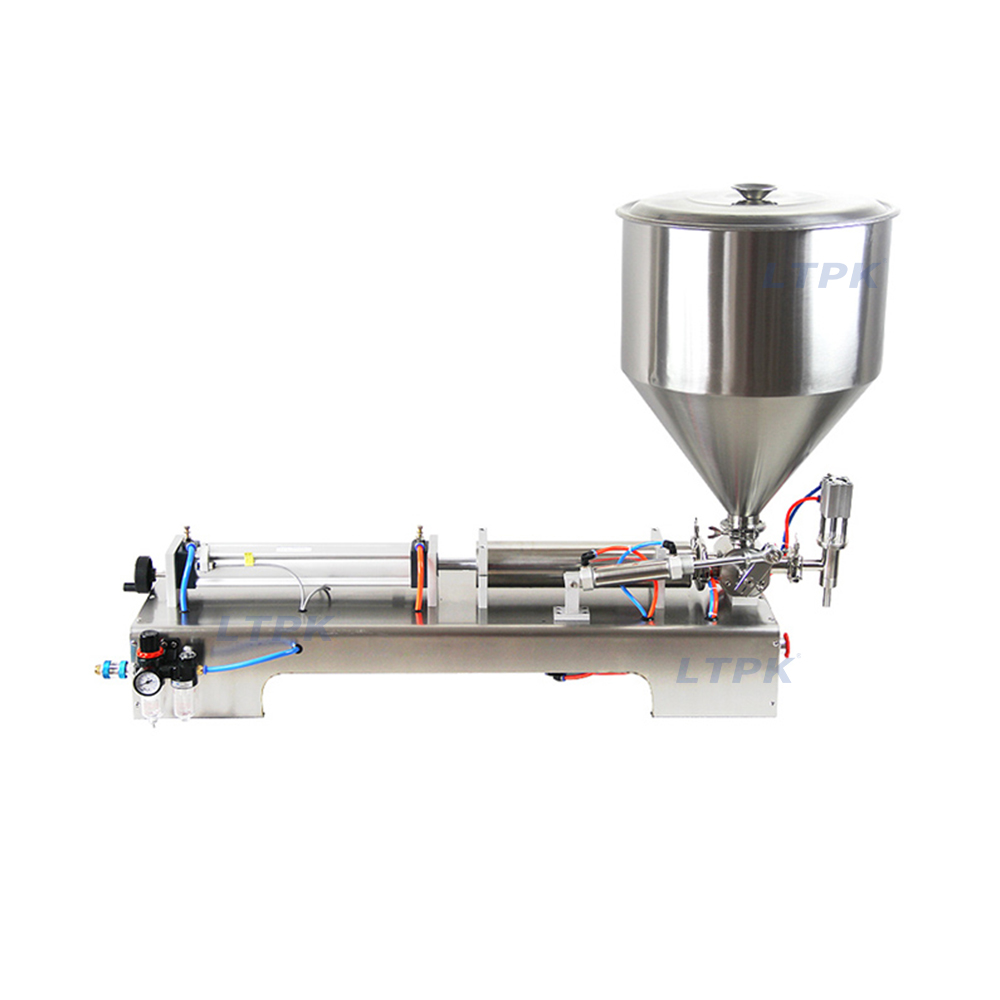

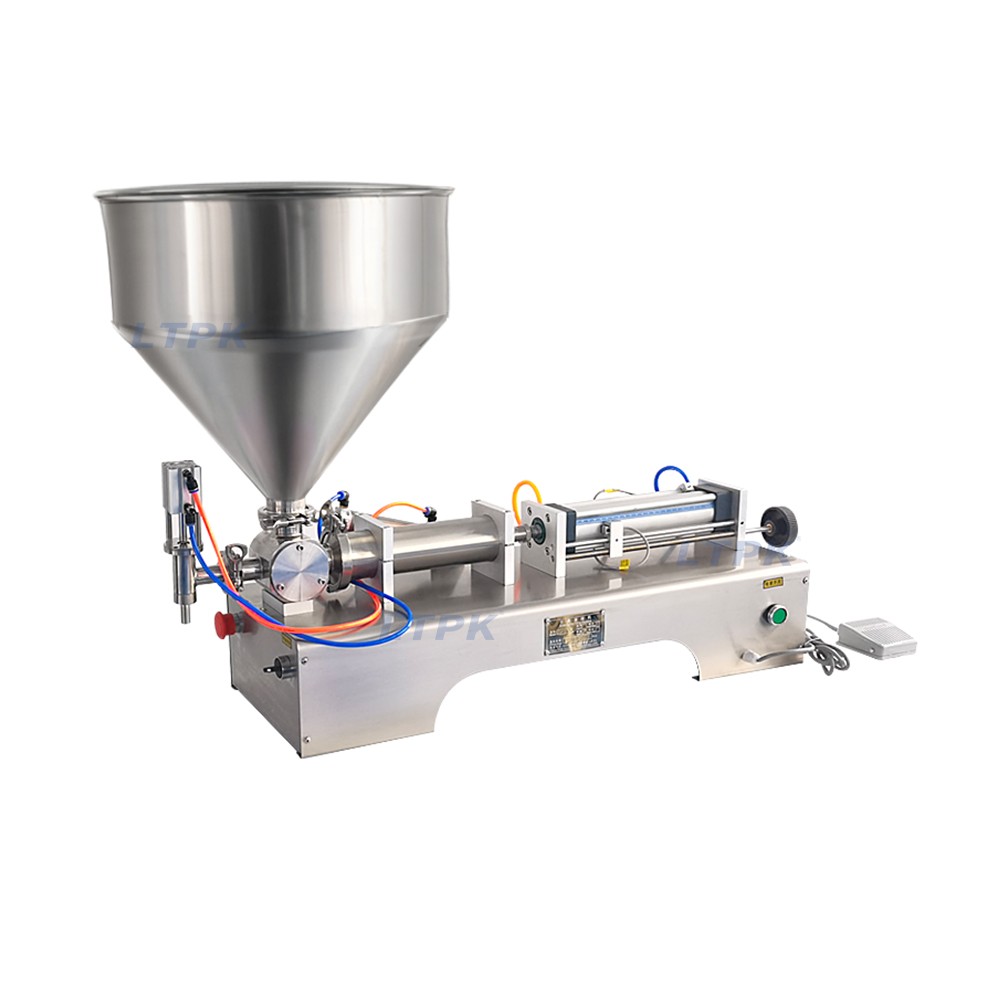

Description

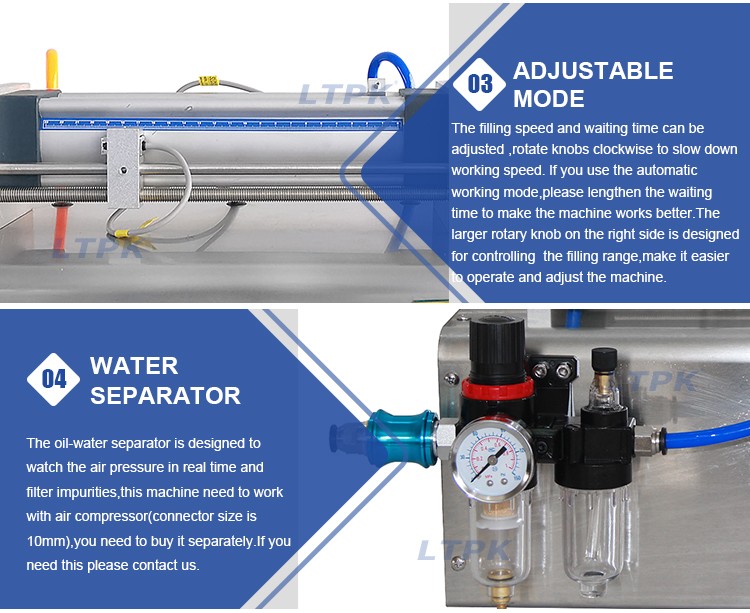

This series of filling machines has a simple and reasonable structure, high accuracy, and more convenient operation. Suitable for daily chemical, food, pesticide and special industries, it is an ideal equipment for filling high viscosity fluids and ointments. Reasonable design, compact model, convenient operation, with a filling volume adjustment handle, filling speed can be adjusted at will, and high filling accuracy. The filling head adopts anti drip and lifting filling devices. This series of filling machines is divided into single head, double head, and explosion-proof models. Both ends can be adjusted arbitrarily and used separately. (Non standard models can be customized)

Technical Parameters

Model:LT-G1WG 10-100ml

Voltage supply :220/110V 50/60Hz

Power:20W

Filling accuracy:≤±1%

Filling speed:About 5-20bottles/min

Filling volume:3-30ml/10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Air pressure:0.4-0.6MPa

Size of air compressor connector:OD8mm

Air consumption:≥0.1m³/min

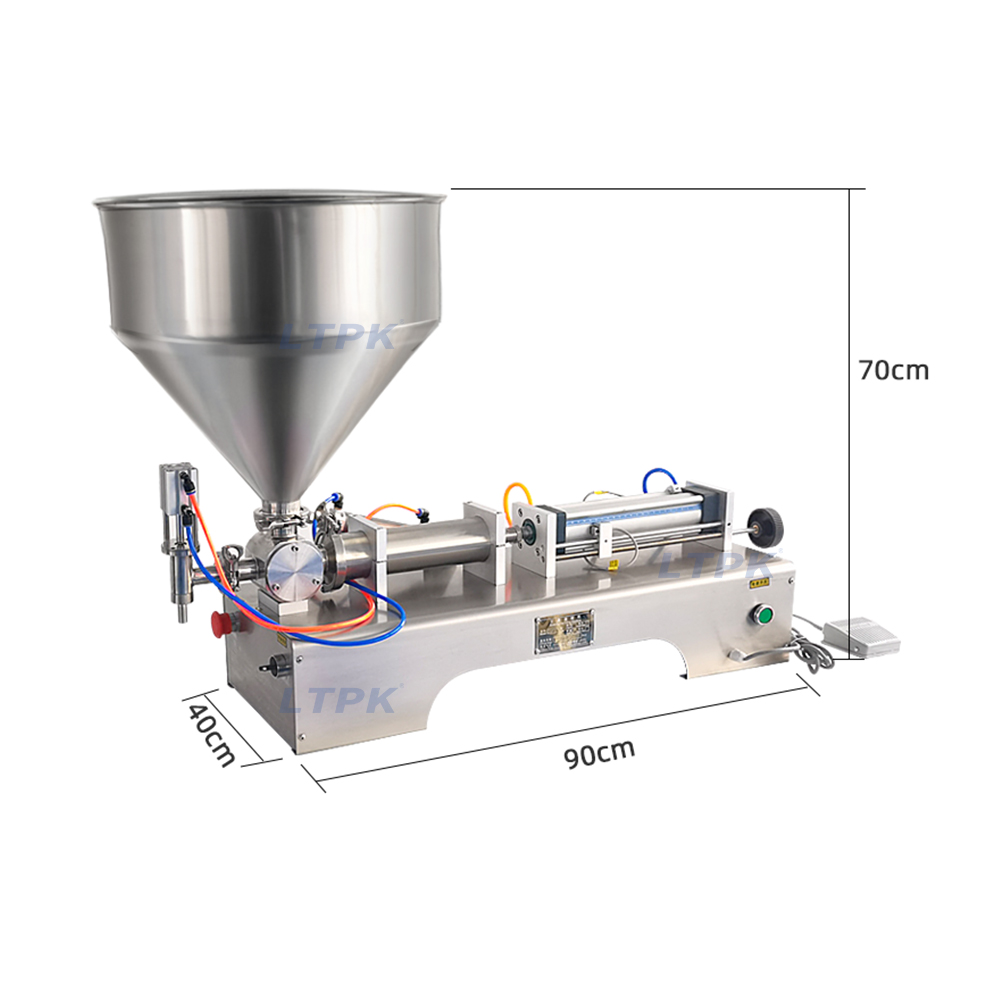

Package Info:Machine Body:96*39*34cm,29KG

Machine Hopper:46*46*49cm,6KG

Application

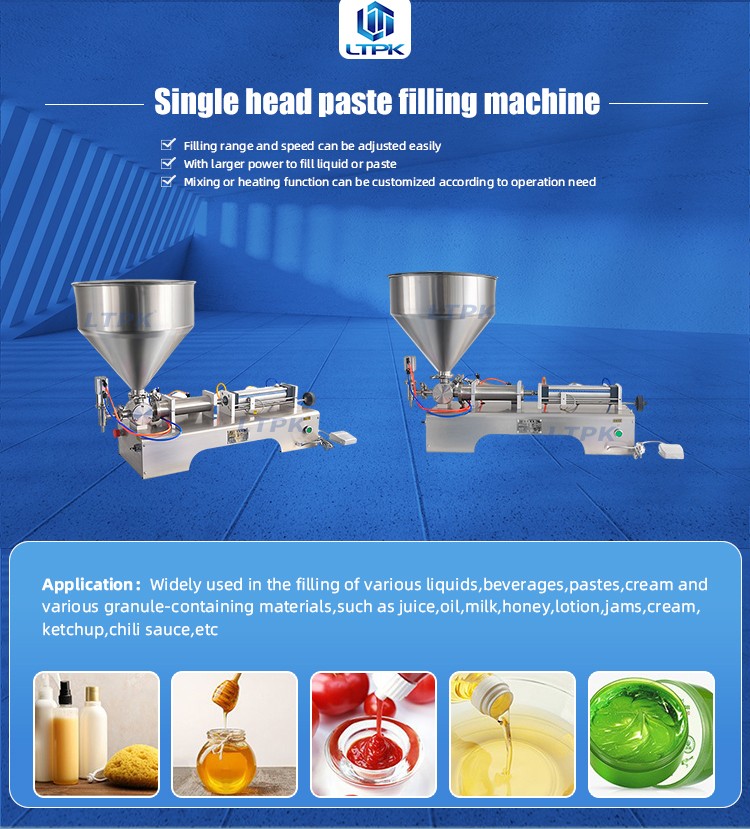

Widely used in the filling of various liquids,beverages,pastes,cream and various granule-containing materials,such as juice,oil,milk,honey,lotion,jams,cream,ketchup,

chili sauce,etc.

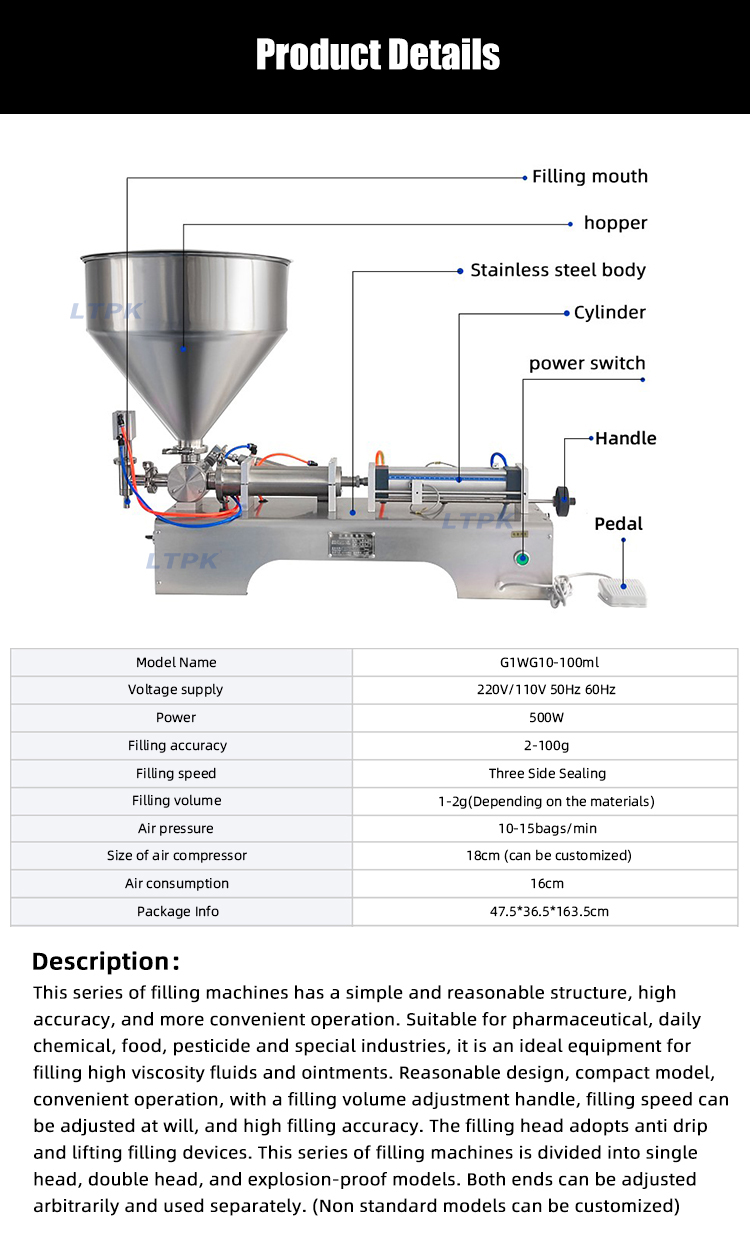

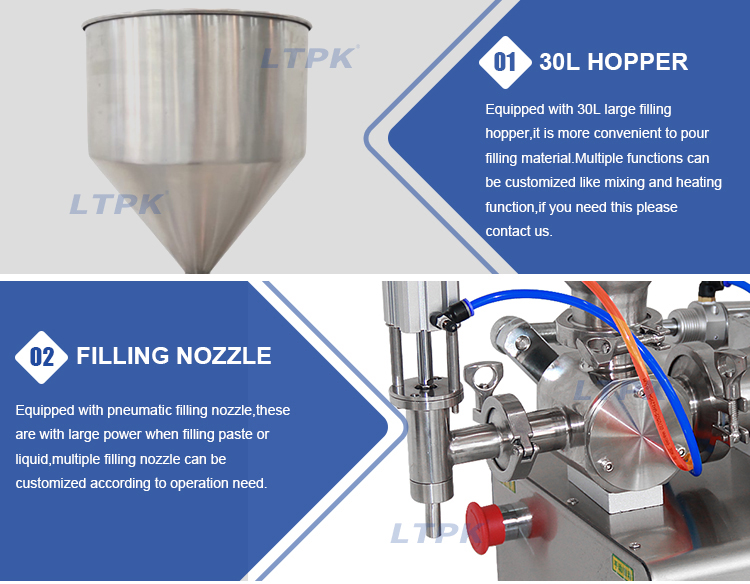

Detail Images
