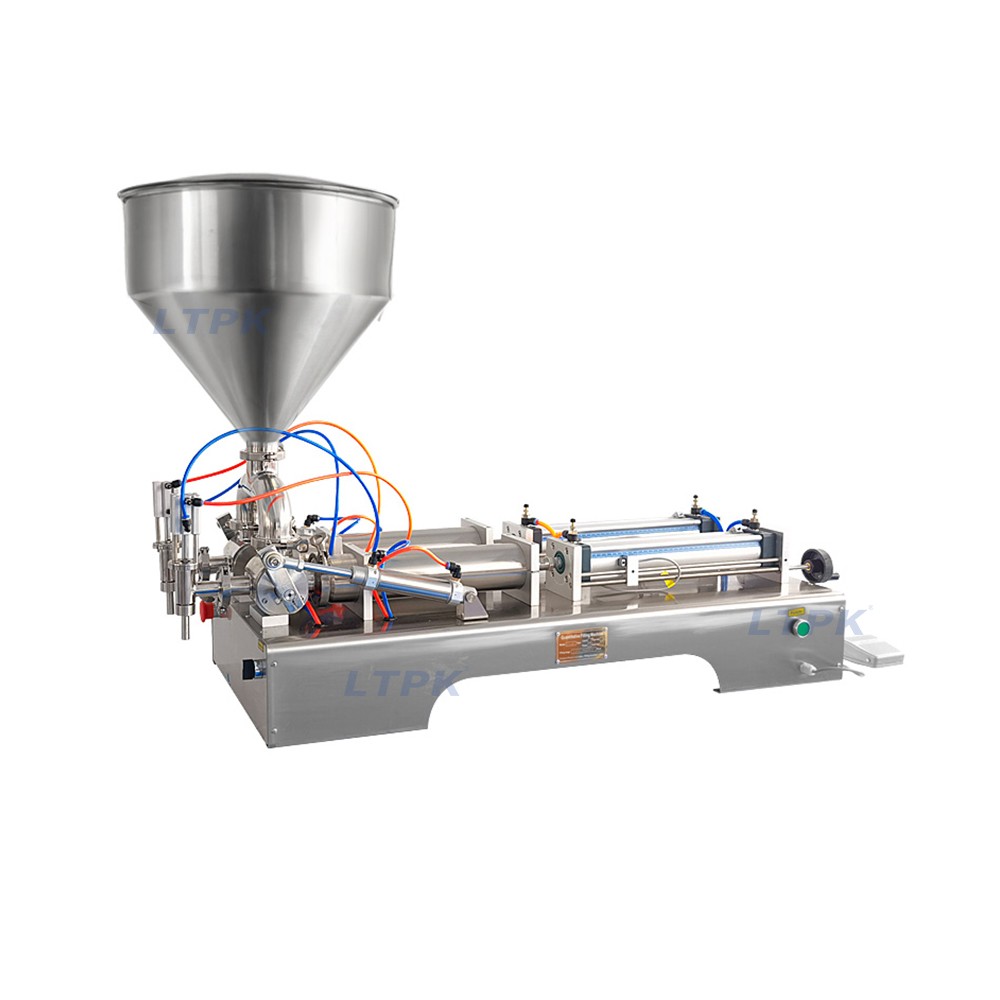

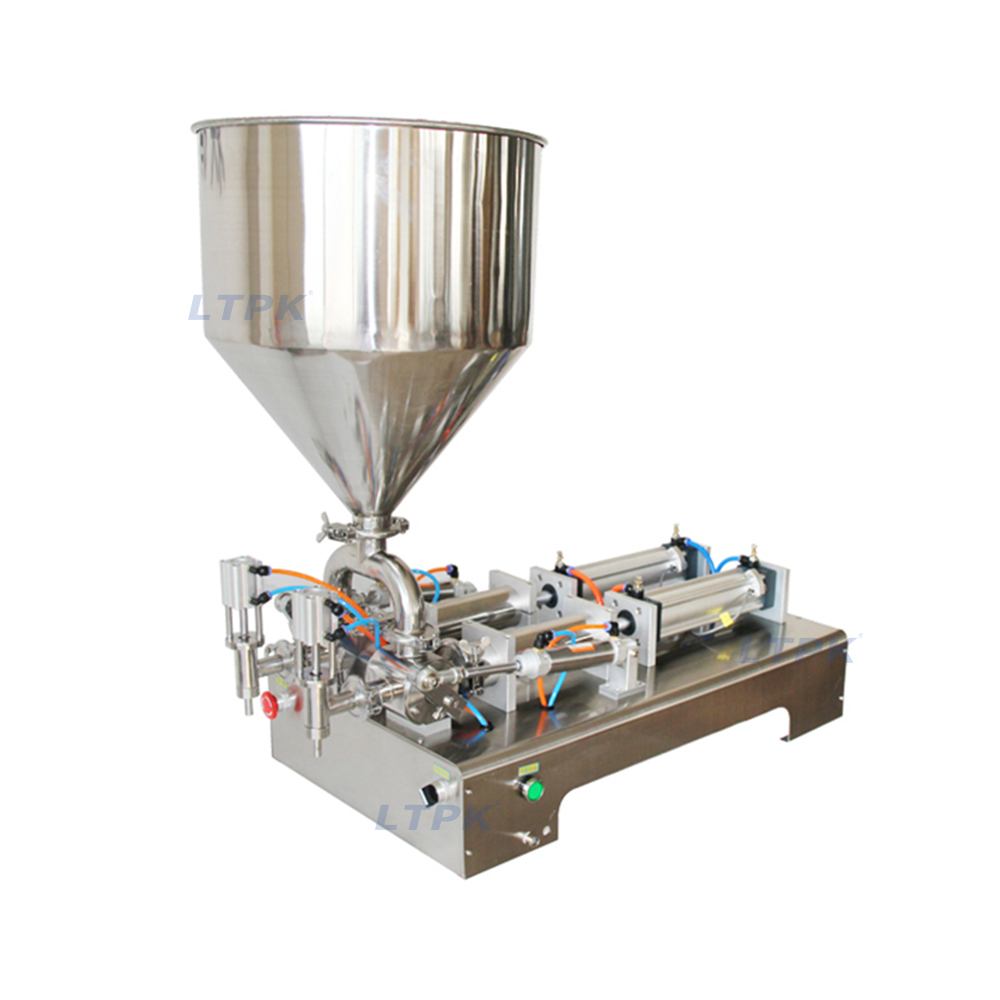

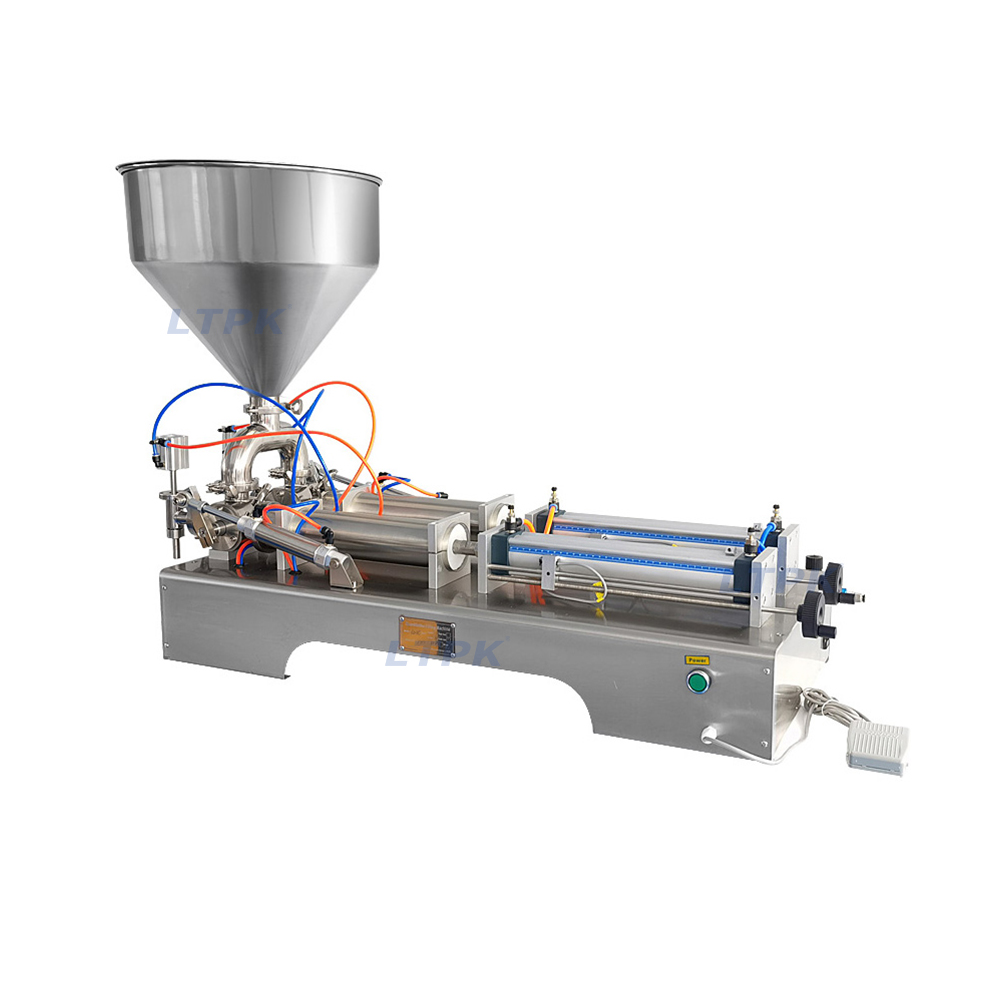

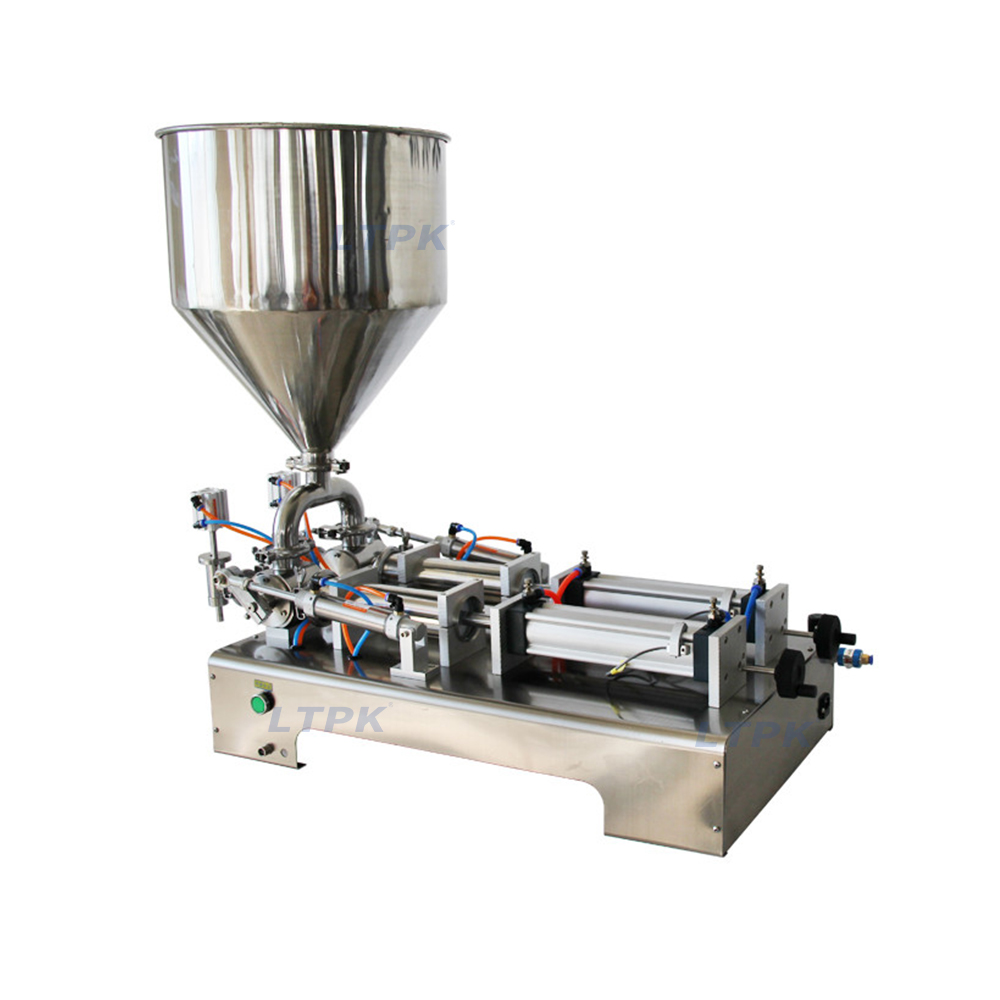

Description

This series of filling machines has a simple and reasonable structure, high accuracy, and more convenient operation.

Suitable for daily chemical, food, pesticide and special industries, it is an ideal equipment for filling high viscosity

fluids and ointments. Reasonable design, compact model, convenient operation, with a filling volume adjustment

handle, filling speed can be adjusted at will, and high filling accuracy. The filling head adopts anti drip and lifting

filling devices. This series of filling machines is divided into single head, double head, and explosion-proof models.

Both ends can be adjusted arbitrarily and used separately. (Non standard models can be customized)

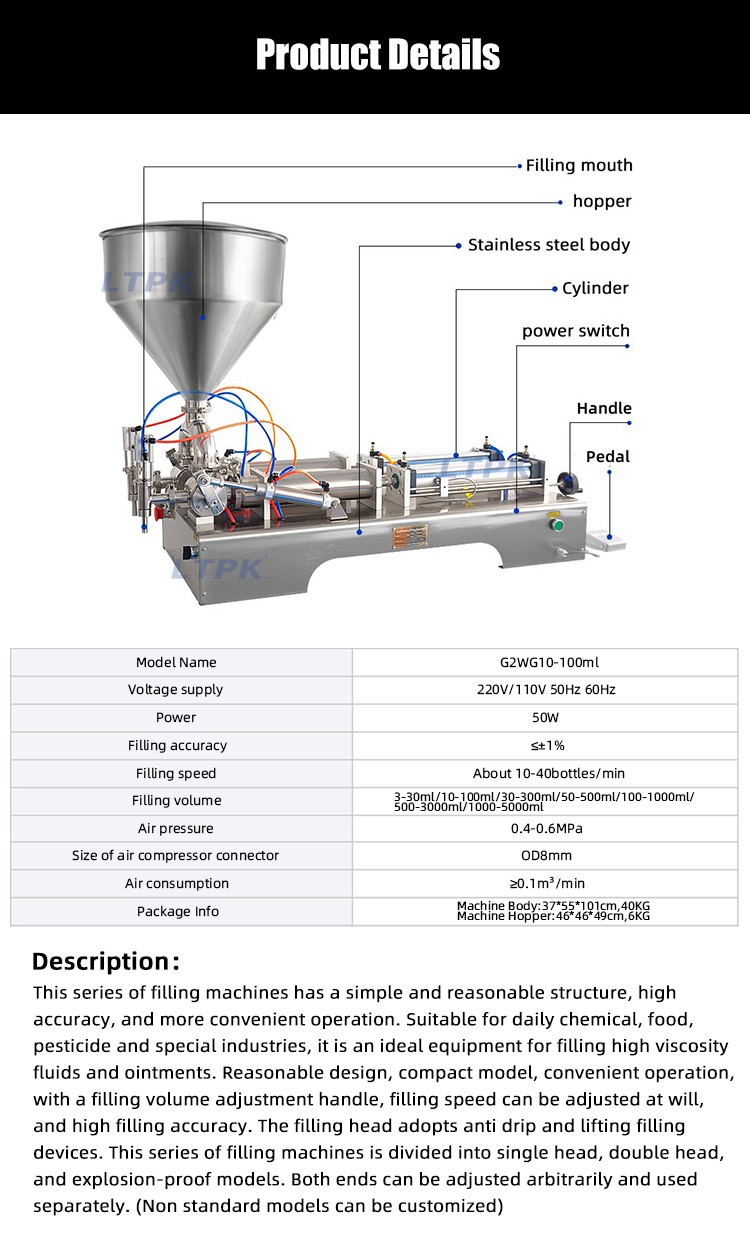

Technical Parameters

Model:LT-G2WG

Voltage:110/220V ,50/60HZ(customized).

Power:50W.

Suitable filling range:3-30ml/10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Air pressure: 0.4-0.6Mpa.

Filling speed: 10-40bottles/min(depend on filling product and filling volume)

Filling accuracy:±1%

Anti-drip function:Yes.

Package size:117*57*36cm,46*46*55cm

Package weight:51kg+7kg

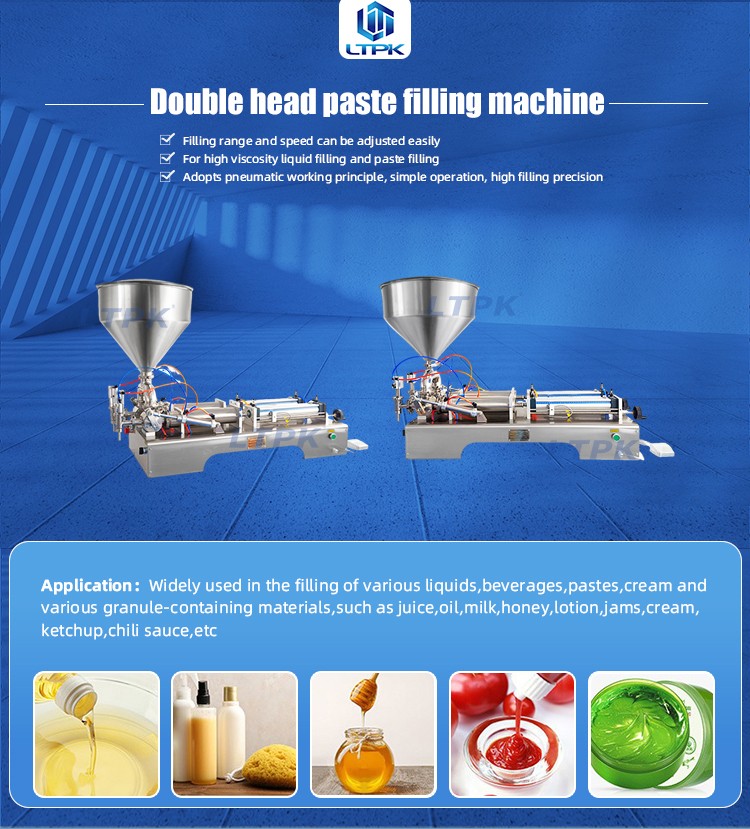

Application

Widely used in the filling of various liquids,beverages,pastes,cream and various

granule-containing materials,such as juice,oil,milk,honey,lotion,jams,cream,ketchup,

chili sauce,etc.

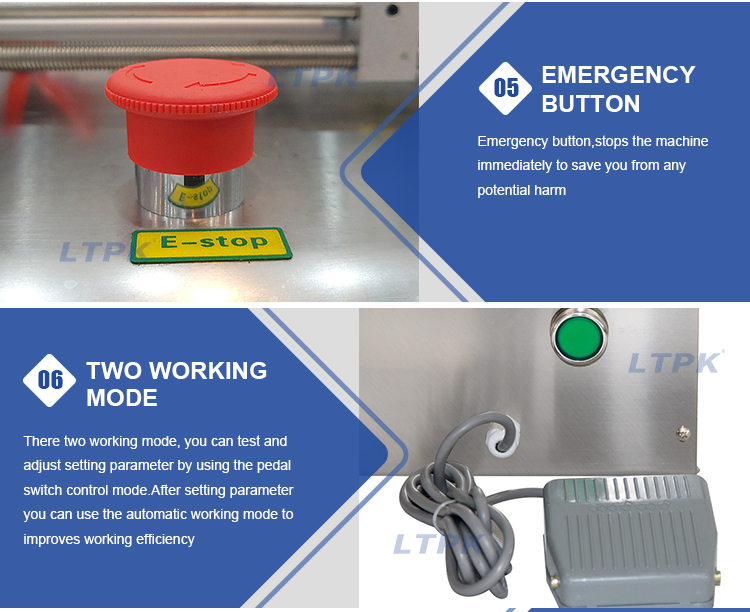

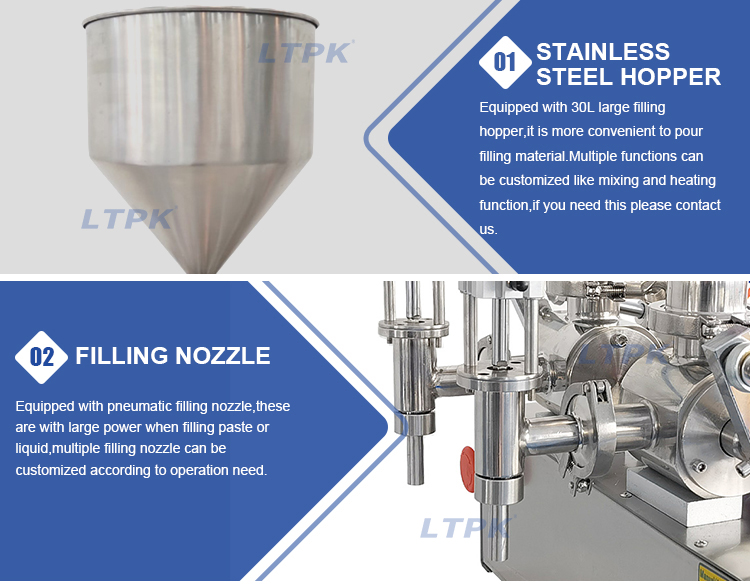

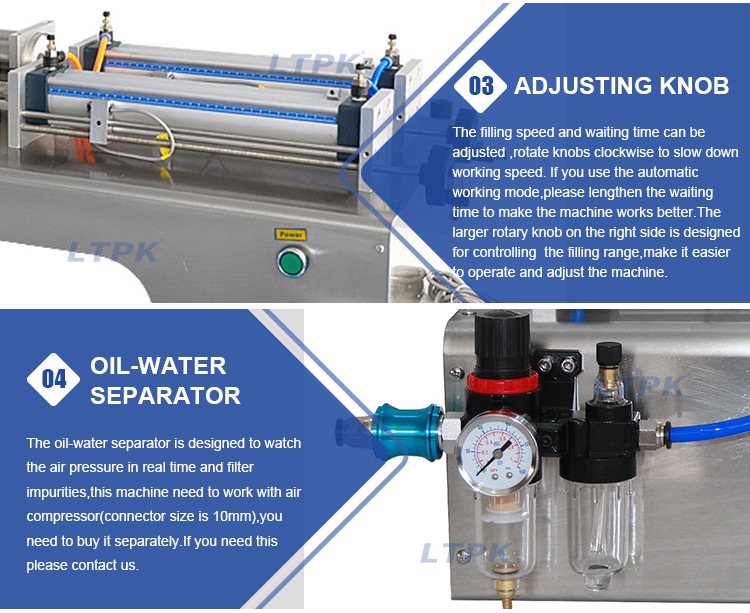

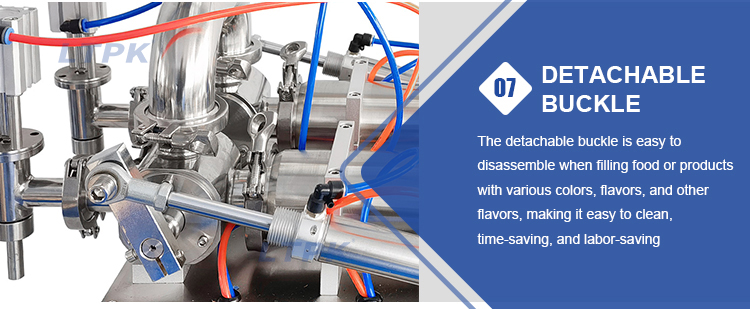

Detail Images
