Description

This series of models belongs to the transistor control circuit, with stable quality, simple operation, and convenient use. Suitable for continuous sealing work, it can be operated alone or connected to an assembly line for use.

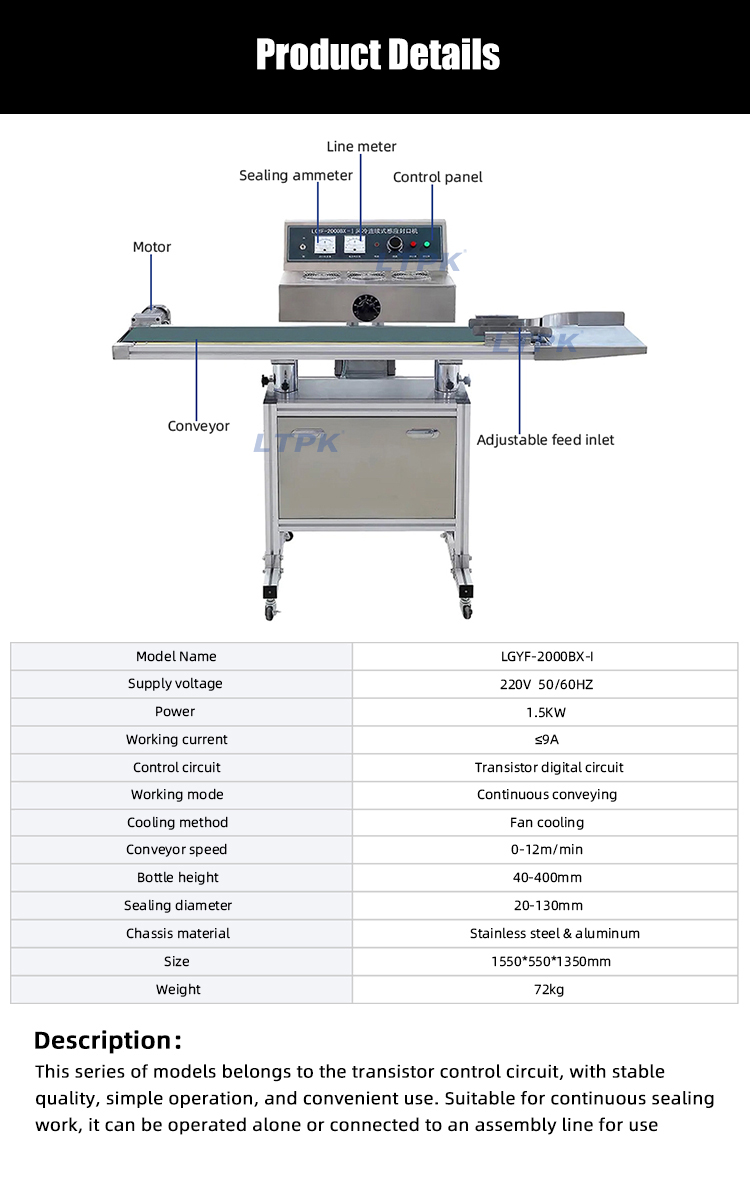

Technical Parameters

Mode:LGYF-2000BX-I

Supply voltage:220V  50/60HZ

Power:1.5KW

Working current:≤9A

 Control circuit:transistor digital circuit

Working mode:continuous conveying

Cooling method:fan cooling

Conveyor speed:0-12m/min

Bottle height:40-400mm

Sealing diameter:20-130 mm

Chassis material:stainless steel & aluminum

Size:1550*550*1350mm

Weight:72kg

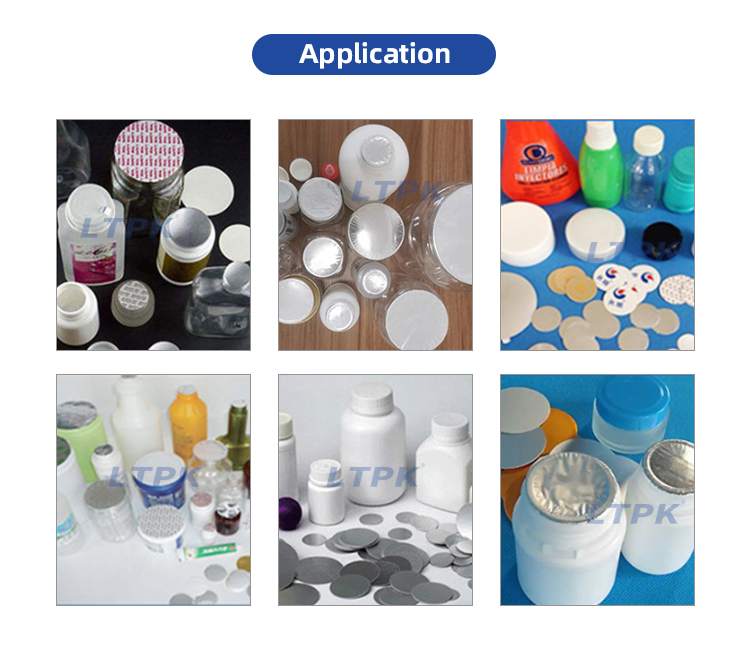

Application

It is suitable for sealing of aluminum foil for nonmetallic containers in many industries, such as pesticide, food, daily chemical, lubrication and other industries.

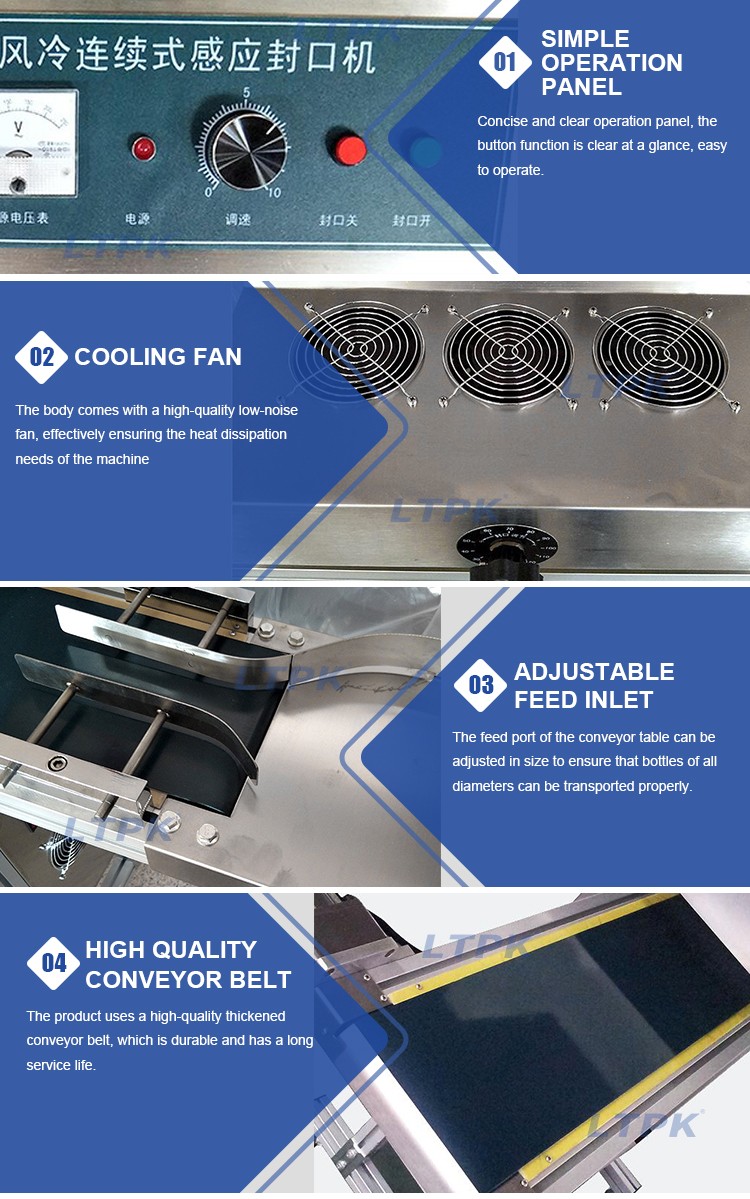

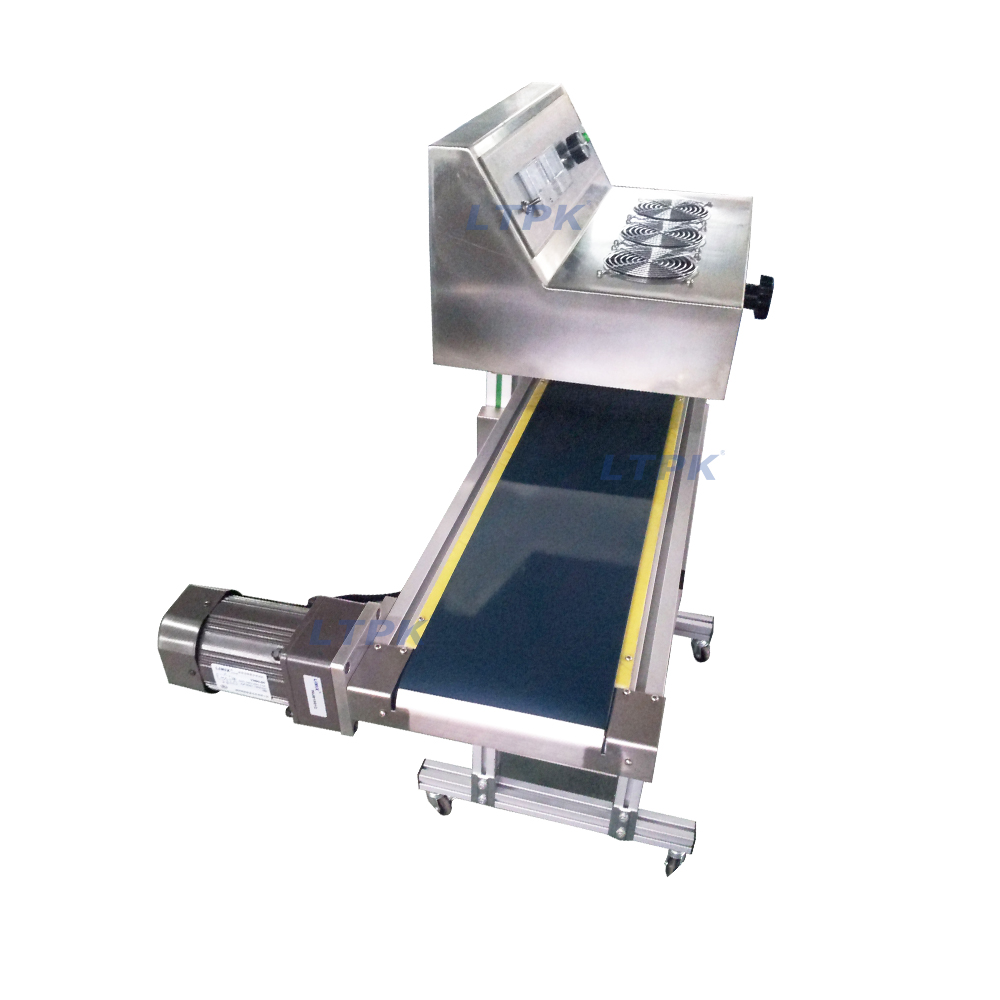

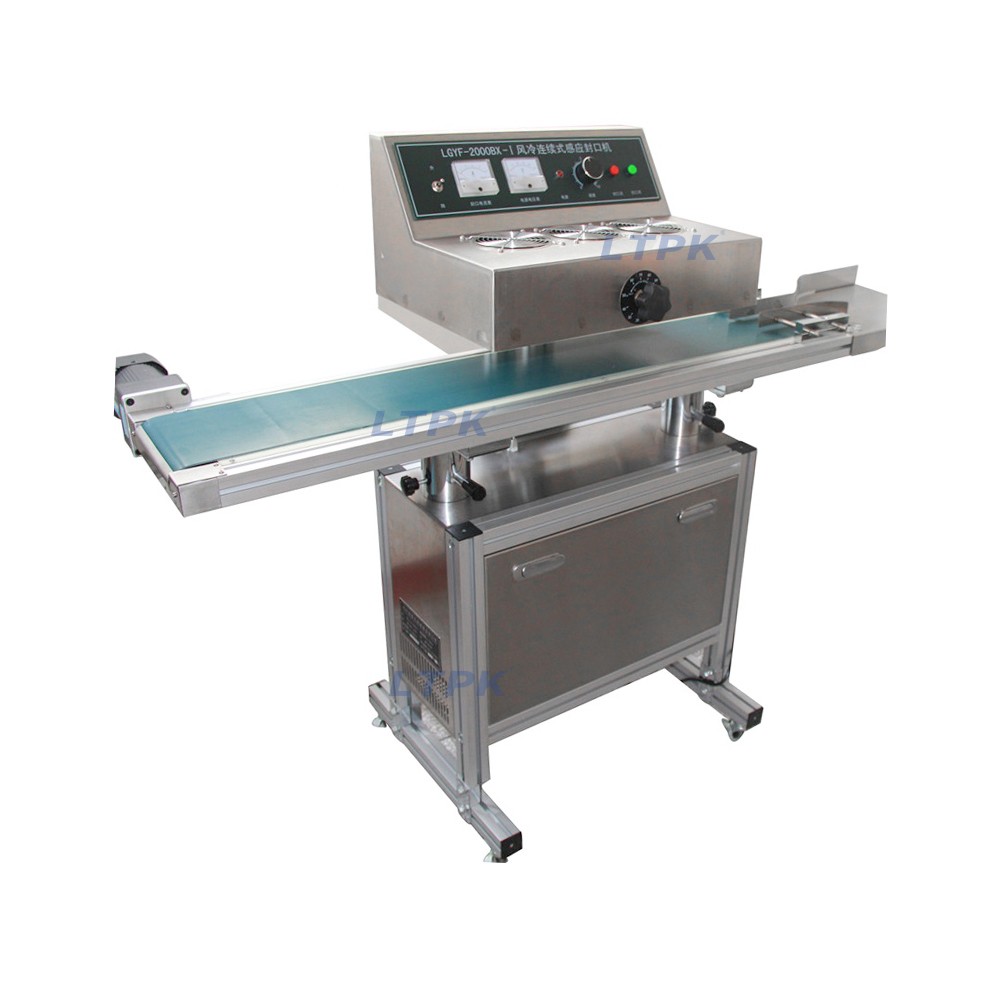

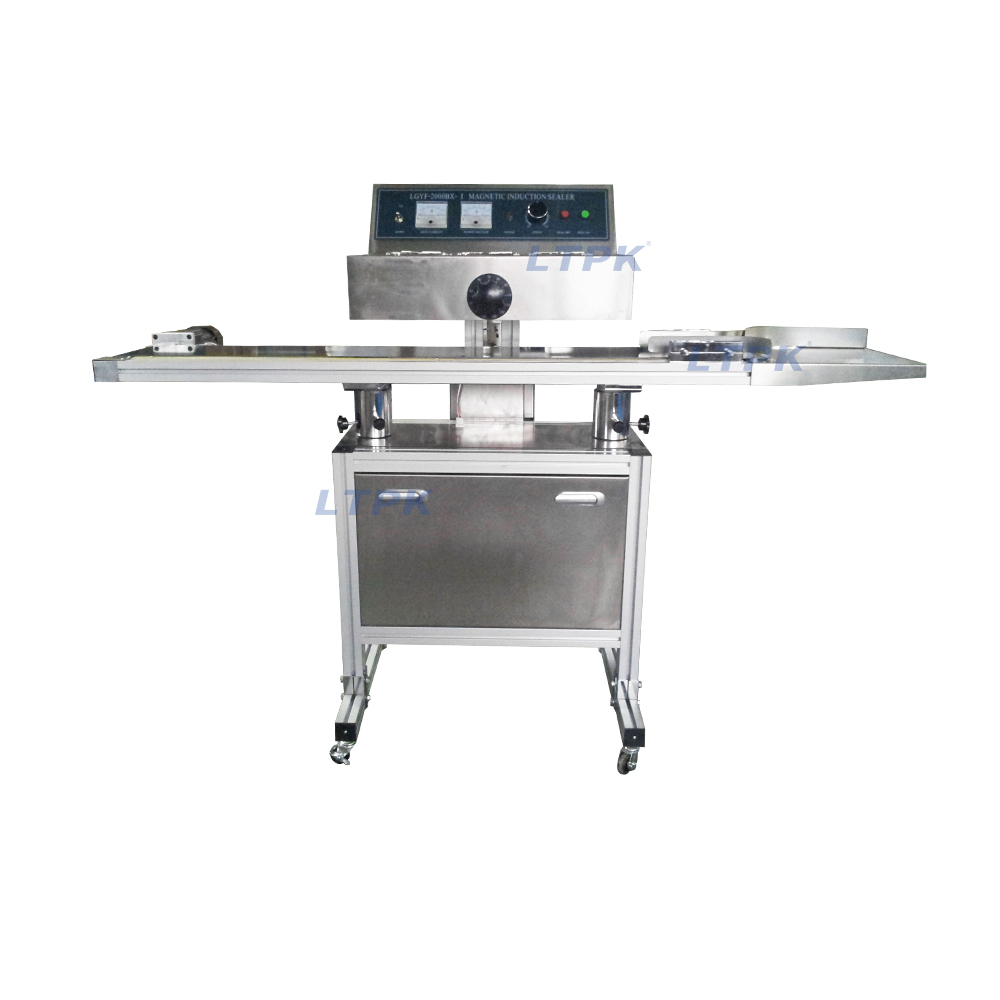

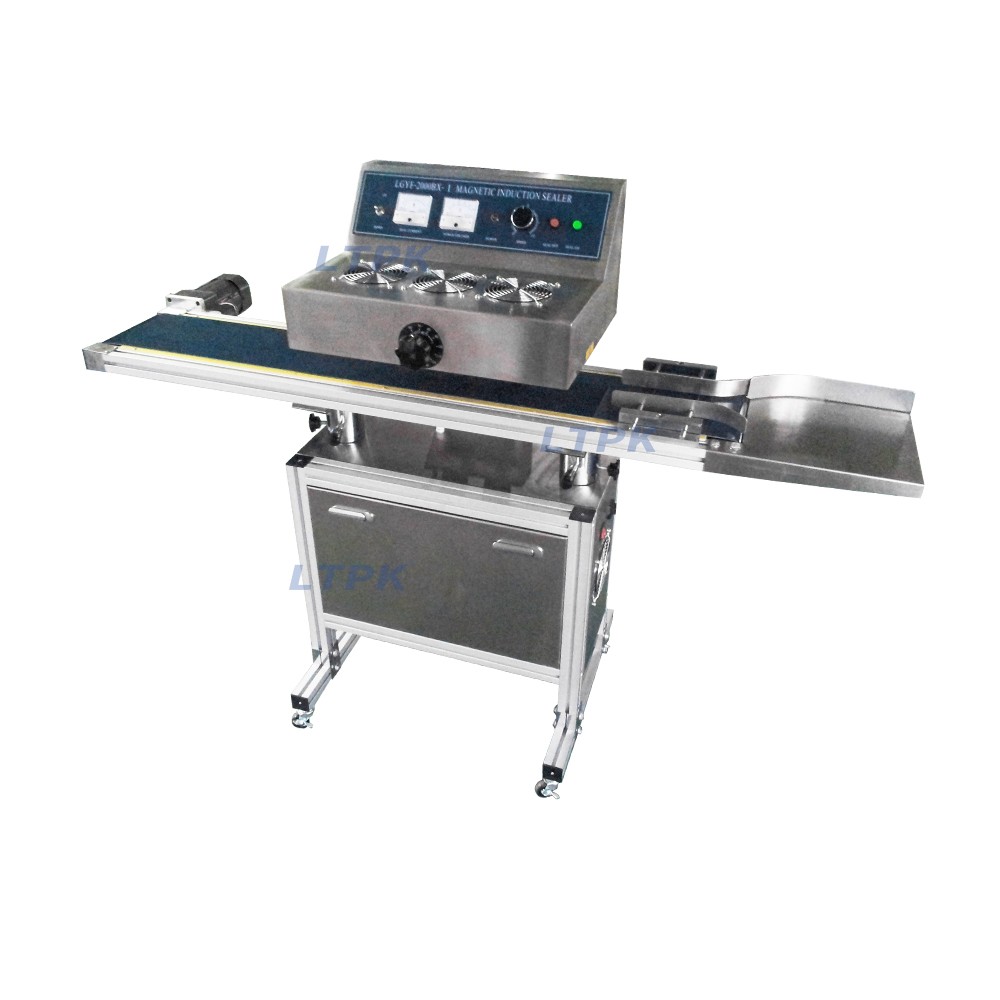

Detail Images
