Description

The small character inkjet printer, also known as the CIJ inkjet printer, operates on the principle that under pressure, ink enters the spray chamber, which is equipped with a crystal oscillator. Through vibration, the ink is sprayed from a nozzle with a very small aperture (usually 60 microns) to form fixed spacing points. Through processing and phase tracking by the CPU, some ink points on the charging electrode are charged with different cores, which undergo different deviations under a high voltage magnetic field of several thousand volts. The nozzle flies out and lands on the moving surface of the product, forming a dot matrix, thereby forming text, numbers, or graphics.

Technical Parameters

Model:LT-W700

Font dot:8*8 , 8*16 , 12*12 , 16*16 , 24*24

Printing lines:1-4lines

Character height:1.2-18mm

Printing speed:1024 characters/s(8*8)

Printing distance:keep the nozzle within 3cm of the product

Ink consumption:70 million words per liter(8*8)

Printing direction:360° rotatable

Ink color:black, blue, red, etc

Machine Material:stainless steel

Voltage:220V  150VA

Power:120W

Machine size:370*620*590mm

Weigh:28kg

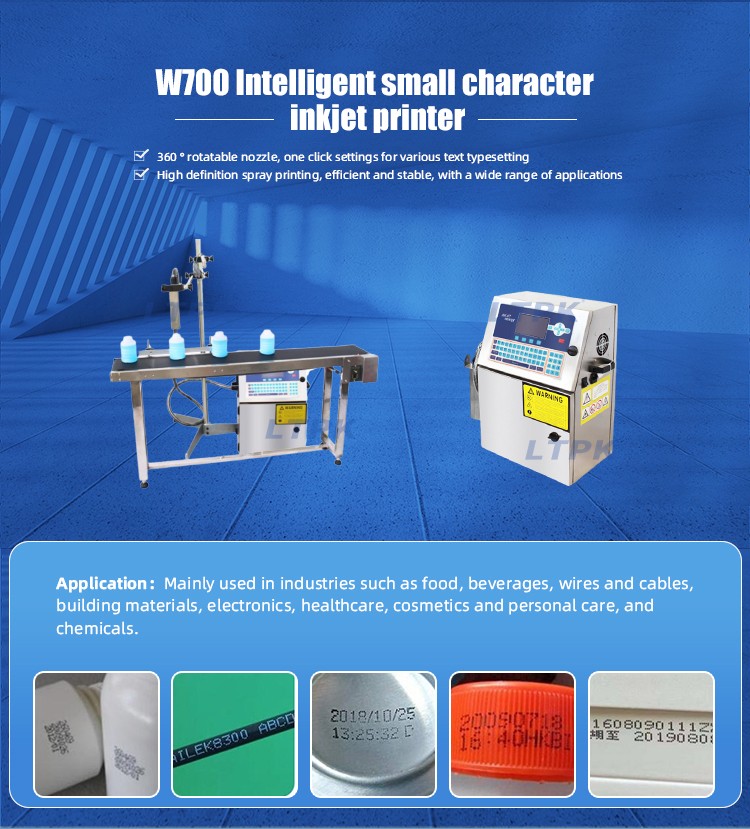

Application

Mainly used in industries such as food, beverages, wires and cables, building materials, electronics, healthcare, cosmetics and personal care, and chemicals.

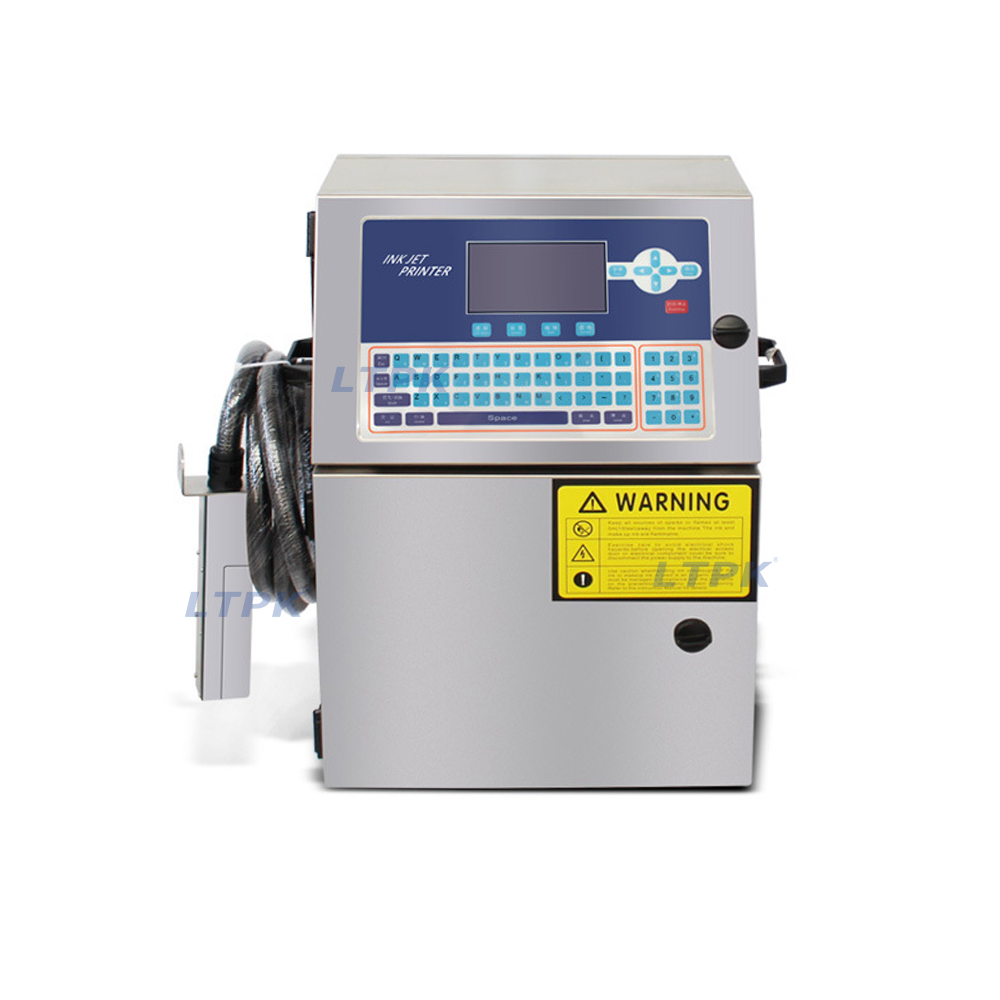

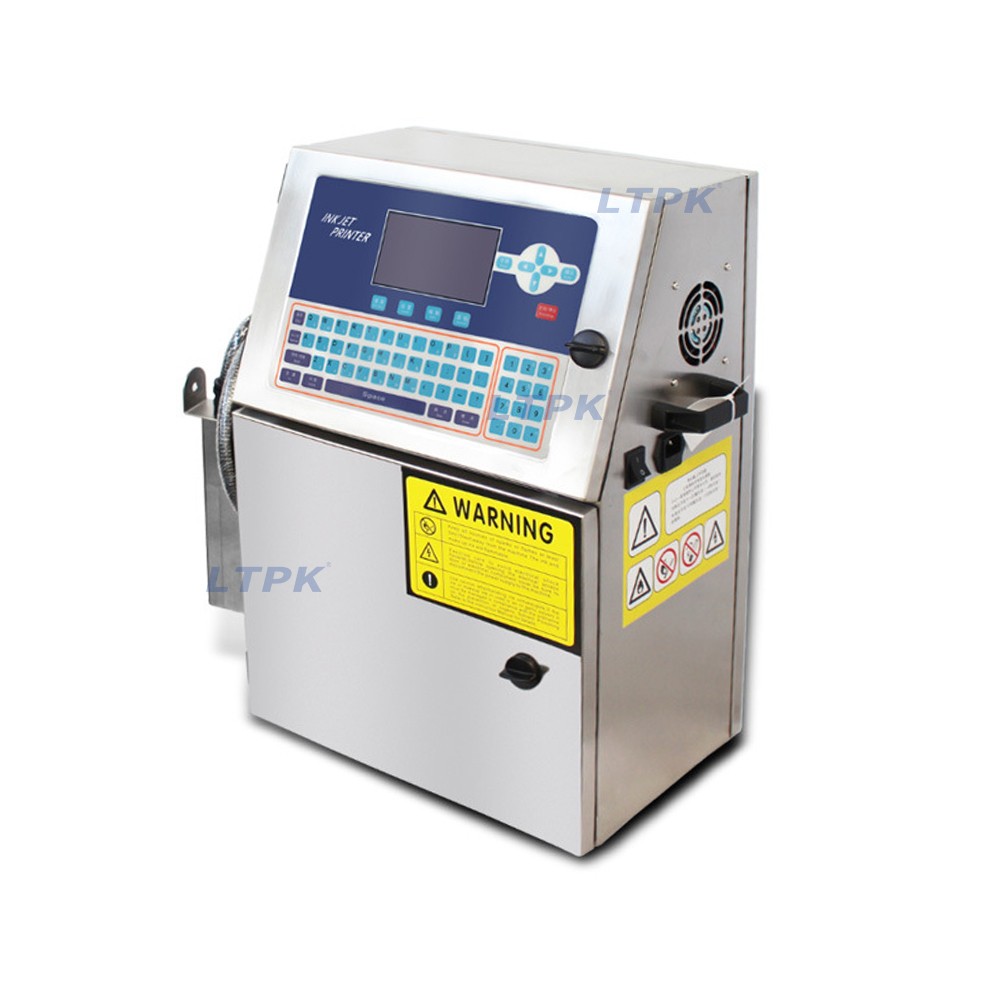

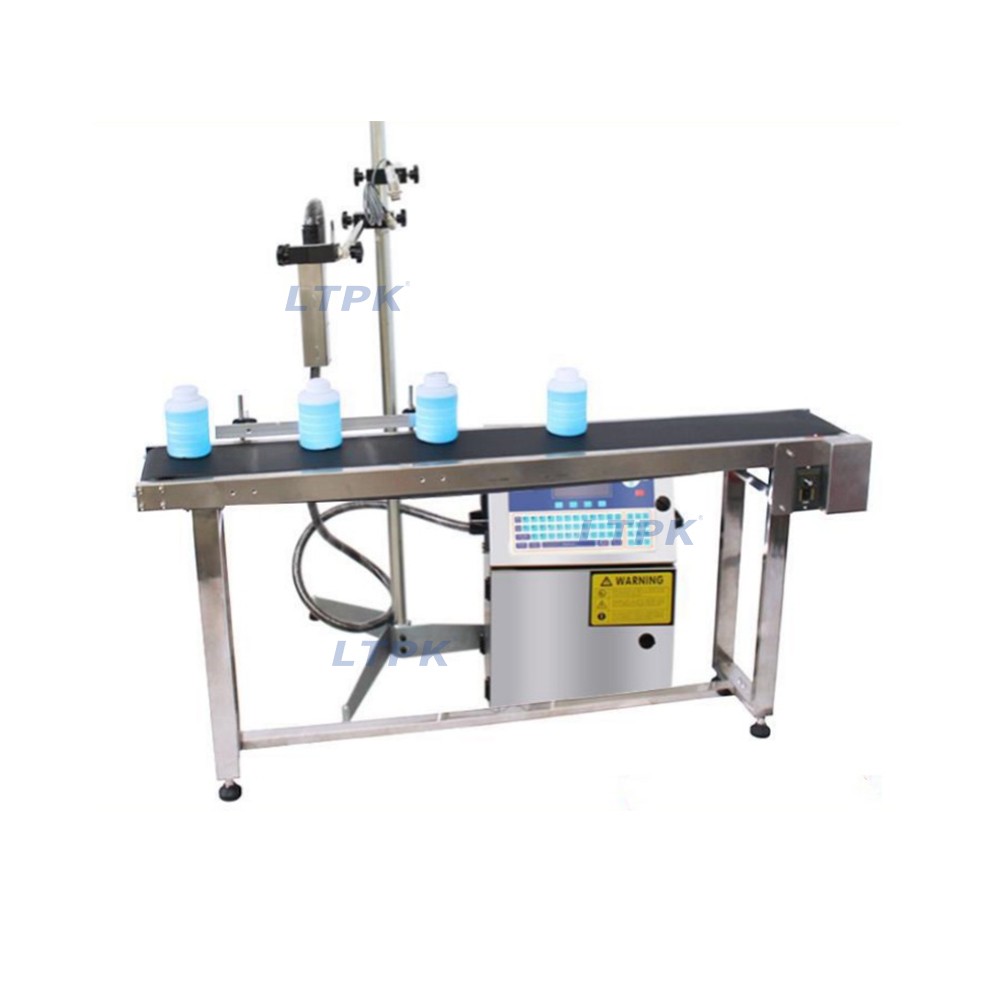

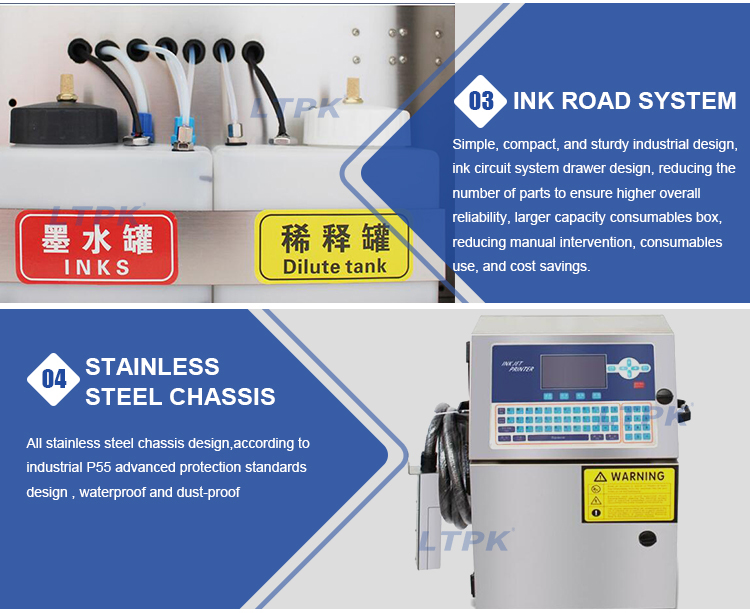

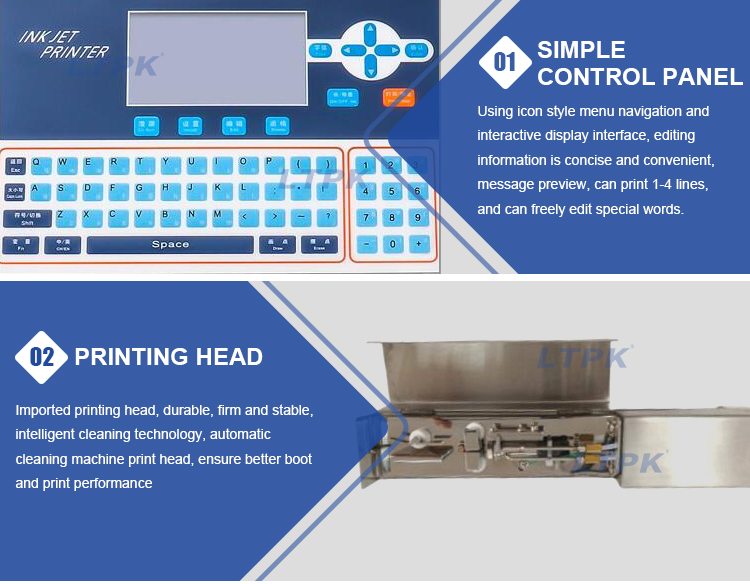

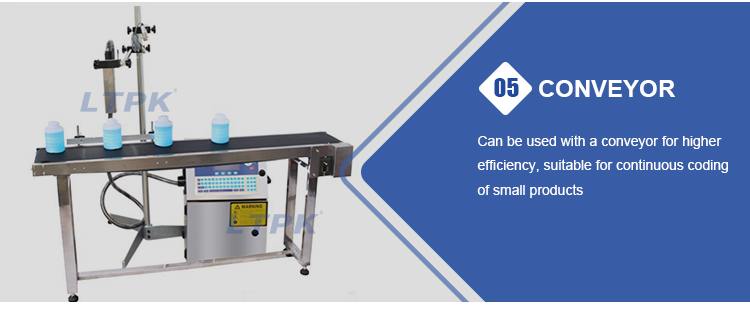

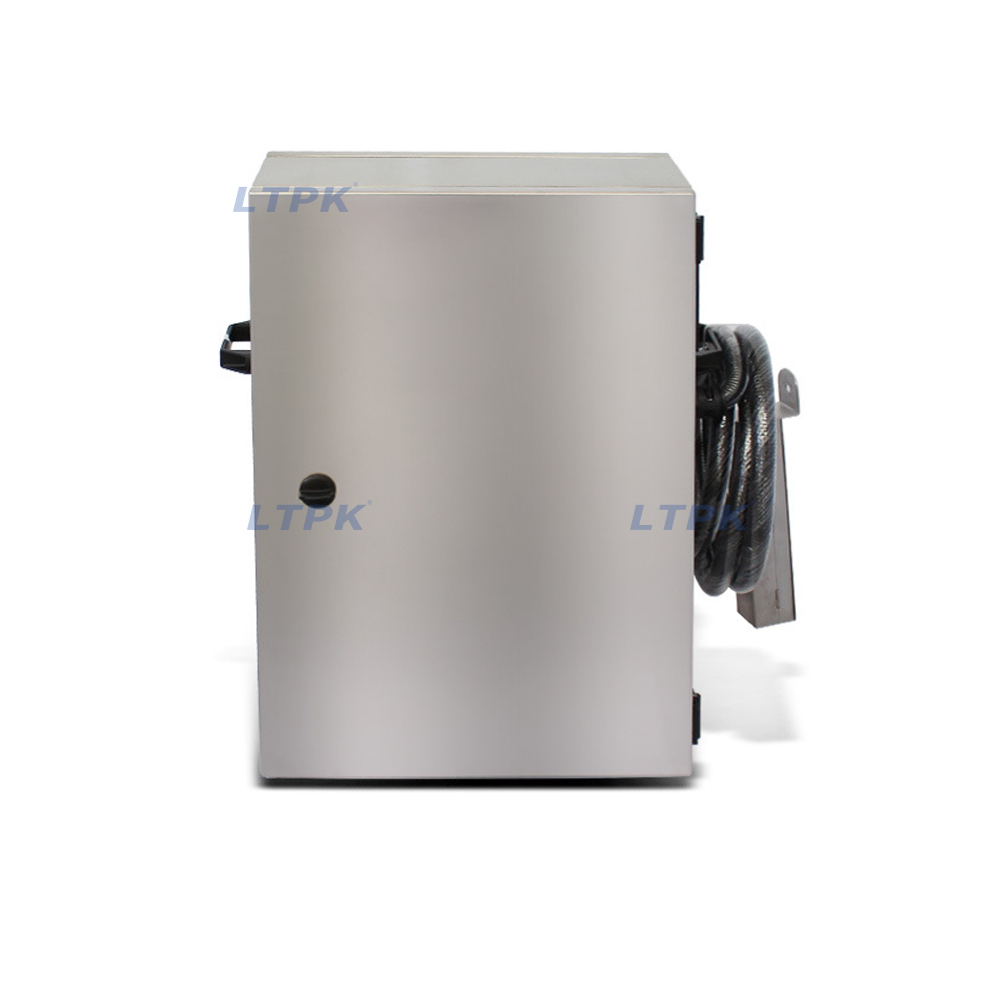

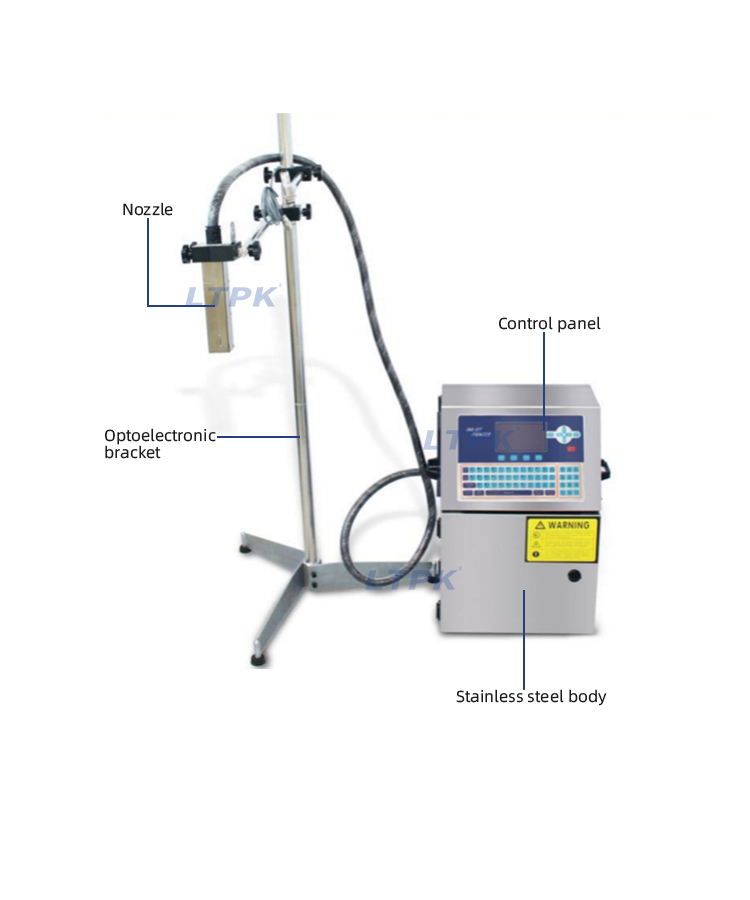

Detail Images
