Description

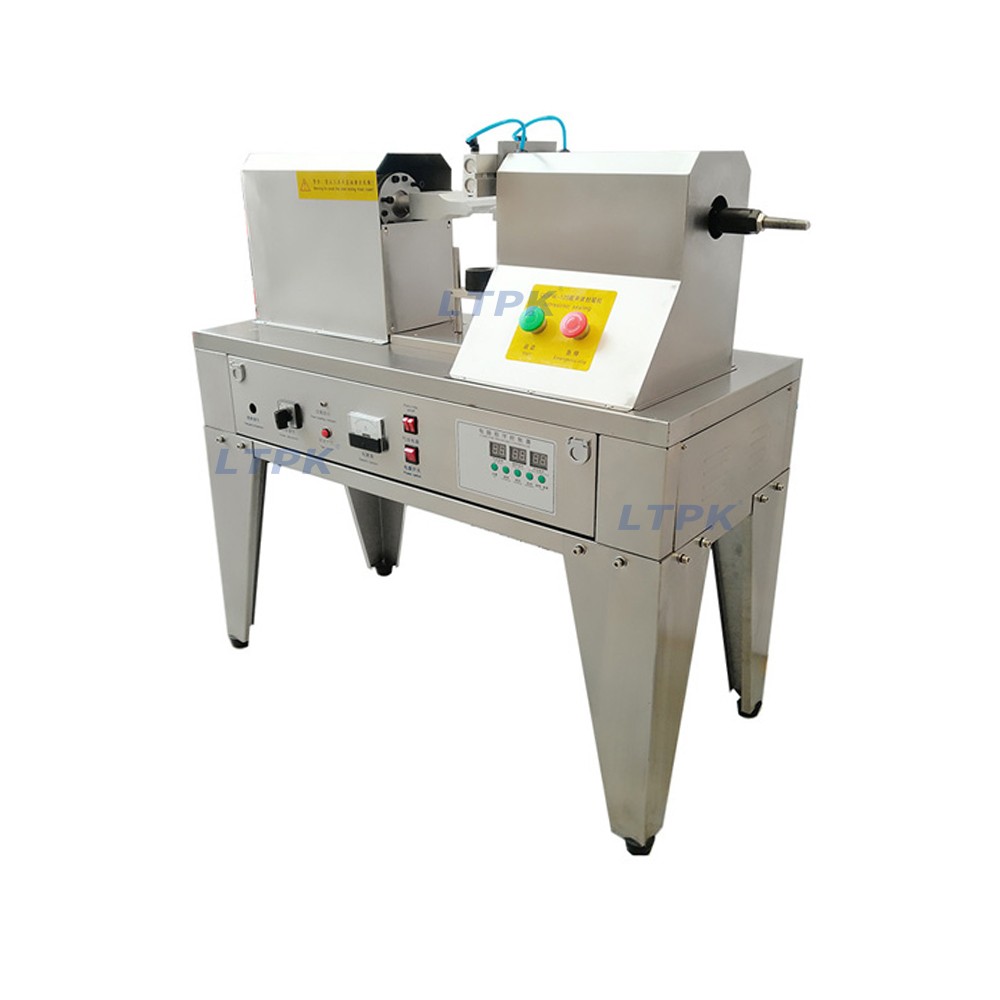

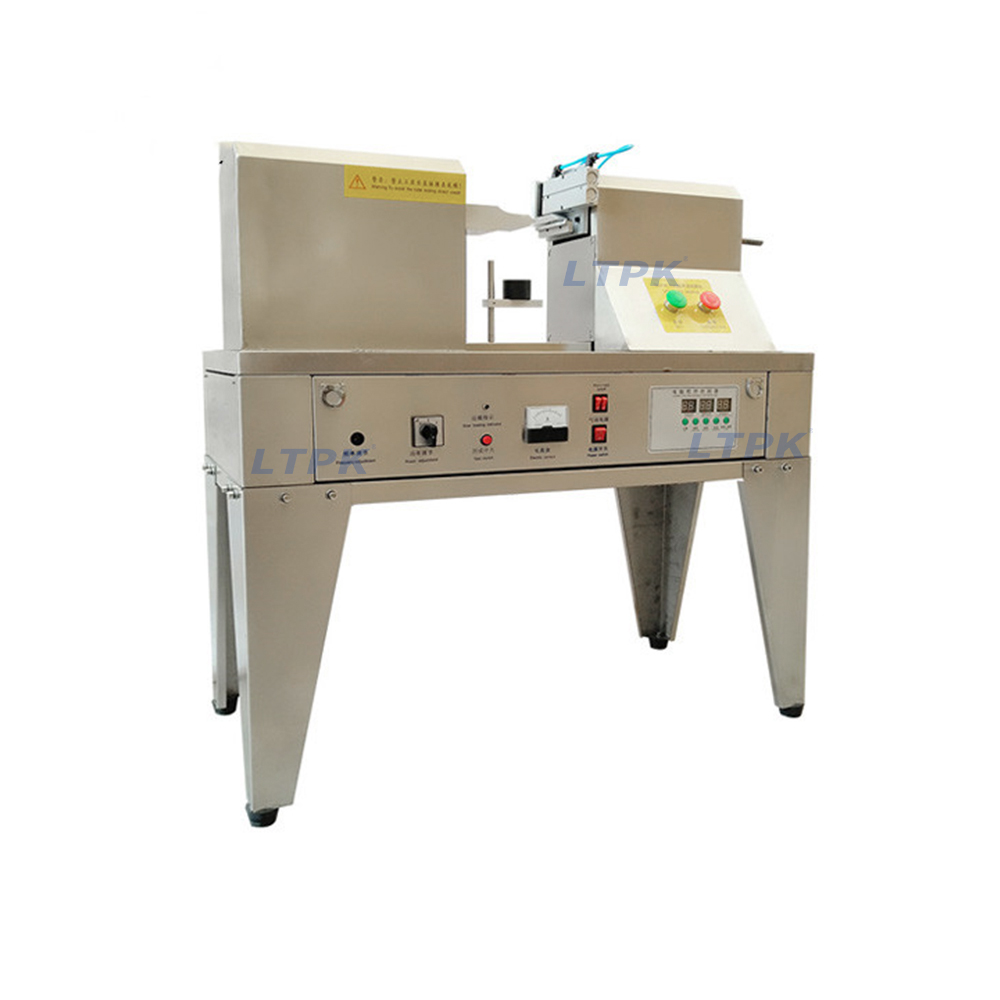

The QDFM-125 ultrasonic hose sealing machine adopts a Taiwanese core circuit and uses ultrasonic principles to seal the tail of hoses and composite pipes. It has good working stability and high efficiency. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance

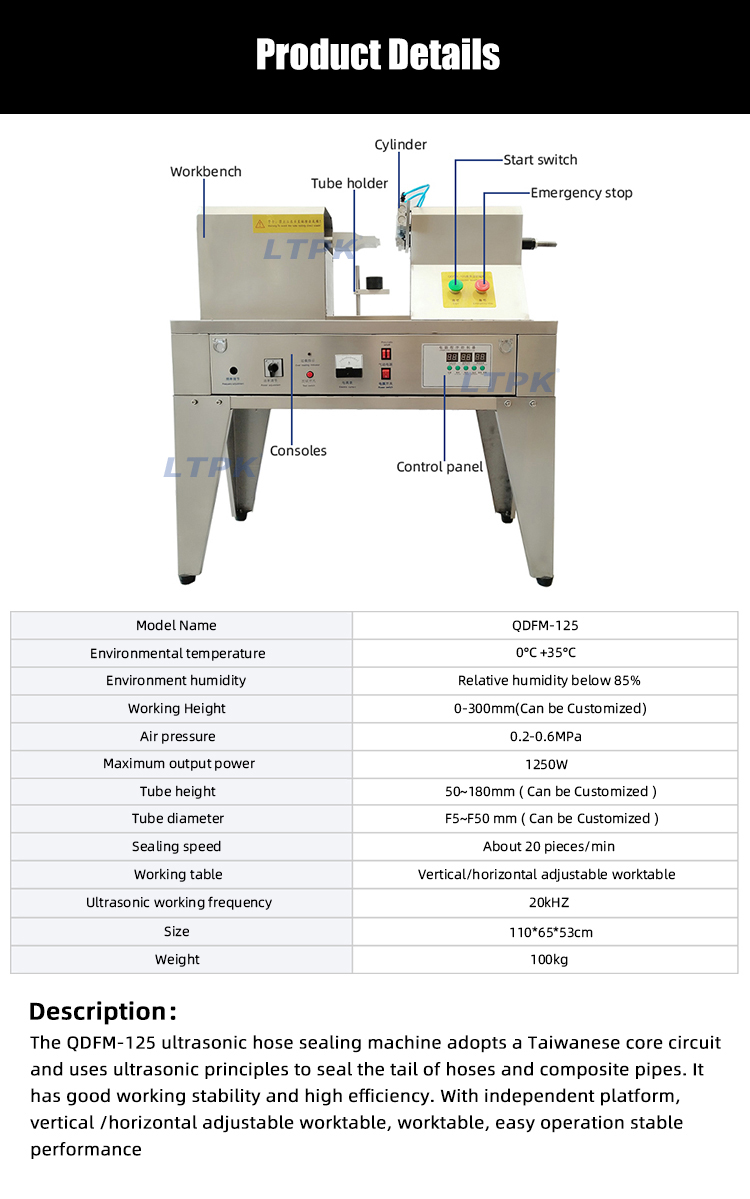

Technical Parameters

Model：QDFM-125

Environmental temperature：0°C +35°C

Environment humidity relative humidity：below 85%

Working Height：0-300mm(Can be Customized)

Air pressure：0.2-0.6MPa

Maximum output power：1250W

Tube height：50~180mm ( Can be Customized )

Tube diameter： F5~F50 mm ( Can be Customized )

Sealing speed：About 20 pieces/min

Working table：vertical/horizontal adjustable worktable

Ultrasonic working frequency：20kHZ

Size：110*65*53cm

Weight：100kg

Application

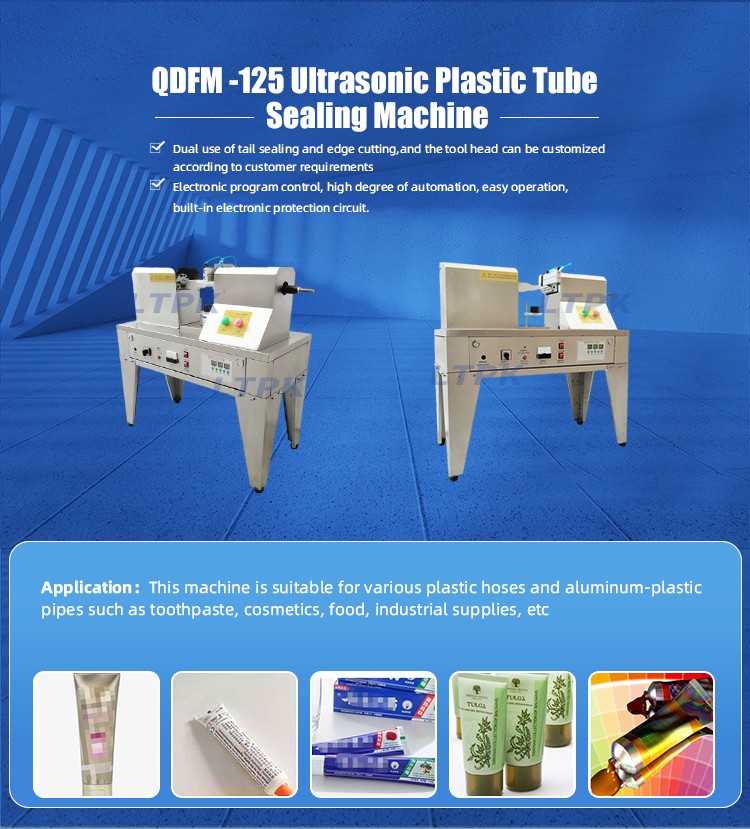

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

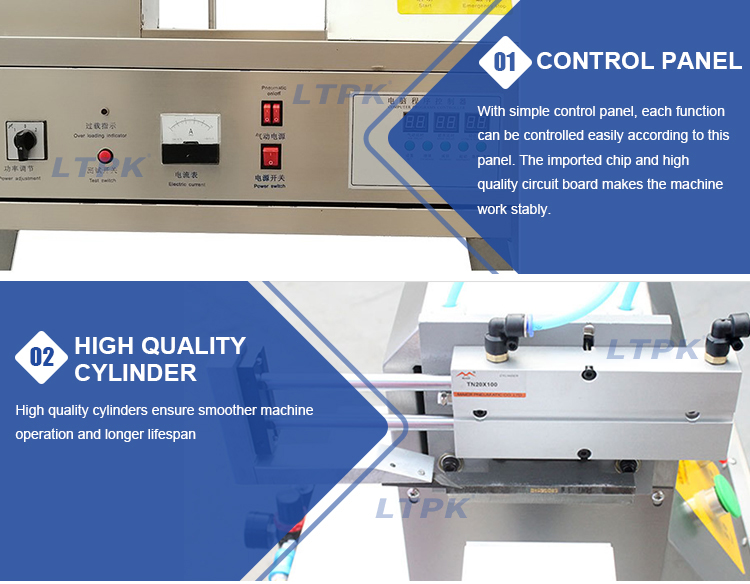

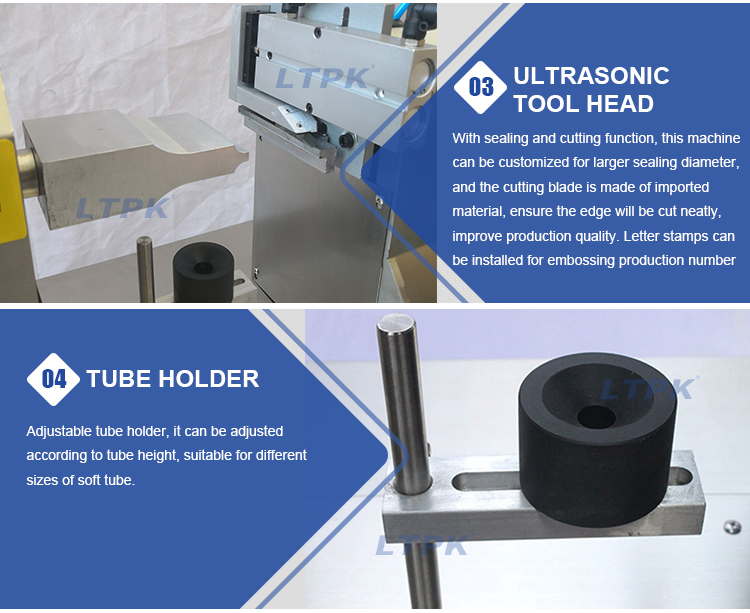

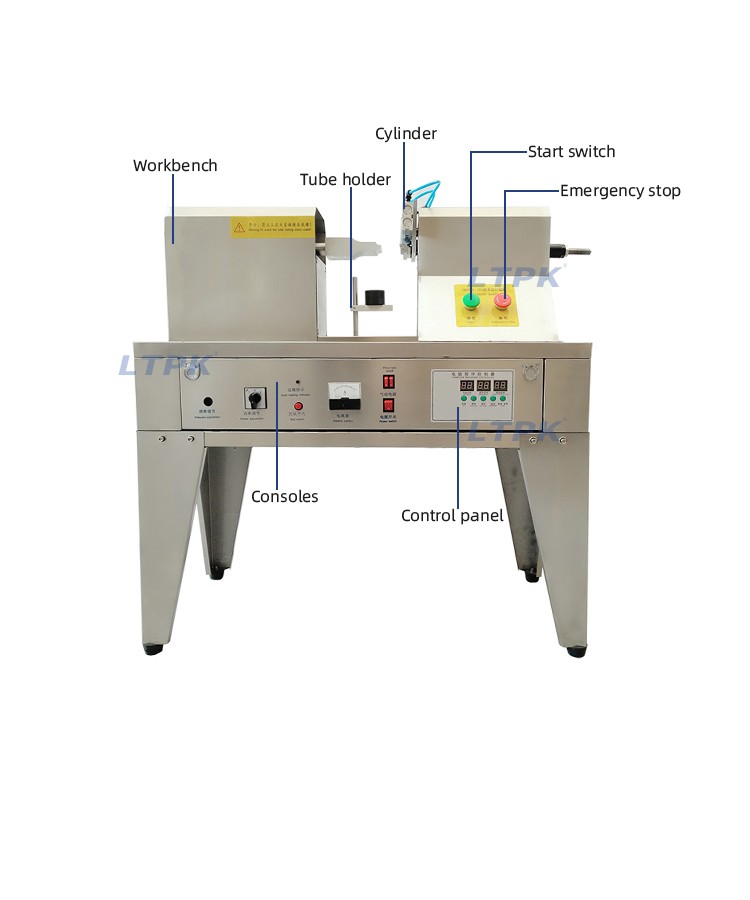

Detail Images
