Description

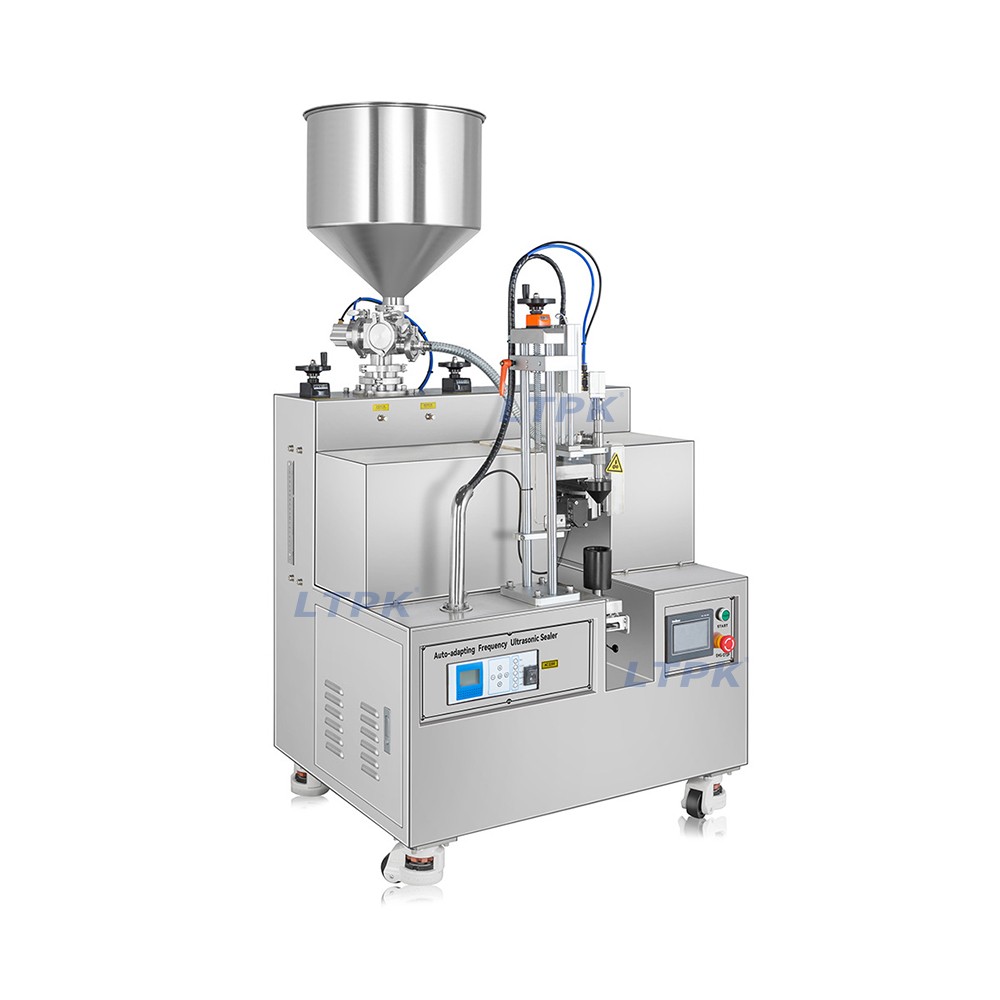

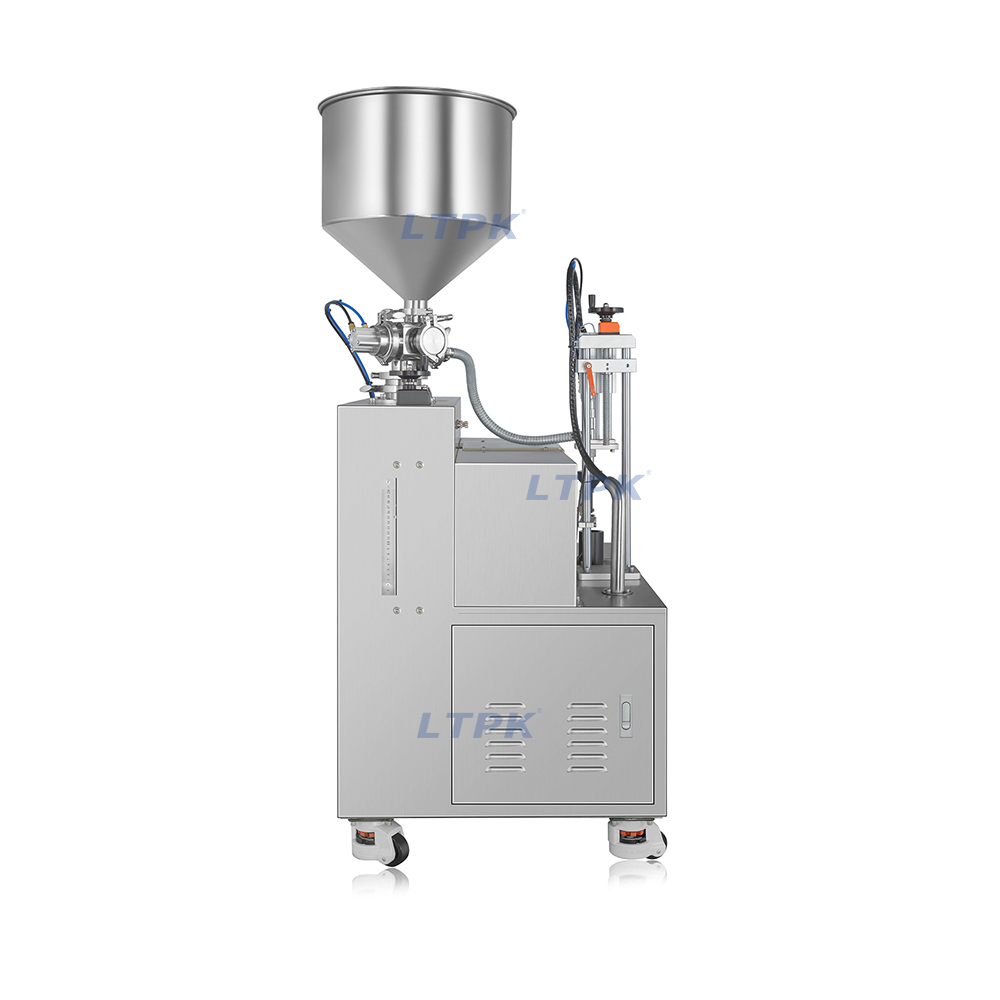

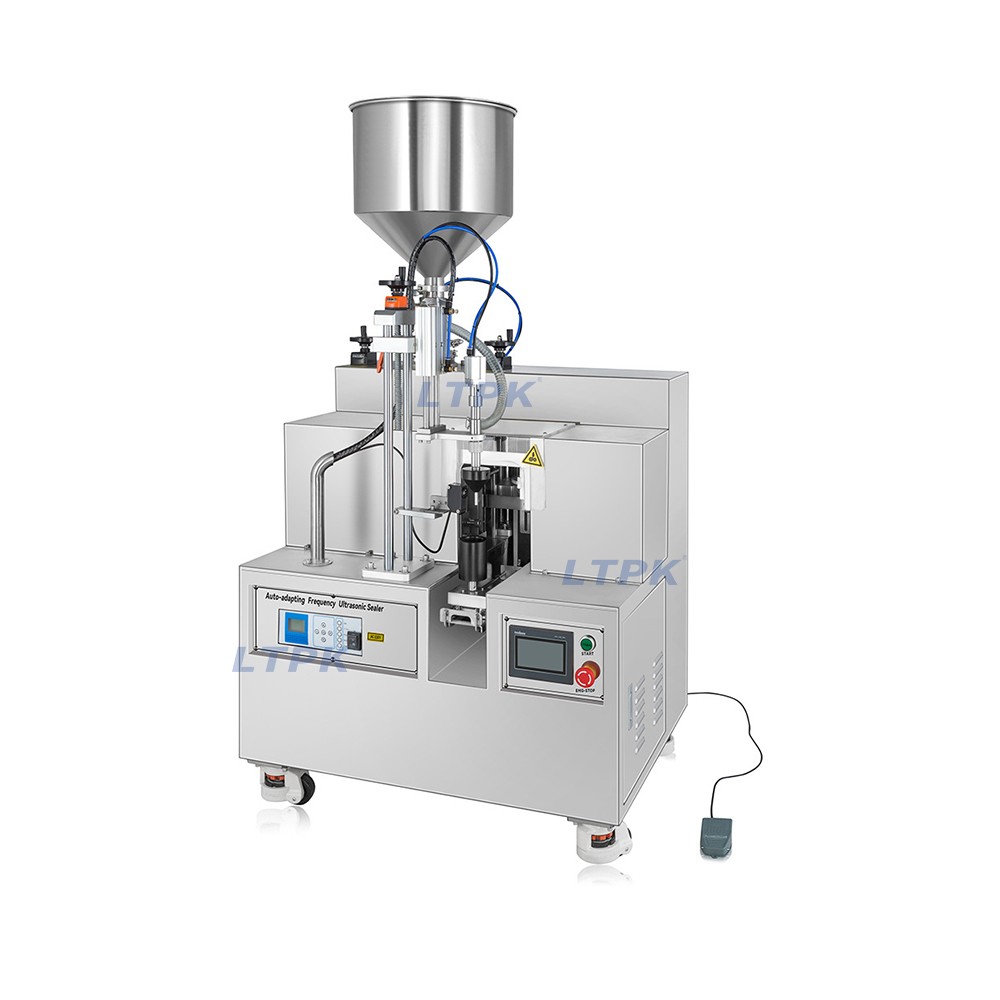

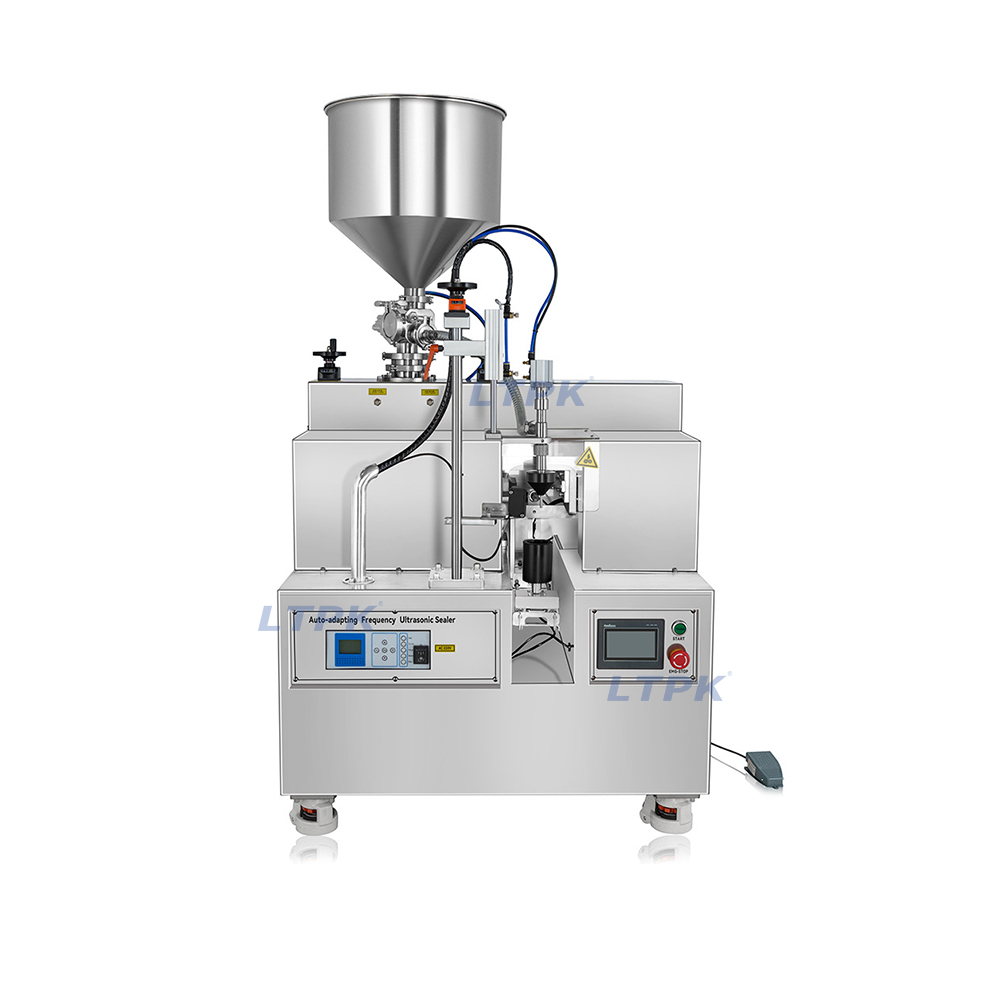

The machine is a high-quality and high-performance filling and sealing packaging machine for liquid and paste containers. Tube filling and sealing machine adopts manual tube feeding, automatic color code detection, automatic filling, automatic tube tail sealing and automatic tail cutting. Simple, stable and reliable to help enterprises improve production efficiency and reduce labor intensity.

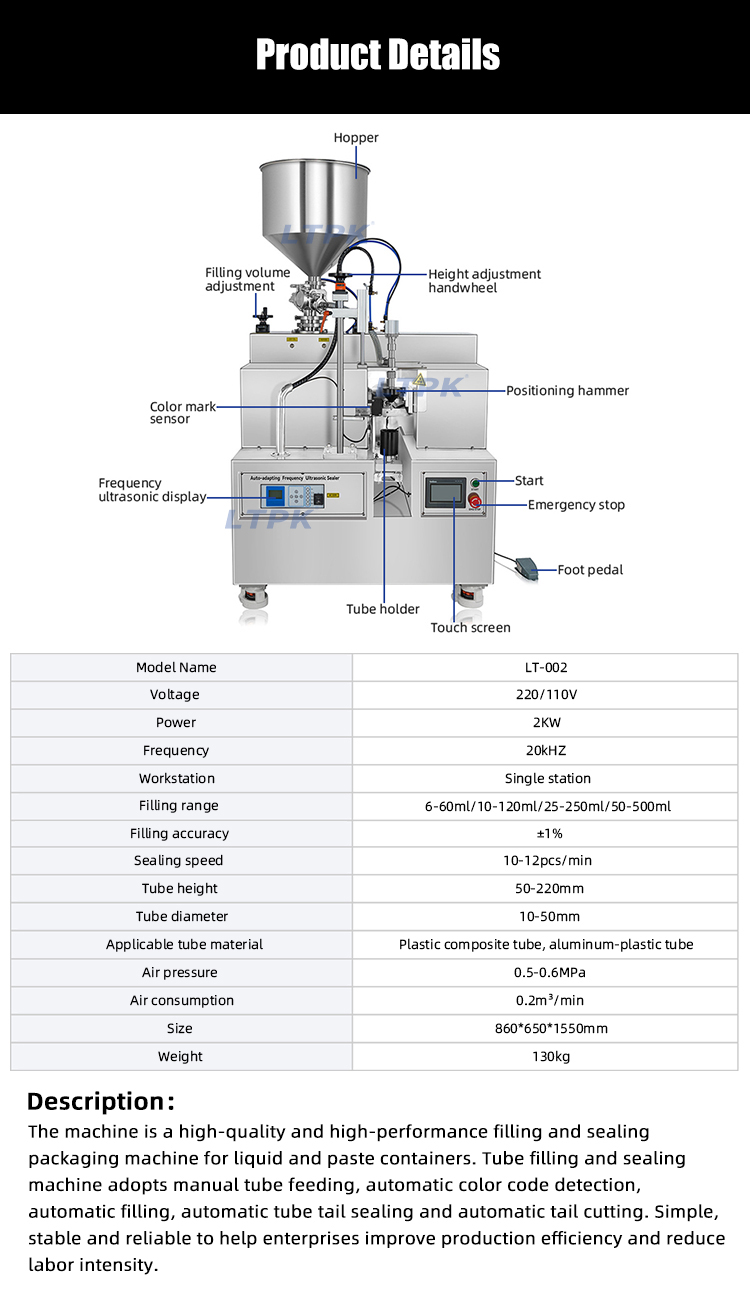

Technical Parameters

Model：LT-002

Voltage：220/110V

Power ：2KW

Frequency：20kHZ

Workstation：single station

Filling range：6-60ml/10-120ml/25-250ml/50-500ml

Filling accuracy：±1%

Sealing speed：10-12pcs/min

Tube height：50-220mm

Tube diameter：10-50mm

Applicable tube material：Plastic composite tube, aluminum-plastic tube

Air pressure：0.5-0.6MPa

Air consumption：0.2m³/min

Size：860*650*1550mm

Weight：130kg

Application

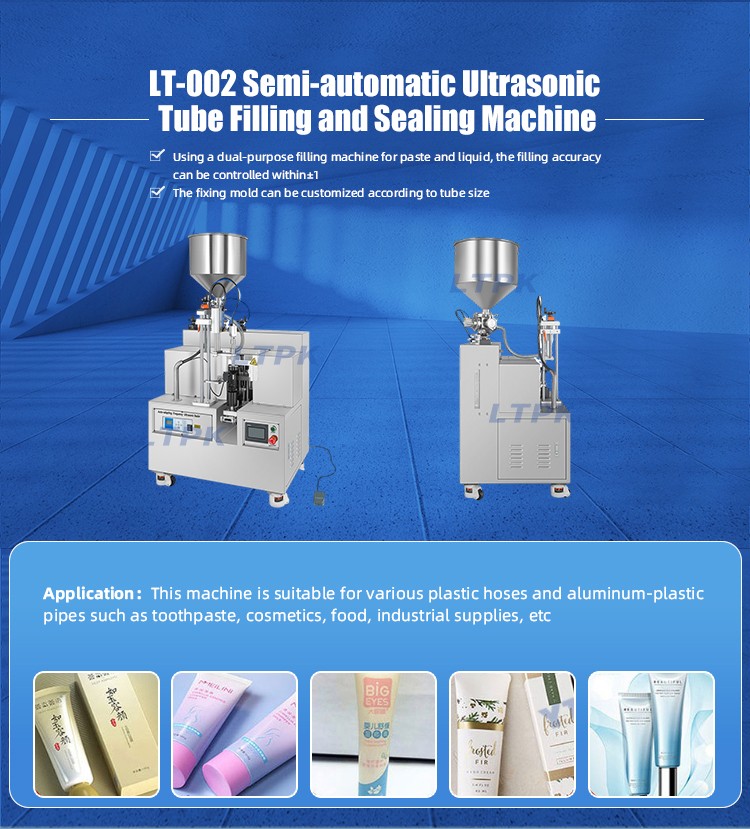

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

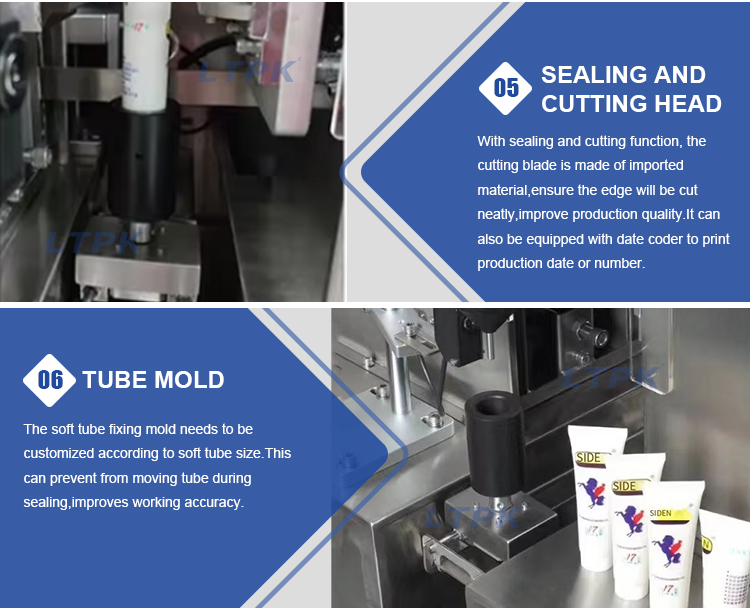

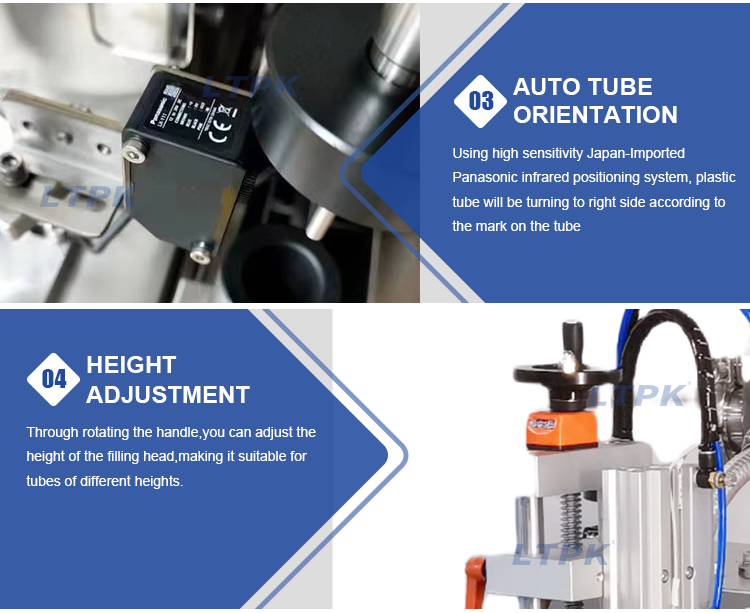

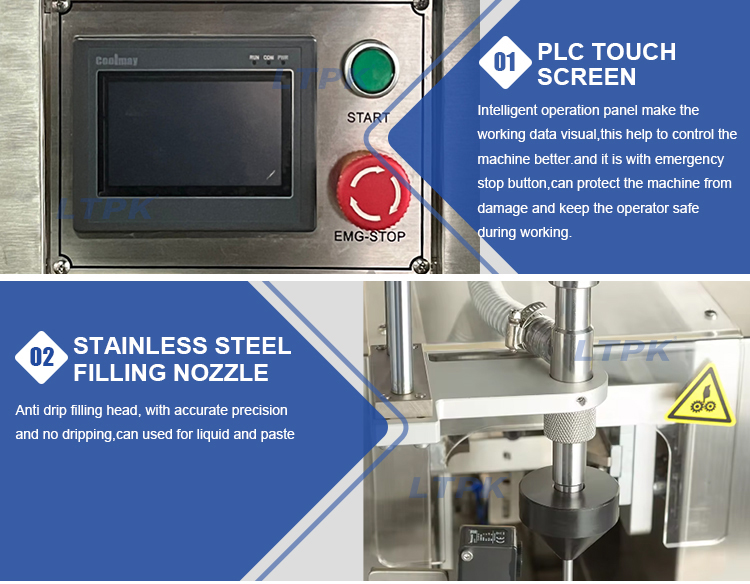

Detail Images
