Description

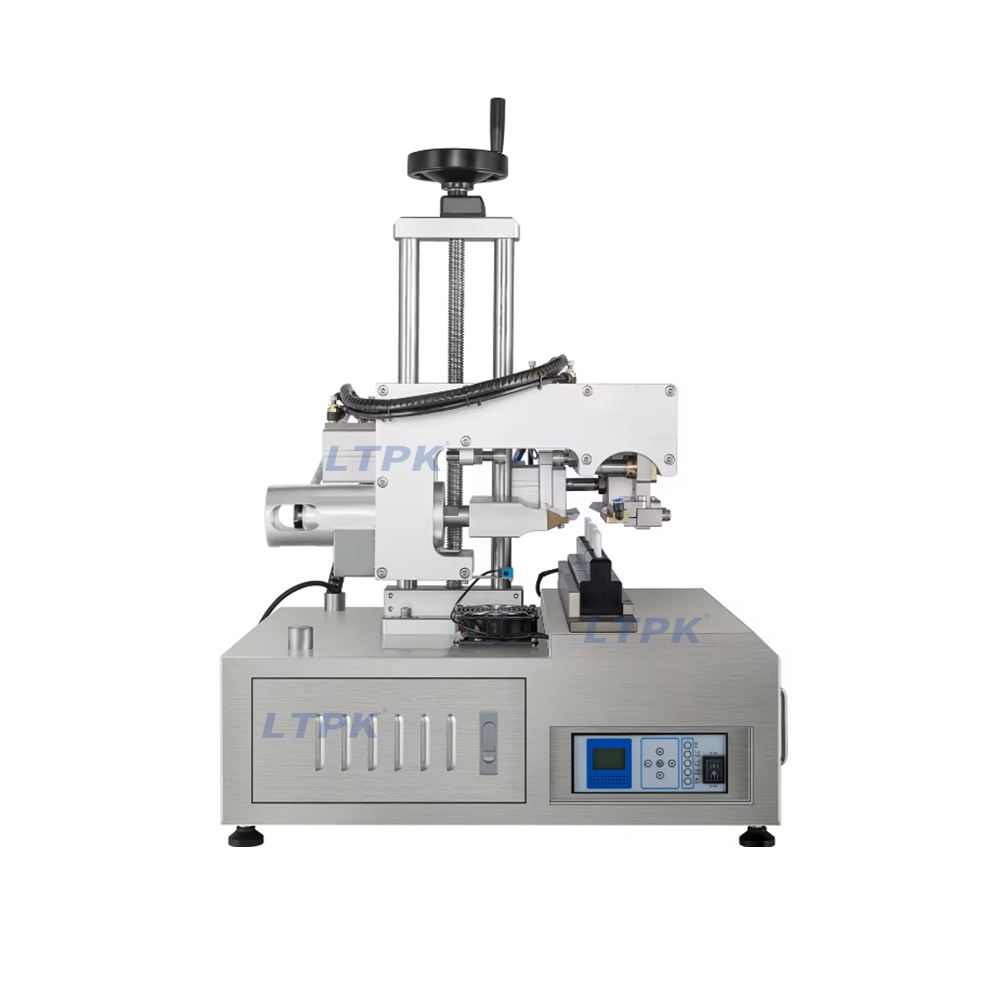

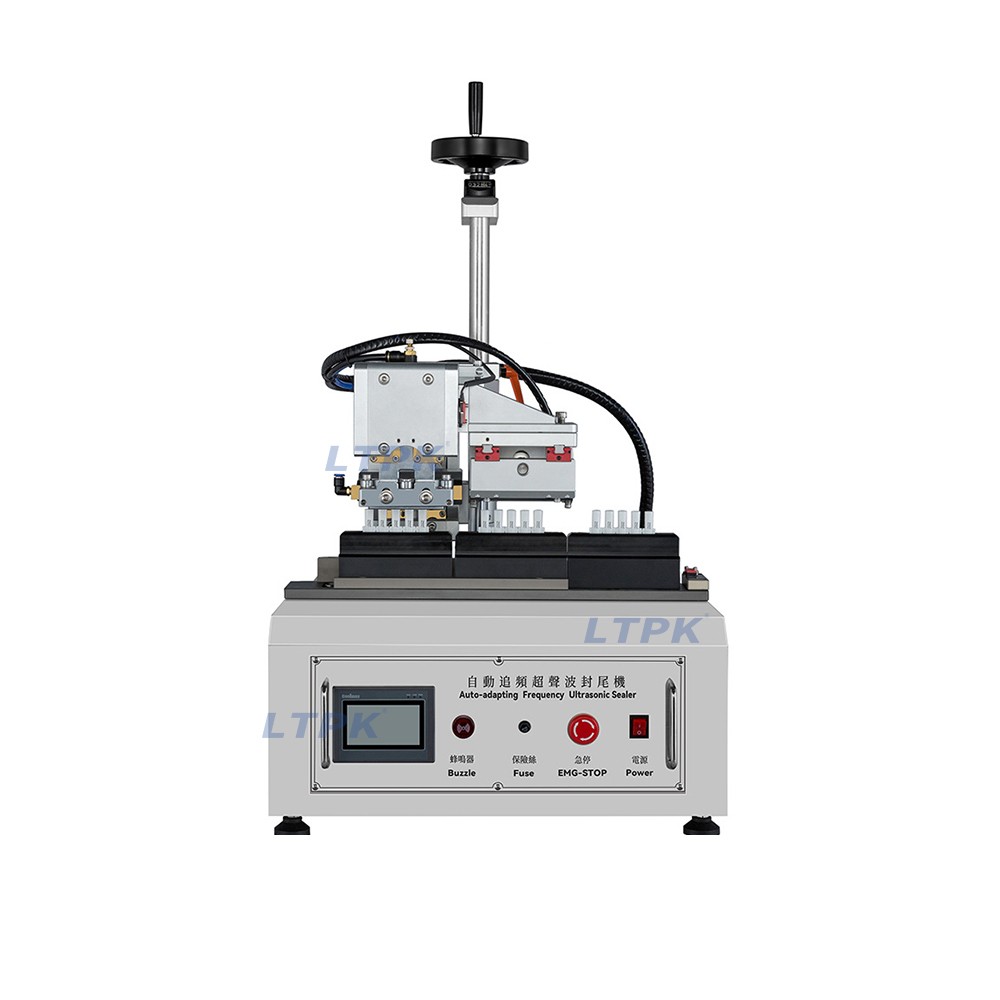

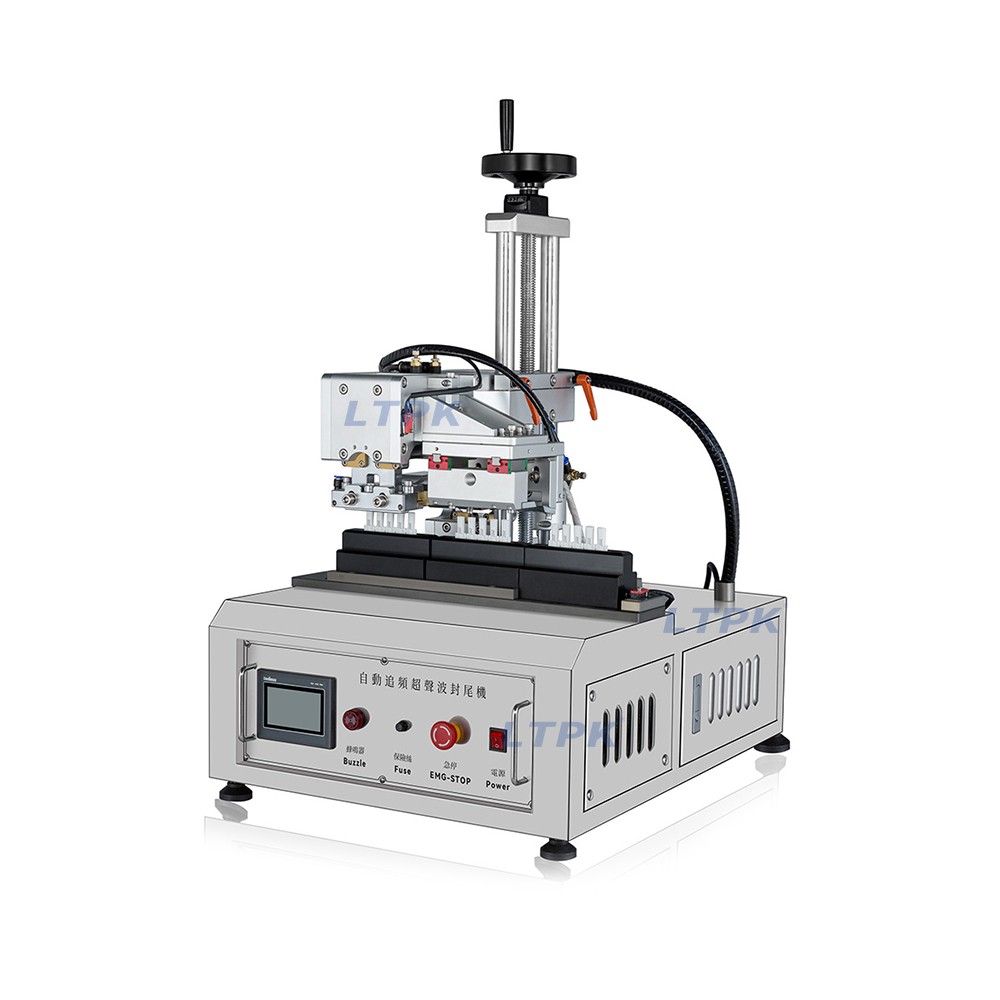

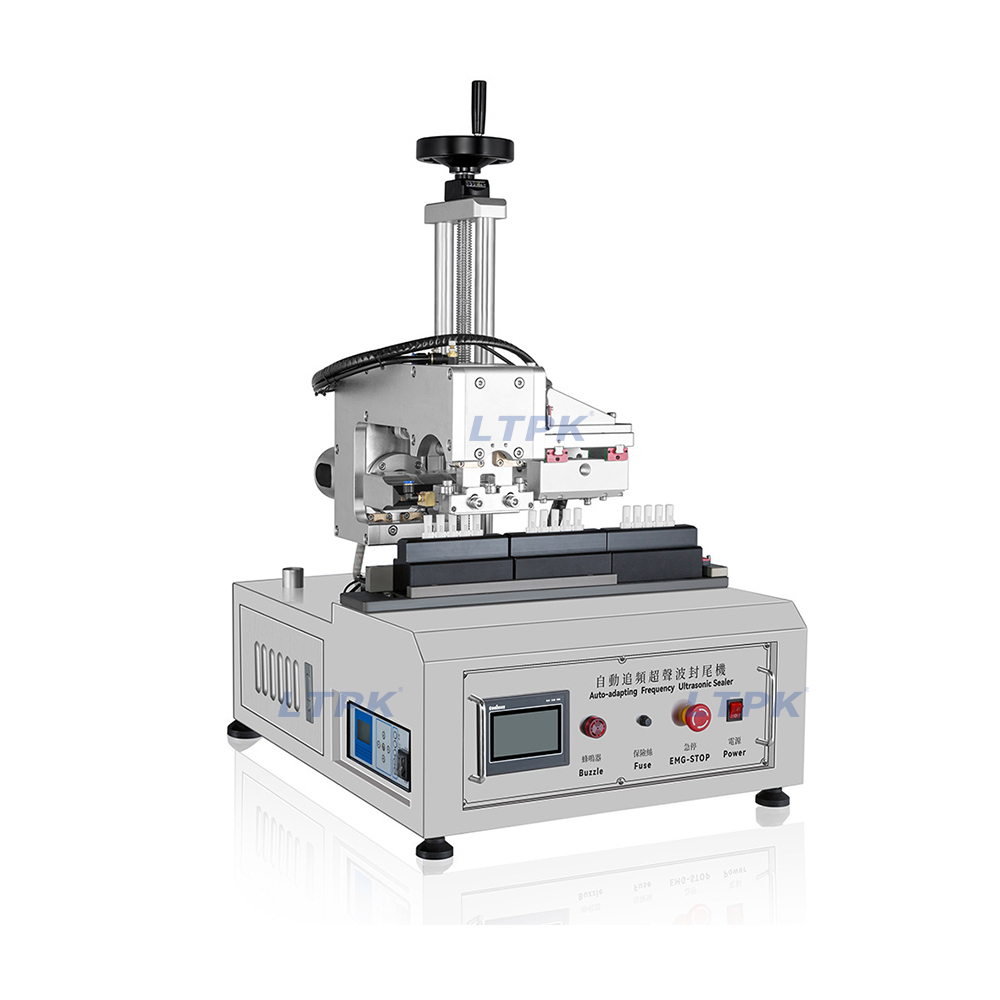

This tube sealing machine adopting advanced ultrasonic technology for sealing, it can be used immediately without heating or using a chiller, which is energy-saving and environmentally friendly. The welding strength is equivalent to the plastic itself, with good sealing effect, strong sealing performance, clear patterns, no deformation, and no pipe bursting.

Technical Parameters

Model:LT-003

Voltage:220/110V

Power:2KW

Frequency:20kHZ

Sealing speed:8-12pcs/min

Tube heightV50-150mm

Tube diameter:5-50mm

Workstation: single station

Applicable tube types:connecting tube,secondary throwing tube

Applicable tube material:Plastic composite tube, aluminum-plastic tube

Air pressure:0.5-0.6MPa

Air consumption:0.2m³/min

Size :560*537*880mm

Weight:105kg

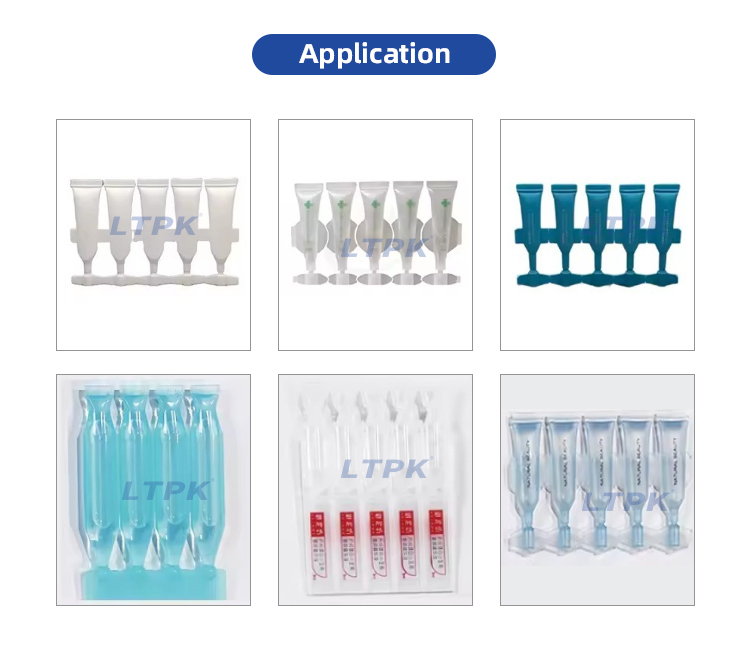

Application

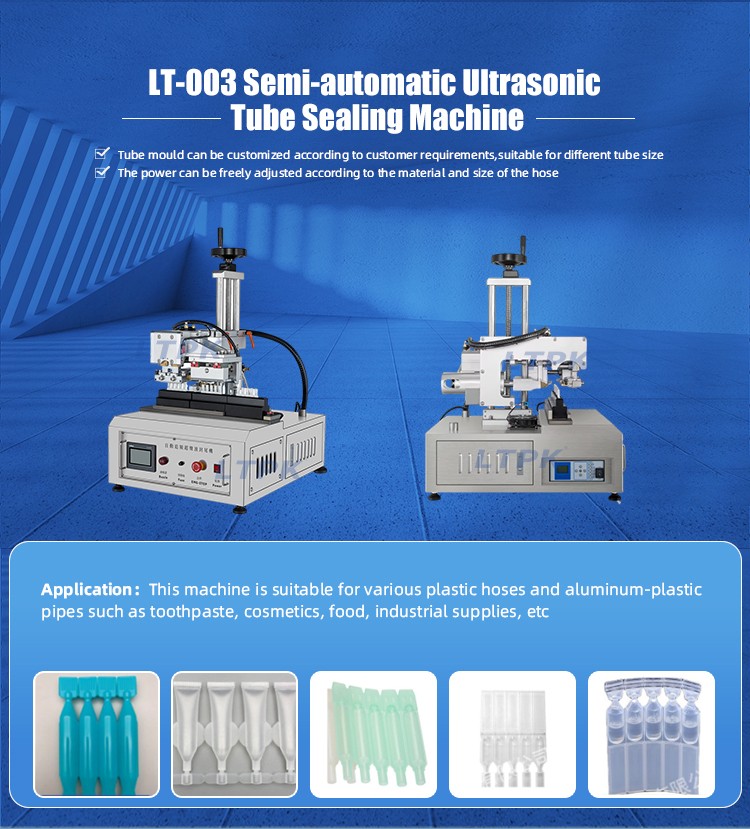

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

Detail Images
