Description

This filling machine adopts piston type linear filling, which has the advantages of high filling accuracy, convenient installation and debugging, easy cleaning and maintenance, and no dripping. The parts in contact with the materials are all made of 304 stainless steel (can custom 316 stainless steel), with a fully stainless steel frame that is clean, beautiful, and generous in appearance. Adopting Taiwan PLC control, touch screen human-machine interface, Taiwan AirTac and other imported components, the filling machine has excellent performance of stable performance and flexible operation.

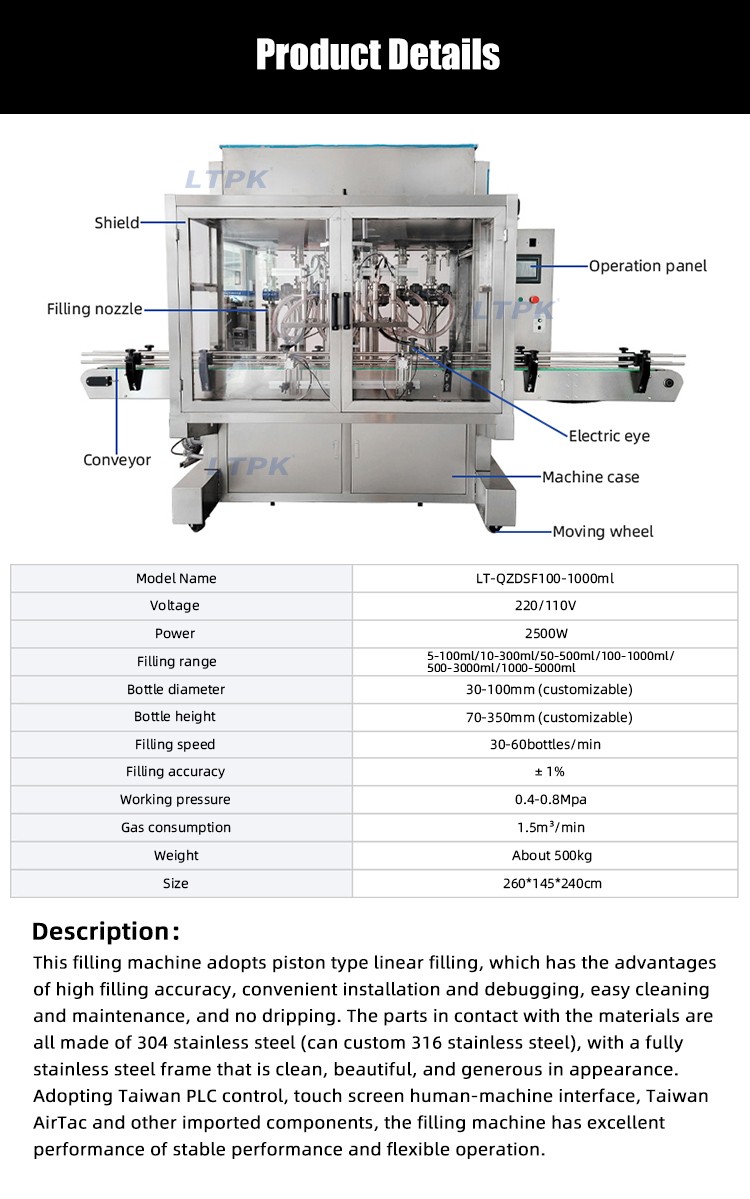

Technical Parameters

Model：LT-QZDSF100-1000ml

Voltage：220/110V

Power：2500W

Filling range：5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Bottle diameter ：30-100mm (customizable)

Bottle height：70-350mm (customizable)

Filling speed ：30-60bottles/min

Filling accuracy：± 1%

Working pressure：0.4-0.8Mpa

Gas consumption：1.5m³/min

Weight ：About 500kg

Size：260*145*240cm

Application

This series of filling machines is suitable for industries such as daily chemicals, food, fats, pesticides, it can fill different types of liquid products. such as edible oil, lubricating oil, hand sanitizer, honey, etc.

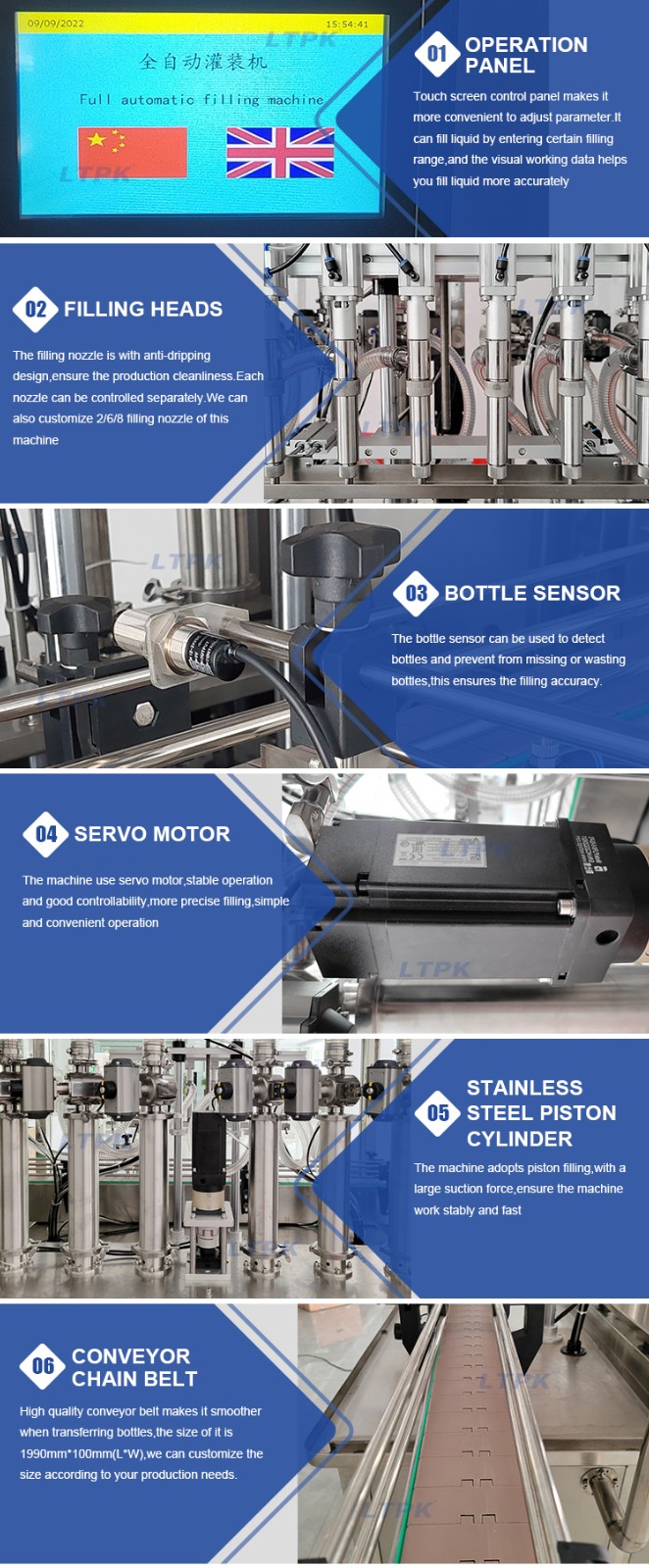

Detail Images
