Description

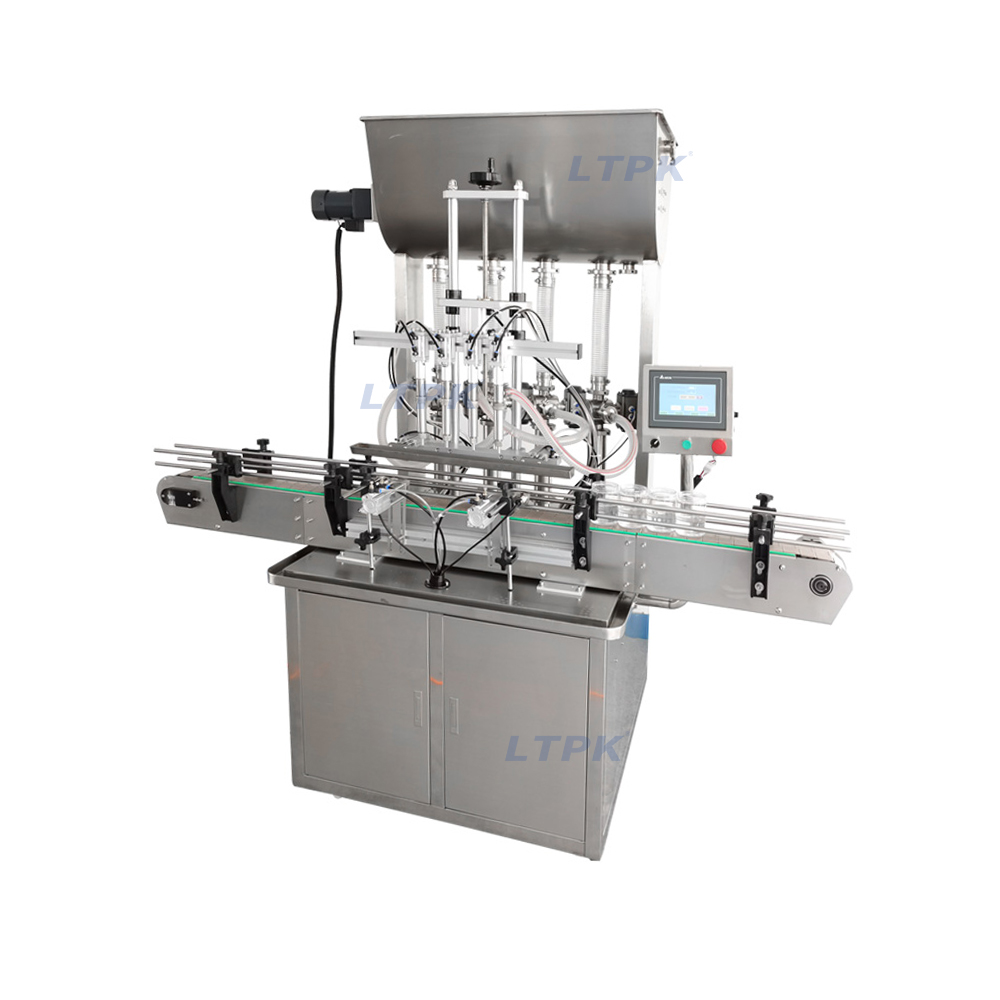

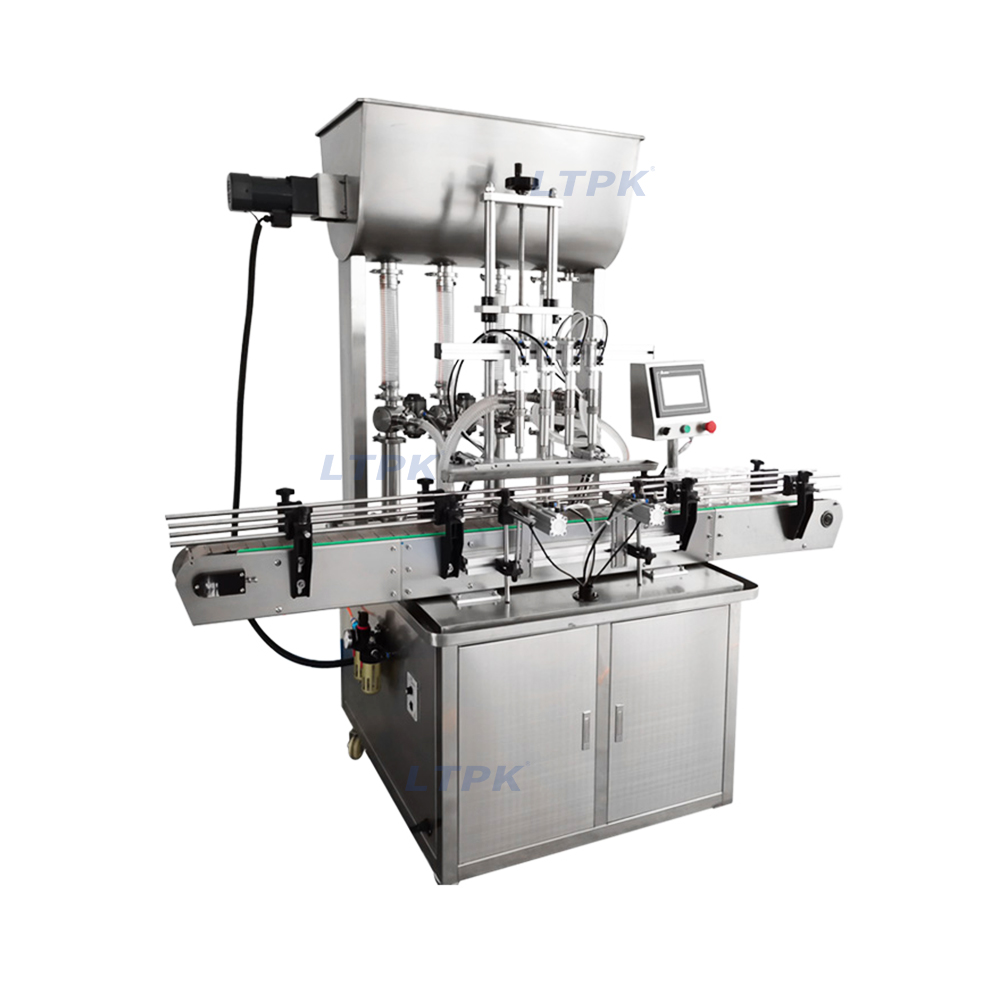

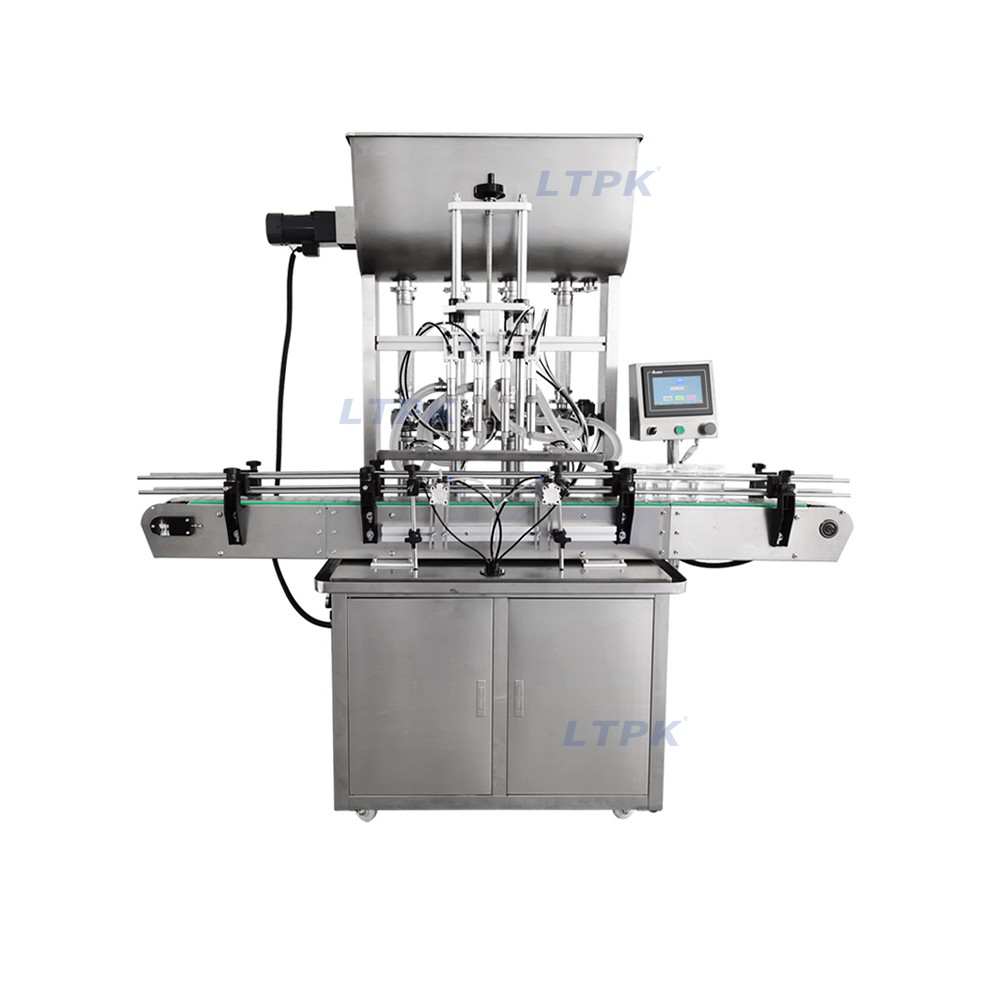

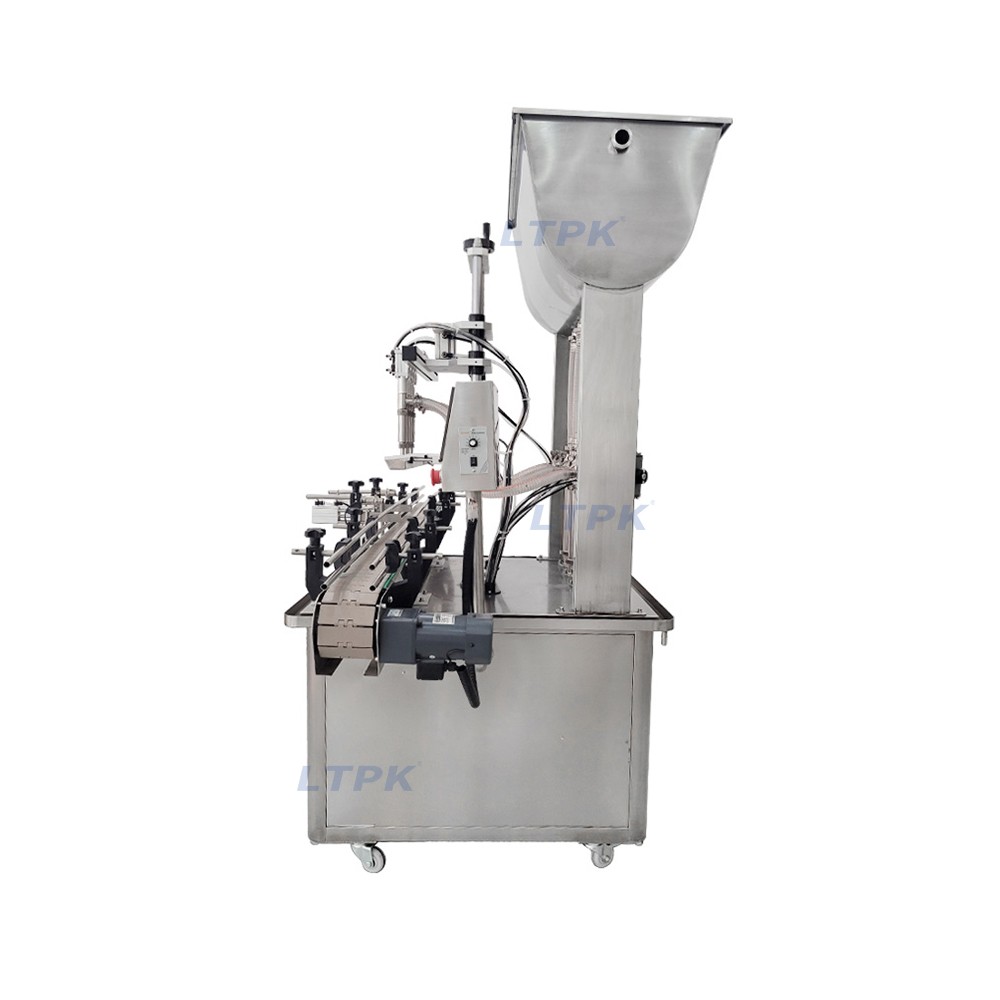

This automatic paste filling machine can fill a series of thick liquid or paste into bottles, which is driven by a piston and turning the cylinder valve,can use the magnetic reed switch to control cylinder stroke, and then the operator can adjust the  filling amount. This machine is designed with mixing and heating function,and it can feed filling material automatically.

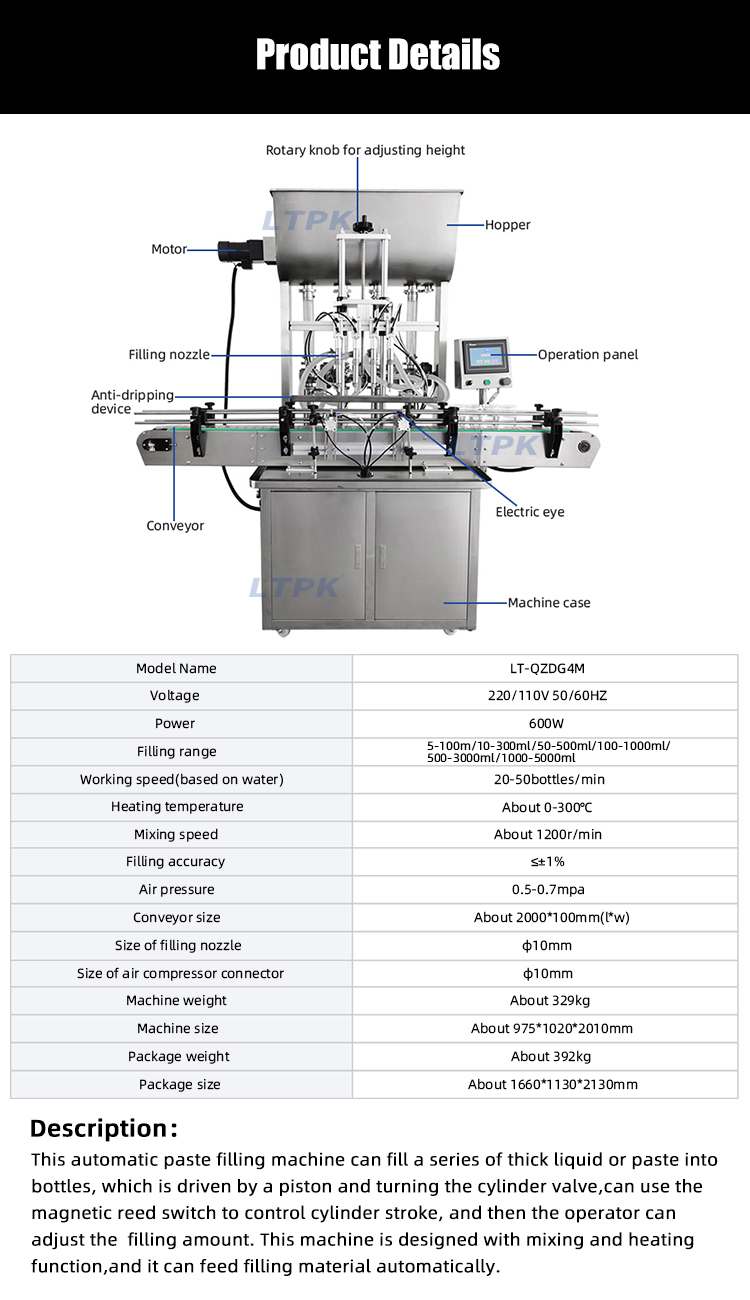

Technical Parameters

Model:LT-QZDG4M

Voltage:220/110V 50/60HZ

Power:600W

Filling range:5-100m/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Working speed(based on water):20-50bottles/min

Heating temperature:About 0-300℃

Mixing speed:About 1200r/min

Filling accuracy :≤±1%

Air pressure:0.5-0.7mpa

Conveyor size:About 2000*100mm(l*w)

Size of filling nozzle:φ10mm

Size of air compressor connector:φ10mm

Machine weight:About 329kg

Machine size:About 975*1020*2010mm

Package weight:About 392kg

Package size:About 1660*1130*2130mm

Application

It is widely used in the filling of various semi-fluids, pastes, viscous bodies, sauces and various granule-containing materials, such as pulp-containing beverages, honey, jams, ketchup, chili sauce, bean paste, shrimp paste, apple sauce, salad dressing, etc.

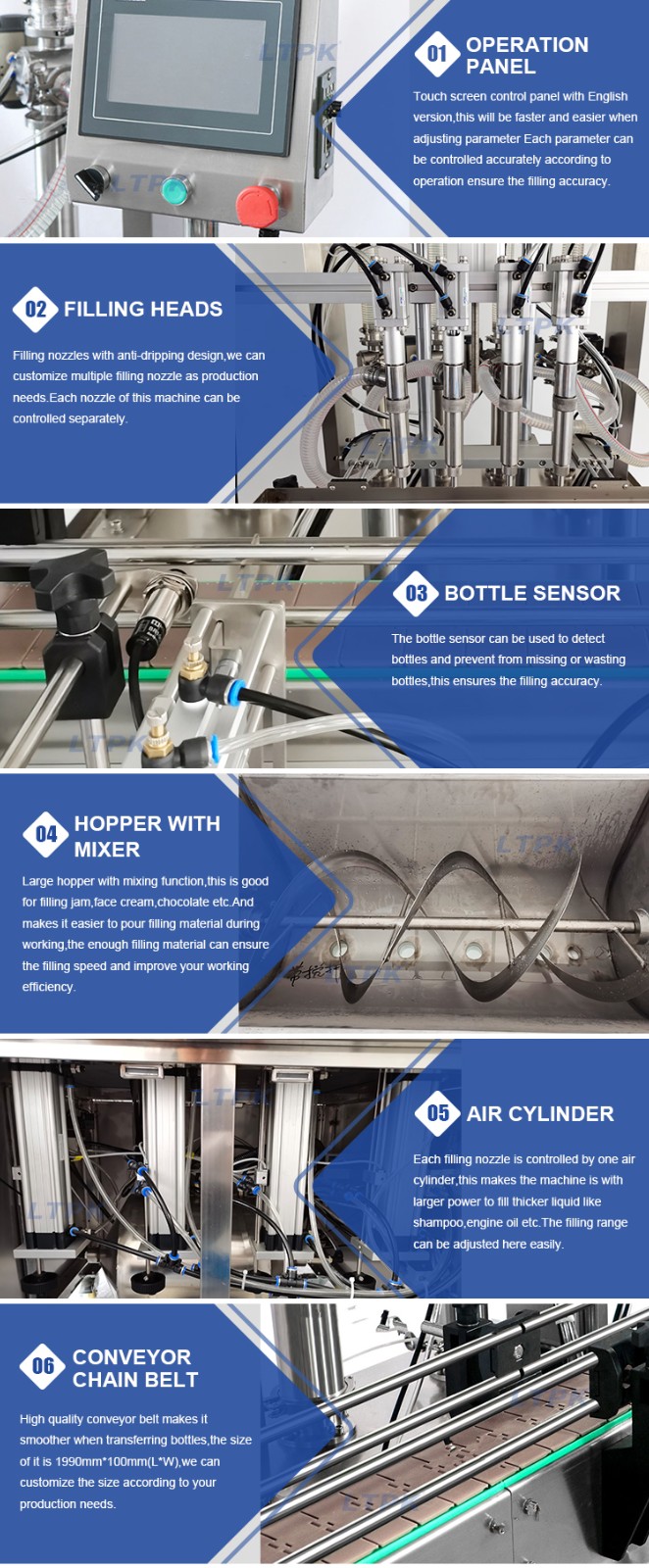

Detail Images
