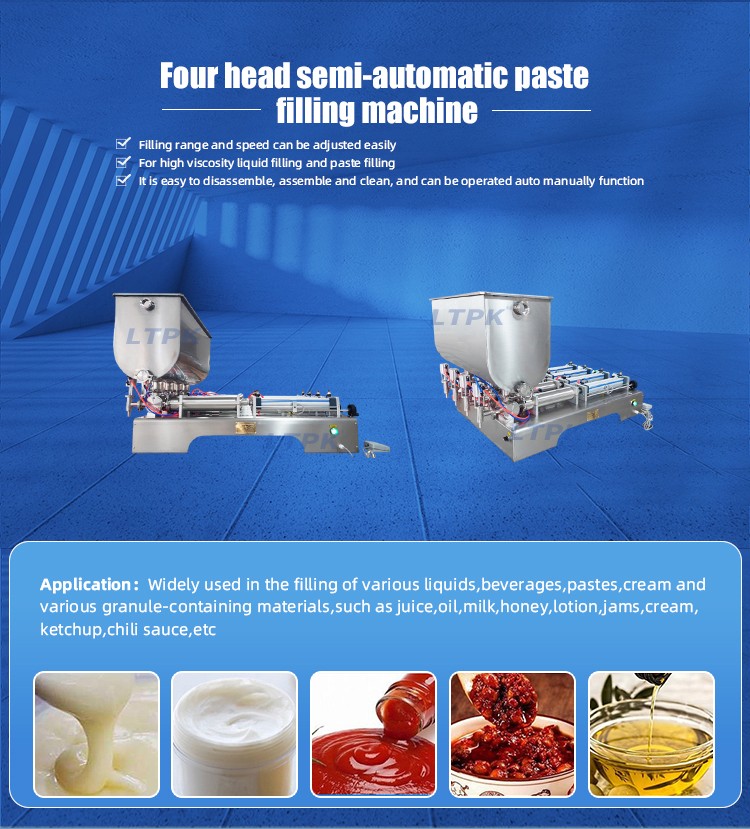

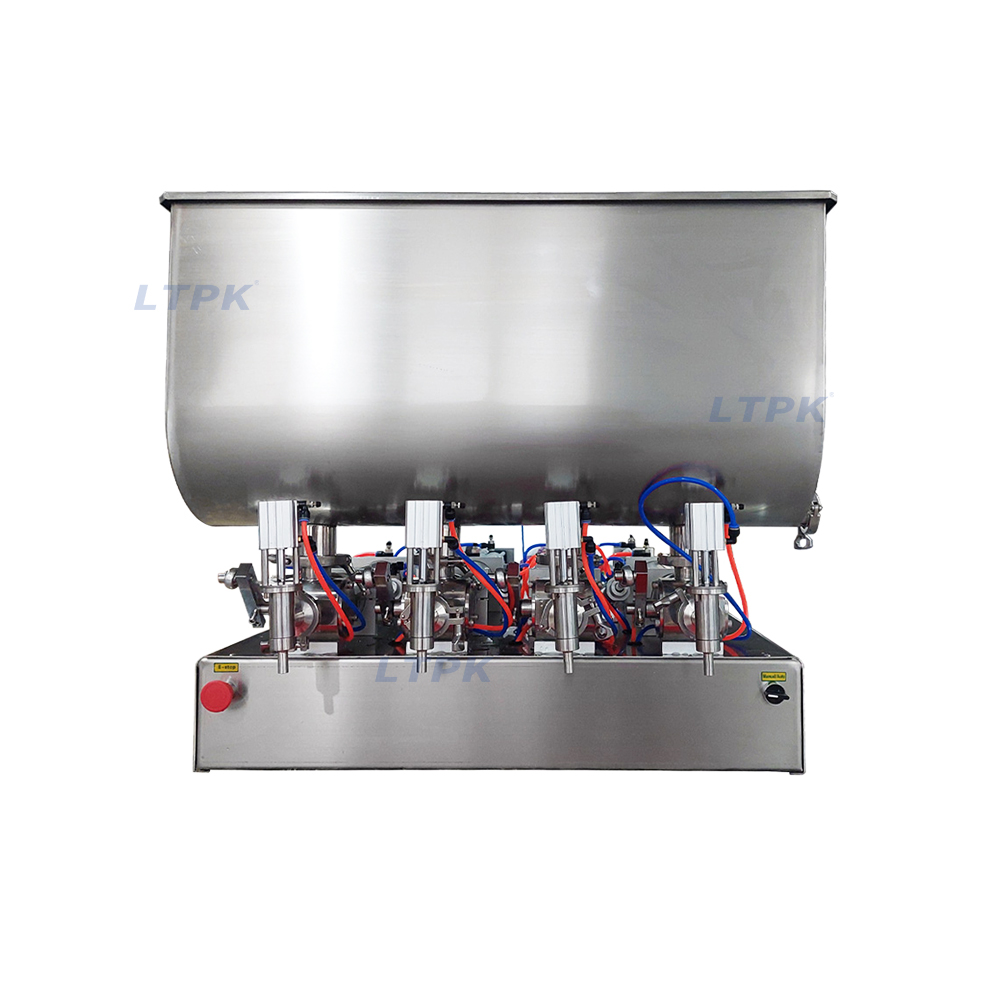

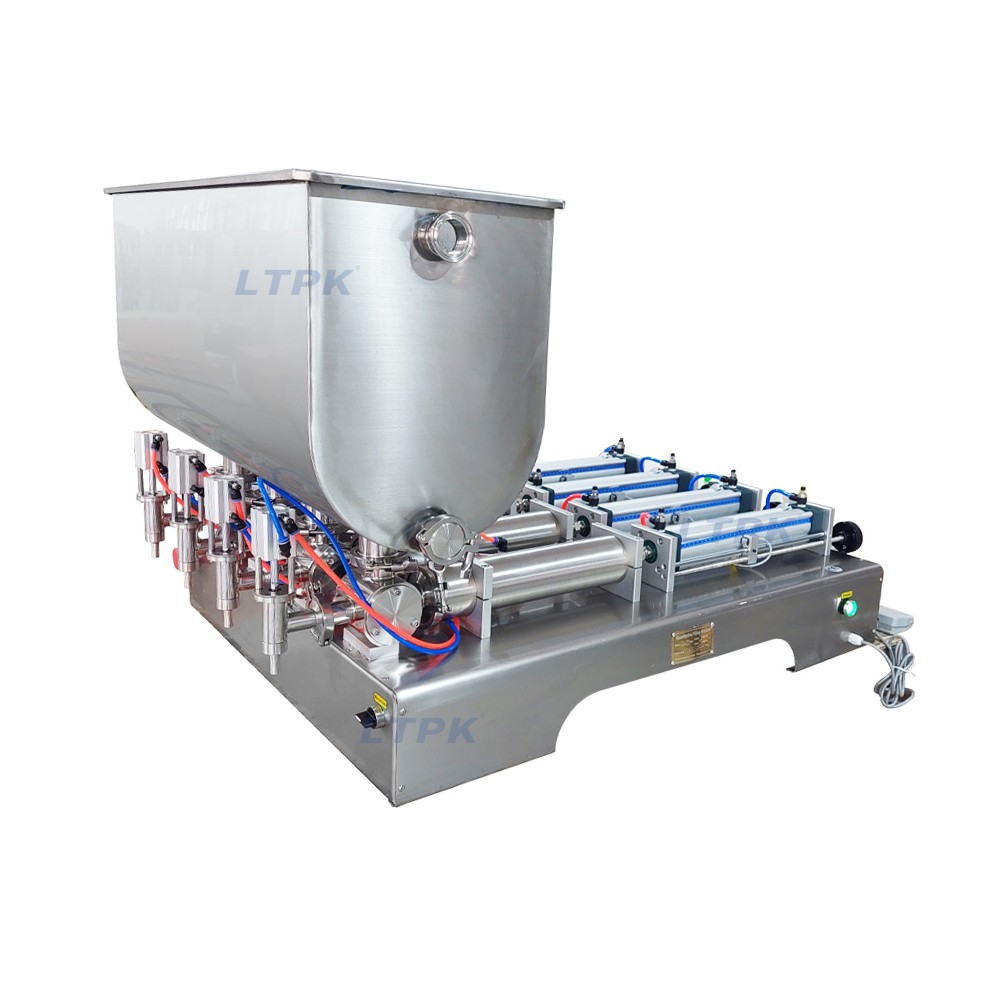

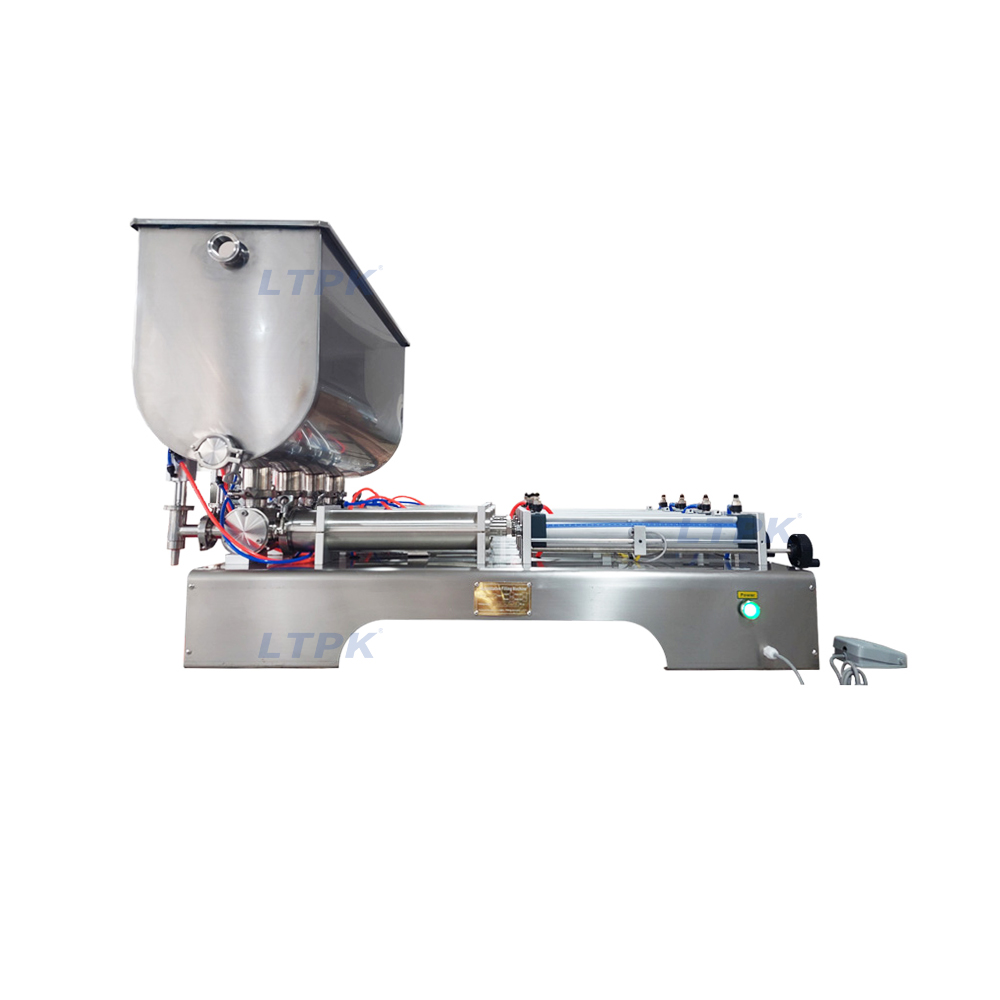

LT-G4WG Semi-automatic Four Head Slurry Peanut Butter Honey Toothpaste Juice Gel Shampoo Cream Horizontal Filler Paste Filling Machine

Description

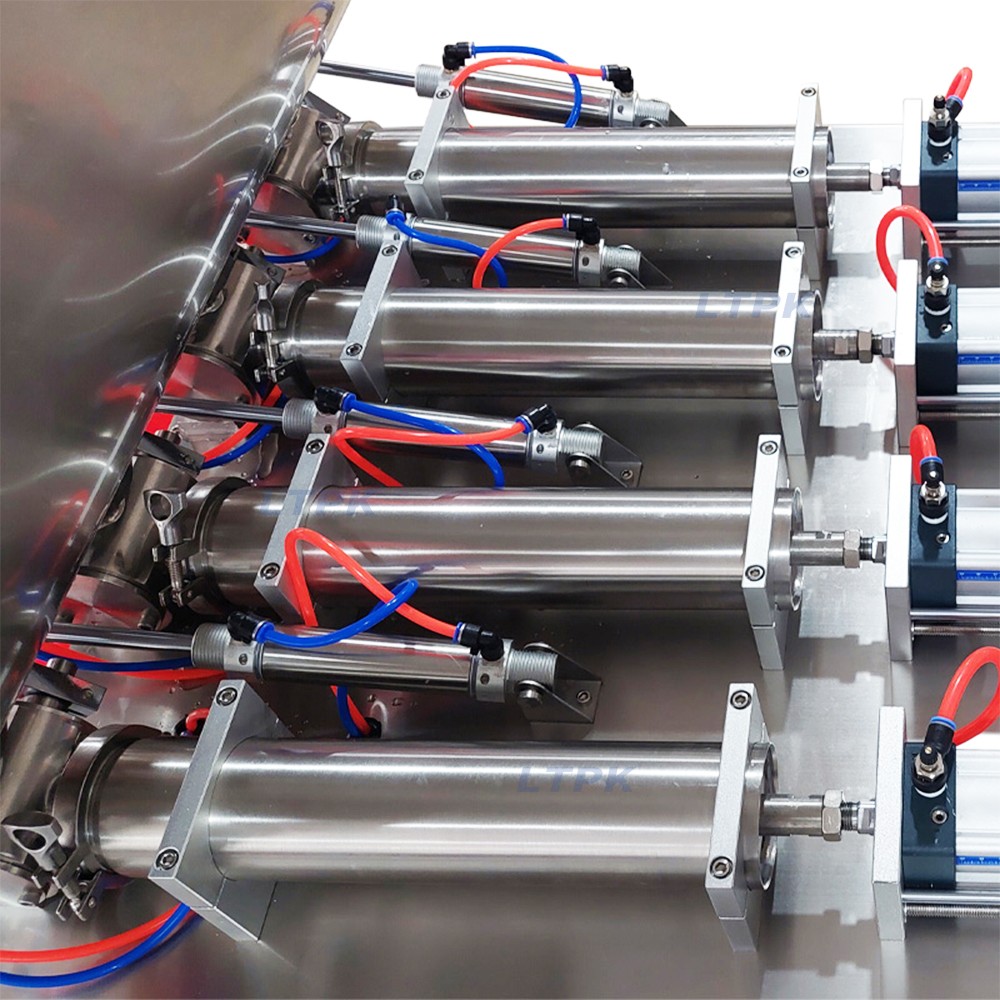

This series of filling machines has a simple and reasonable structure, high accuracy, and more convenient operation. Suitable for daily chemical, food, pesticide and special industries, it is an ideal equipment for filling high viscosity fluids and ointments. Reasonable design, compact model, convenient operation, with a filling volume adjustment handle, filling speed can be adjusted at will.Driven by a cylinder and piston made from materials with one-way valves control the flow of materials and also magnetic reed switch control cylinder itinerary can control the filling volume.

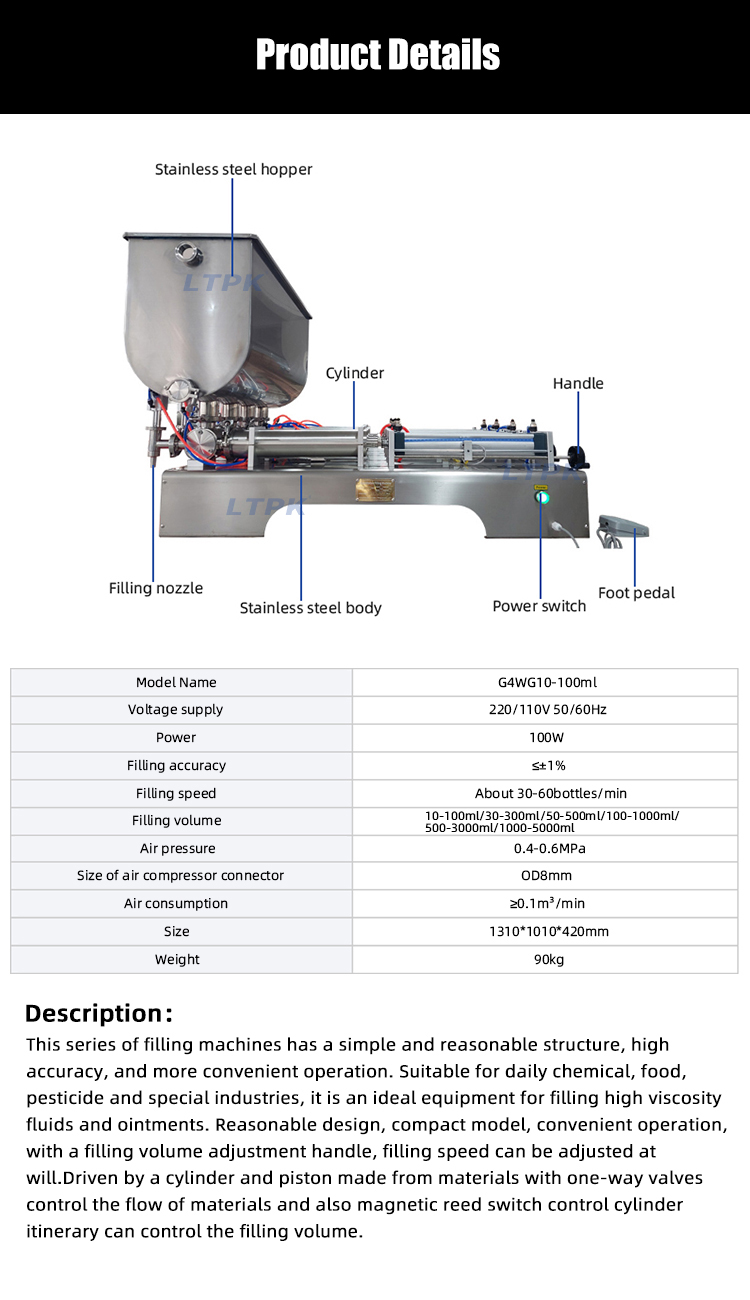

Technical Parameters

Model :G4WG10-100ml

Voltage supply :220/110V 50/60Hz

Power :100W

Filling accuracy :≤±1%

Filling speed :About 30-60bottles/min

Filling volume :10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml

Air pressure :0.4-0.6MPa

Size of air compressor connector :OD8mm

Air consumption :≥0.1m³/min

Size :1310*1010*420mm

Weight :90kg

Application

Widely used in the filling of various liquids,beverages,pastes,cream and various granule-containing materials,such as juice,oil,milk,honey,lotion,jams,cream,ketchup,chili sauce,etc

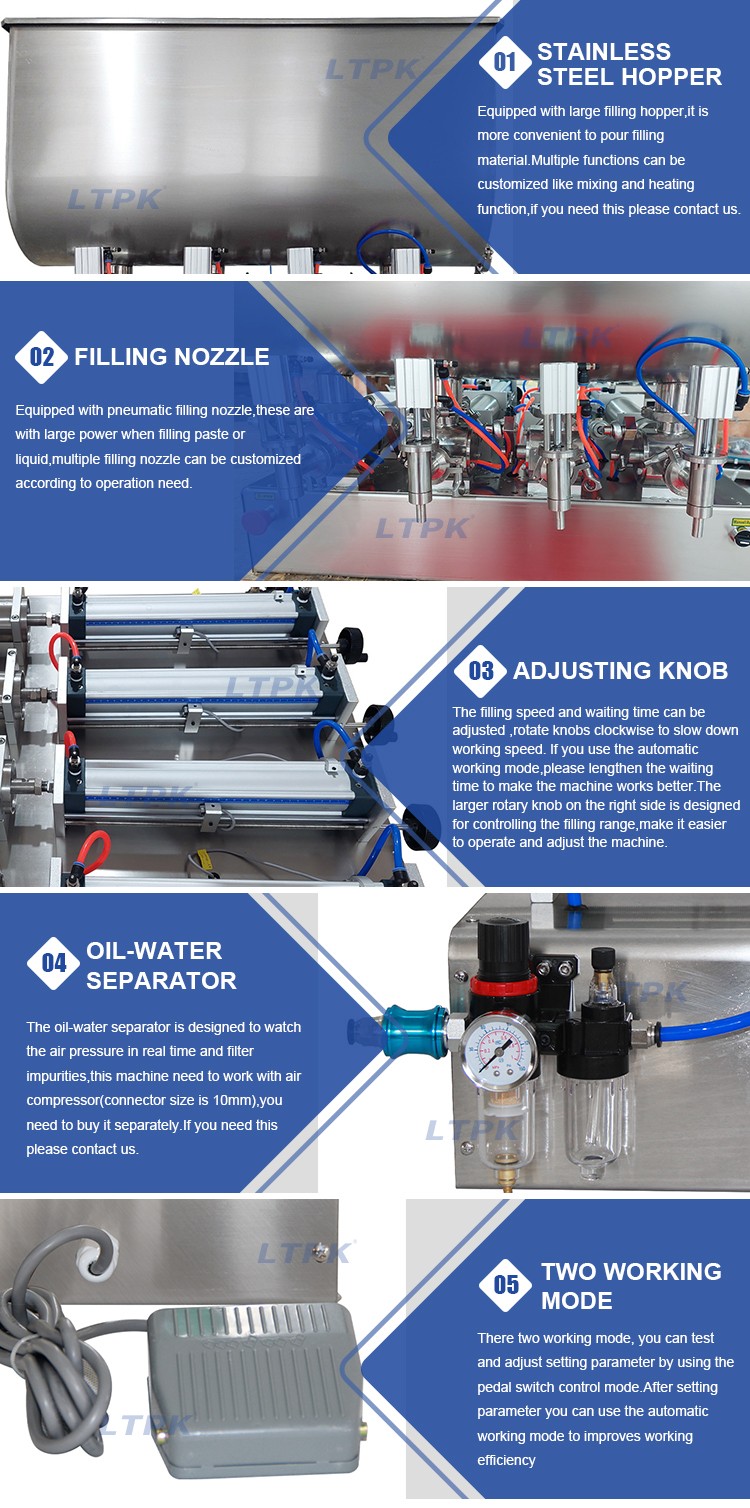

Detail Images
