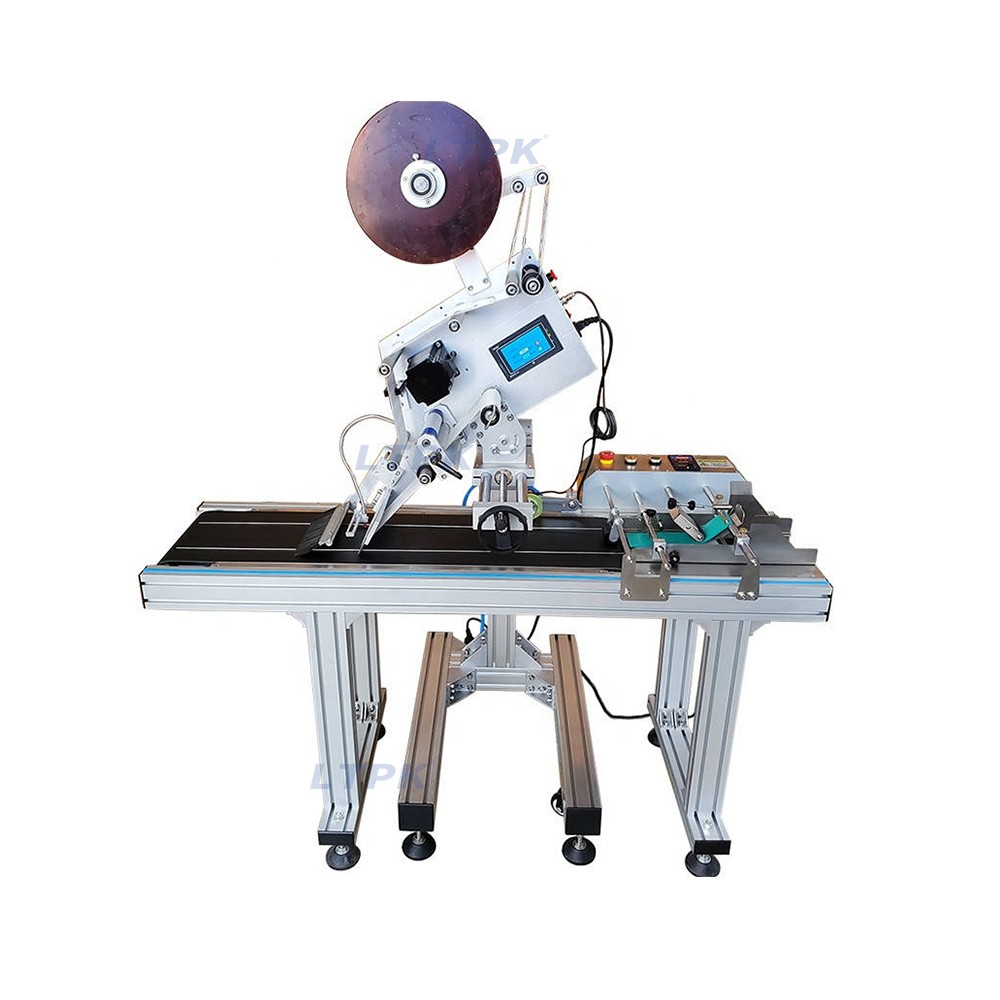

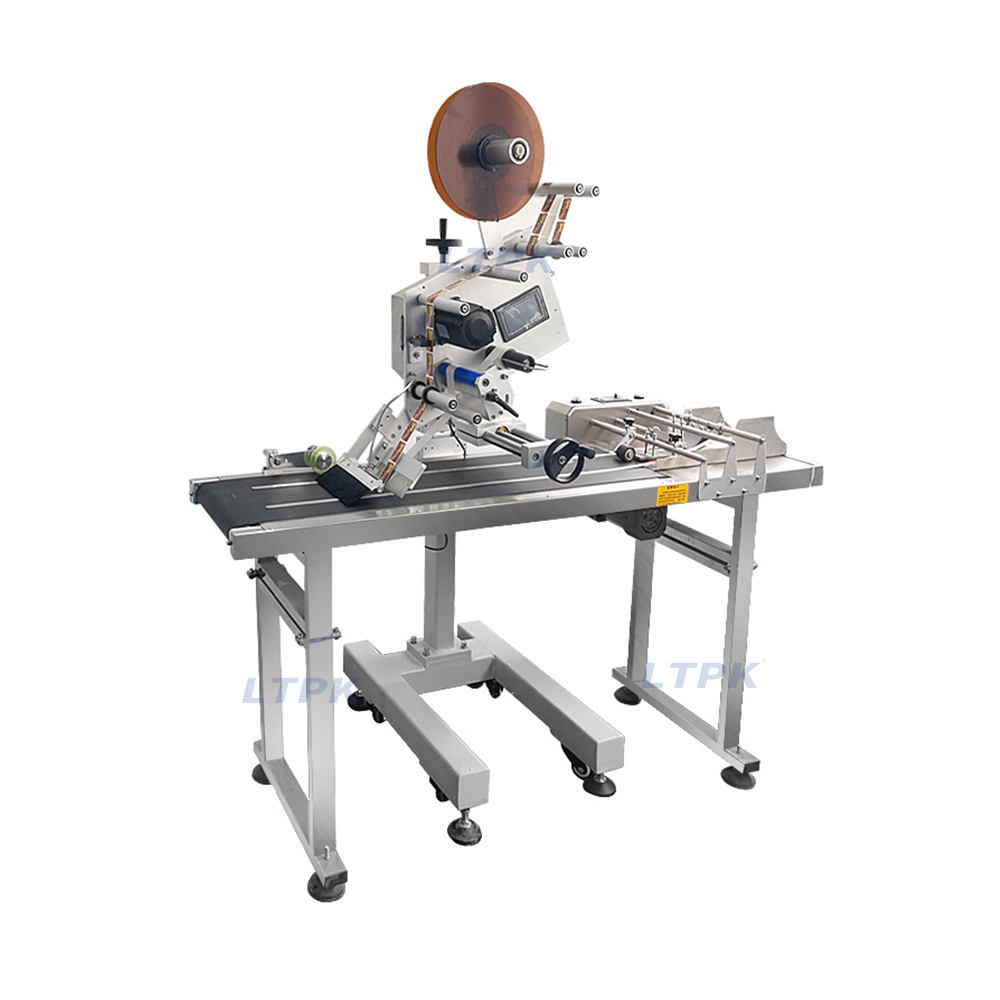

Description

This one is the assembly labeling machine which can work with the conveyor belt and realize automatic production or work as the single-alone operation machine. It is suitable for labeling stickers on flat surface like book, box, pouch bags.

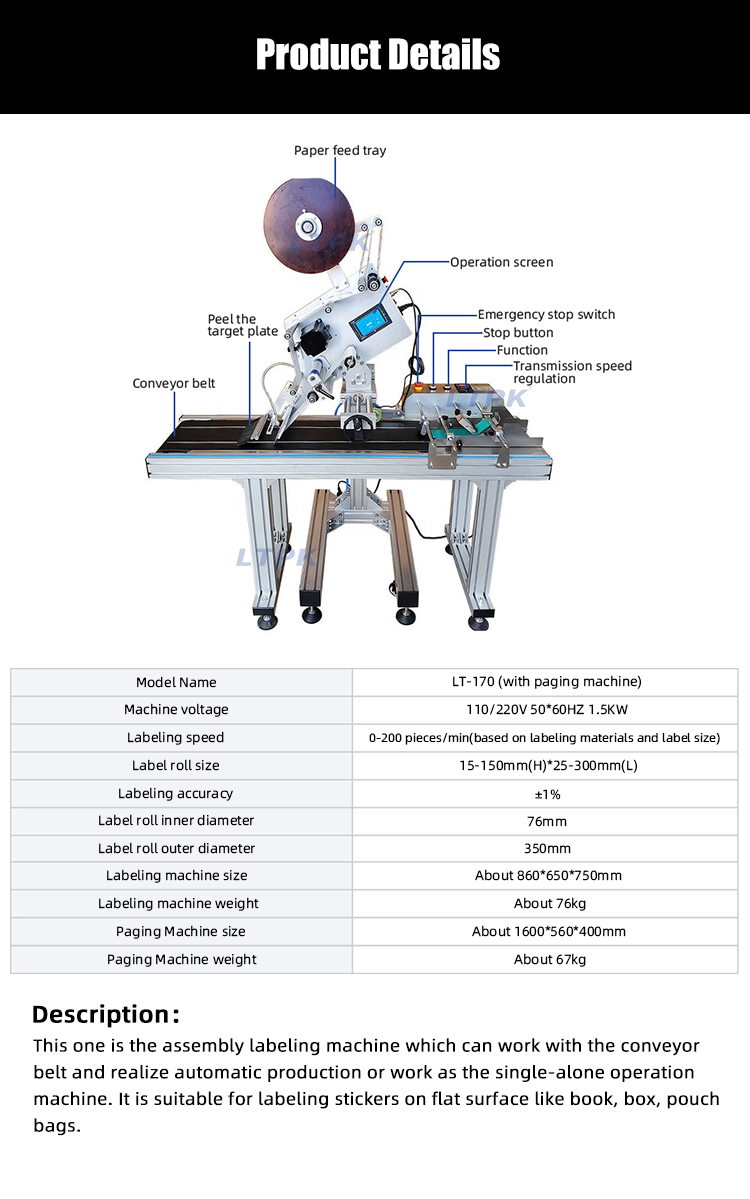

Technical Parameters

Machine model：LT-170 (with paging machine)

Machine voltage：110/220V 50*60HZ 1.5KW

Labeling speed：0-200 pieces/min(based on labeling materials and label size)

Label roll size：15-150mm(H)*25-300mm(L)

Labeling accuracy：±1%

Label roll inner diameter：76mm

Label roll outer diameter：350mm

Labeling machine size：About 860*650*750mm

Labeling machine weight：About 76kg

Paging Machine size;About 1600*560*400mm

Paging Machine weight:About 67kg

Application

This machine is Suitable for flat bottles like PET bottle, plastic bottle, glass bottle, metal bottle, bags, books, etc. Widely used in cosmetics, beverage, food, medical industries. Rapidly raise the production efficiency, and the label quality.

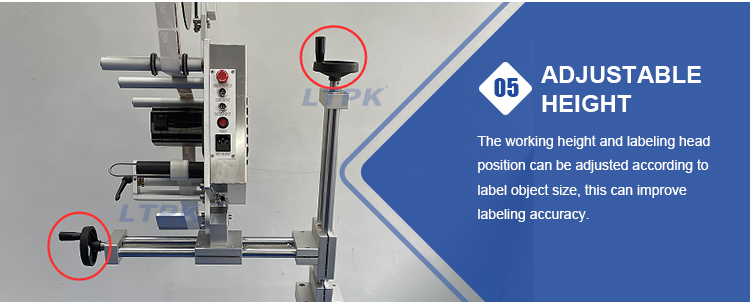

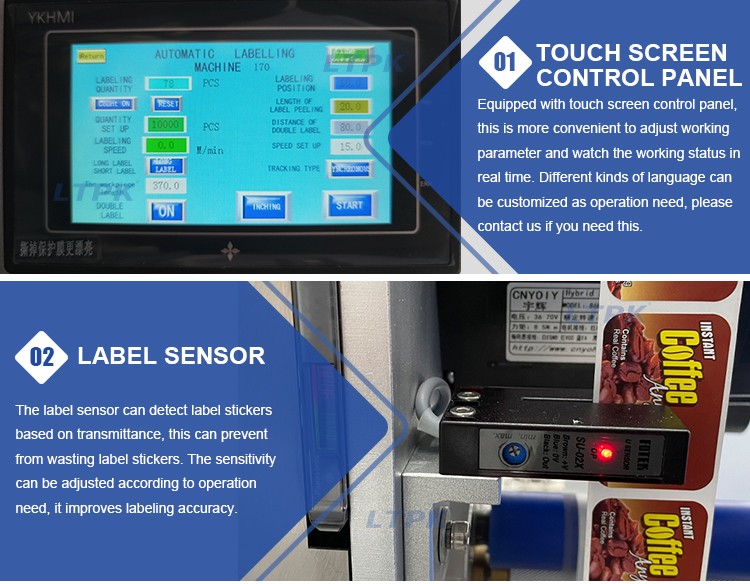

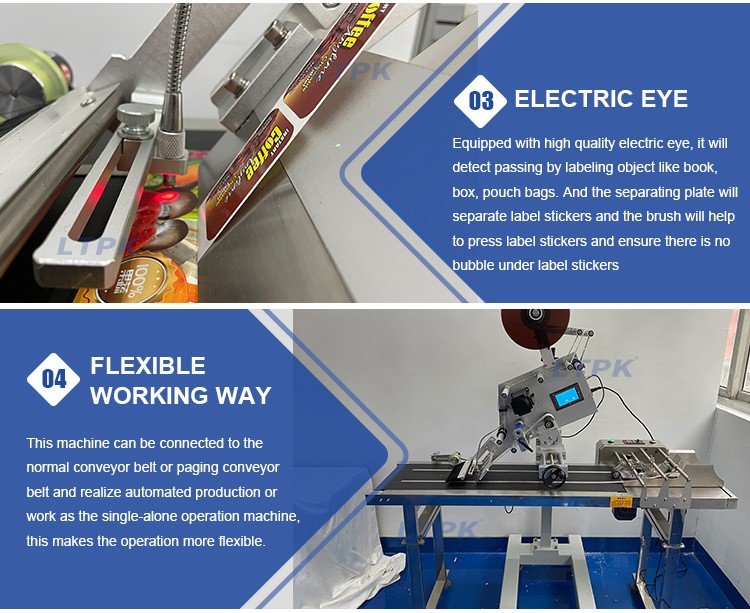

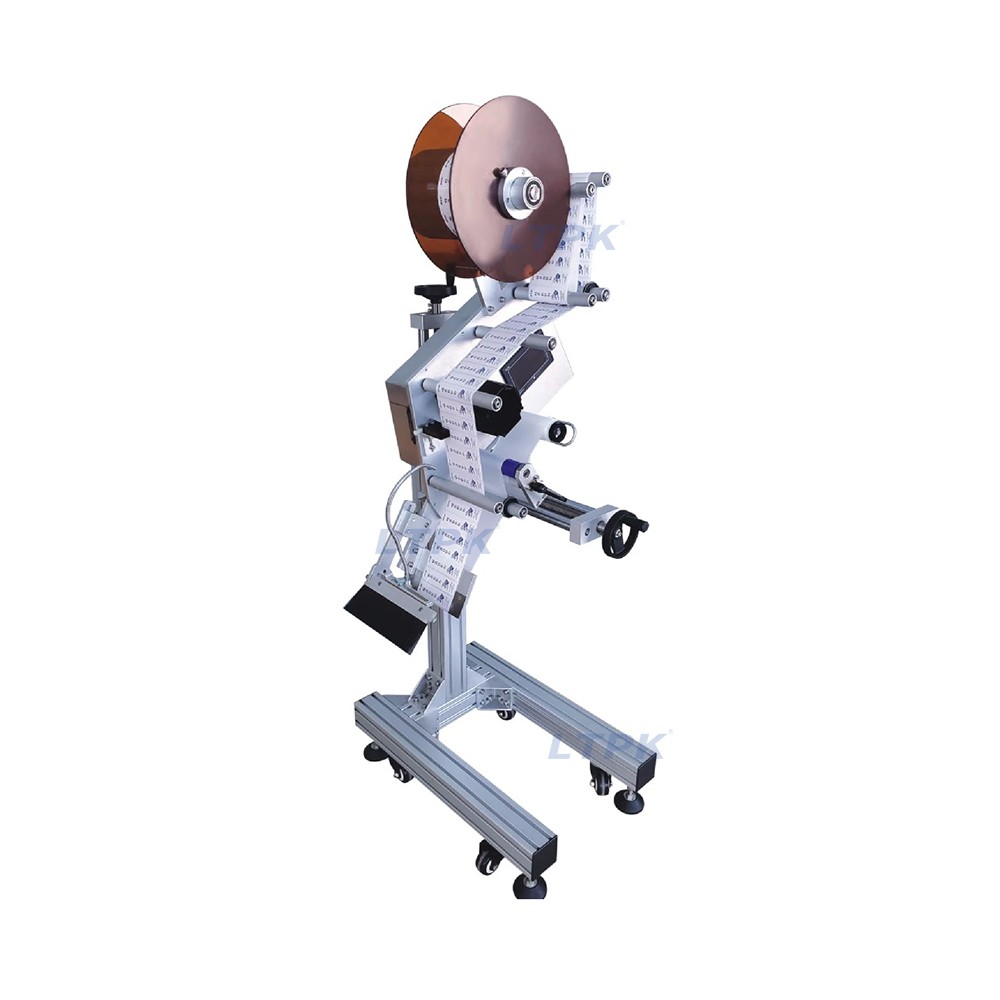

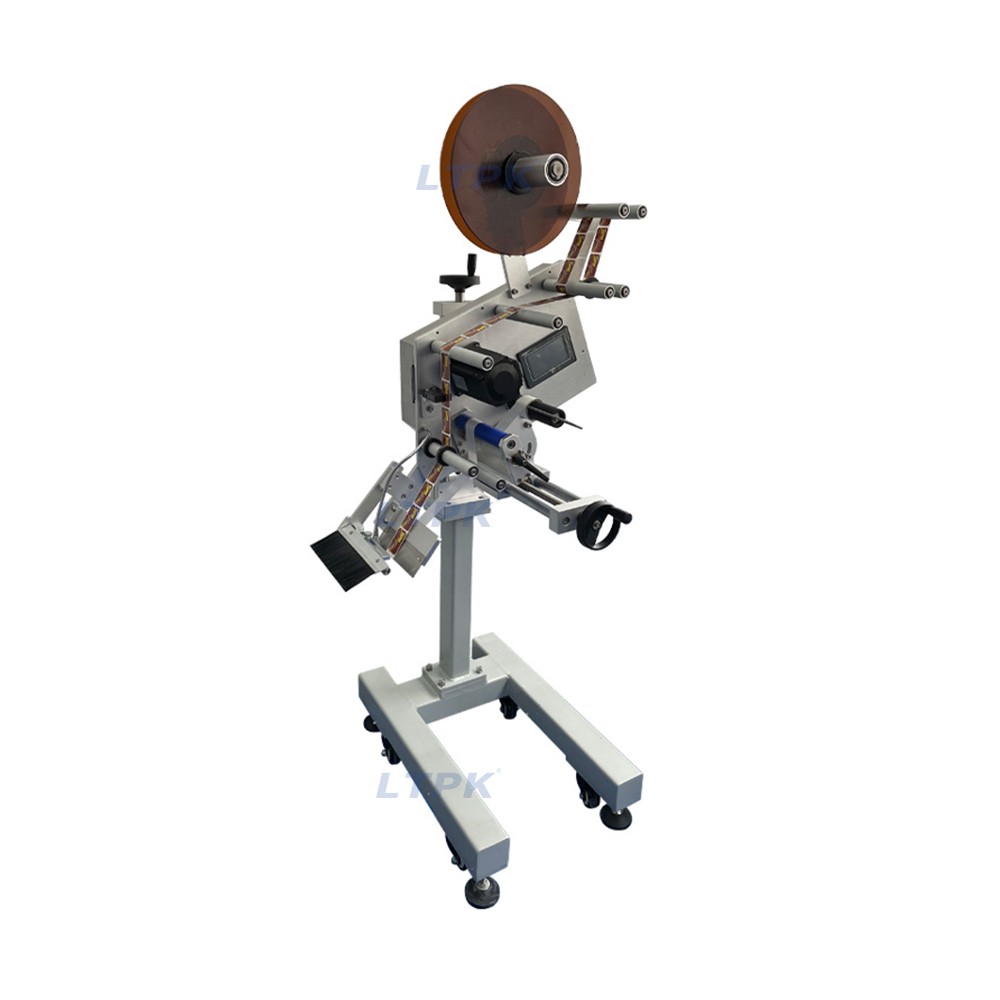

Detail Images
