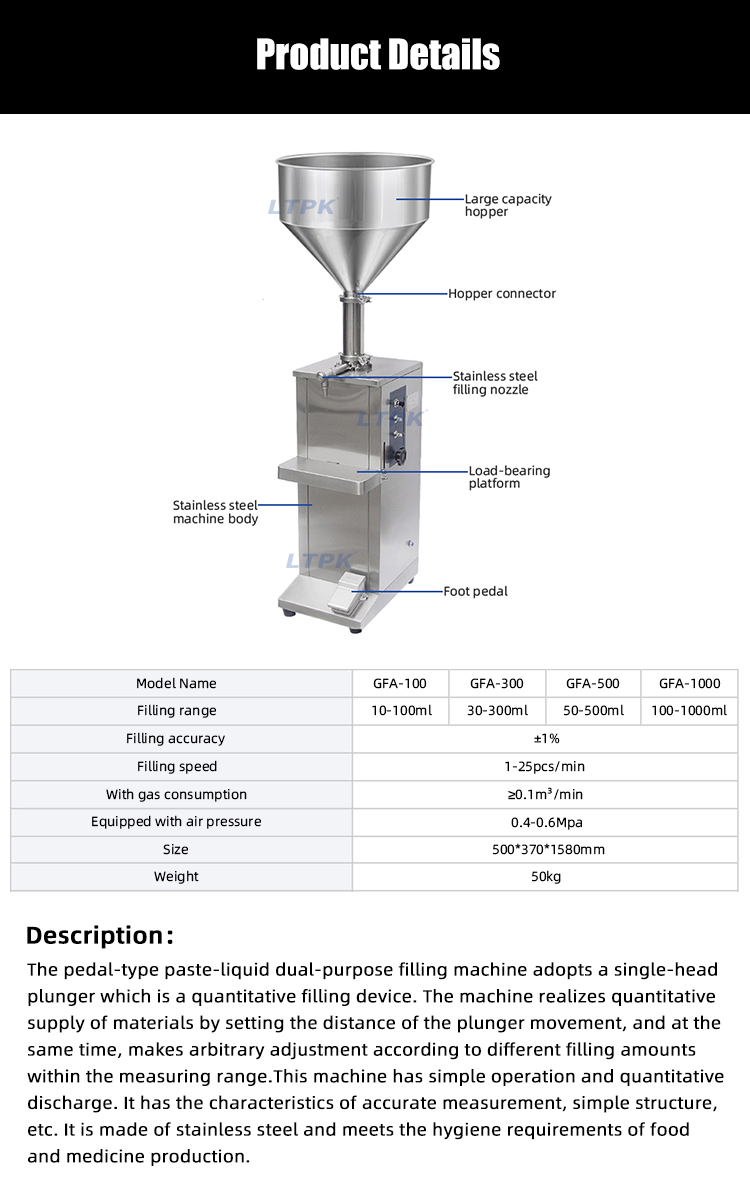

Description

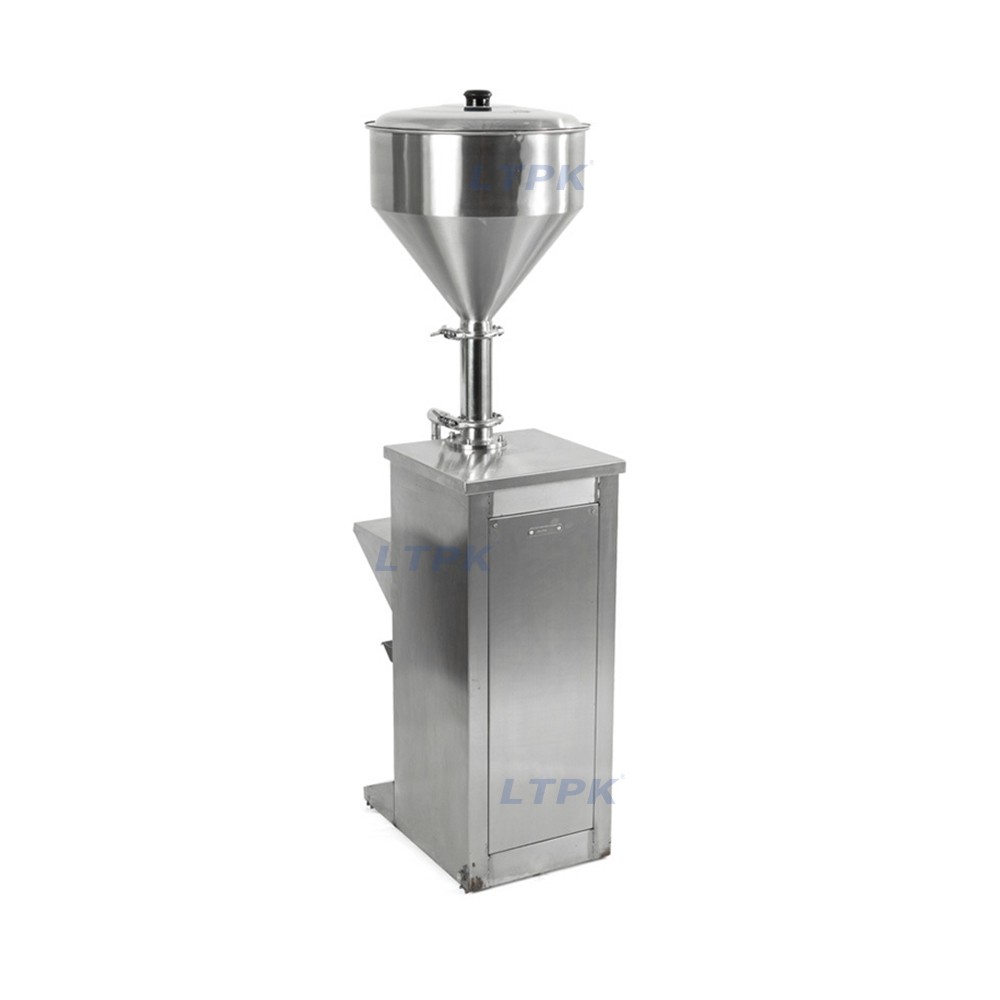

The pedal-type paste-liquid dual-purpose filling machine adopts a single-head plunger which is a quantitative filling device.

The machine realizes quantitative supply of materials by setting the distance of the plunger movement, and at the same time,

makes arbitrary adjustment according to different filling amounts within the measuring range.This machine has simple operation

 and quantitative discharge. It has the characteristics of accurate measurement, simple structure, etc. It is made of stainless steel

and meets the hygiene requirements of food and medicine production.

Technical Parameters

Model:GFA-100

Filling range:10-100ml(Could customized)

Filling accuracy:±1%

Filling speed:1-25pcs/min

With gas consumption:≥0.1m³/min

Equipped with air pressure:0.4-0.6Mpa

Size:500*370*1580mm

Weight:50kg

Application

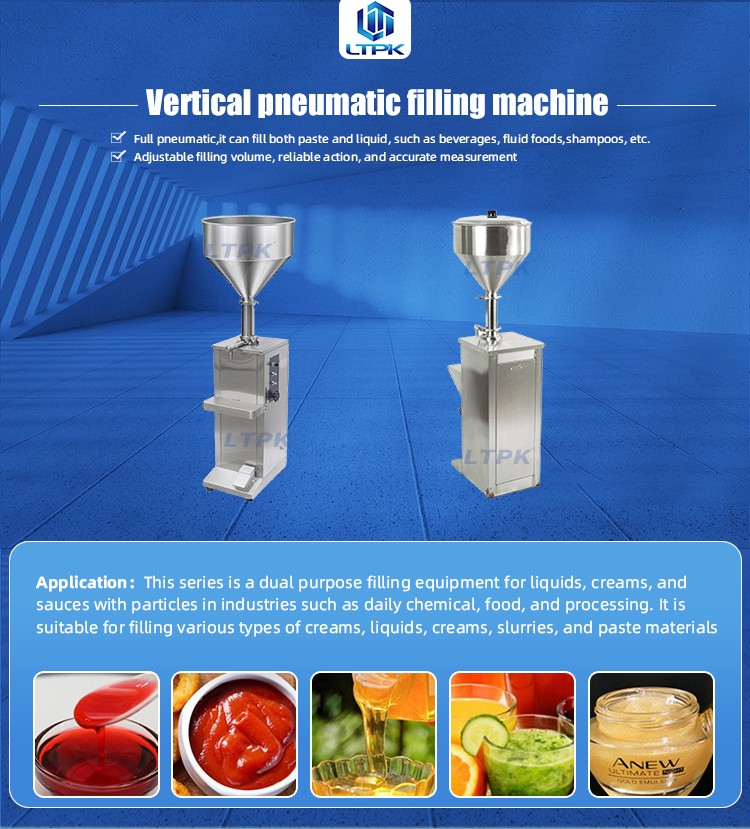

This series is a dual purpose filling equipment for liquids, creams, and sauces with particles in industries

 such as daily chemical, food, and processing. It is suitable for filling various types of creams, liquids, creams,

slurries, and paste materials.

Features

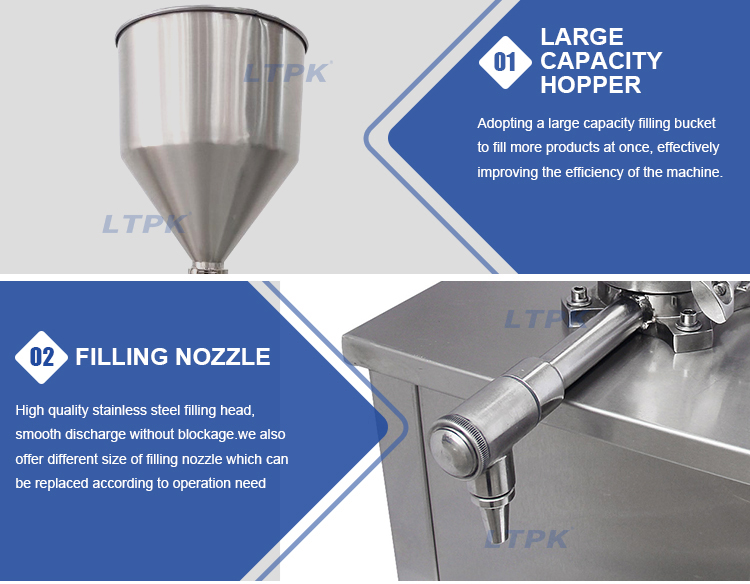

1.Anti drip design, no waste of raw materials

2.The filling speed and filling amount can be adjusted arbitrarily

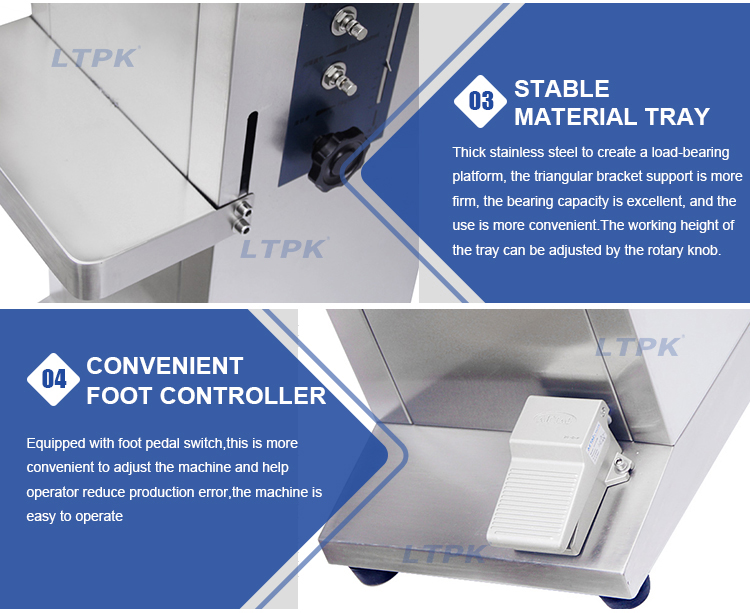

3.With foot switch, convenient operation

4.Adjustable elevating platform, each adjustment switch is marked

Detail Images
