Description

1. The level control Liquid Filling Machine is negative pressure type semi-automatic filling machine, mainly used in cologne, perfume, lubricating oil, detergent, such as liquid filling material.

2. There are two kinds of models, double head and four heads type.

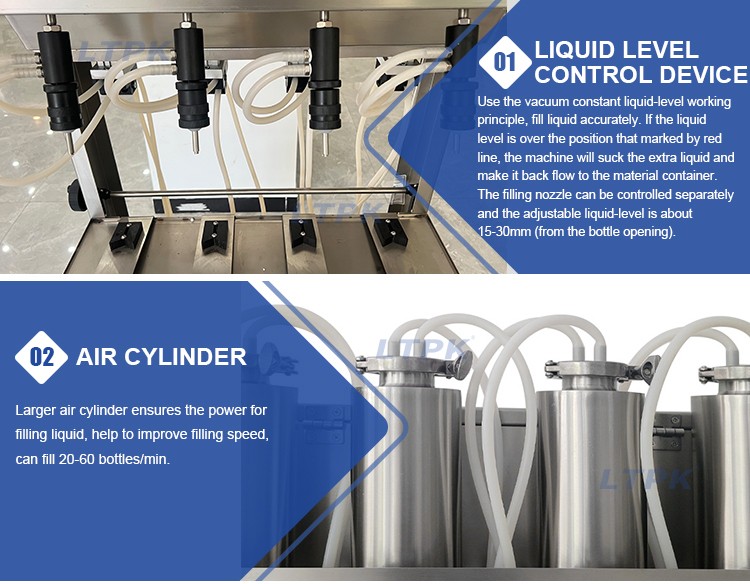

3. It has a definite way of liquid level measurement performance; liquid level height can be adjusted.

4. The machine structure is compact and reasonable, simple operation, easy maintenance, and material contact parts made of 304 stainless steels.

5. It is suitable for filling glass bottles and plastic bottles which are not easy to deform after vacuum.

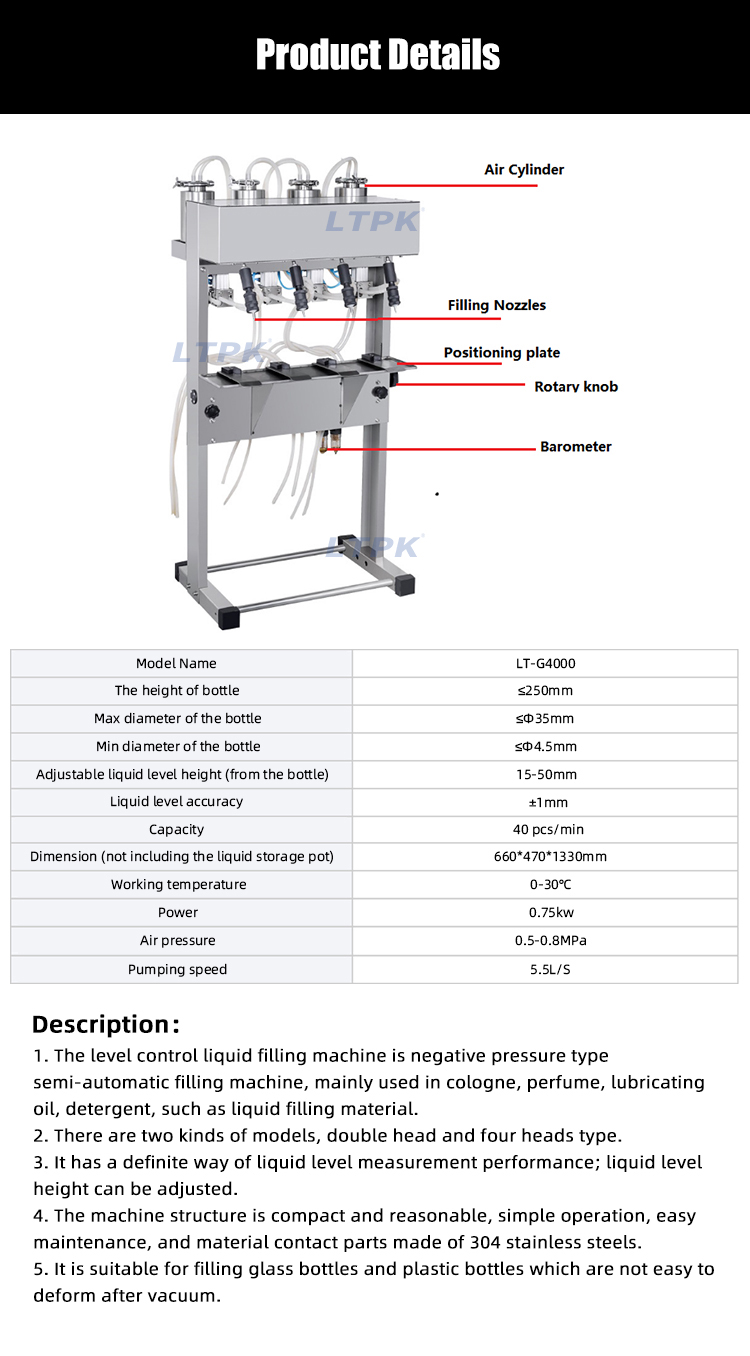

Technical Parameters

Model:LT-G4000

The height of bottle:≤250mm

Max diameter of the bottle:≤Φ35mm

Min diameter of the bottle:≤Φ4.5mm

Adjustable liquid level height(from the bottle) :15-50mm

Liquid level accuracy:±1mm

Capacity:40 pcs/min

Dimension(not including the liquid storage pot)(L*W*H):660*470*1330mm

Working temperature:0-30℃

Power:0.75kw

Air pressure:0.5-0.8MPa

Pumping speed:5.5L/S

Packing Size:75*54*148cm

Packing Weight:122kg

Application

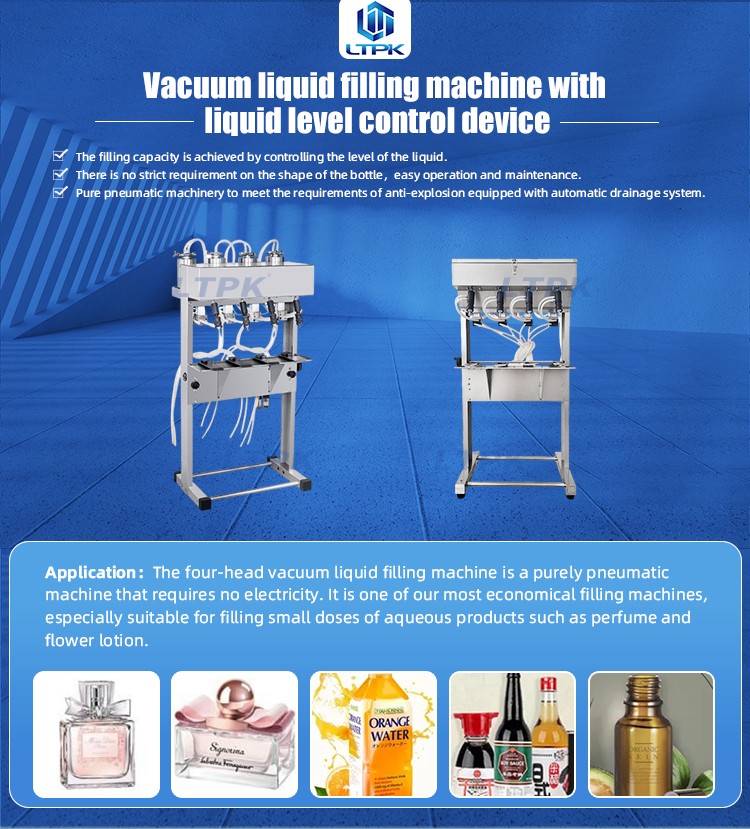

The four-head vacuum Liquid Filling Machine is a purely pneumatic machine that requires no electricity. It is one of our most economical

filling machines, especially suitable for filling small doses of aqueous products such as perfume and flower lotion.

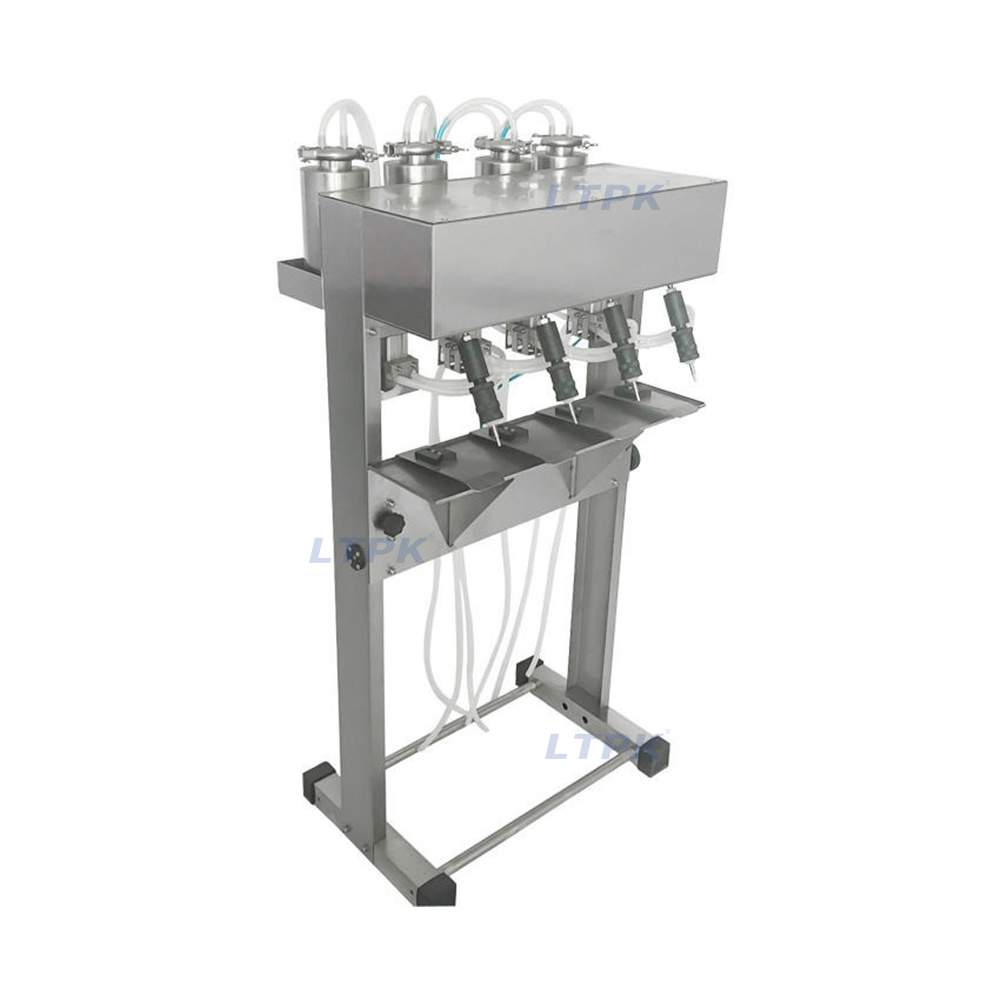

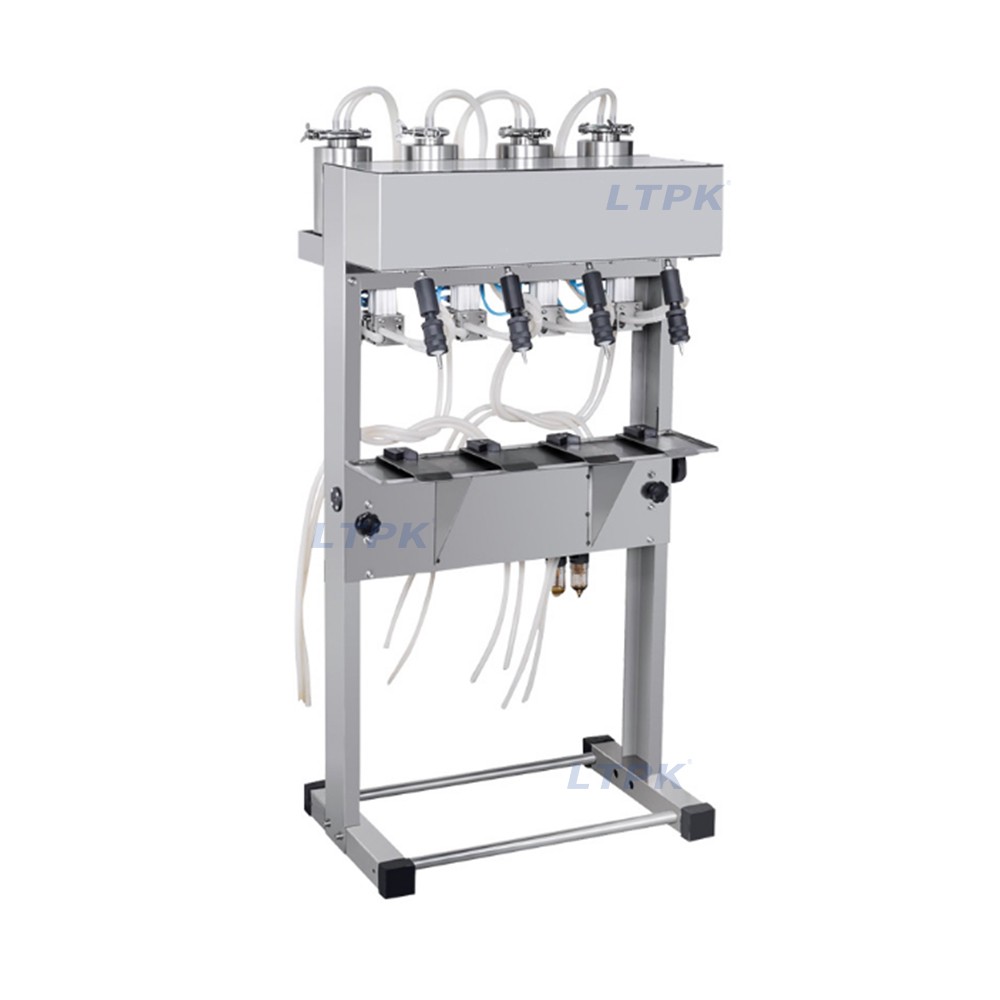

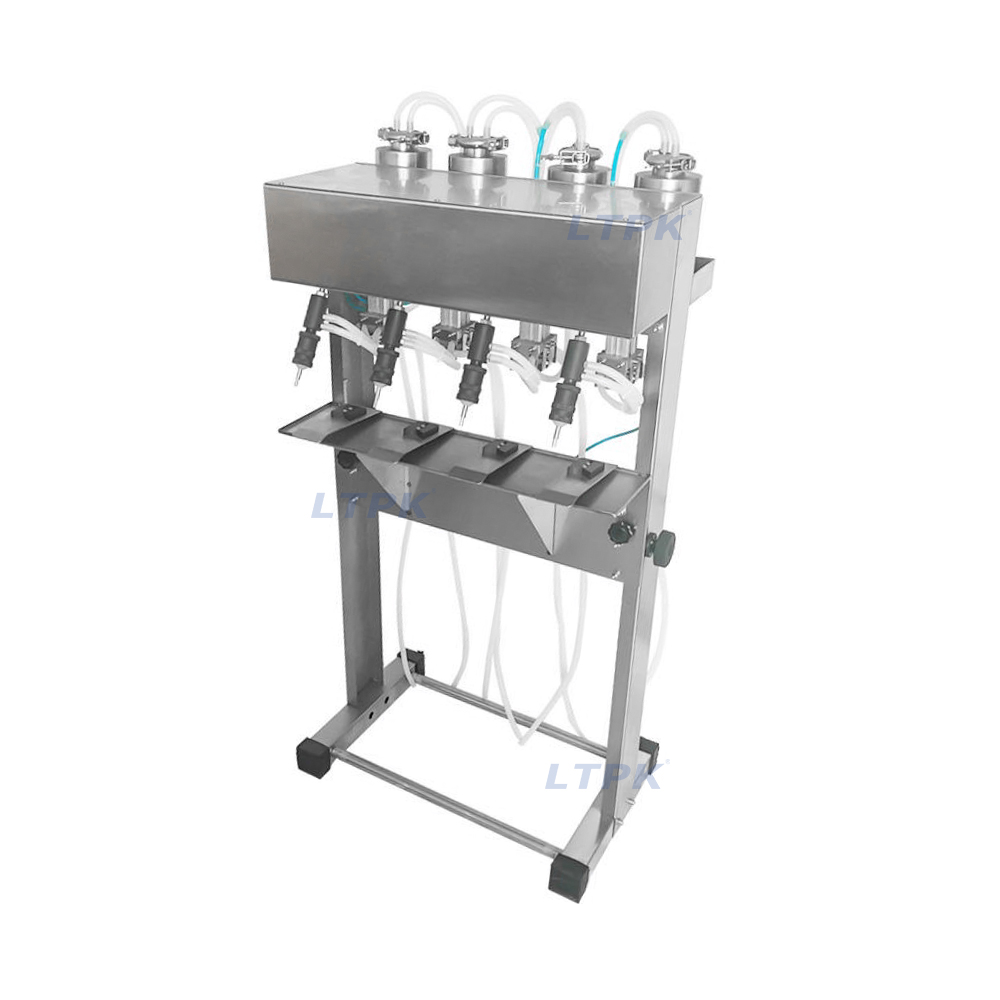

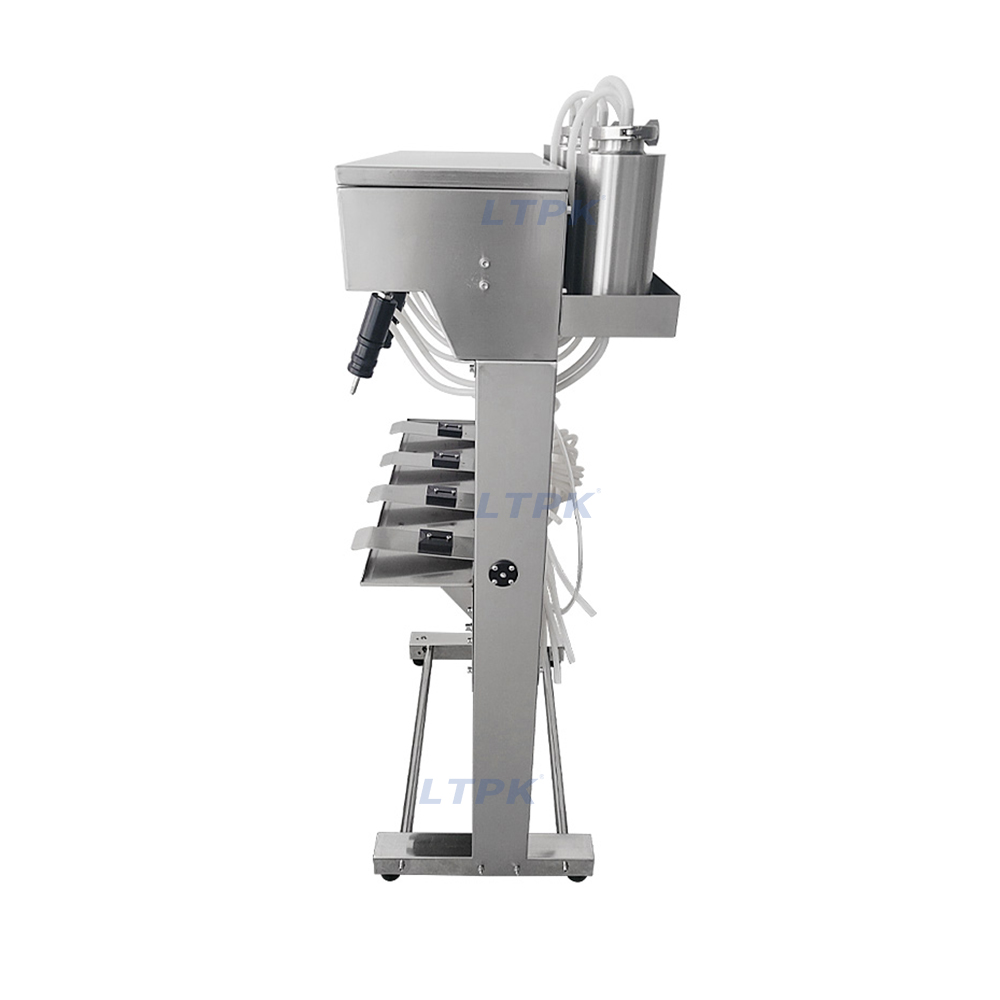

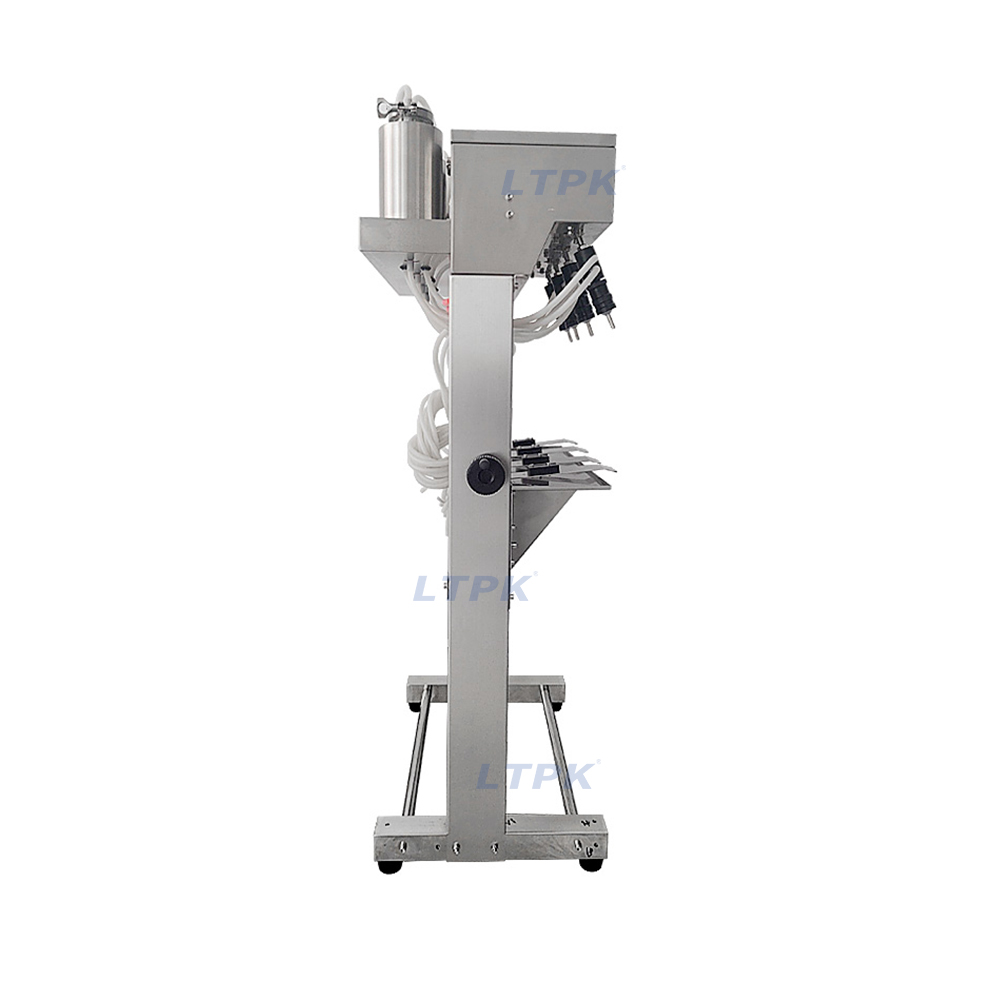

Detail Images
