Description

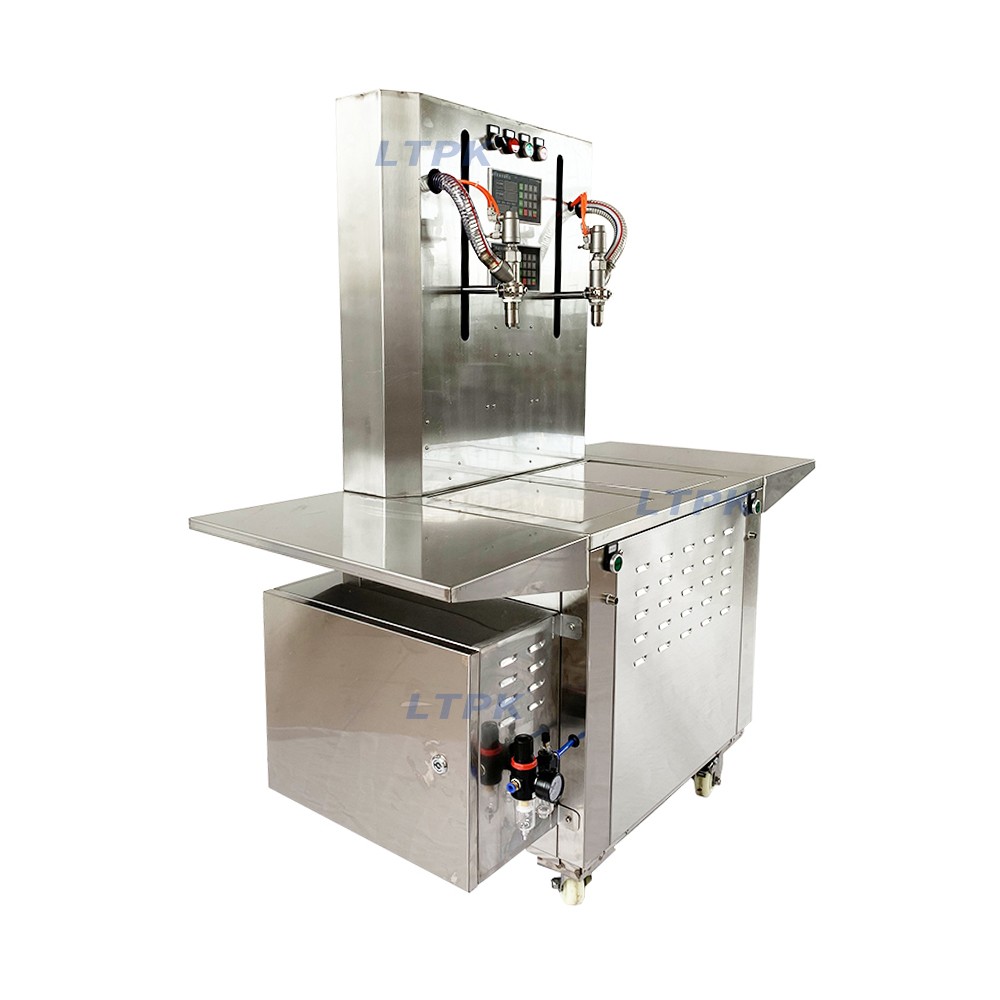

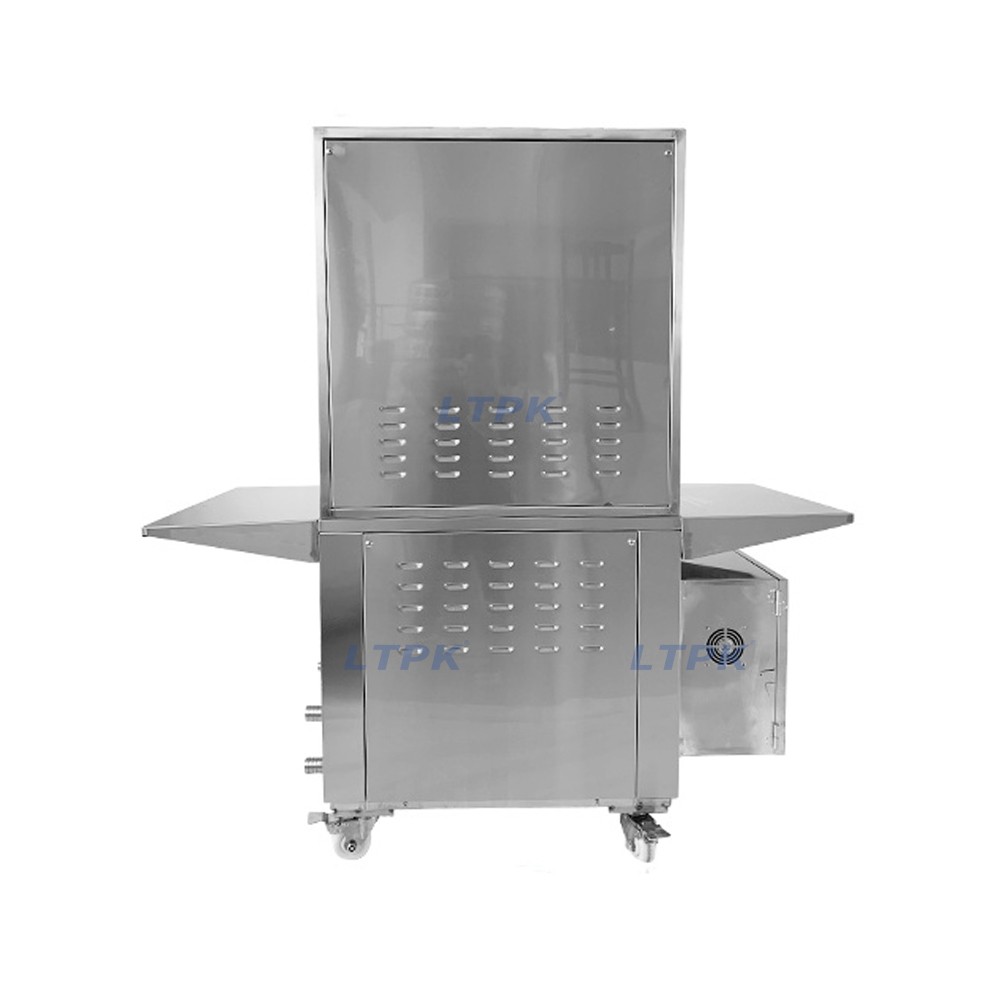

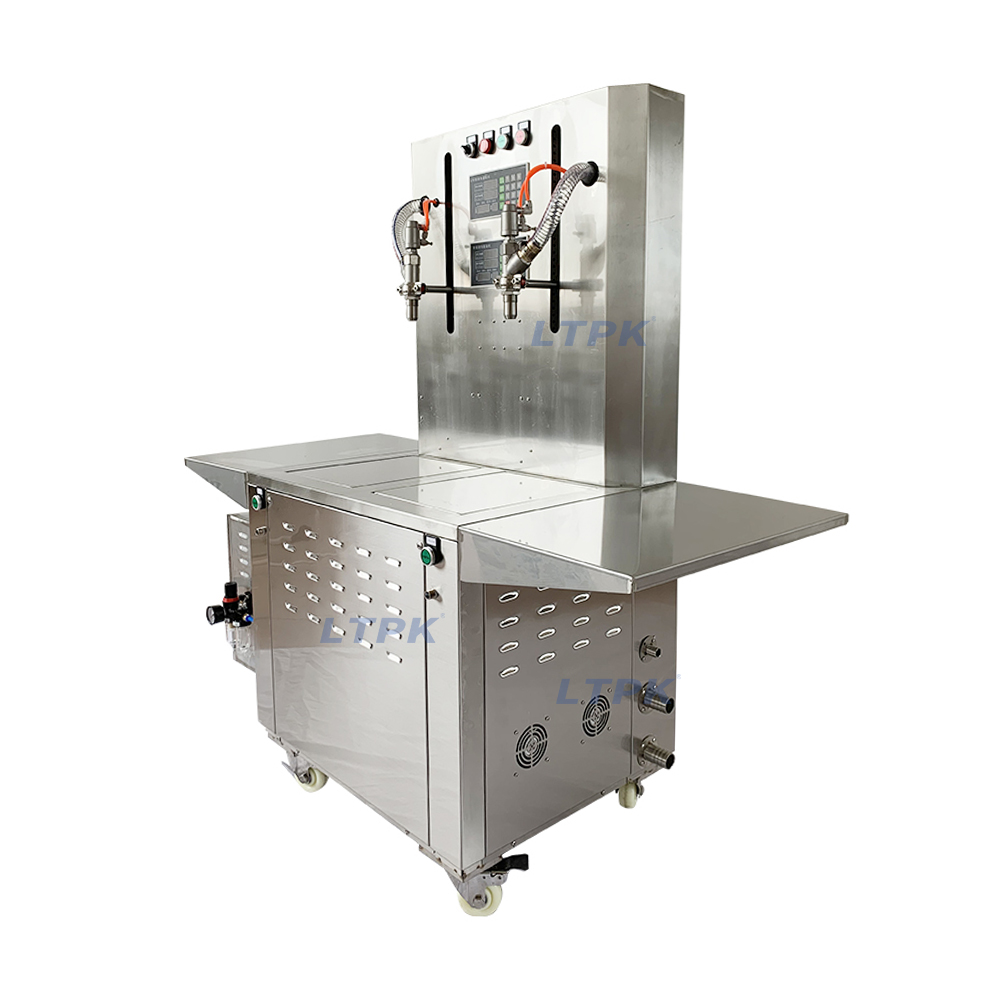

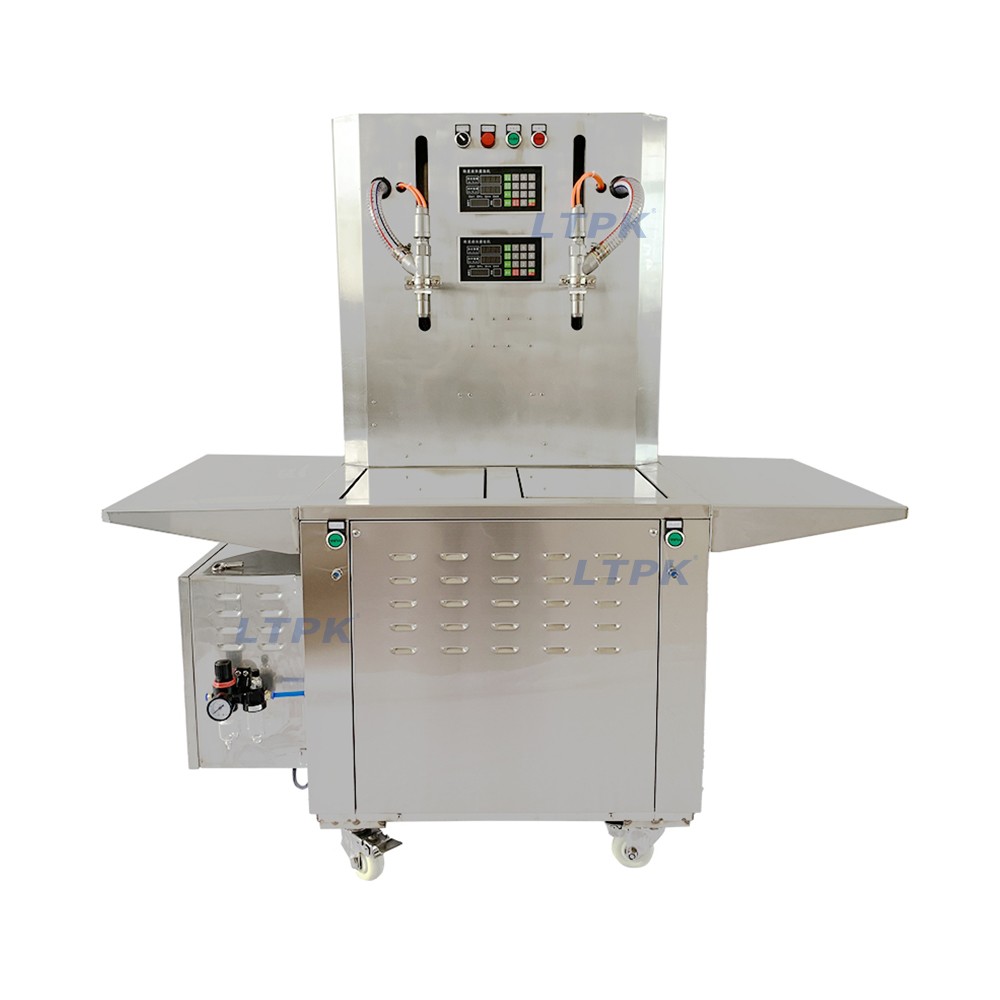

The dual head liquid weighing and filling machine adopts world-renowned brands of electrical and pneumatic components, with low failure rate, stable and reliable performance, and long service life. No need to replace parts, can adjust to the bottles of different shapes and specifications, with strong applicability

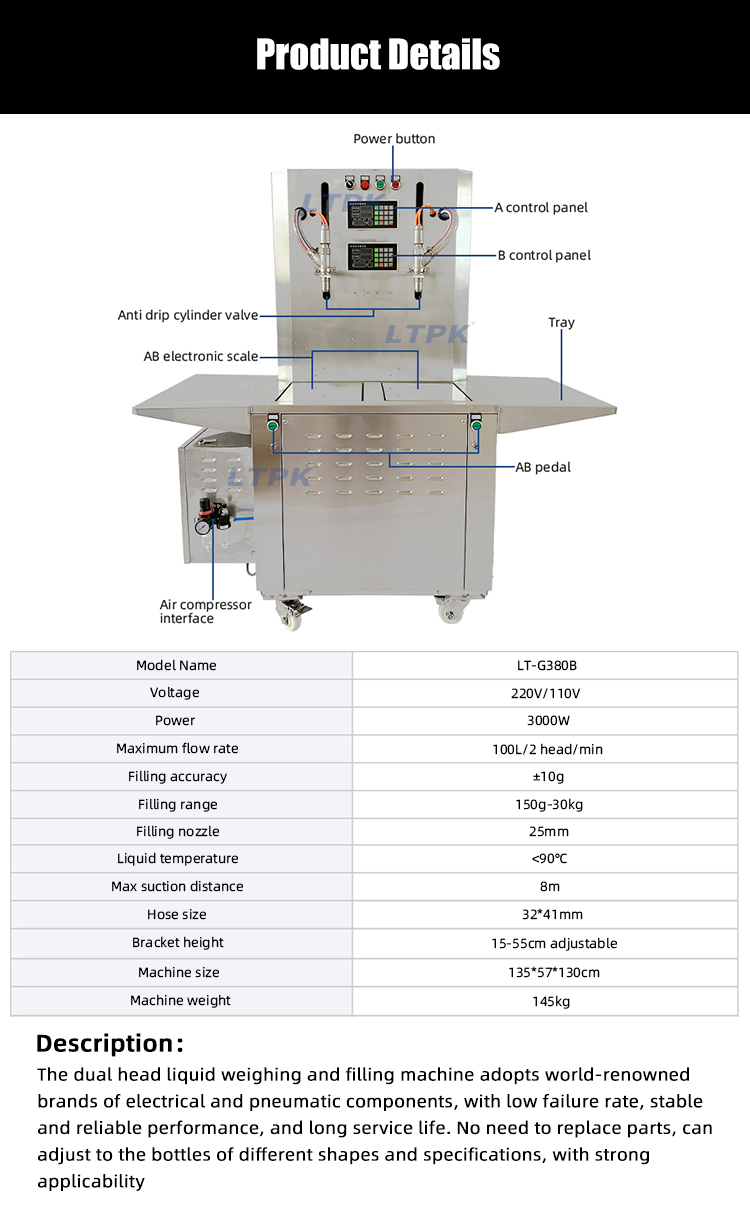

Technical Parameters

Model：LT-G380B

Voltage：220/110V

Power：3000W

Maximum flow rate：100L/2 head/min

Filling accuracy：±10g

Filling range：150g-30kg

Filling nozzle：25mm

Liquid temperature：<90℃

Max suction distance：8m

Hose size：32*41mm

Bracket height：15-55cm adjustable

Machine size：135*57*130cm

Machine weight：145kg

Application

Suitable for filling various liquid products, such as engine oil, gear oil, hydraulic oil, edible oil, etc.

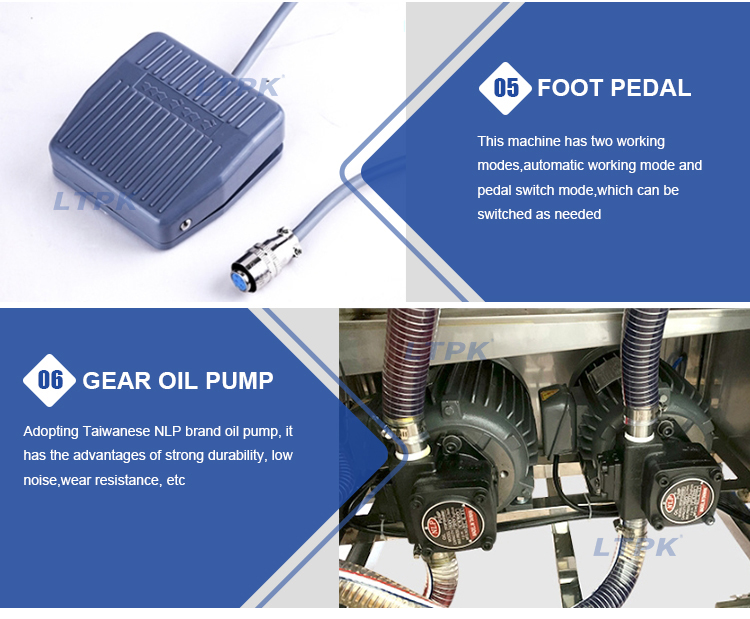

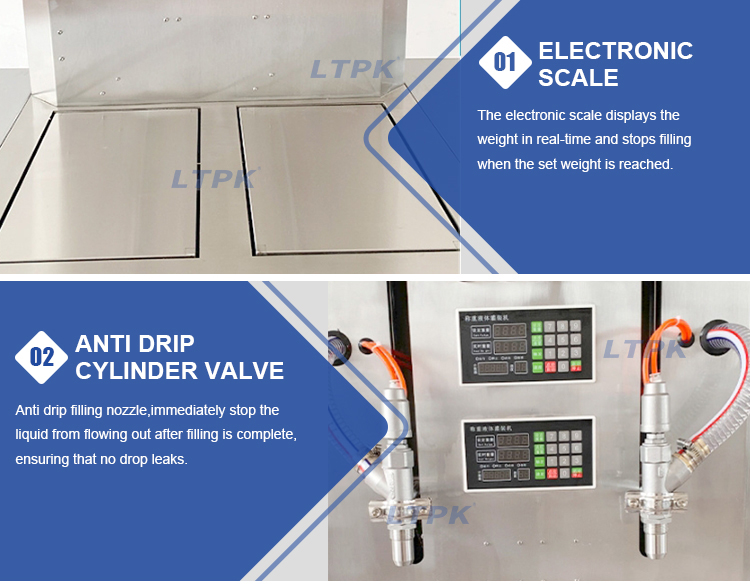

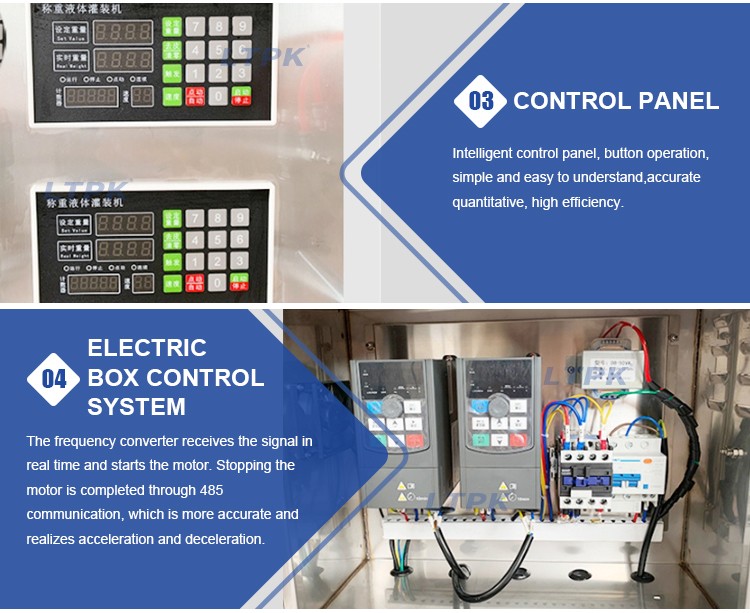

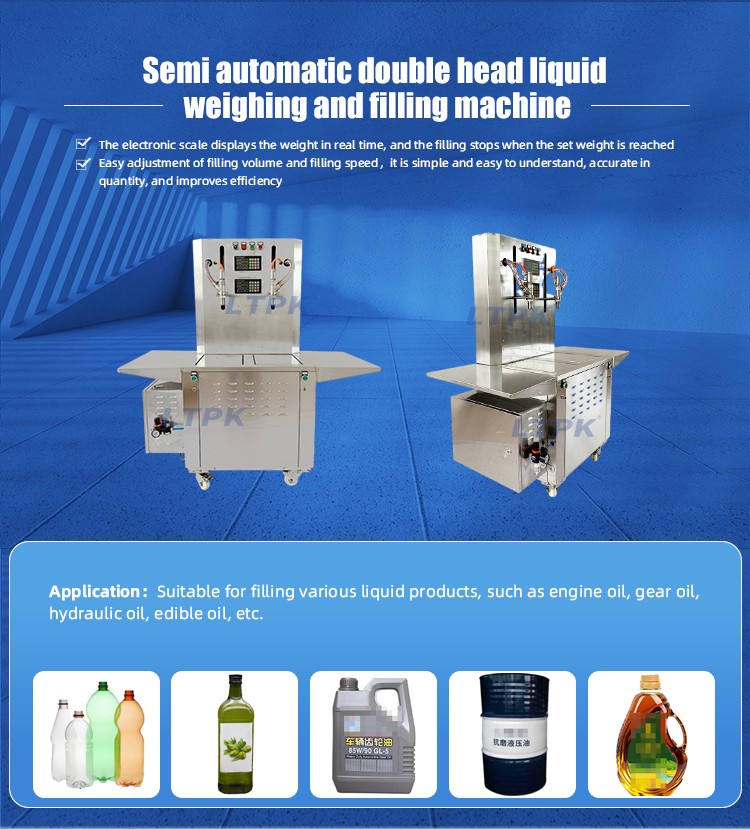

Detail Images
