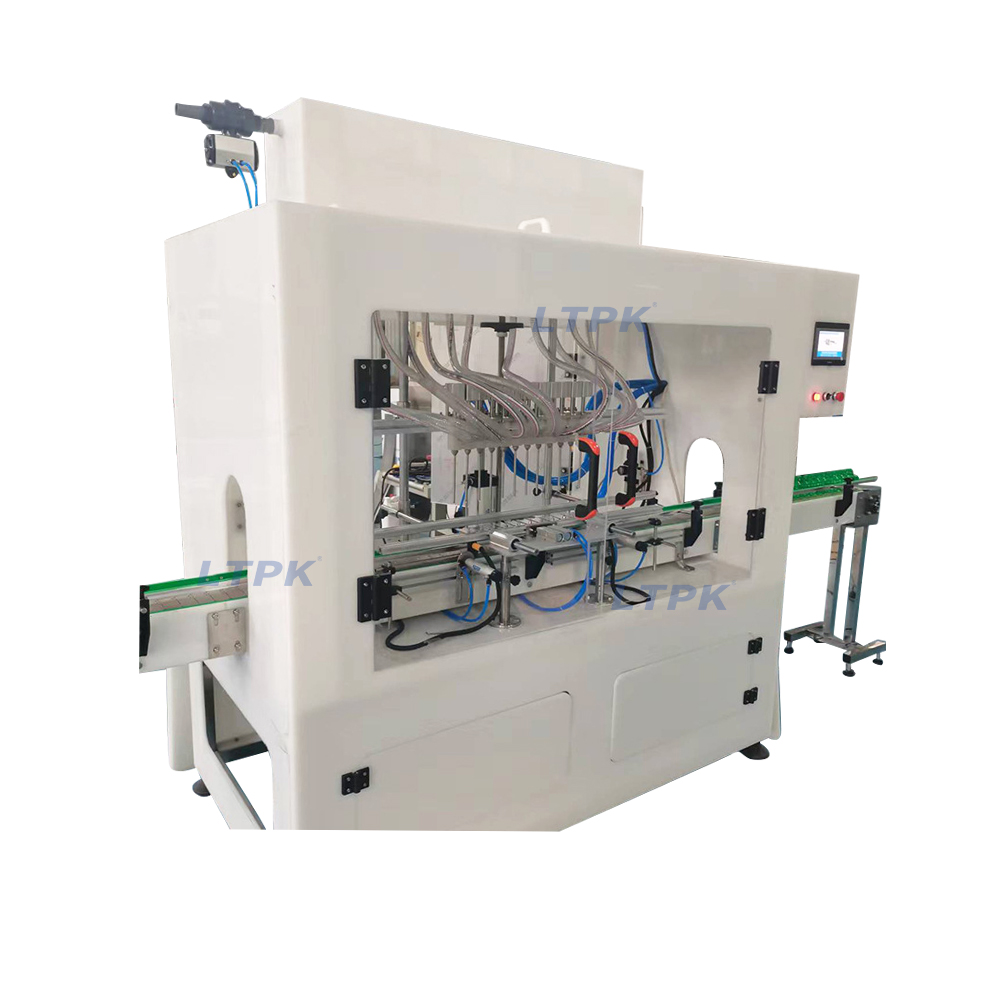

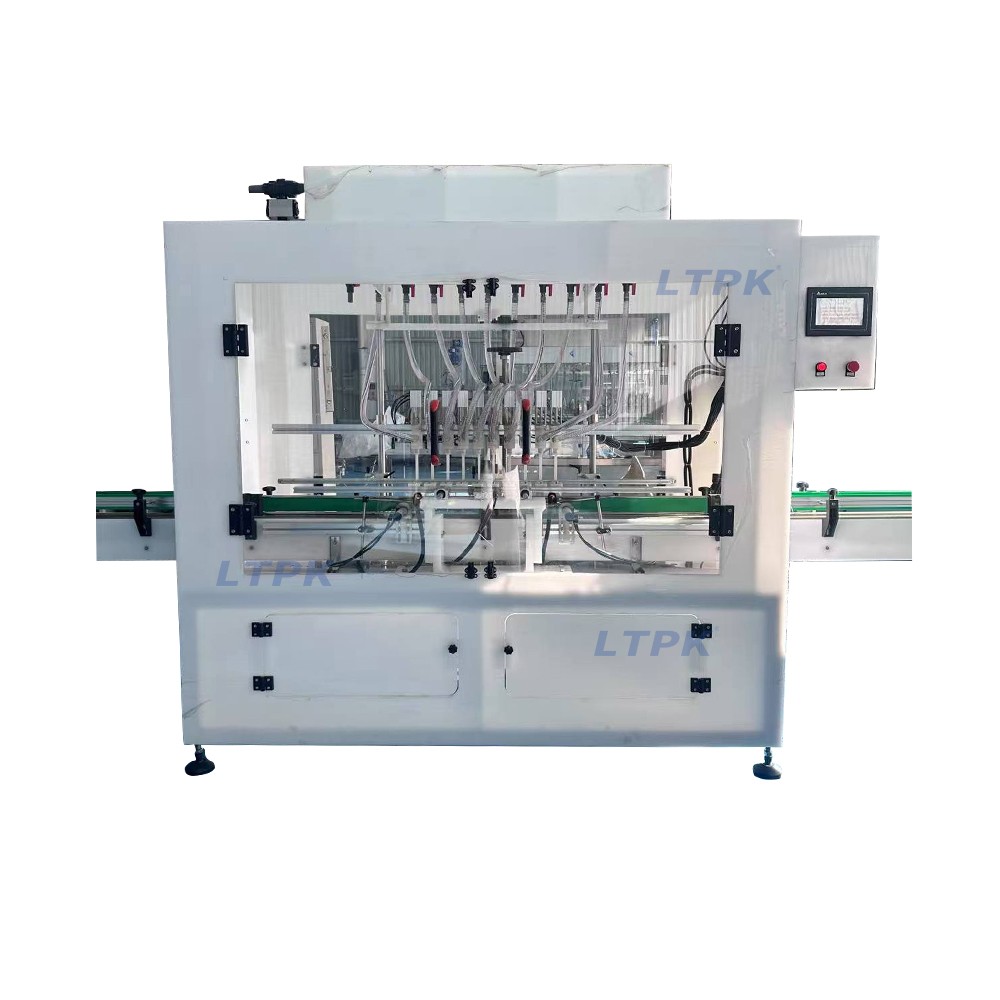

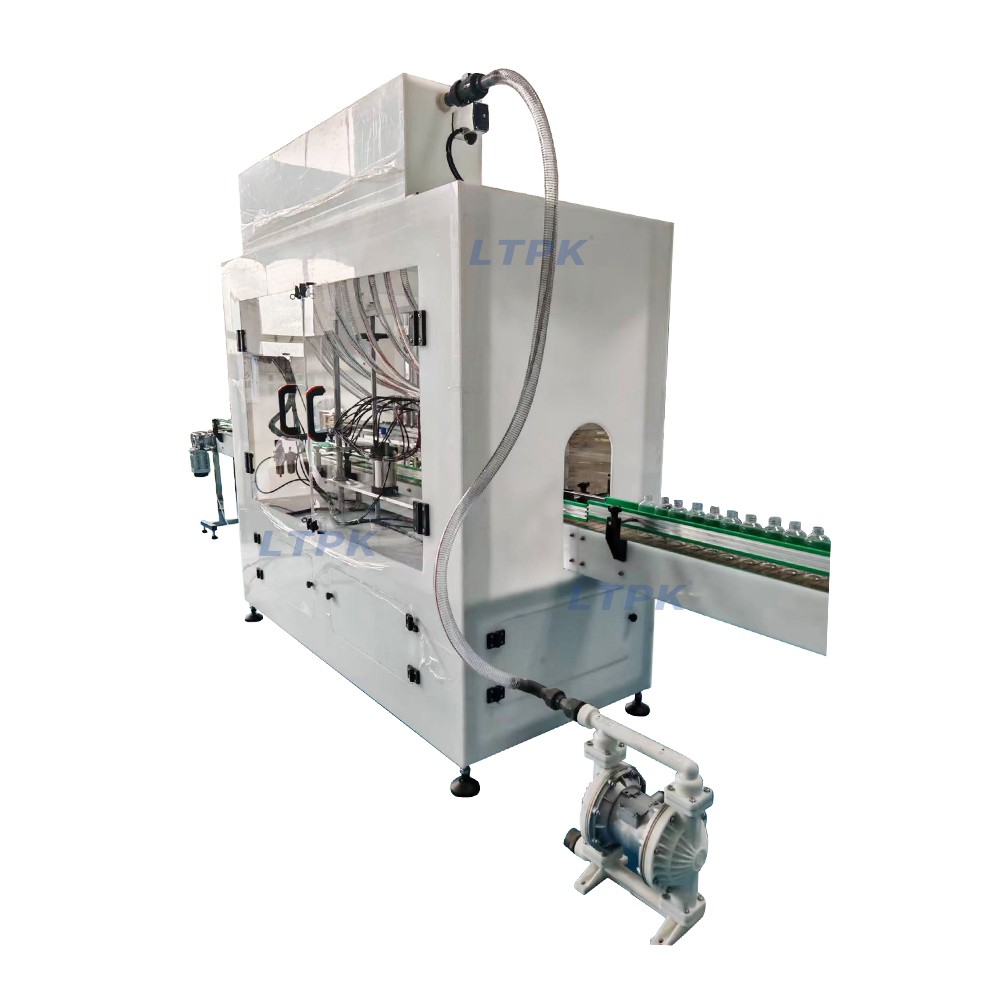

LT-ACRL10 Automatic Plastic Bottle 10 Heads Anti-corrosion HCL Acid Chemical Corrosive Liquid Filling Machine

Description：

Anti corrosion filling machine is a machine developed for filling corrosive liquids and cosmetics that cannot come into contact with metals. The main body of the equipment is made of PP (polypropylene) material, and the liquid passing part is made of polytetrafluoroethylene material. The exposed metal parts on the outside (such as cylinders, motors, etc.) are protected and placed in PP plastic boxes to prevent damage from volatile corrosive gases and ensure long-term use of the equipment. The equipment is controlled by PLC and touch screen,with stable performance and clear parameter settings.

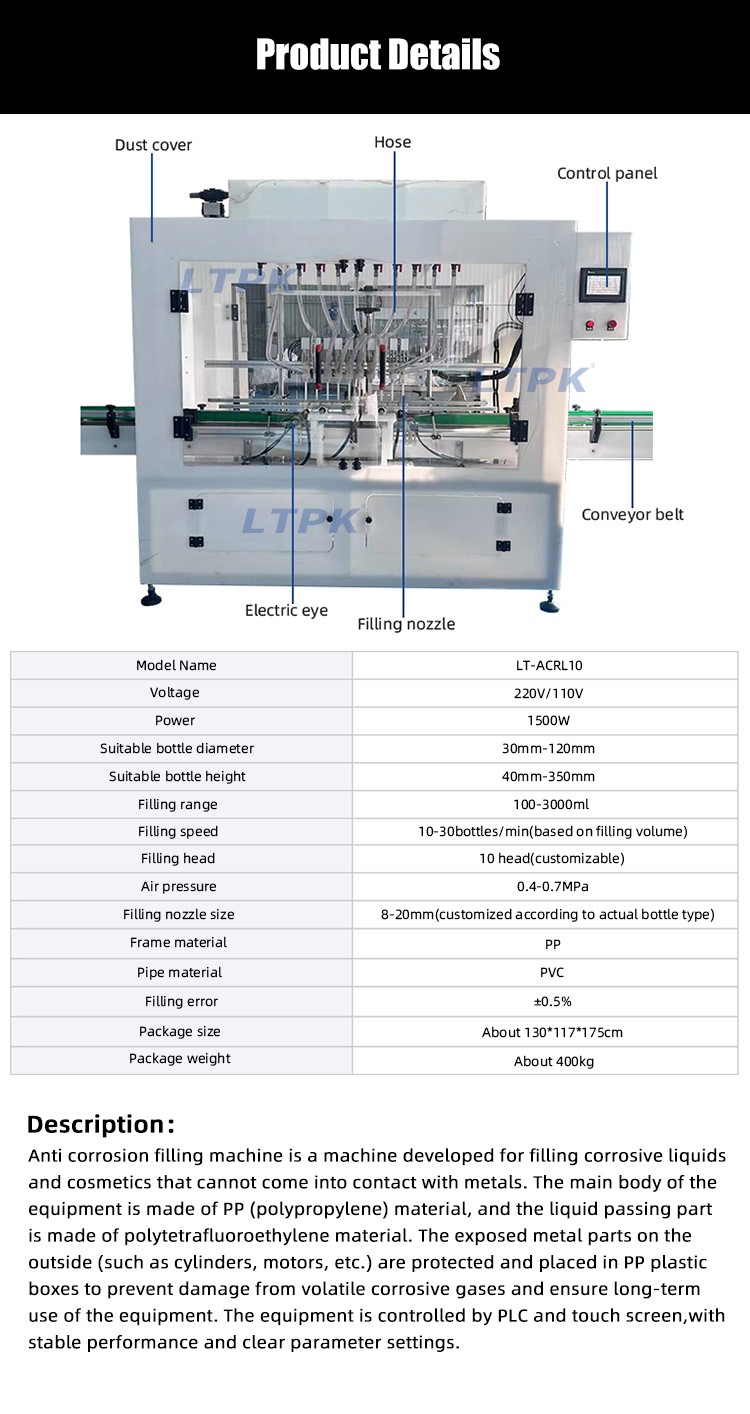

Technical Parameters

Model:LT-ACRL10

Voltage:220/110V

Power :1500W

Suitable bottle diameter:30mm-120mm

Suitable bottle height:40mm-350mm

Filling range:100-3000ml

Filling speed:10-30bottles/min(based on filling volume)

Filling head:10 head(customizable)

Air pressure:0.4-0.7MPa

Filling nozzle size:8-20mm(customized according to actual bottle type)

Frame material:PP

Pipe material:PVC

Filling error:±0.5%

Package size:About 130*117*175cm

Package weight:About 400kg

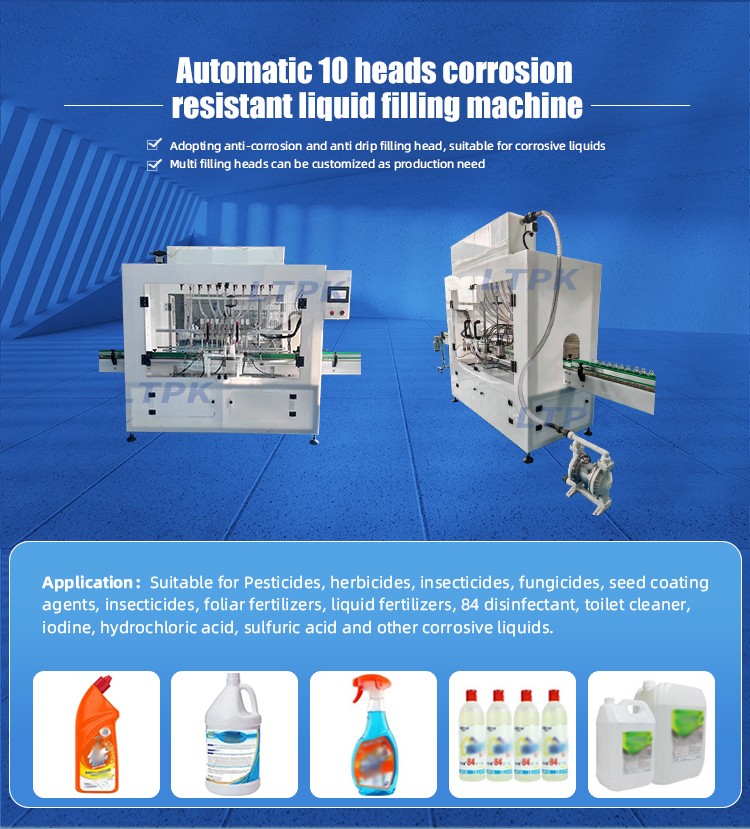

Application:

Suitable for Pesticides, herbicides, insecticides, fungicides, seed coating agents, insecticides, foliar fertilizers, liquid fertilizers, 84 disinfectant, toilet cleaner, iodine, hydrochloric acid, sulfuric acid and other corrosive liquids.

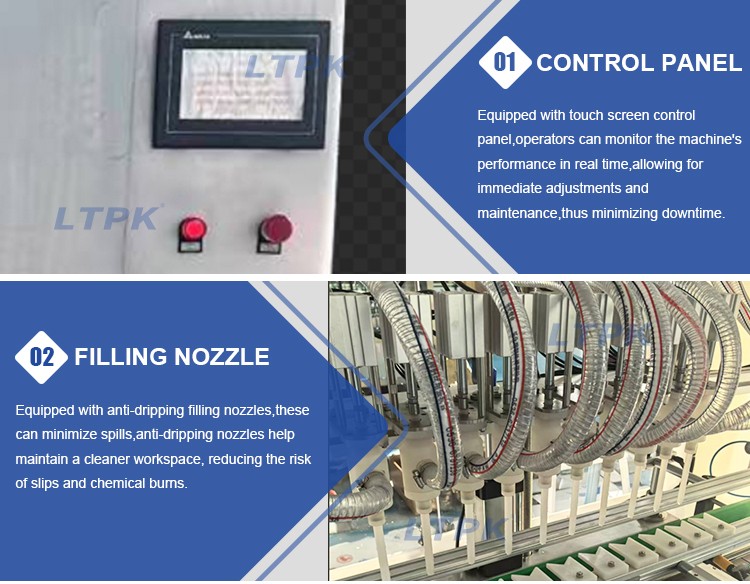

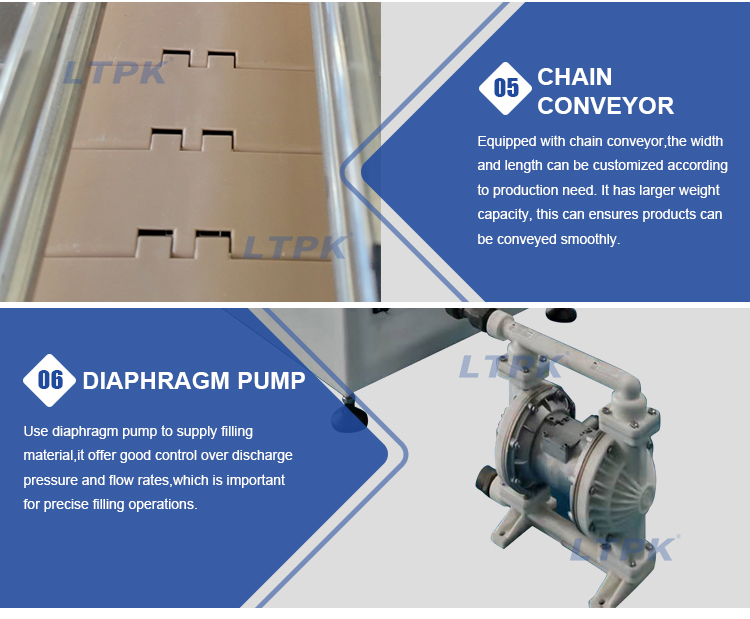

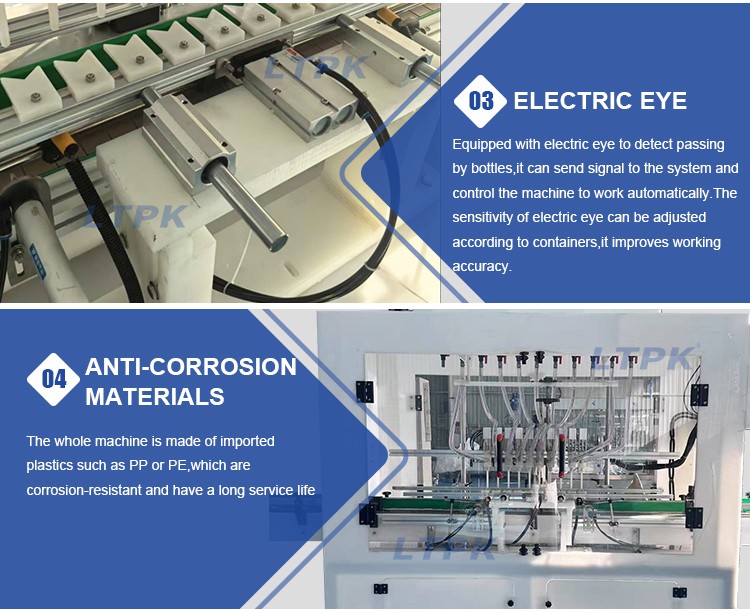

Detail Images
