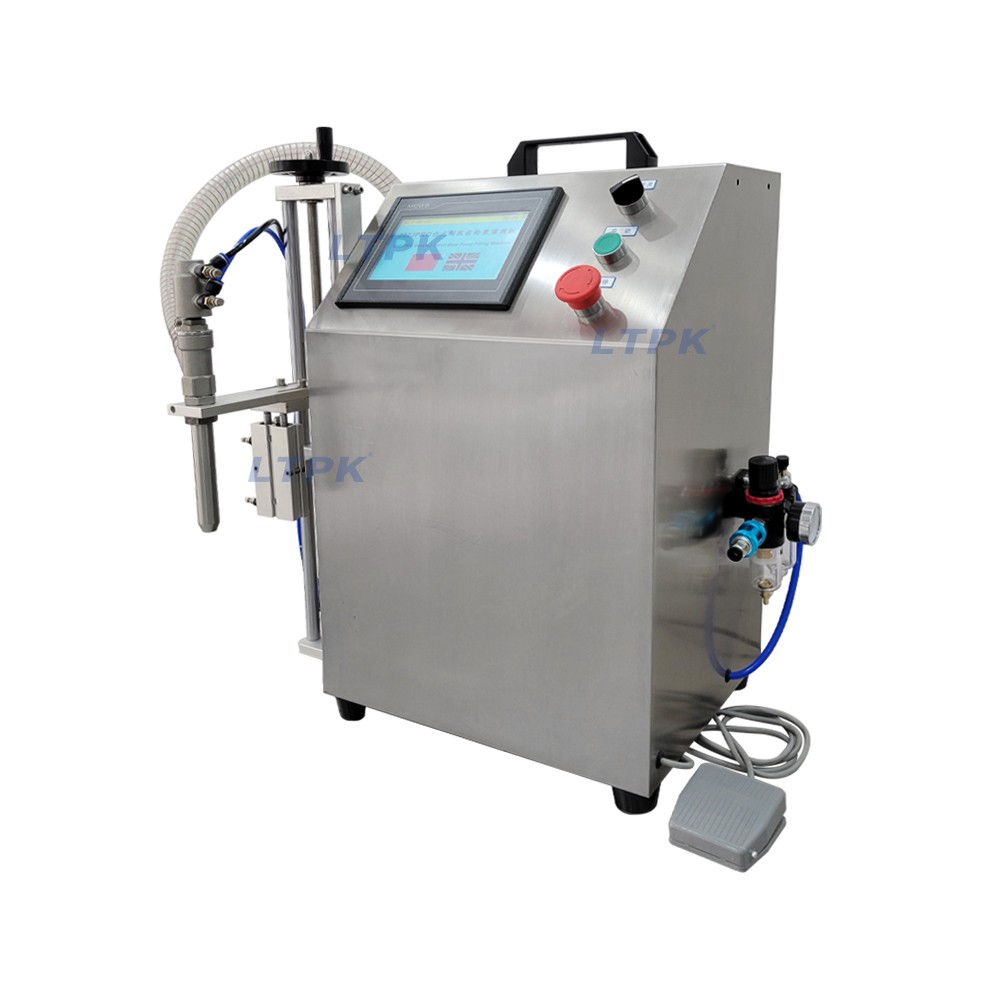

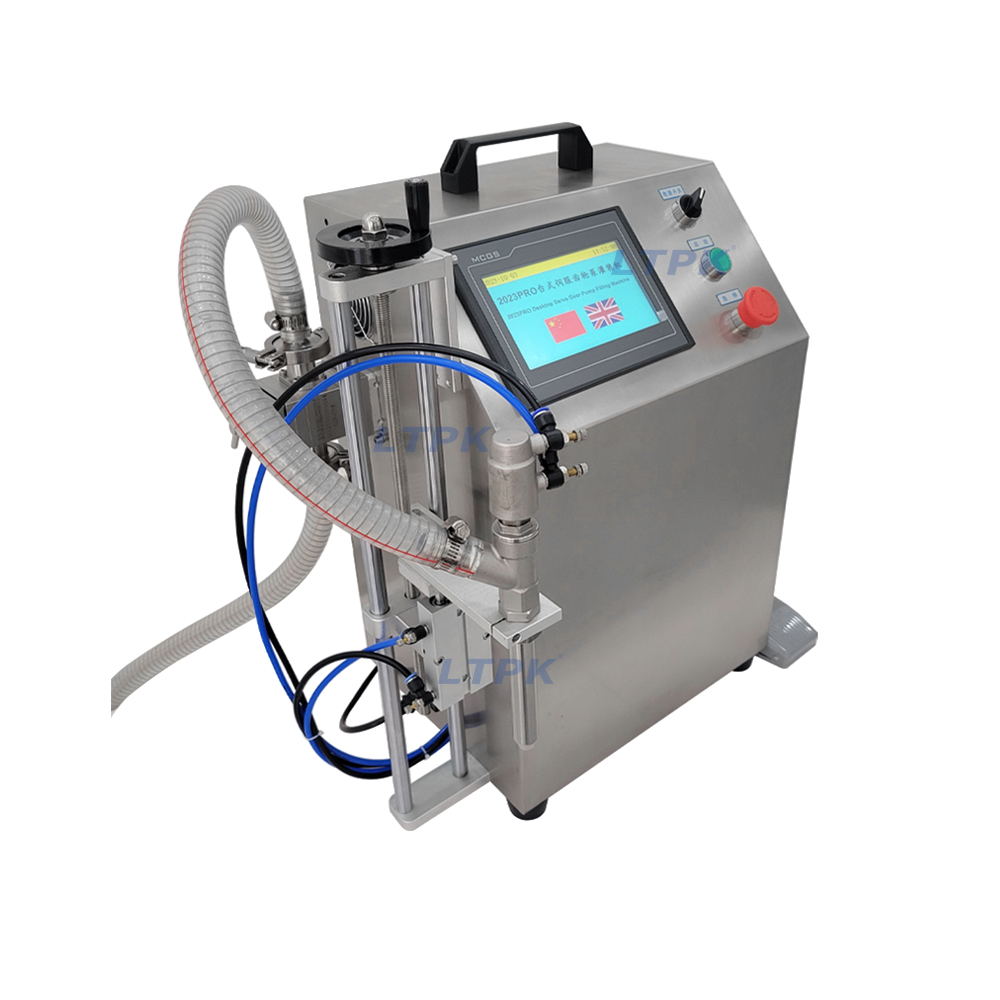

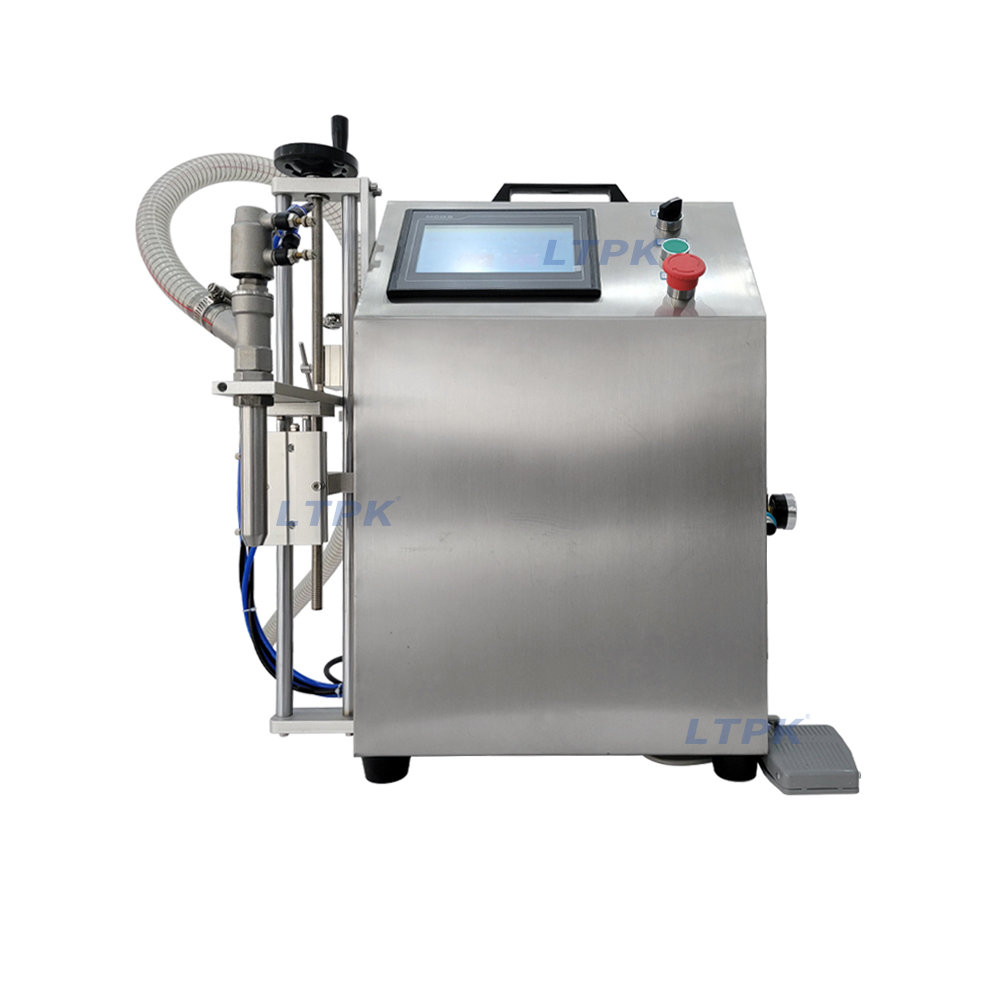

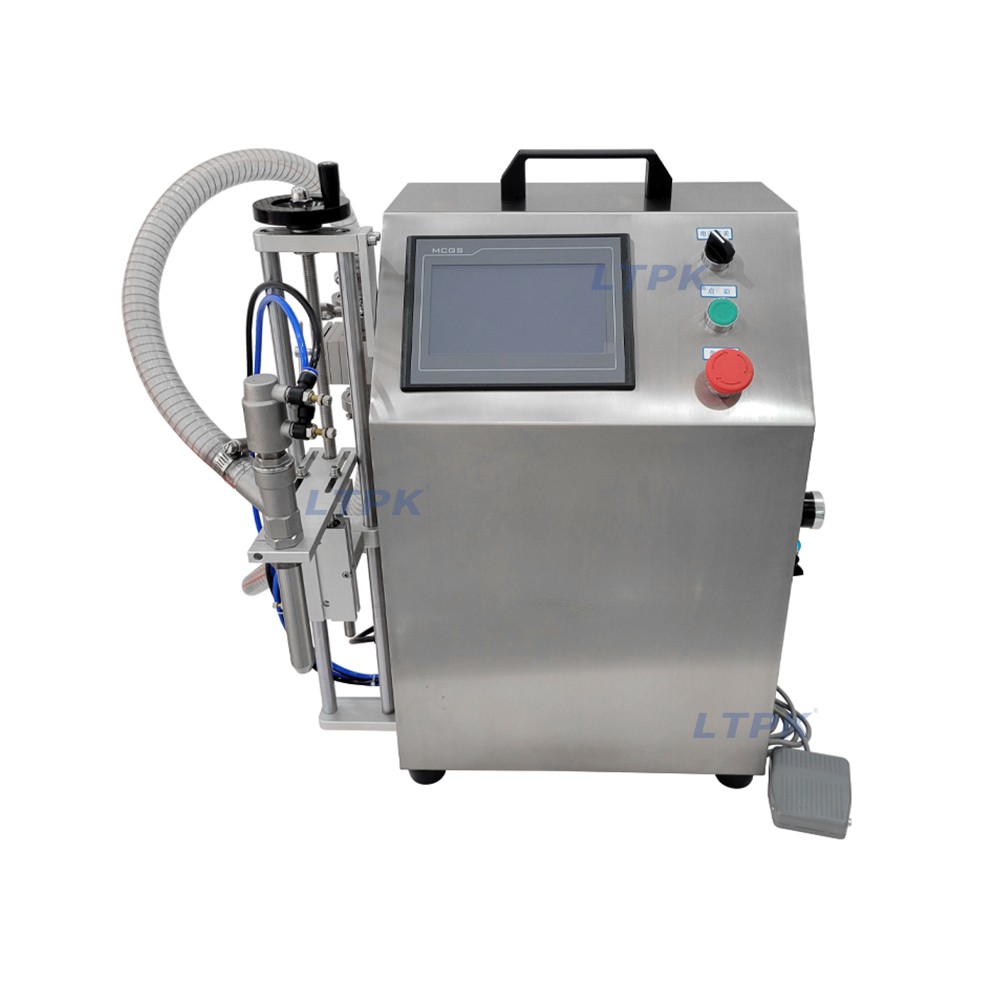

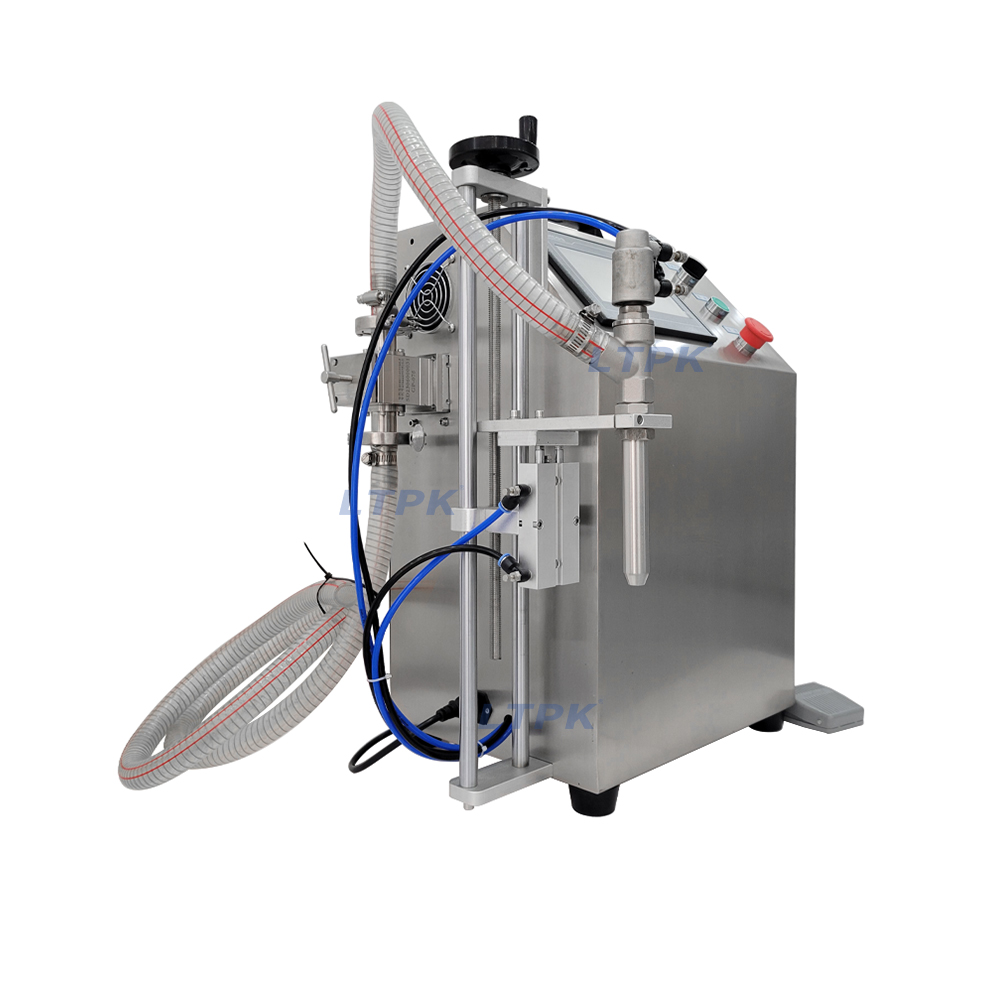

LT-GPF01 Tabletop Honey Sauce Paste Detergent Shampoo Cream Lotion Servo Motor Gear Pump Filling Machine

Description

The gear pump filling machine has advantage of high accuracy when filling thick liquid like engine oil,cooking oil,etc. The machine is equipped with a high flow gear pump,which has strong self suction and a wide speed range.The semi-automatic single head gear pump filling machine has the overall structure simple, small footprint, easy operation advantages.

Technical Parameters

Model:LT-GPF01

Voltage:220/110V

Power:1000W

Filling speed:5-25bottles/min

Filling range:10g-10kg(customized)

Max flow:5L/min(testing with water)

Filling error: ±1%

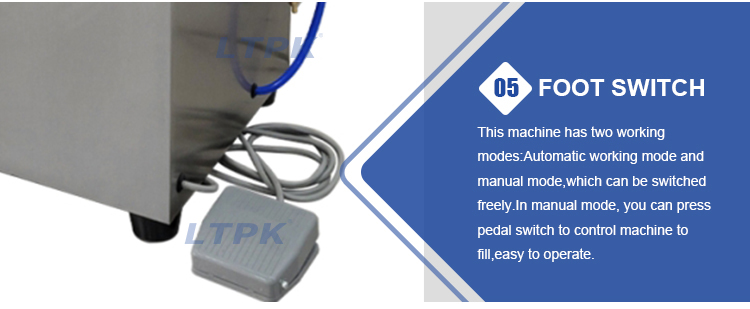

Working mode:automatic/manual

Air pressure :0.6-0.8Mpa

Size: About 70*65*43cm

Weight:  About 30kg

Application

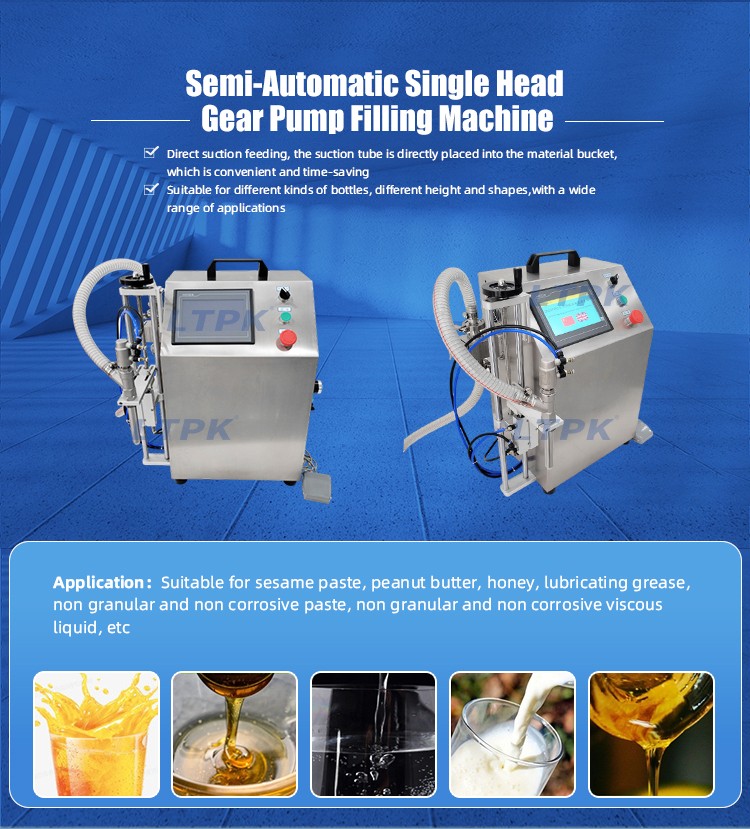

Suitable for sesame paste, peanut butter, honey, lubricating grease, non granular and non corrosive paste, non granular and non corrosive viscous liquid, etc

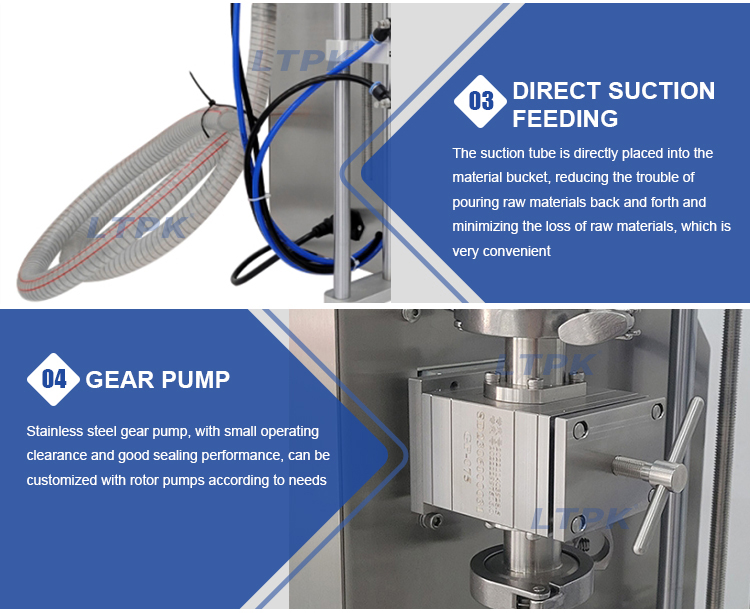

Detail Images
