Description

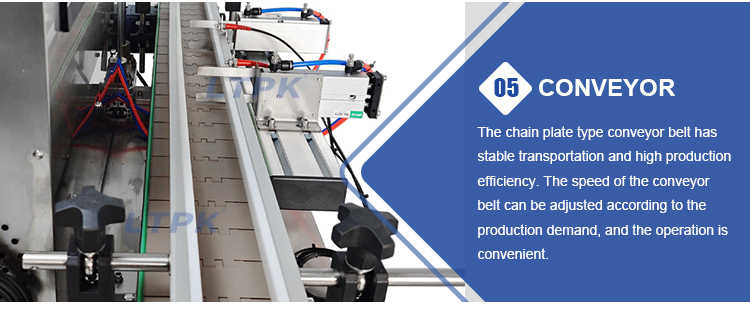

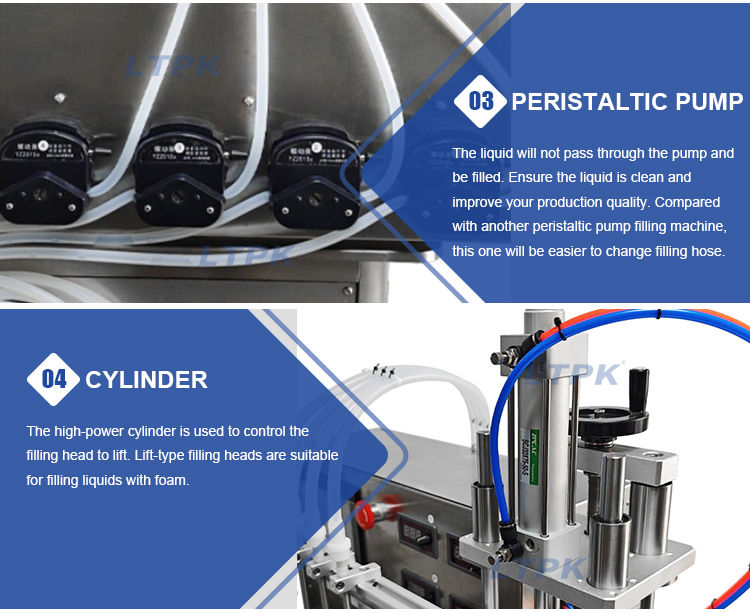

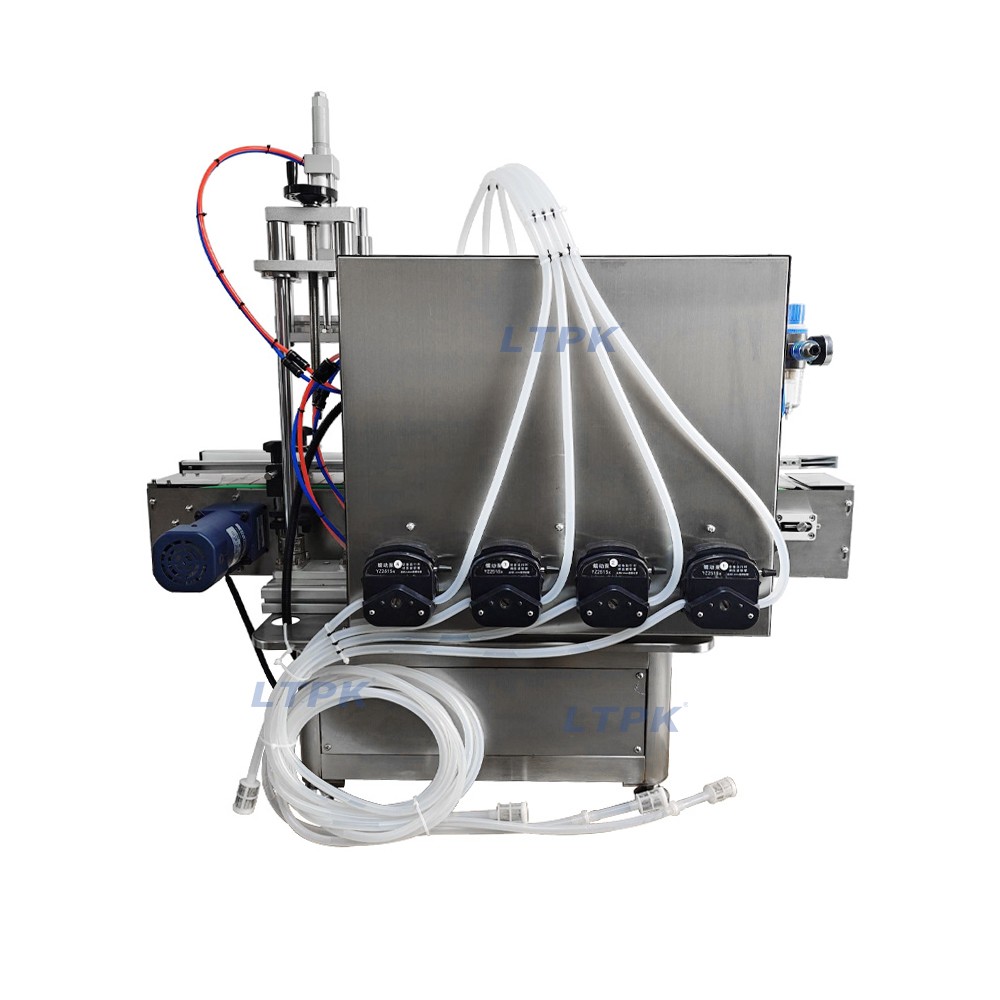

This machine adopts a peristaltic pump design, and the fluid only passes through and comes into contact with the peristaltic pump hose. It is clean and pollution-free, with high repeatability, strong stability, and convenient flow adjustment.It's convenient and simple to change the tube, suitable for filling small doses of liquids with different flavors.Chain plate type conveyor belt, stable transportation, strong load-bearing capacity, lift-type filling head, can be used for filling liquid with foam.

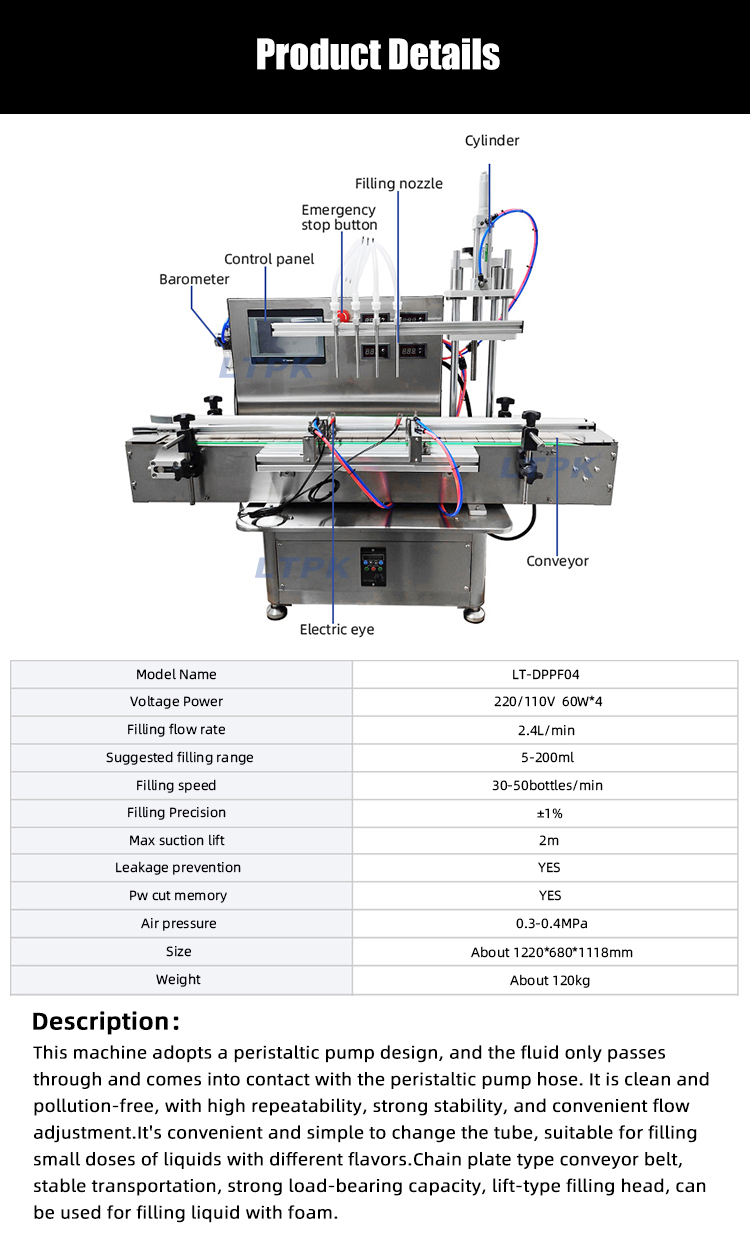

Technical Parameters

Model：LT-DPPF04

Voltage Power：220/110V  60W*4

Filling flow rate：2.4L/min

Suggested filling range：5-200ml

Filling speed：30-50bottles/min

Filling Precision：±1%

Max suction lift：2m

Leakage prevention ：YES

PW CUT MEMORY： YES

Air pressure： 0.3-0.4MPa

Size ： About 1220*680*1118mm

Weight ： About 120kg

Application

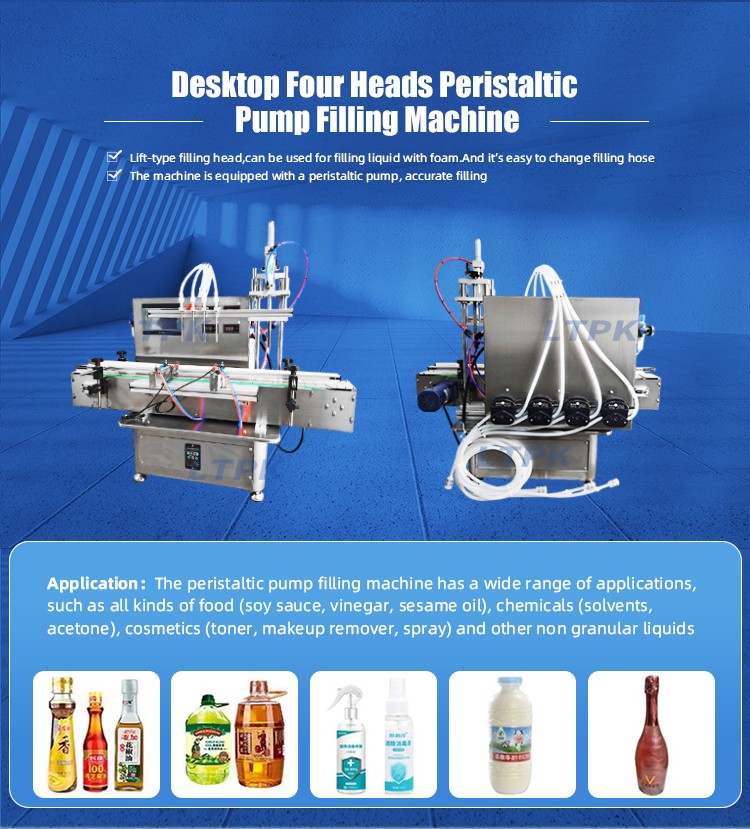

The peristaltic pump filling machine has a wide range of applications, such as all kinds of food (soy sauce, vinegar, sesame oil), chemicals (solvents, acetone), cosmetics (toner, makeup remover, spray) and other non granular liquids

Detail Images
