Description

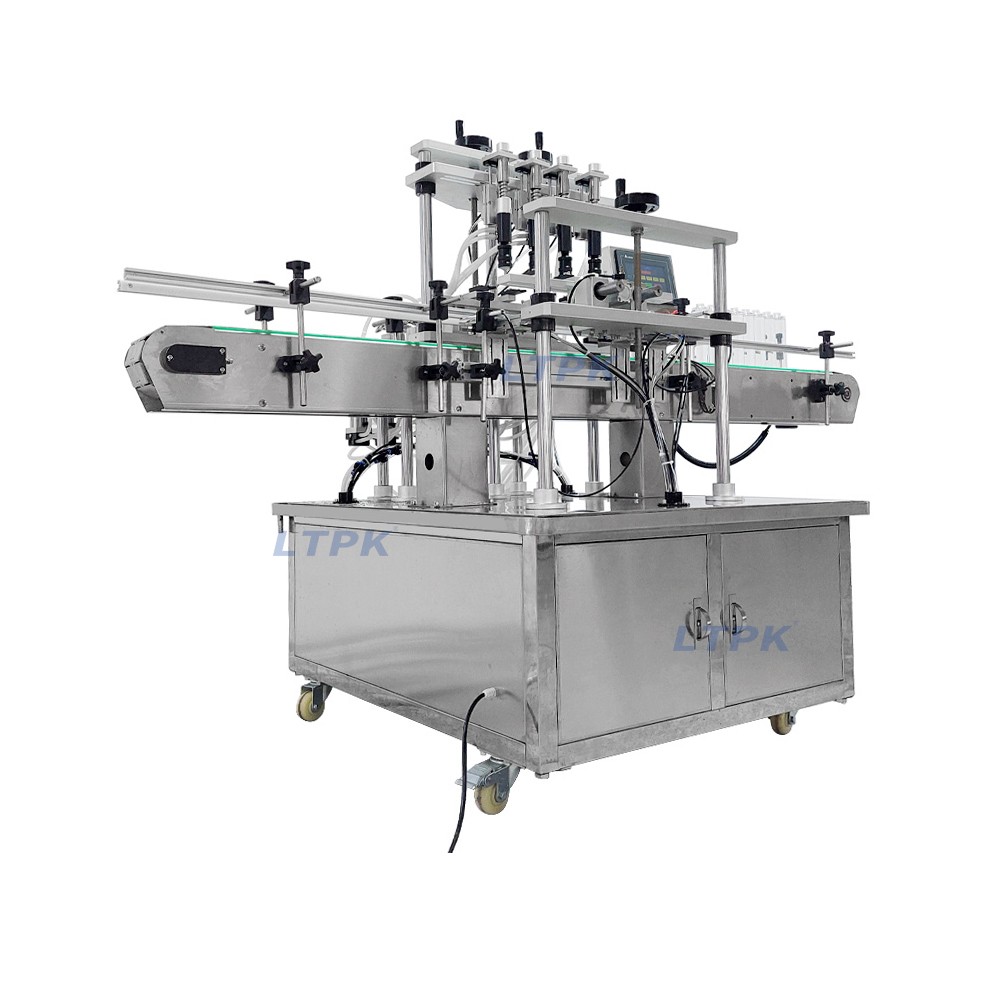

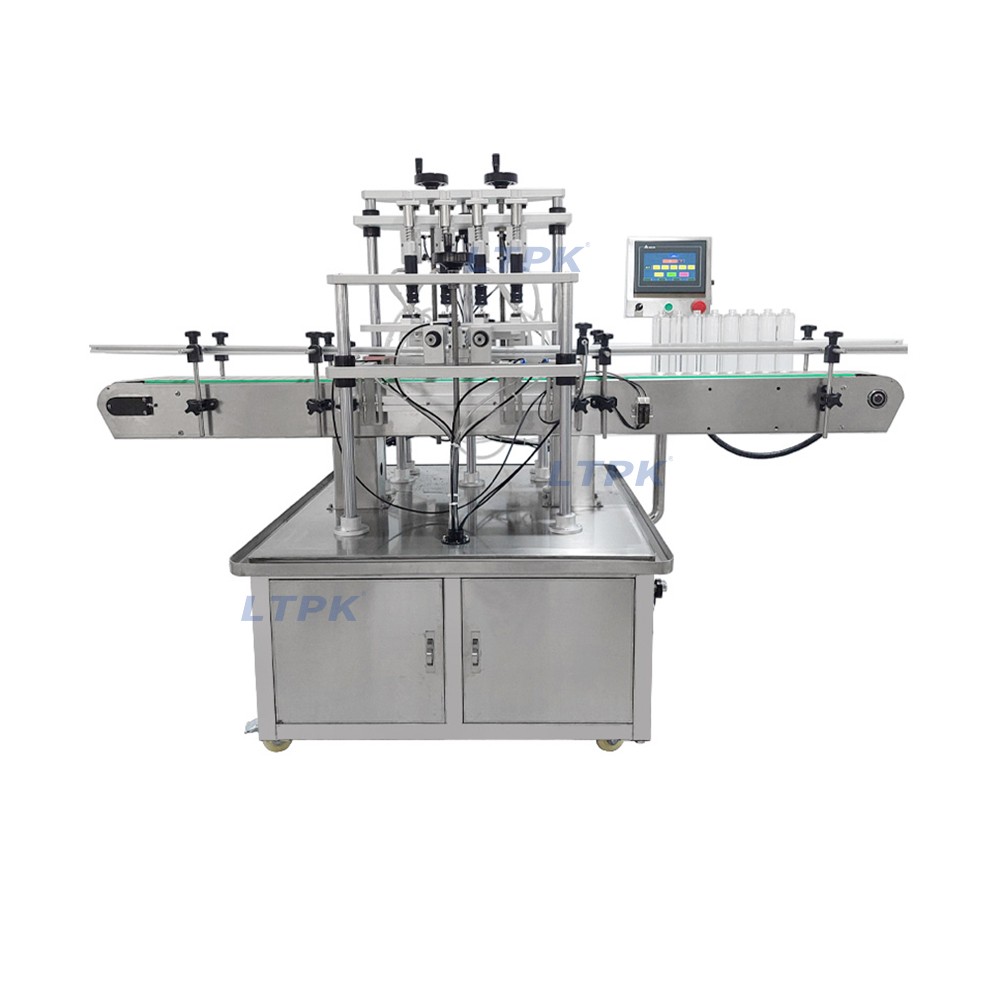

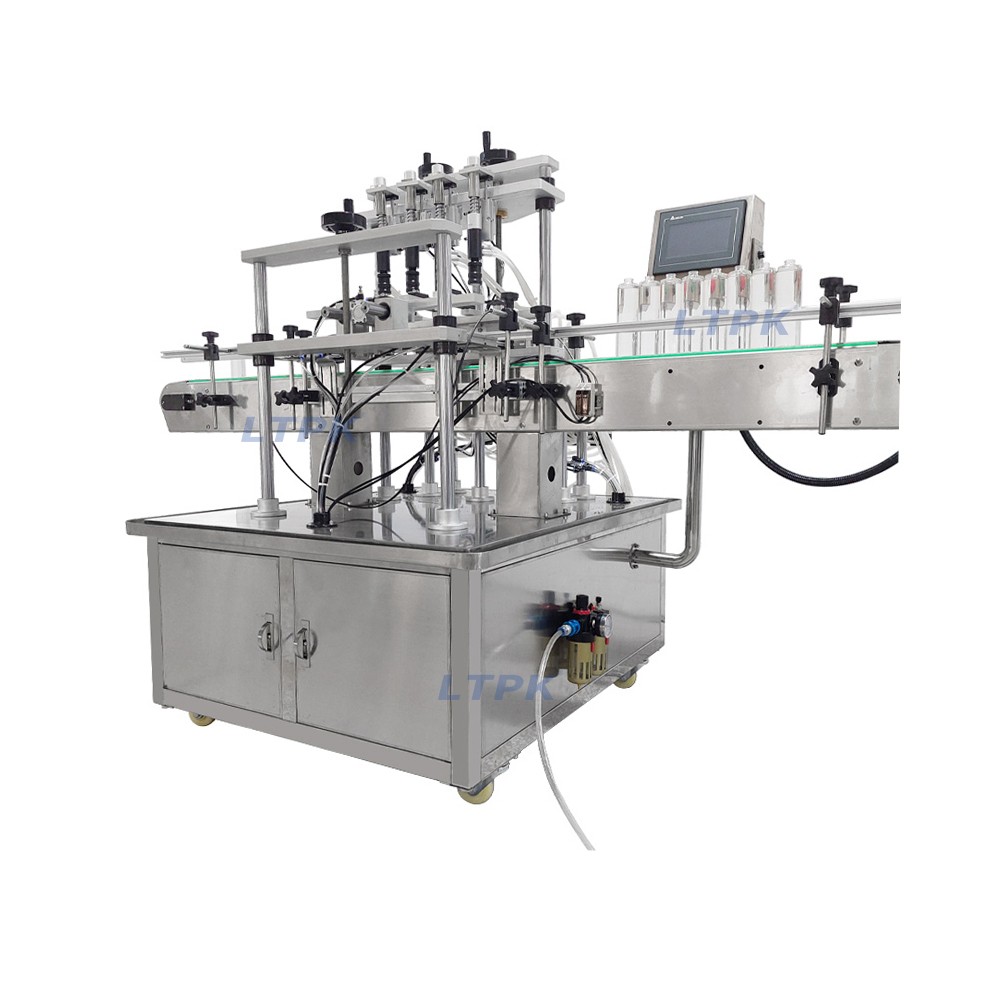

The vacuum perfume filling machine is a negative pressure filling machine, which has the metering performance of constant liquid level mode, the liquid level height can be adjusted, the structure is compact, reasonable, and the operation is simple.The vacuum Liquid Filling Machine can prevent the fragrance of liquid from spreading,this is especially good for perfume filling.

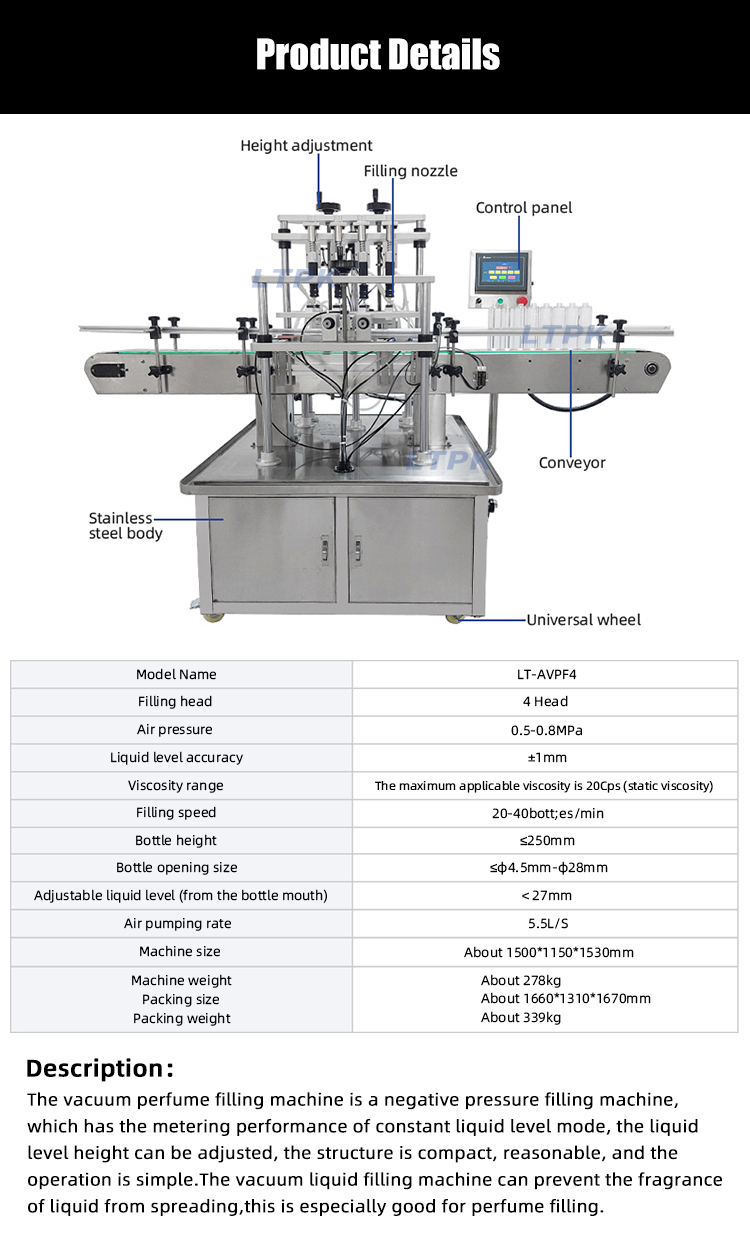

Technical Parameters

Model:LT-AVPF4

Filling head:4 Head

Air pressure:0.5-0.8MPa

Liquid level accuracy: ±1mm

Viscosity range:The maximum applicable viscosity is 20Cps

(static viscosity)

Filling speed:20-40bottles/min

Bottle height:≤250mm

Bottle opening size:≤φ4.5mm-φ28mm

Adjustable liquid level (from the bottle mouth) :＜27mm

Air pumping rate :5.5L/S

Machine size: About 1500*1150*1530mm

Machine weight: About 278kg

Packing size: About 1660*1310*1670mm

Packing weight: About 339kg

Application

It is suitable for filling perfume, toner, toilet water, liquid mosquito repellent incense, essential balm, eye drops, beverages, oral liquids and other liquid products

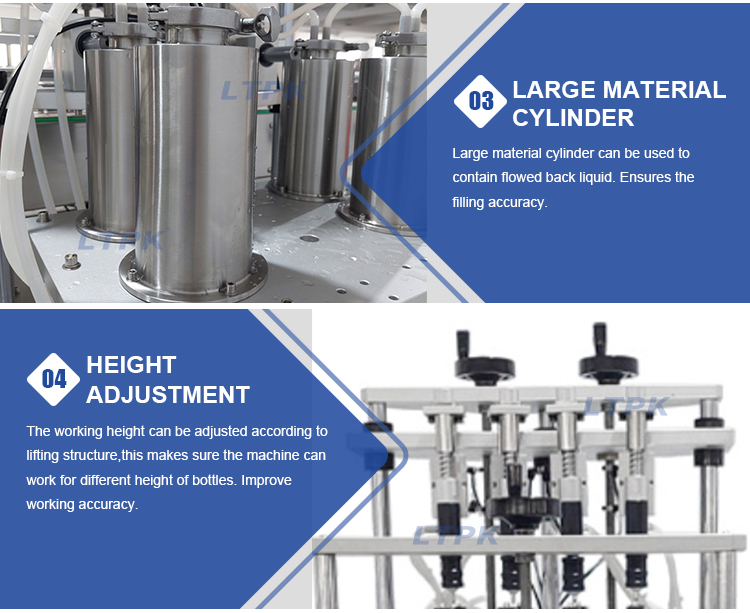

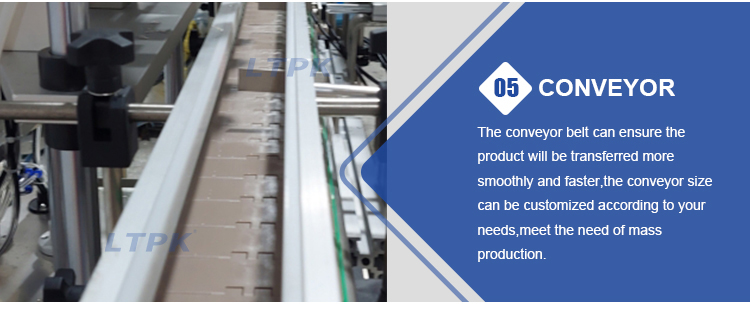

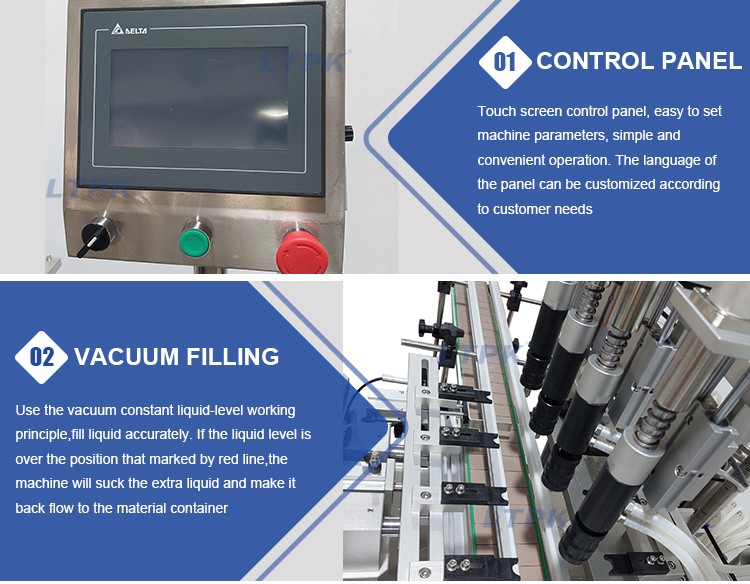

Detail Images
