LT-ZX01 Stand Up Pouch Heat-resistant Magnetic Pump for Liquid Suction Bag  Milk  Pouch

Description

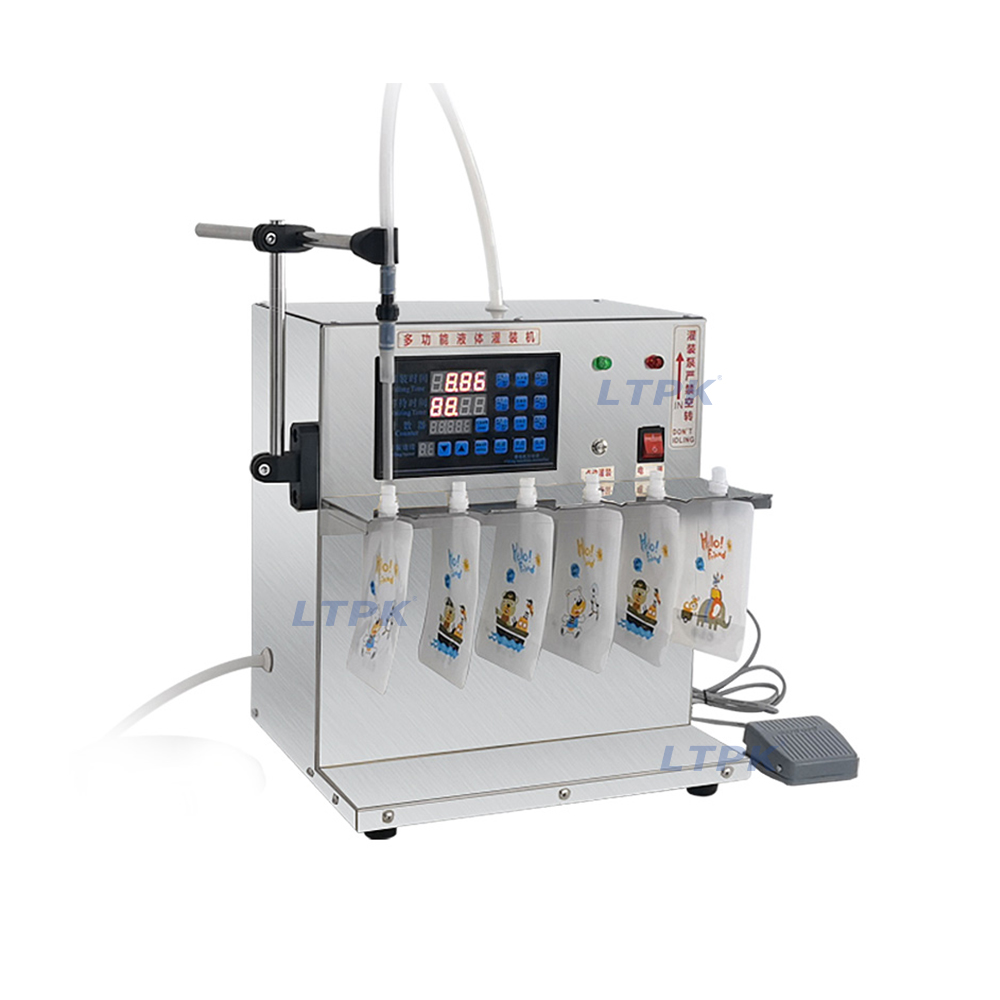

The self-supporting suction nozzle bag Liquid Filling Machine uses a microcomputer to control the filling time, motor speed, and other factors of the micro diaphragm water pump, achieving a uniform and low repetition error liquid filling method. This machine is suitable for self-supporting suction nozzle bag liquid filling, with 6 slots in one row. Non standard slots need to be customized.

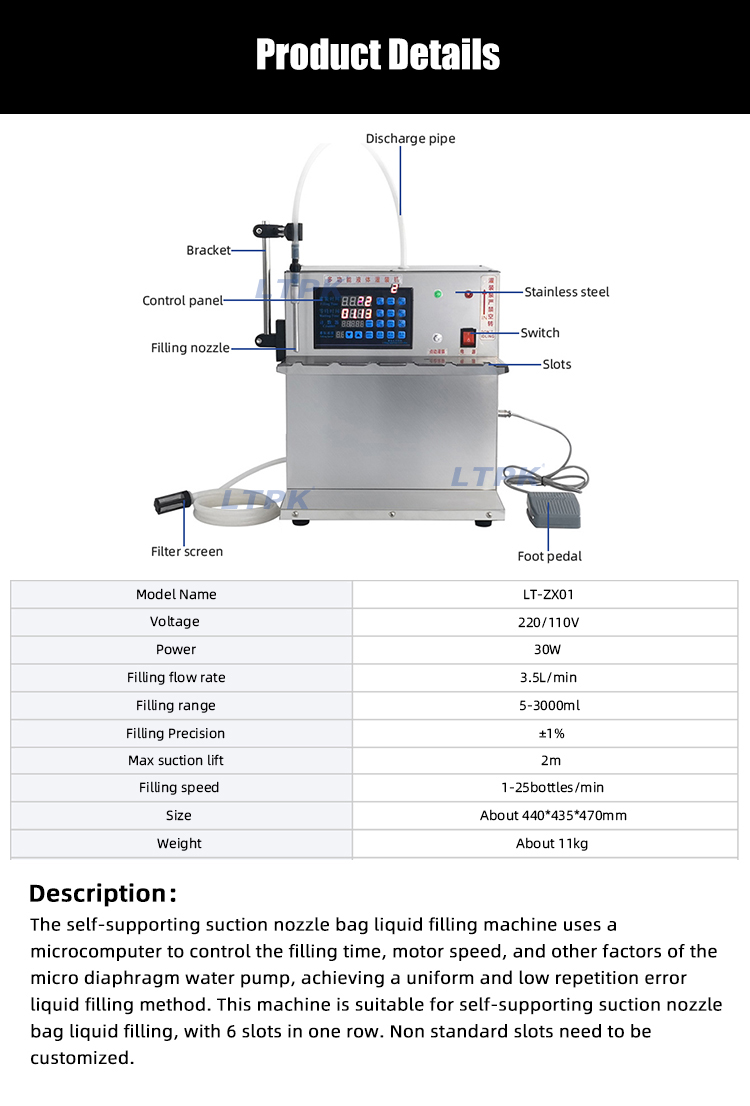

Technical Parameters

Model:LT-ZX01

Voltage: 220/110V

Power:30W

Filling flow rate: 3.5L/min

Filling range: 5-3000ml

Filling Precision: ±1%

Max suction lift: 2m

Filling speed: 1-25bottles/min

Size:  About 440*435*470mm

Weight  :About 11kg

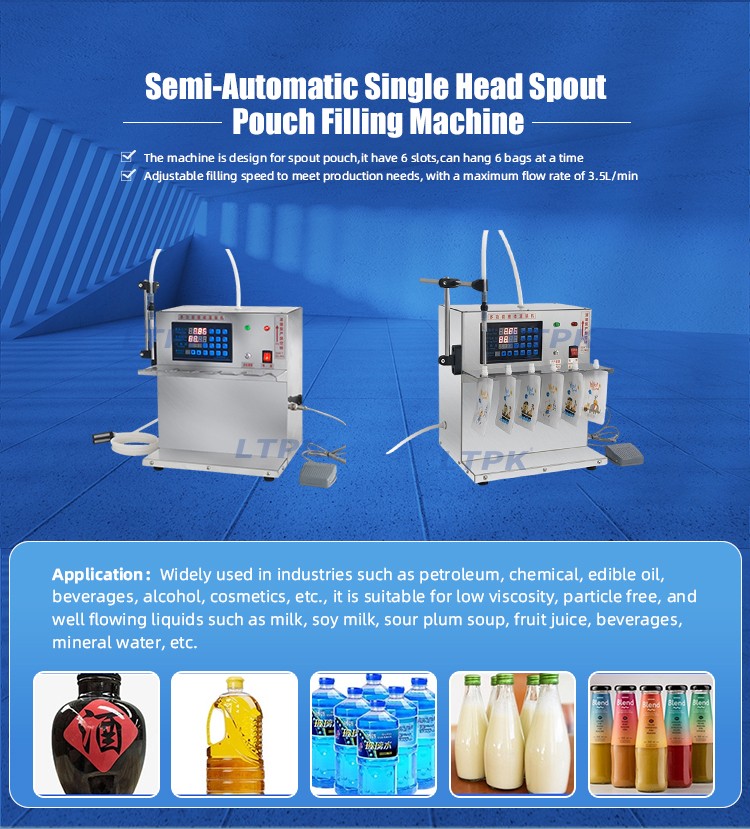

Application

Widely used in industries such as petroleum, chemical, edible oil, beverages, alcohol, cosmetics, etc., it is suitable for low viscosity, particle free, and well flowing liquids such as milk, soy milk, sour plum soup, fruit juice, beverages, mineral water, etc.

Detail Images
