Description

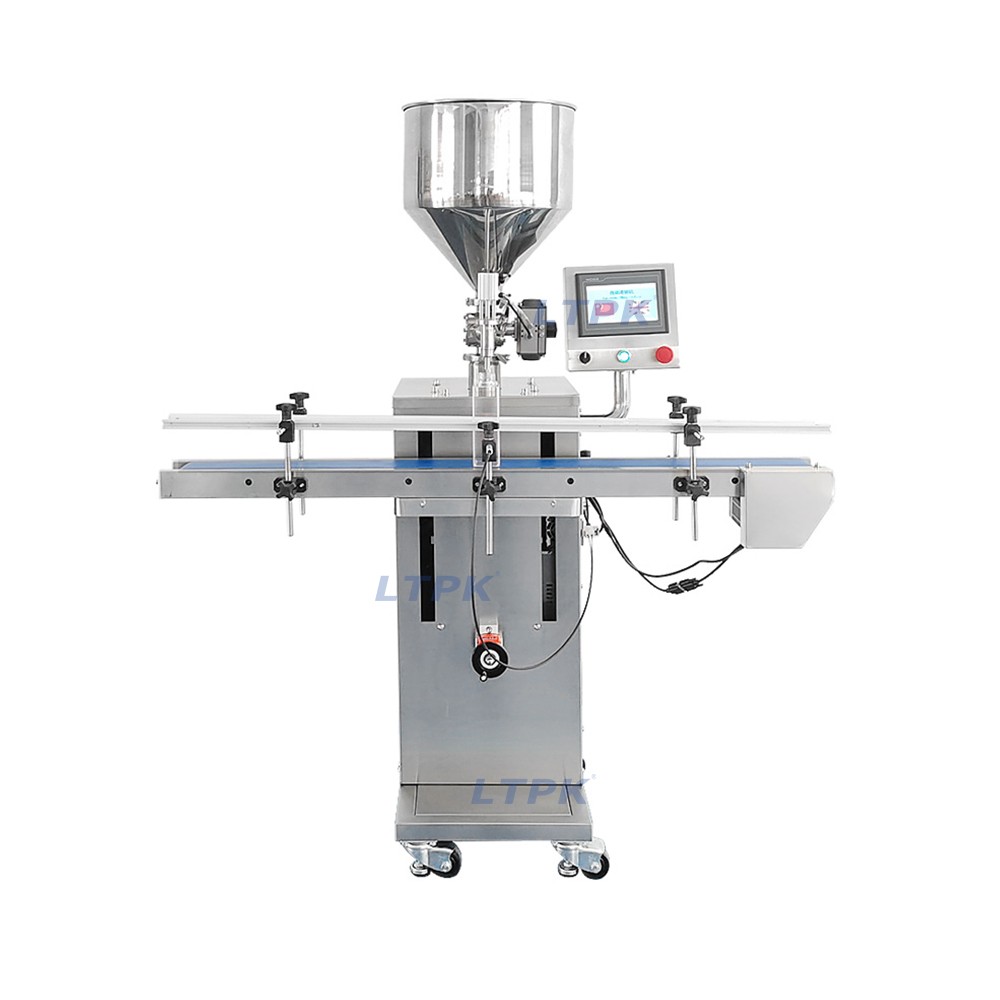

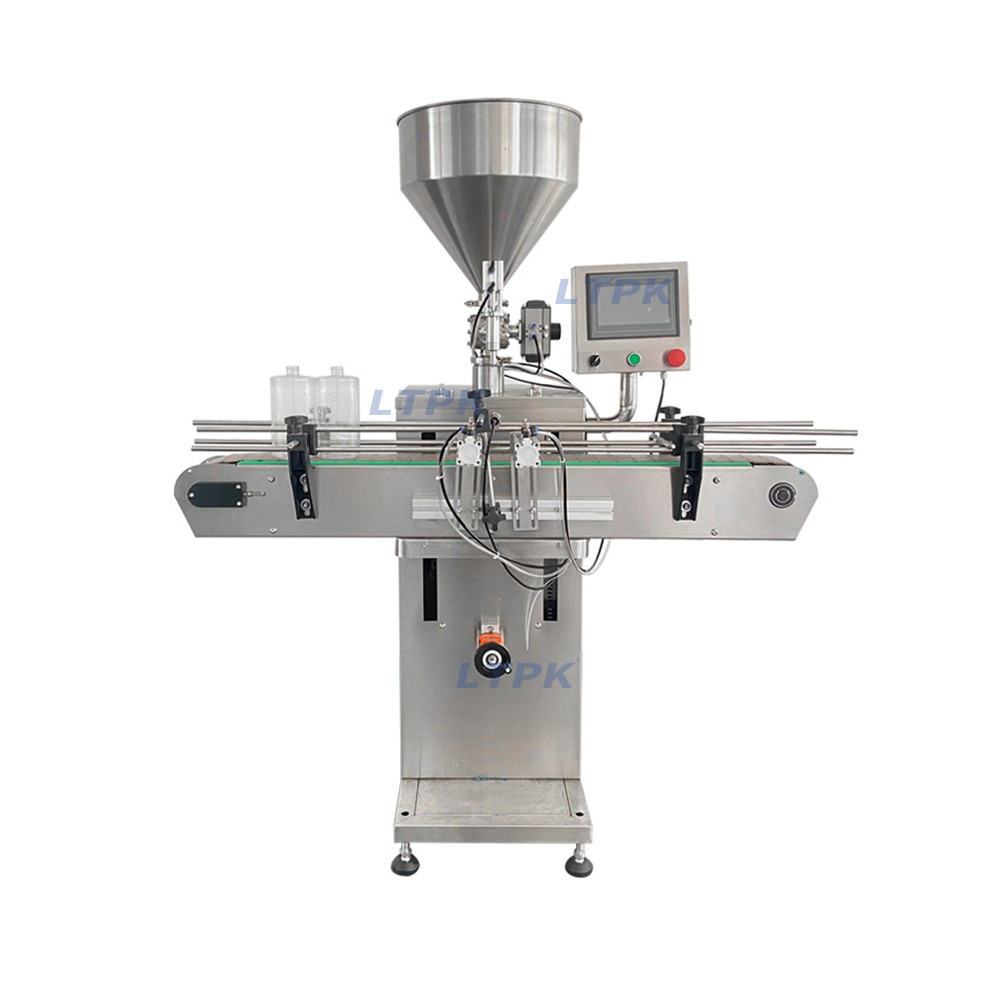

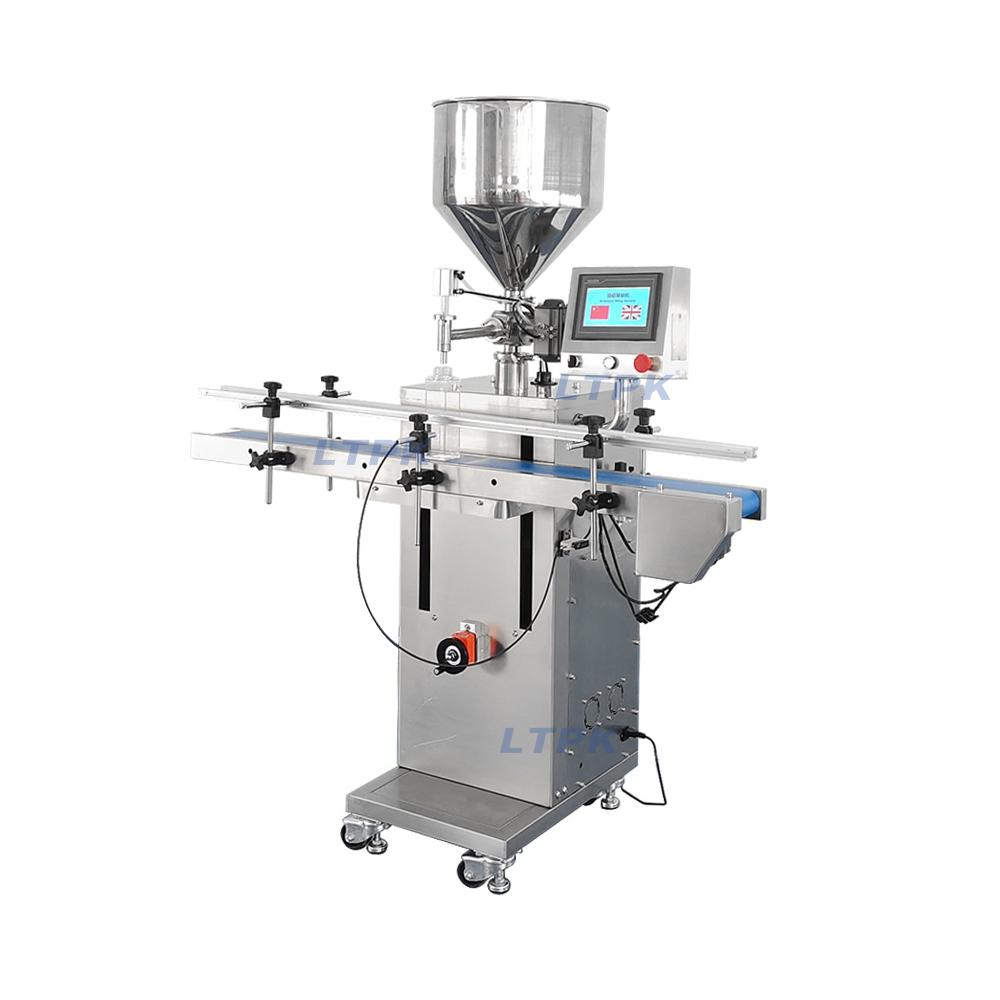

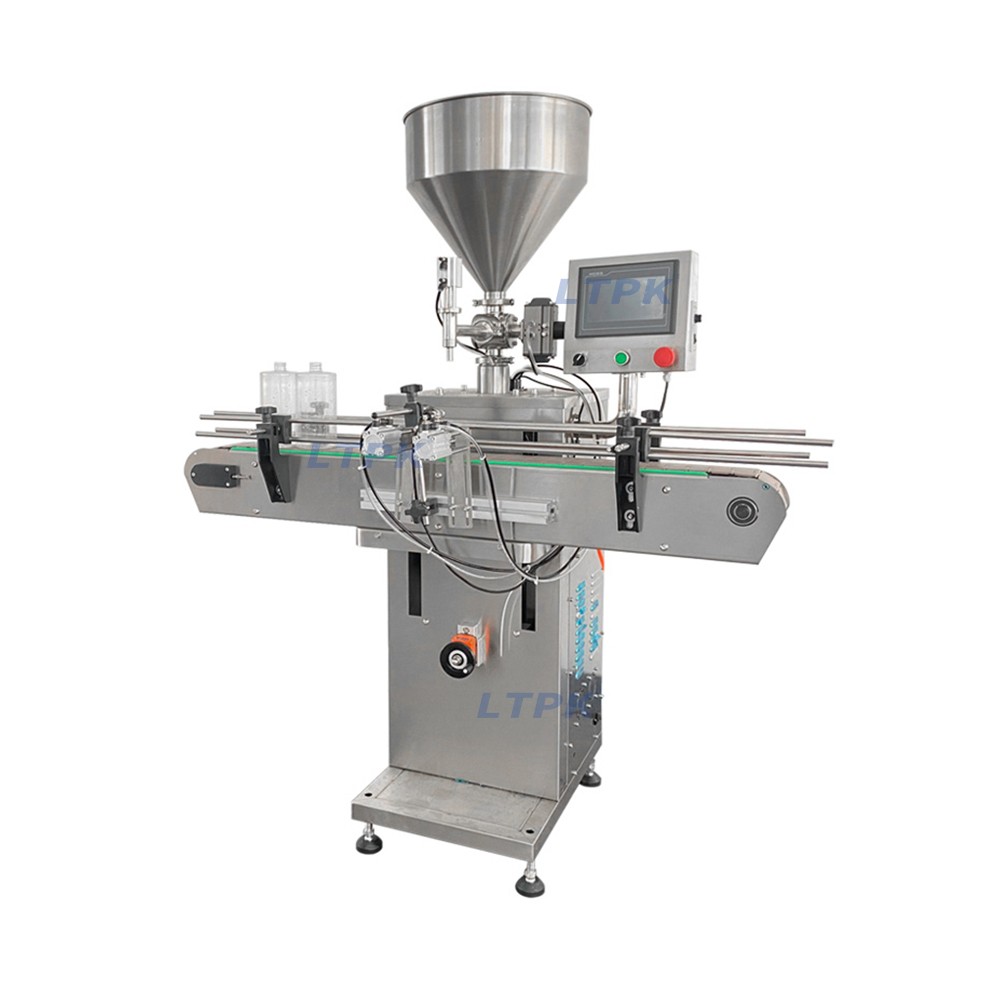

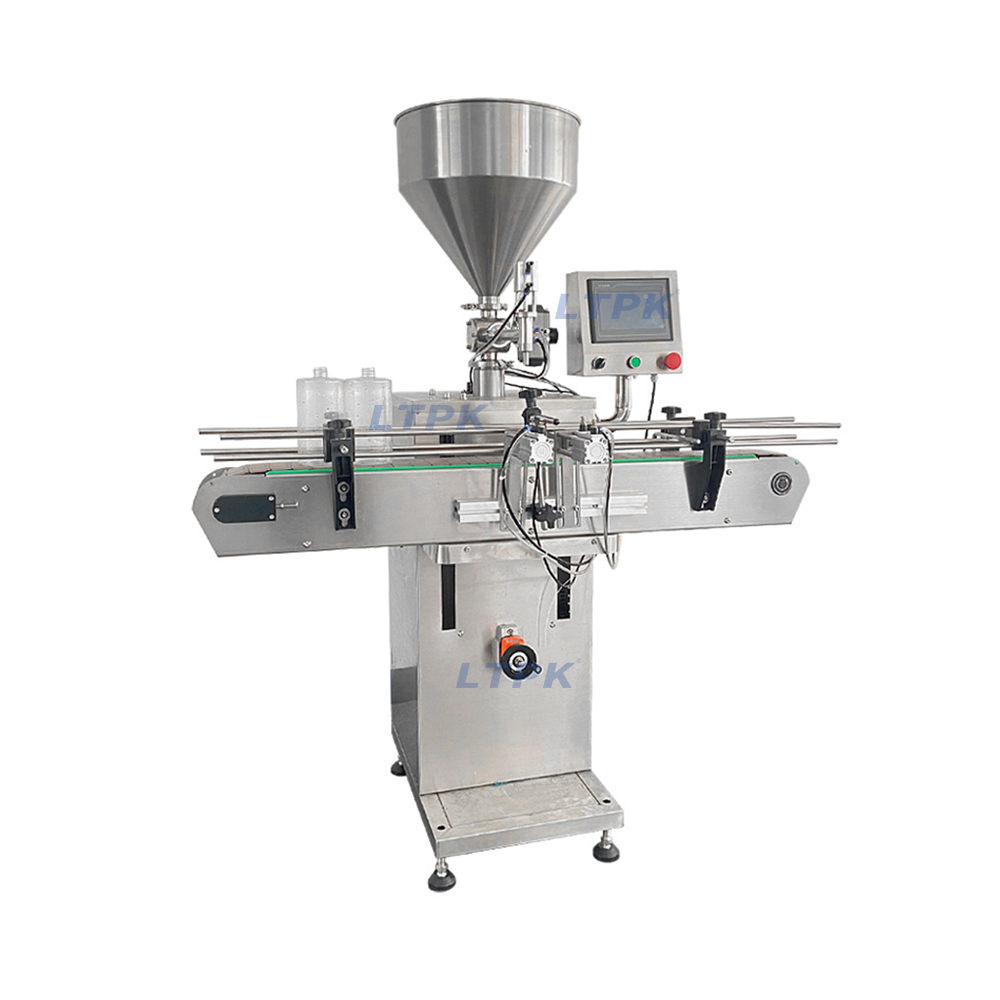

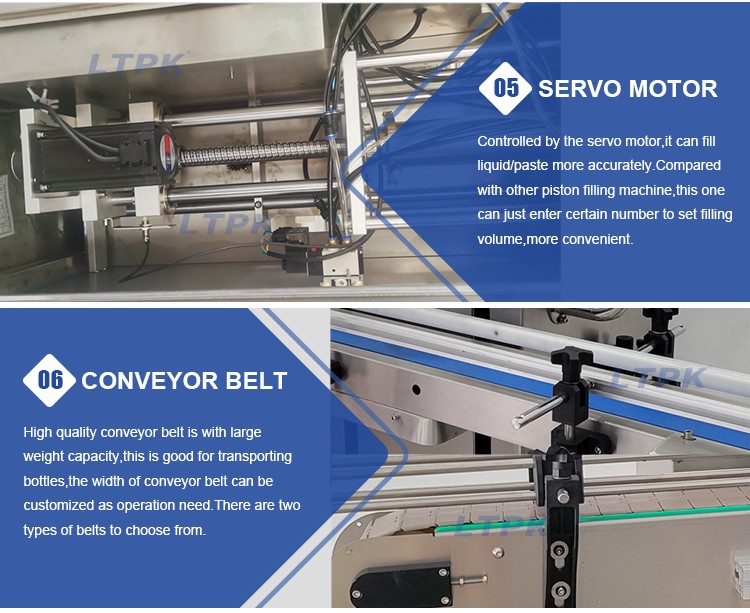

This vertical filling machine is good for filling liquid and paste,compared with other piston pump filling machine,this one is controlled by servo motor,and operator just need to enter certain number to control filling volume,this is more convenient and easier to operate.

Technical Parameters

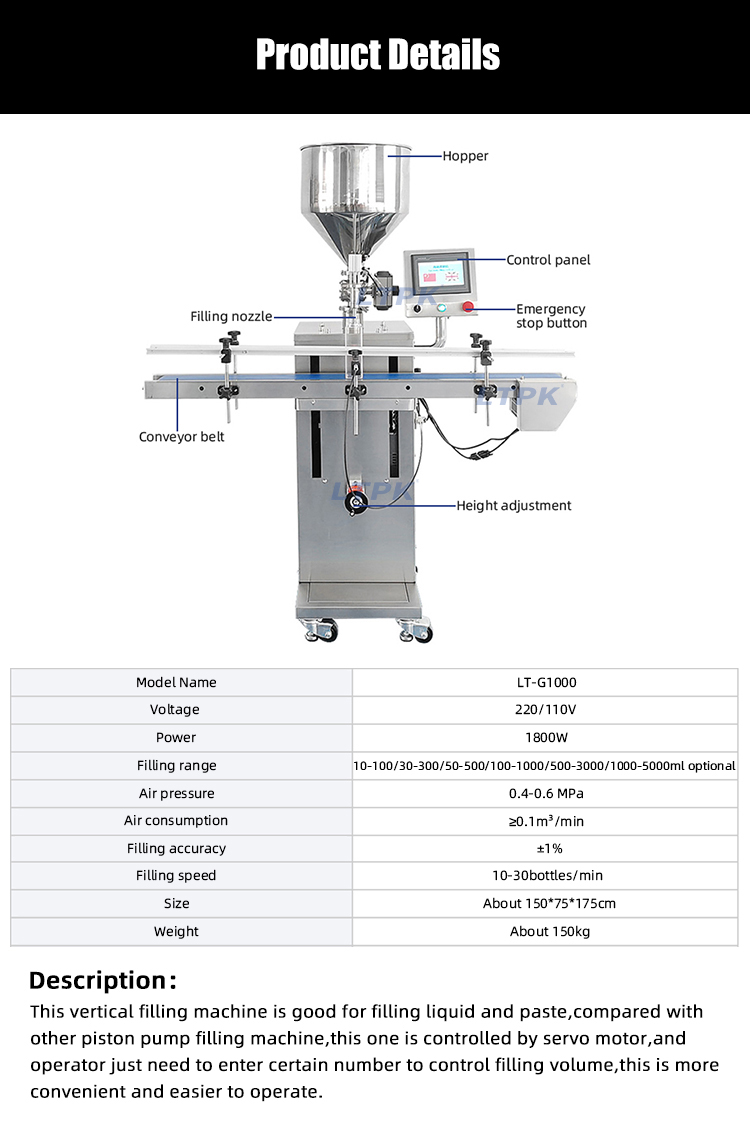

Model:LT-G1000

Voltage:220/110V

Power:1800W

Filling range:10-100/30-300/50-500/100-1000/500-3000/1000-5000ml optional

Air pressure:0.4-0.6 MPa

Air consumption:≥0.1m³/min

Filling accuracy:±1%

Filling speed:10-30bottles/min

Size:About 150*75*175cm

Weight: About 150kg

Application

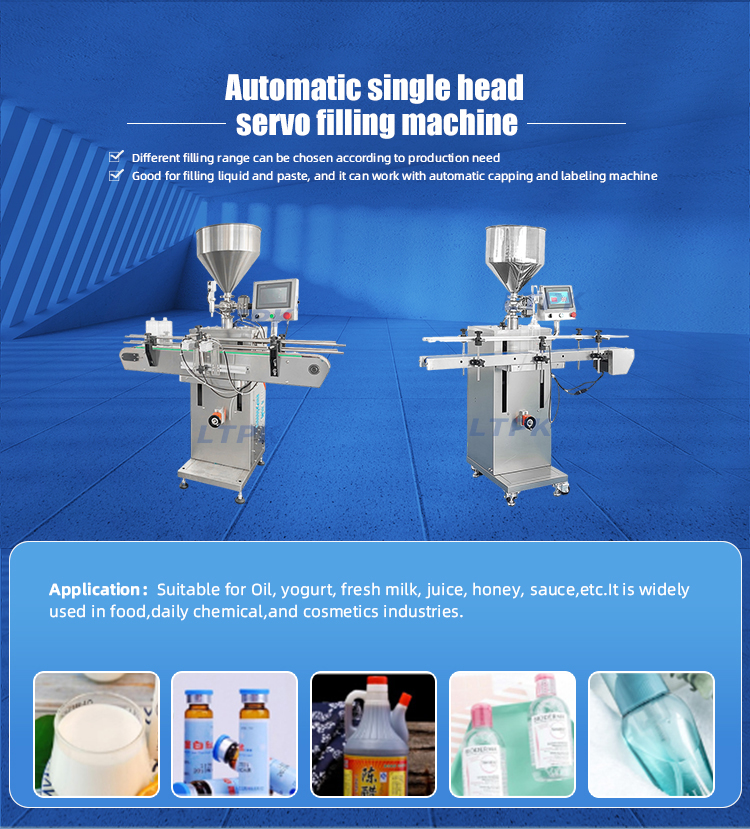

Suitable for Oil, yogurt, fresh milk, juice, honey, sauce,etc.It is widely used in food,daily chemical,and cosmetics industries.

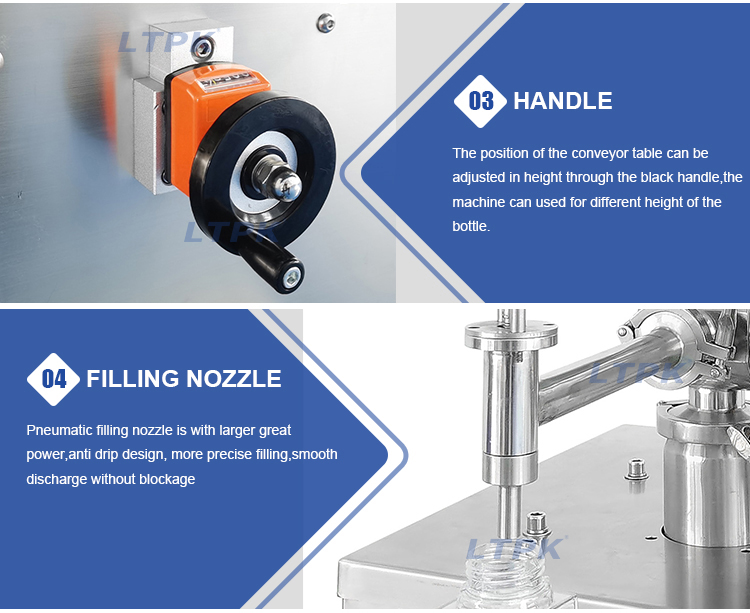

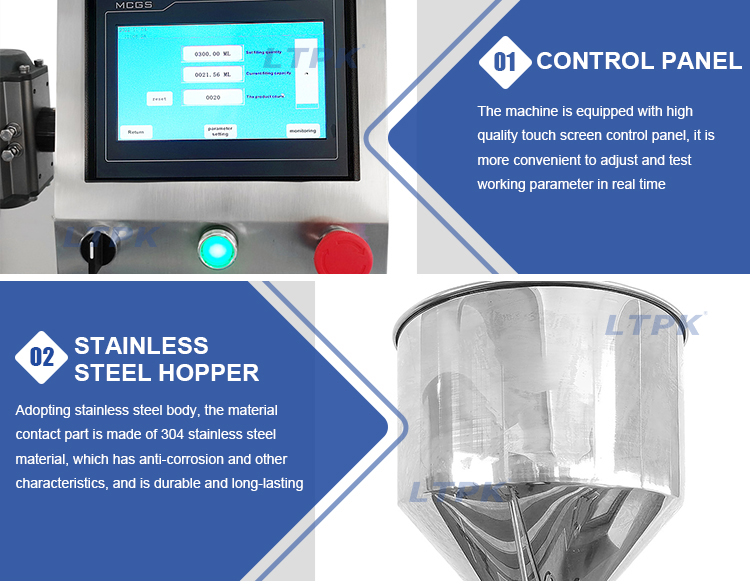

Detail Images
