Description

Ultrasonic sealing machine is a high-quality liquid and paste filling and sealing packaging machine.The machine adopts manual tube feeding, automatic color code detection, automatic filling, automatic tube tail sealing and automatic tail cutting. Easy to operate, helping enterprises improve production efficiency and reduce labor intensity

Technical Parameters

Model：LT-30A

Voltage：220/110V

Power：2.6KW

Frequency：20kHZ

Filling range：6-60ml/10-120ml/25-250ml

Filling accuracy：±1%

Sealing speed：20-25pcs/min

Tube height：50-200mm

Tube diameter：10-50mm

Hopper capacity：40L

Air pressure：0.5Mpa

Shell of machine SS201

Ultrasonic Box：Digital automatic frequency tracking box

Size：L900*W1100*H1600mm

Weight：350kg

Application

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

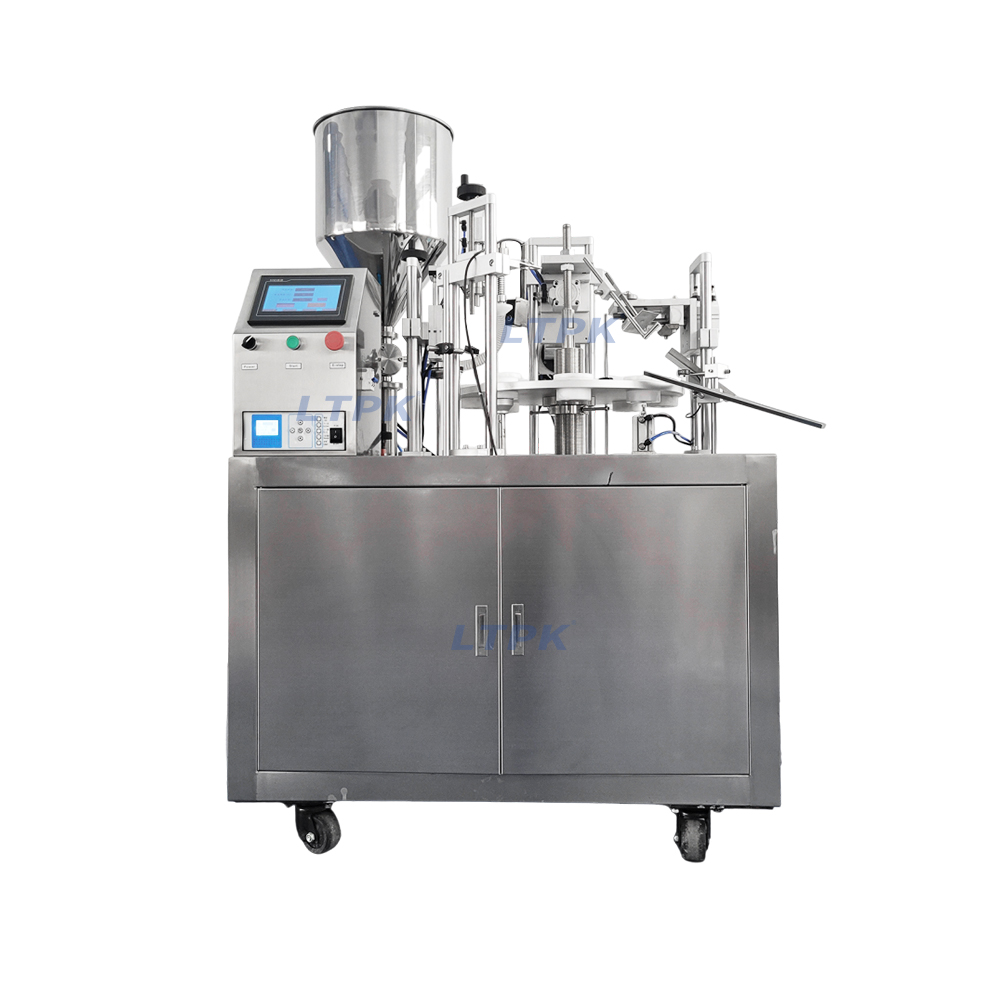

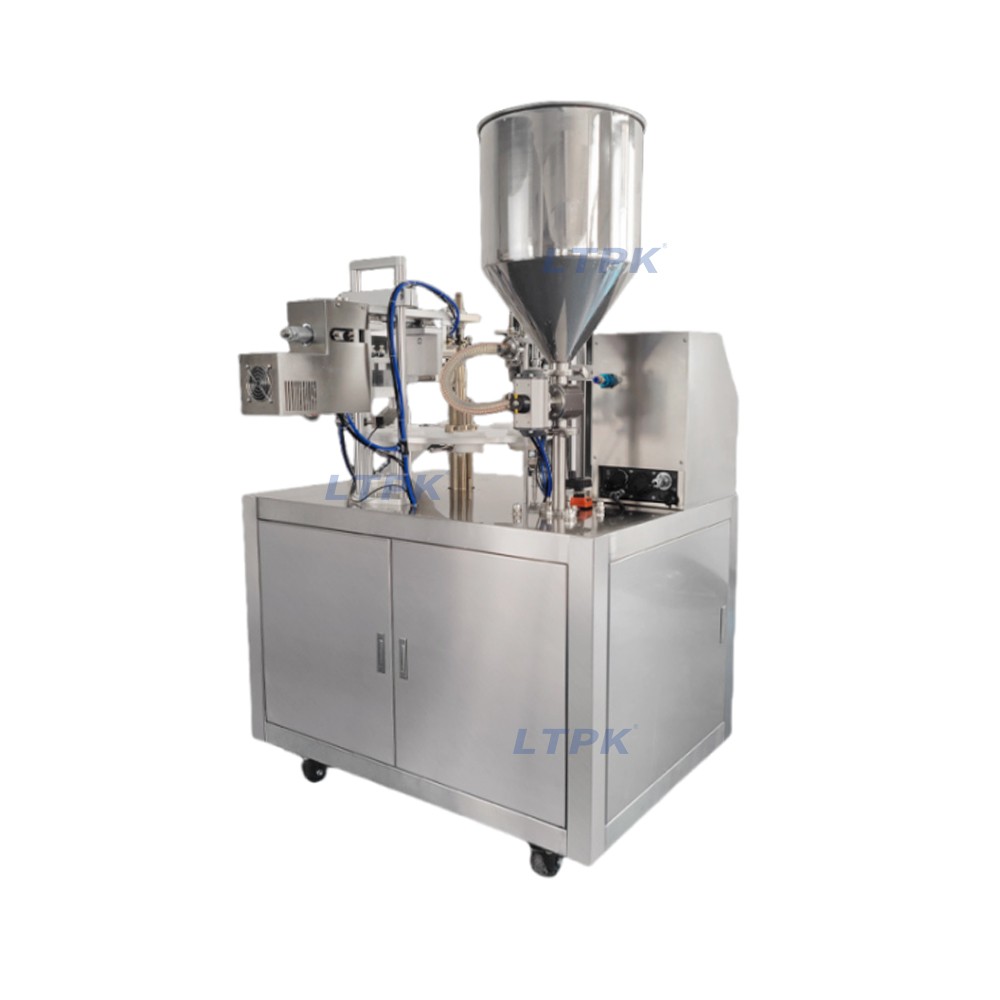

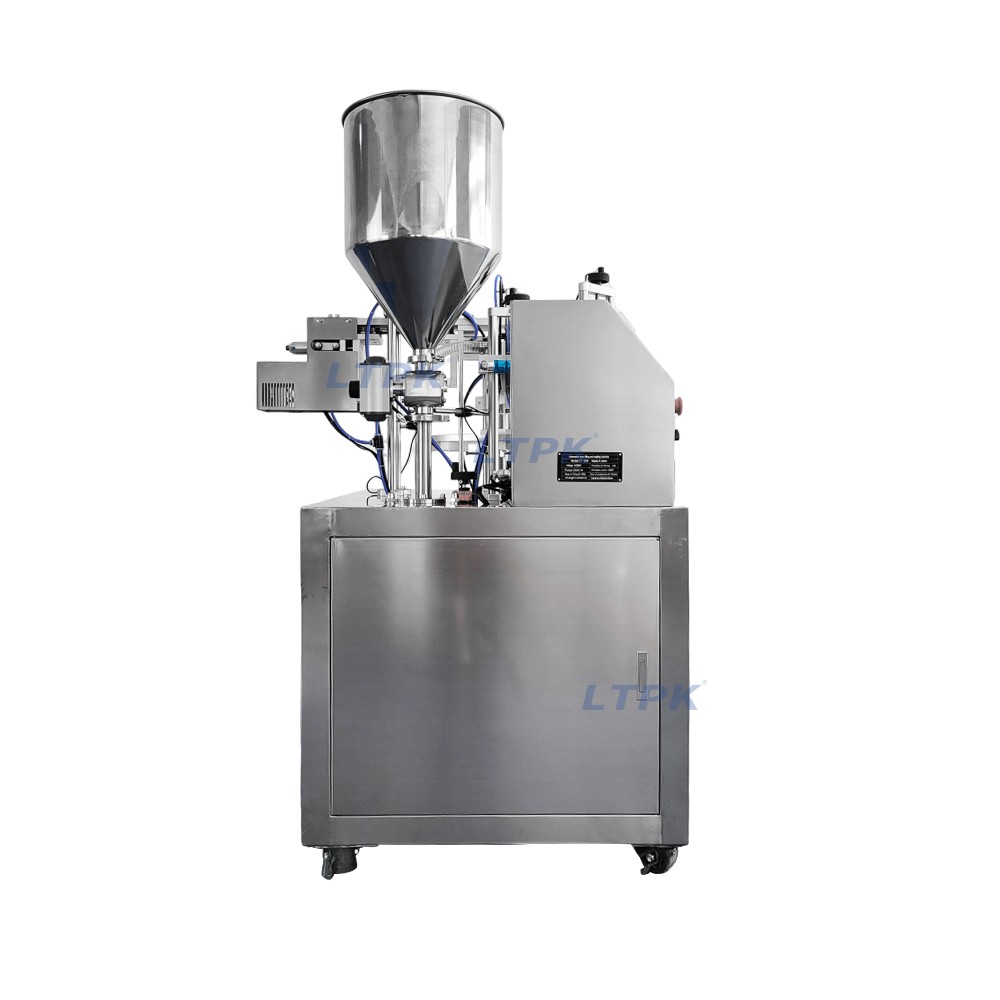

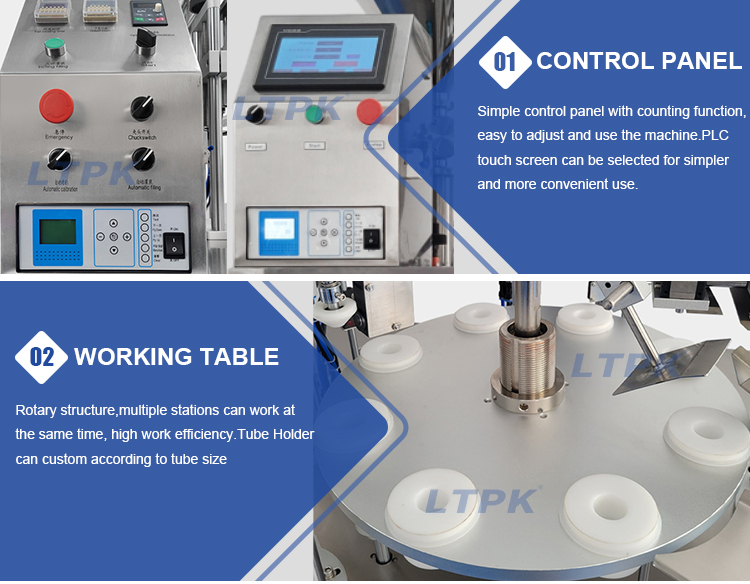

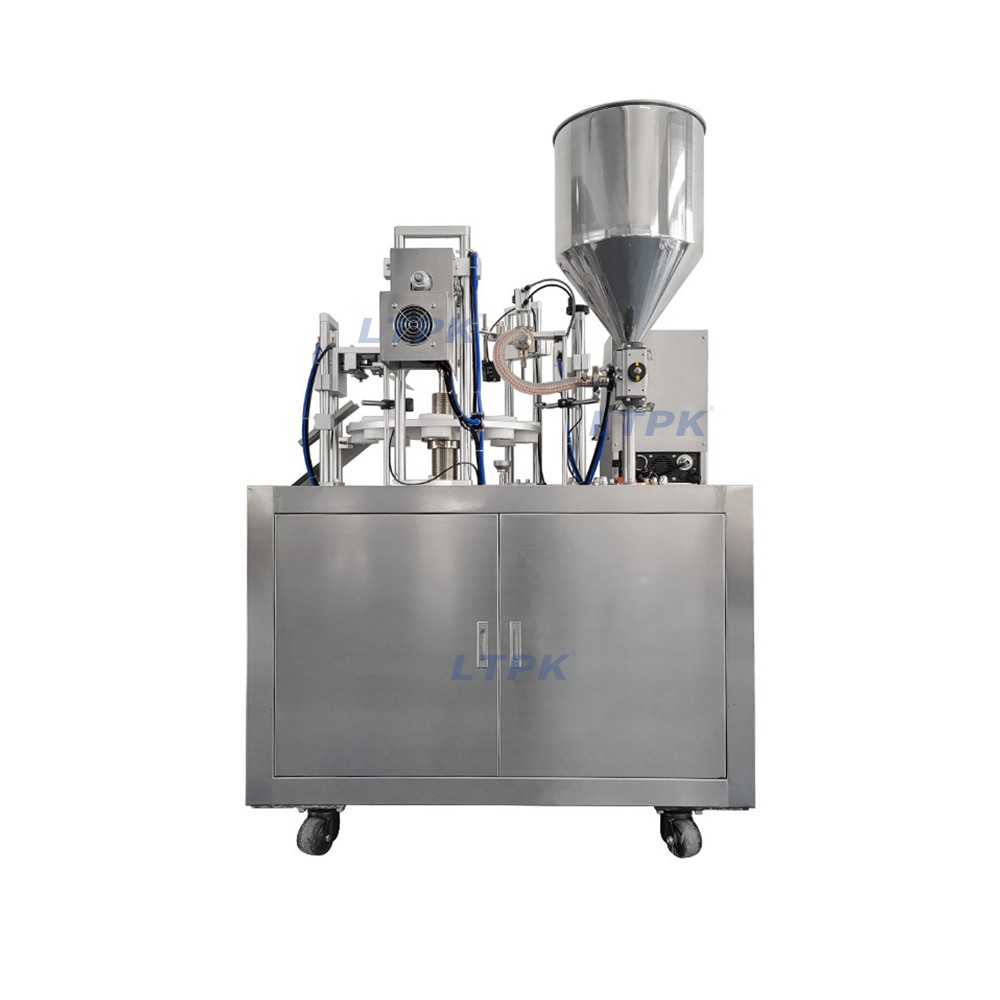

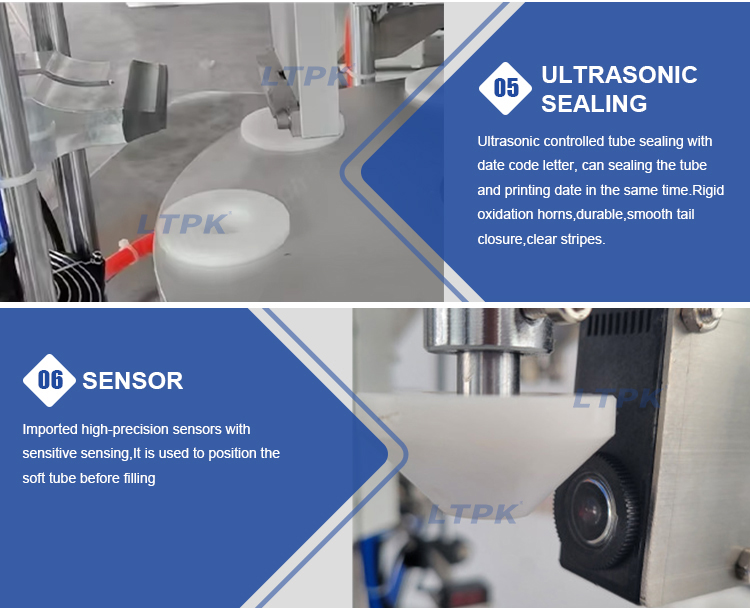

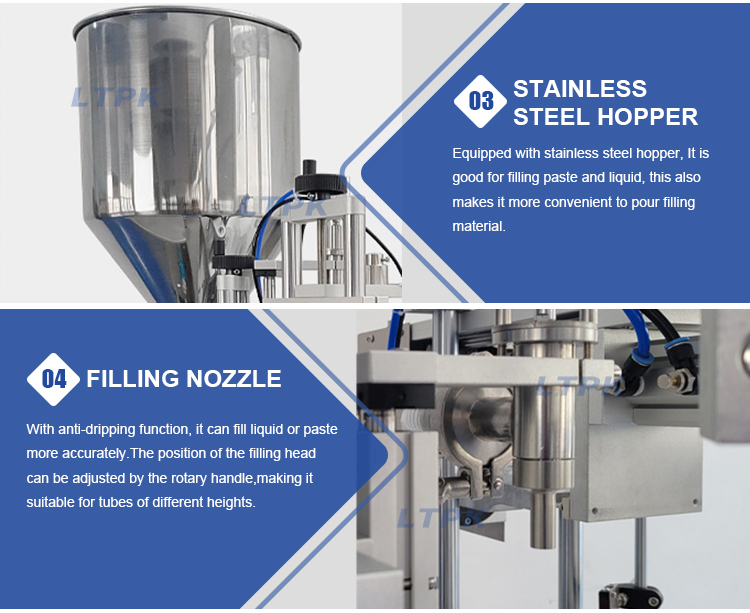

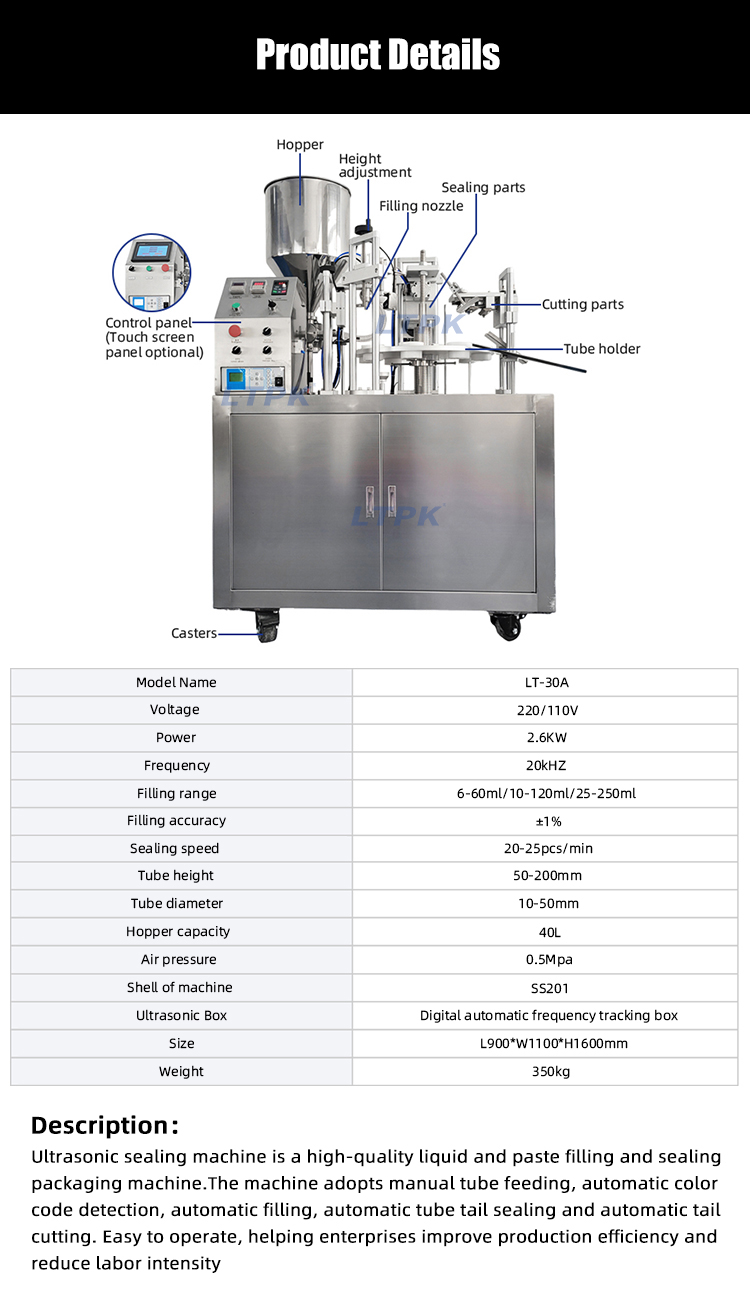

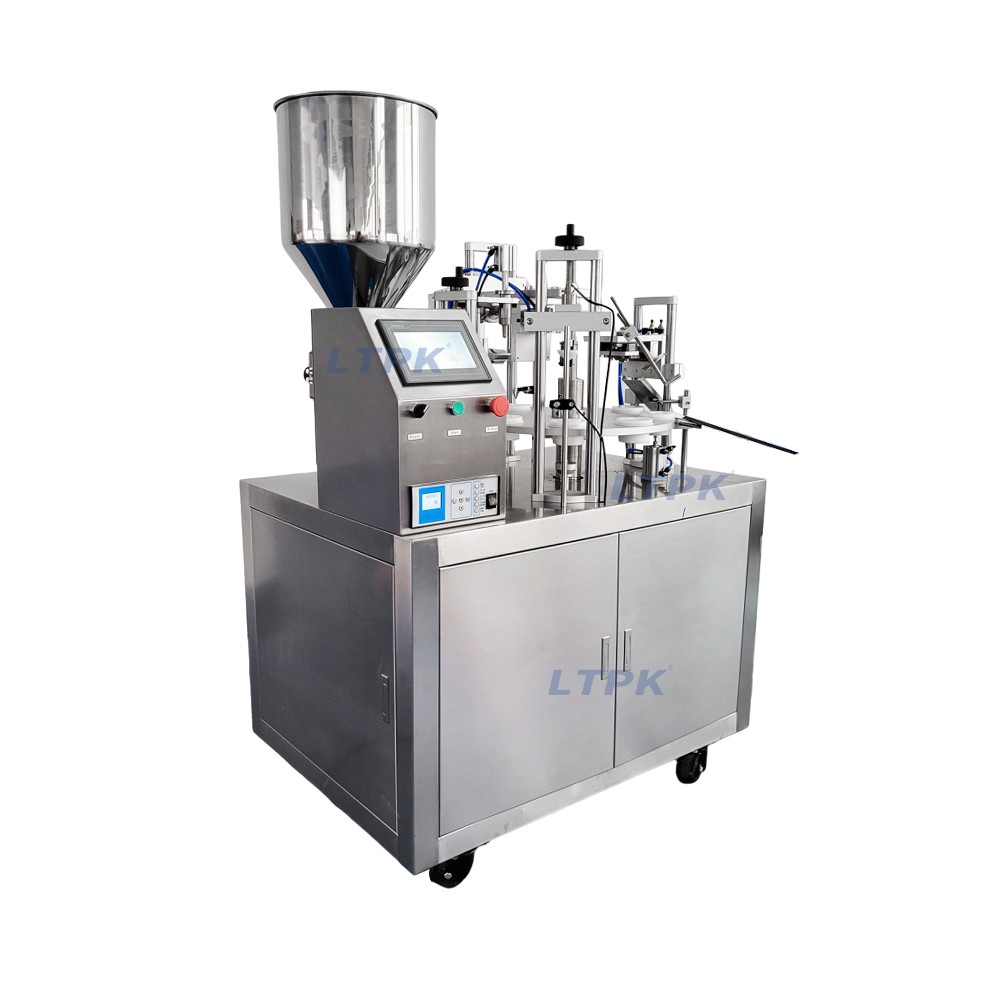

Detail Images
