Description

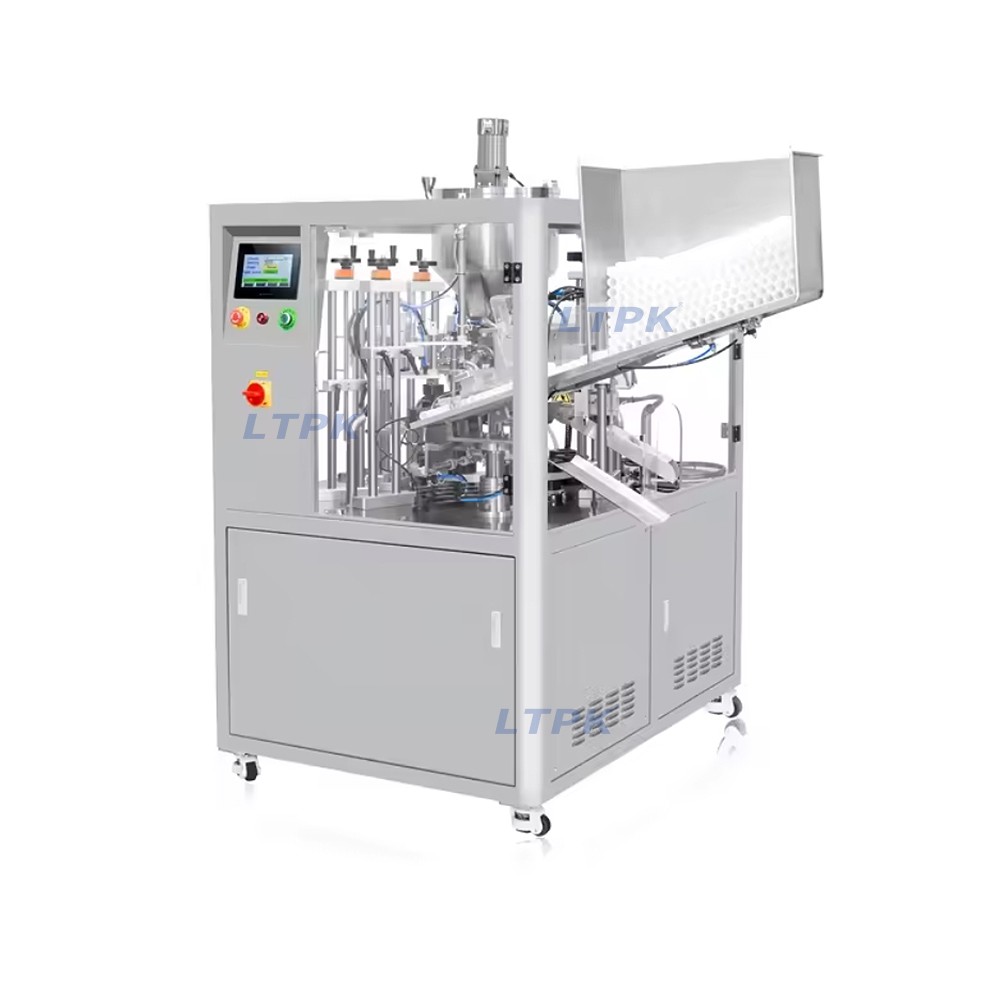

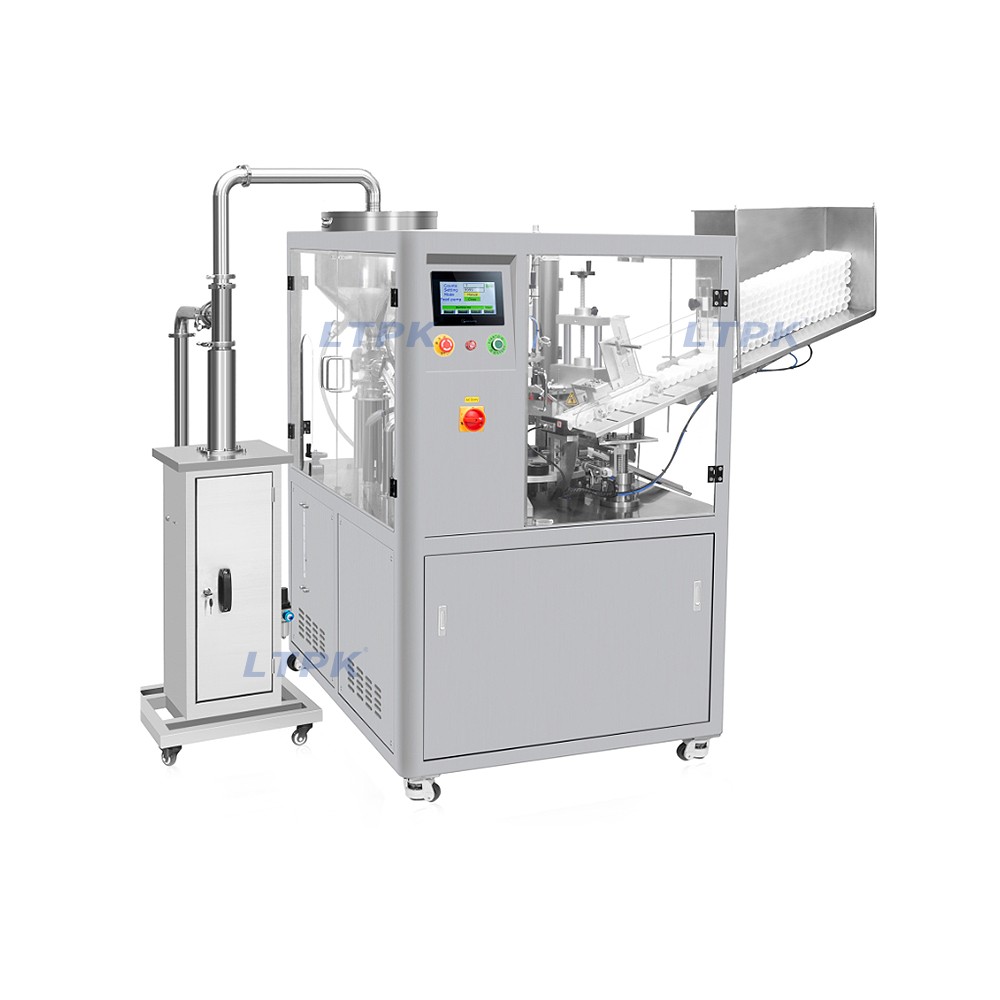

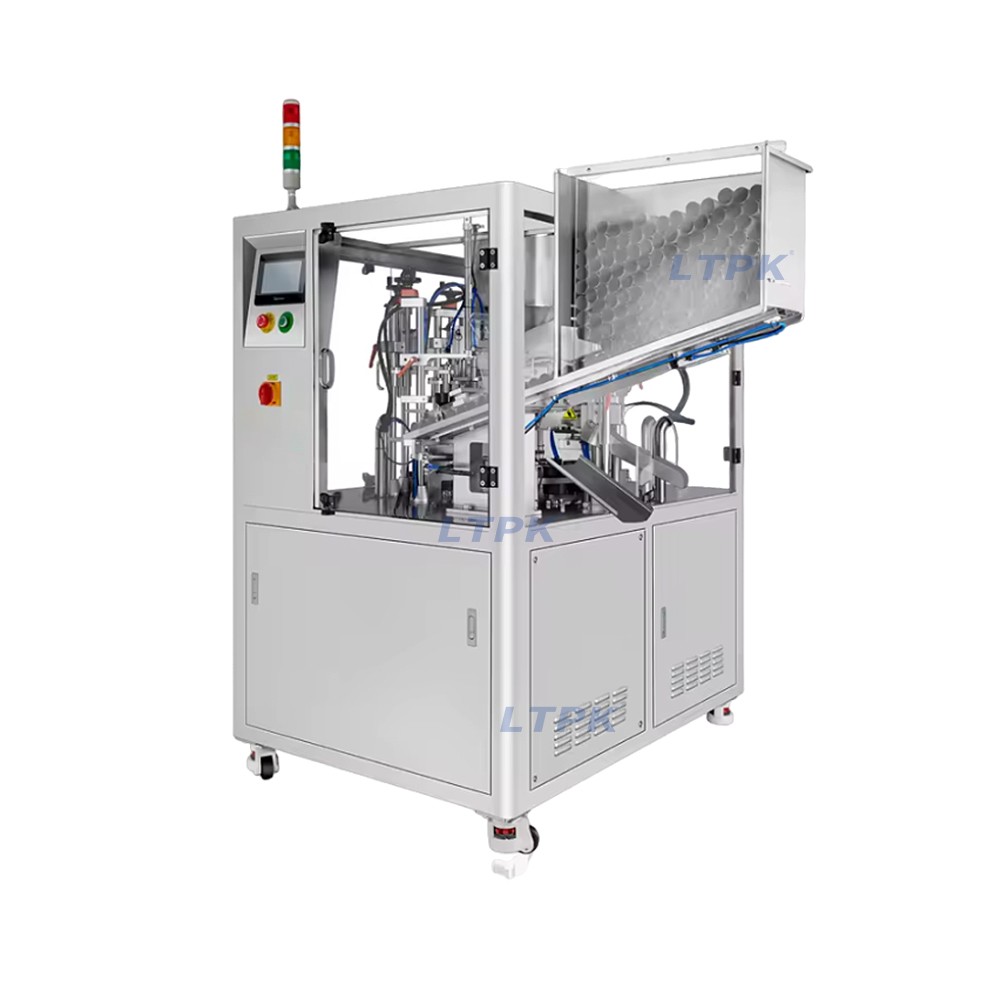

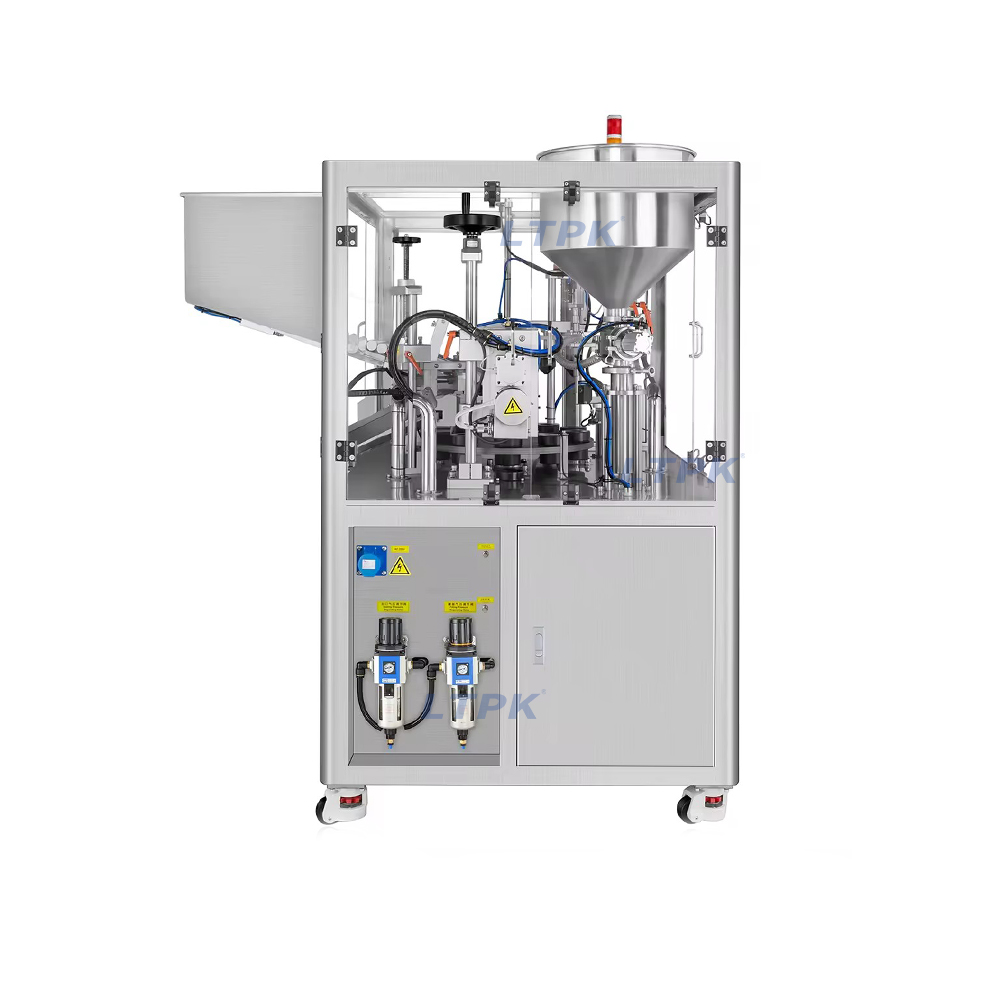

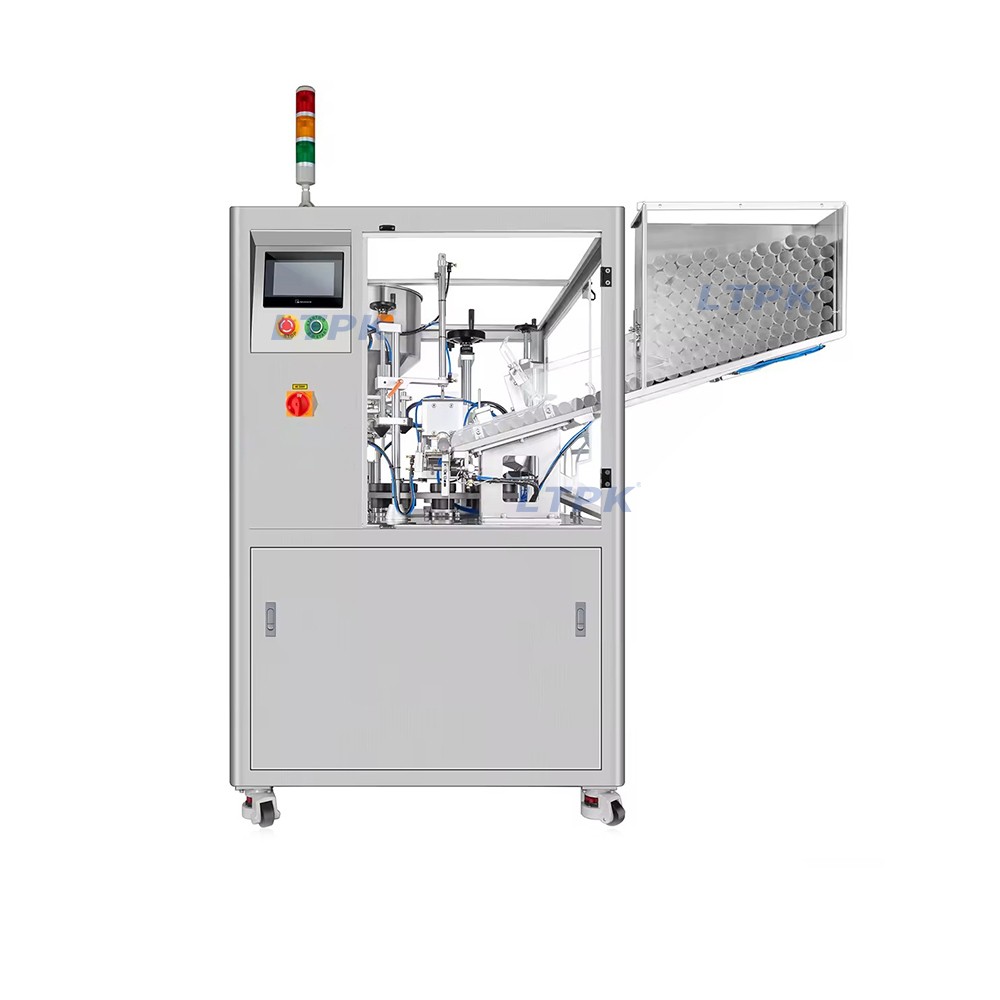

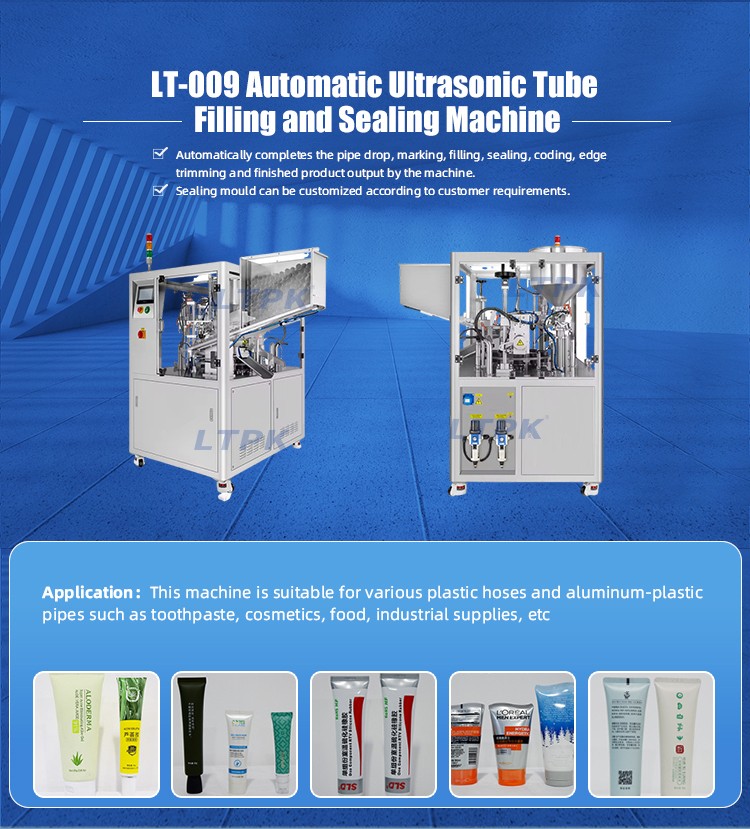

This machine adopts ultrasonic to calculate the sealing, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed;The machine is a high-quality and high-performance filling and sealing packaging machine for liquid and paste containers. Tube filling and sealing machine adopts automatic tube feeding, automatic color code detection, automatic filling, automatic tube tail sealing and automatic tail cutting.

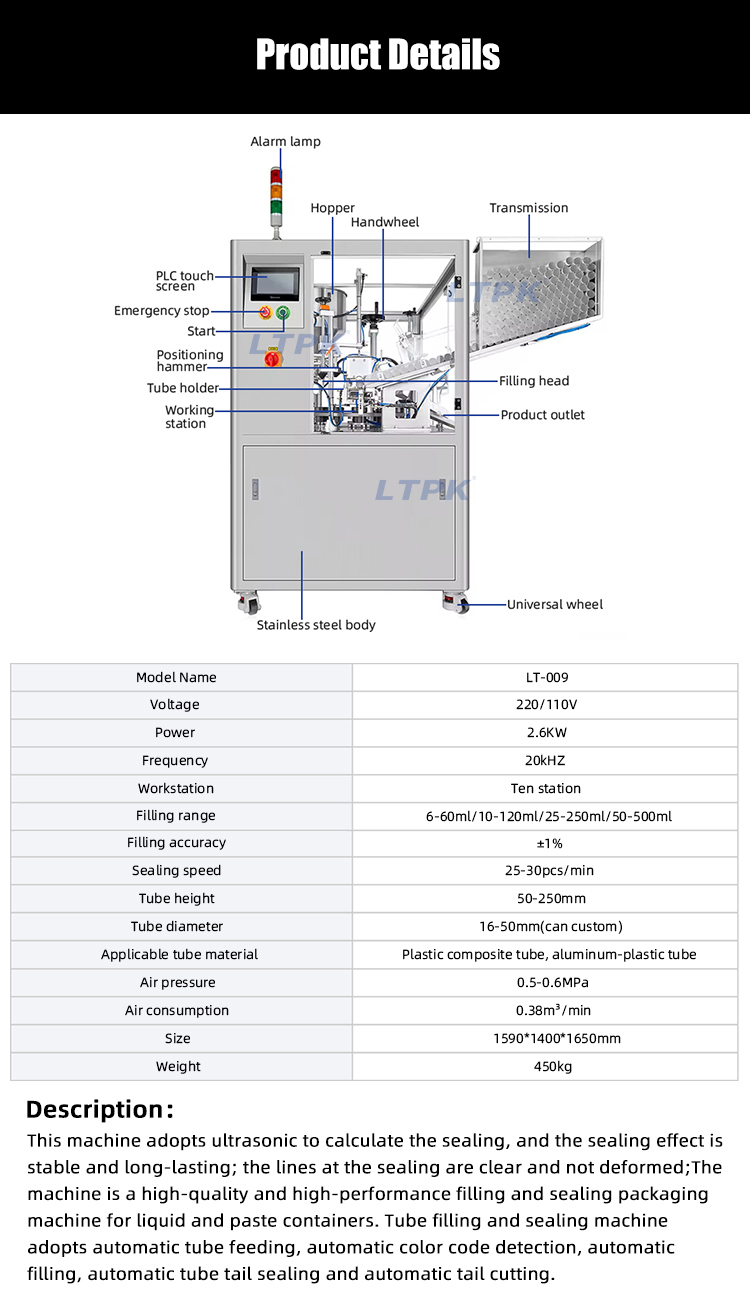

Technical Parameters

Model:LT-009

Voltage:220/110V

Power:2.6KW

Frequency:20kHZ

Workstation:ten station

Filling range:6-60ml/10-120ml/25-250ml/50-500ml

Filling accuracy:±1%

Sealing speed:25-30pcs/min

Tube height:50-250mm

Tube diameter:16-50mm(can custom)

Applicable tube material:Plastic composite tube, aluminum-plastic tube

Air pressure:0.5-0.6MPa

Air consumption:0.38m³/min

Size:1590*1400*1650mm

Weight:450kg

Application

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

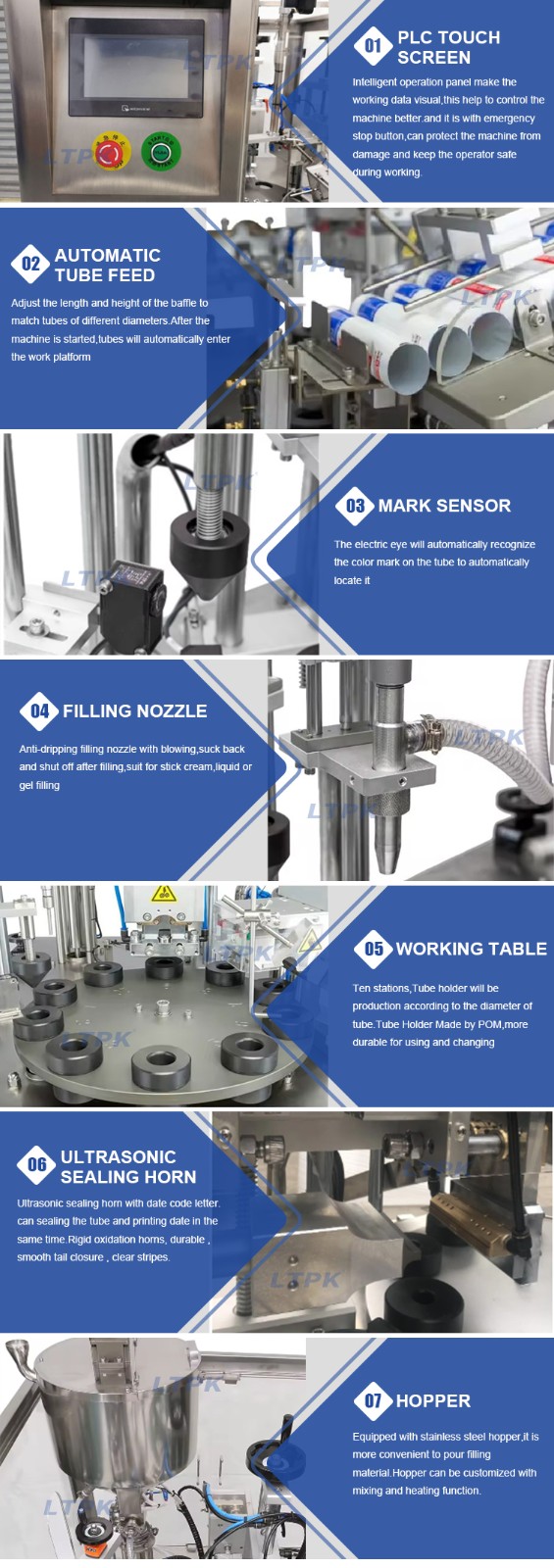

Detail Images
