Description

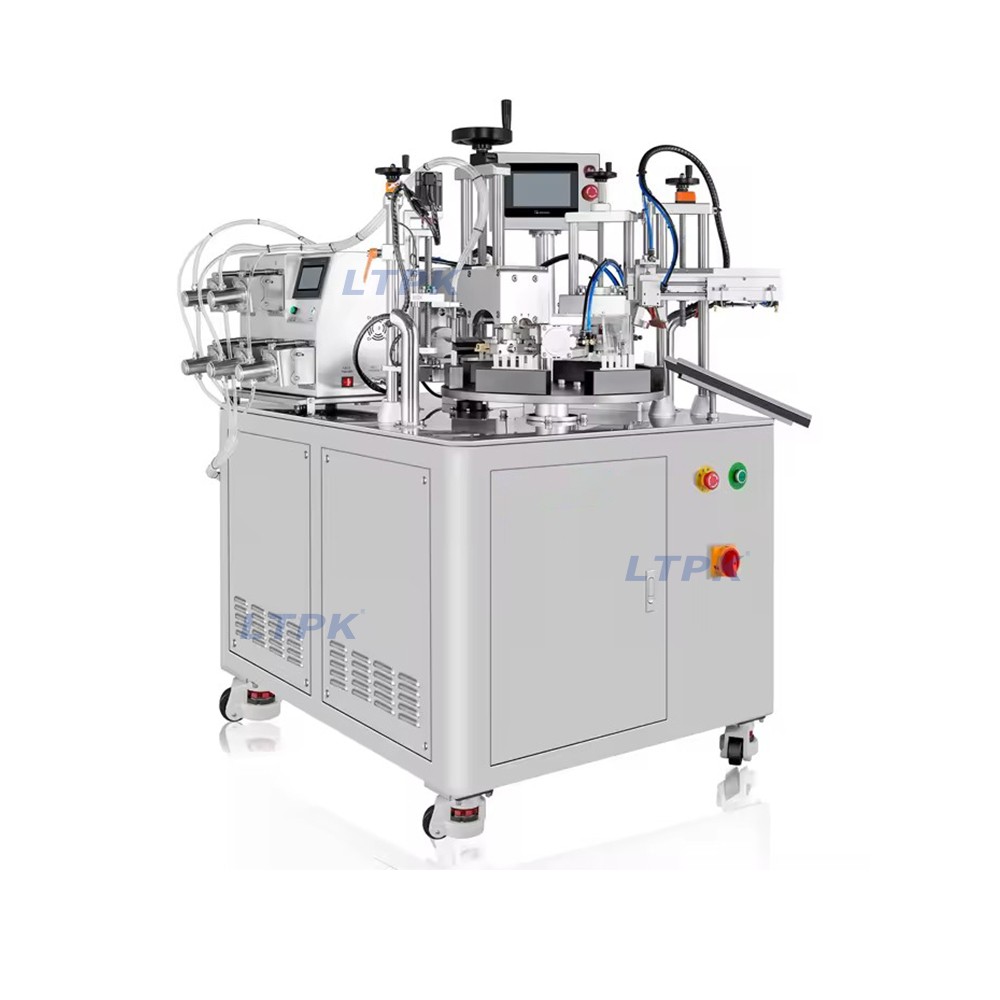

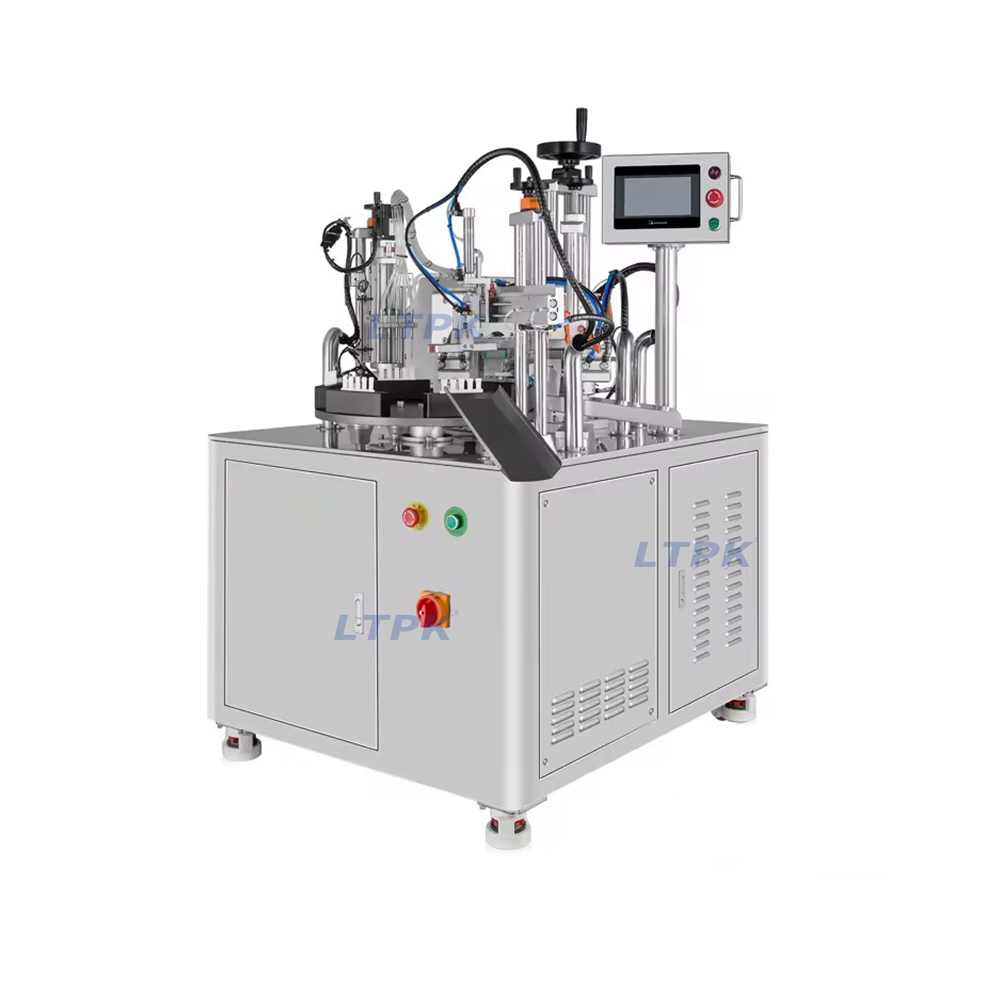

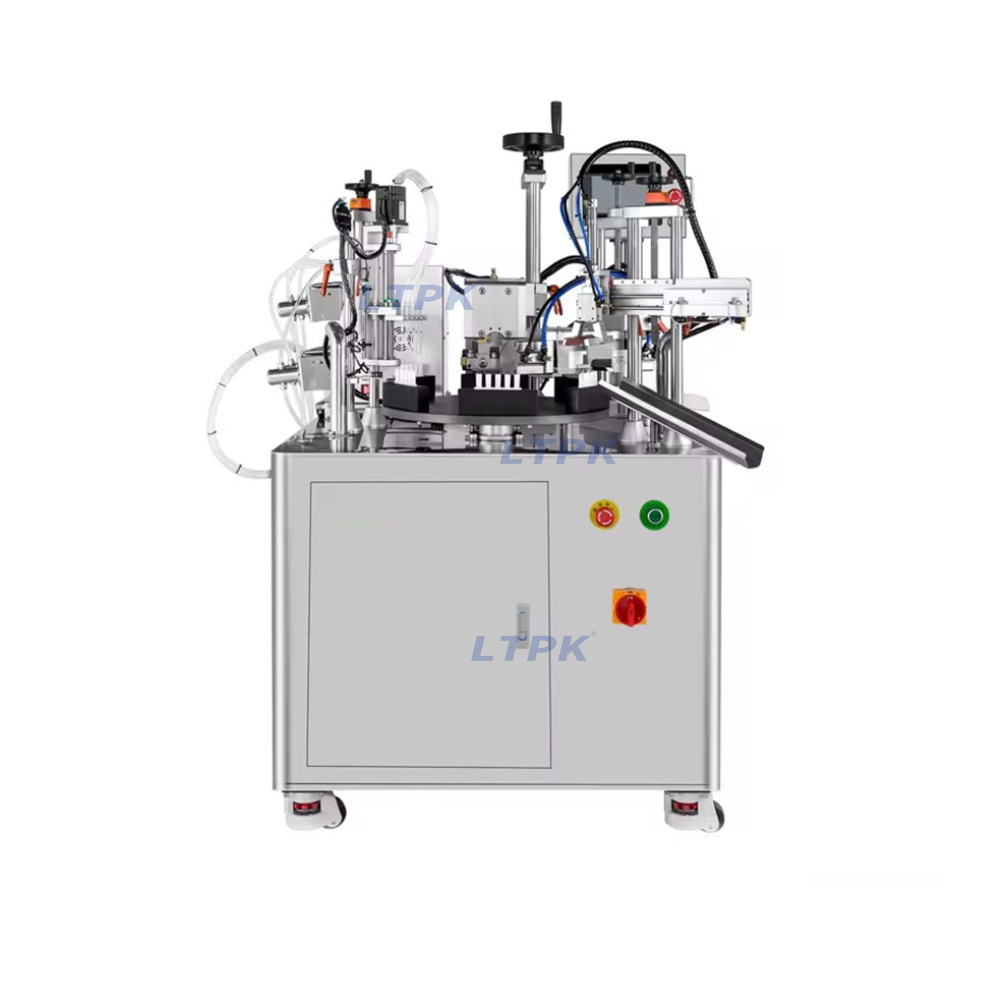

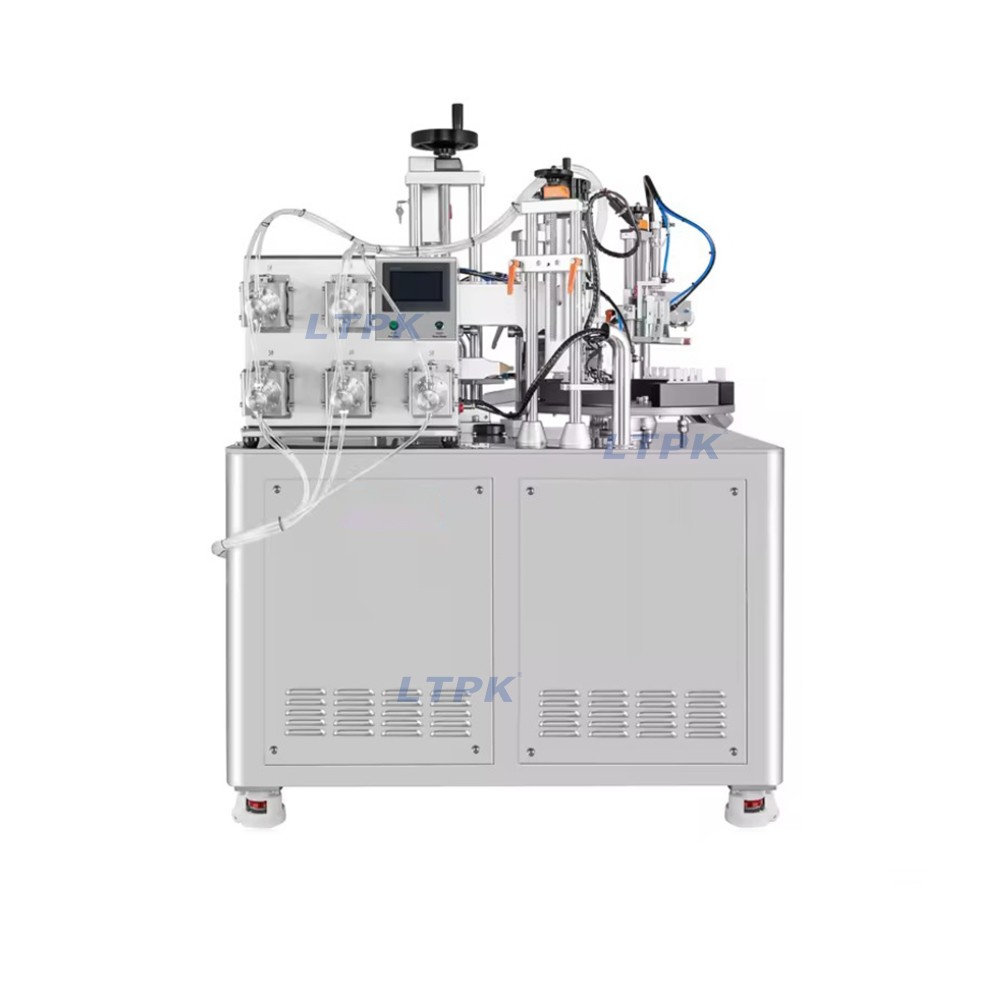

This is a high-quality liquid and paste ceramic pump filling and sealing packaging machine,this tube filling and sealing machine adopting advanced ultrasonic technology for sealing, it can be used immediately without heating or using a chiller, which is energy-saving and environmentally friendly. The welding strength is equivalent to the plastic itself, with good sealing effect, strong sealing performance, clear patterns, no deformation, and no pipe bursting.

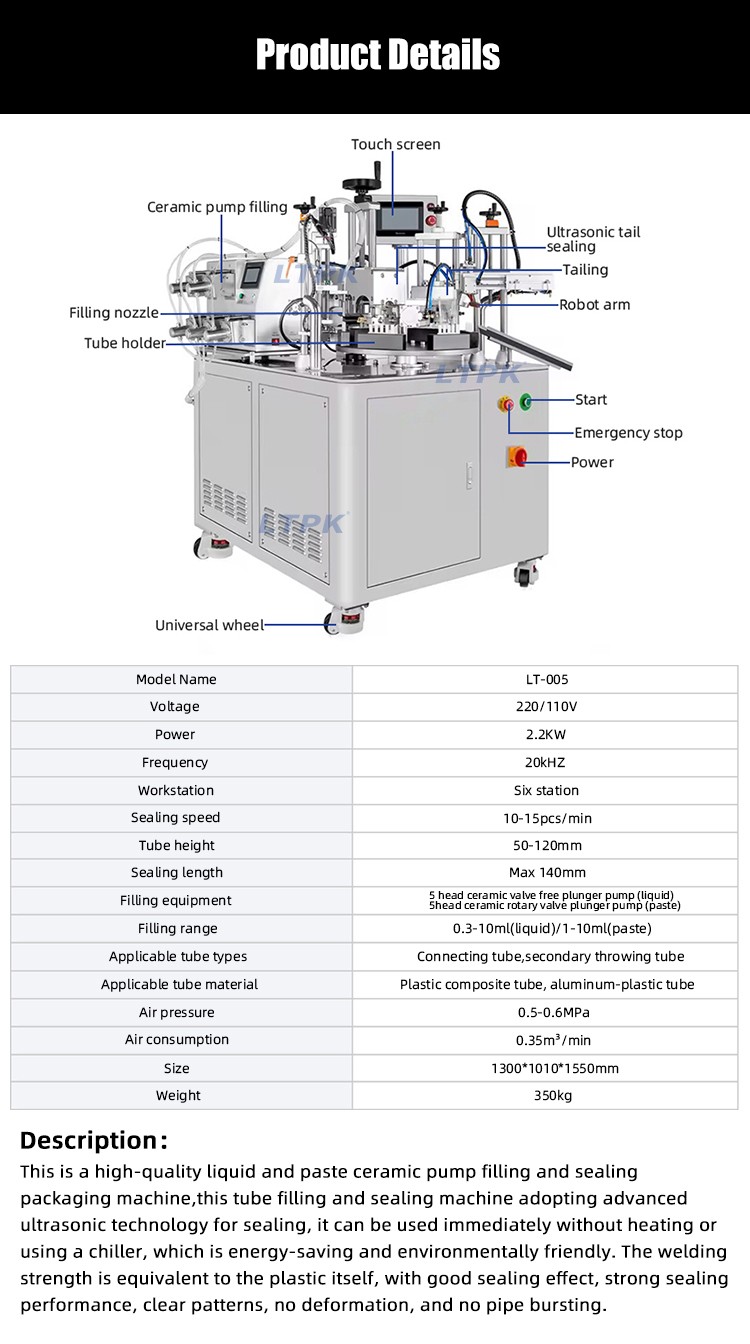

Technical Parameters

Model：LT-005

Voltage：220/110V

Power：2.2KW

Frequency：20kHZ

Workstation：six station

Sealing speed：10-15pcs/min

Tube height：50-120mm

Sealing length：Max 140mm

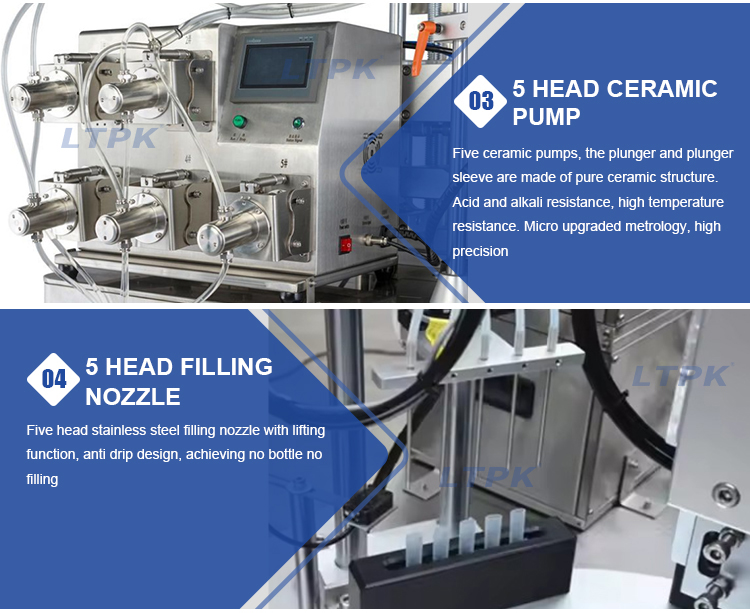

Filling equipment：5 head ceramic valve free plunger pump (liquid)

5head ceramic rotary valve plunger pump (paste)

Filling range：0.3-10ml(liquid)/1-10ml(paste)

Applicable tube types：connecting tube,secondary throwing tube

Applicable tube material：Plastic composite tube, aluminum-plastic tube

Air pressure:0.5-0.6MPa

Air consumption：0.35m³/min

Size：1300*1010*1550mm

Weight：350kg

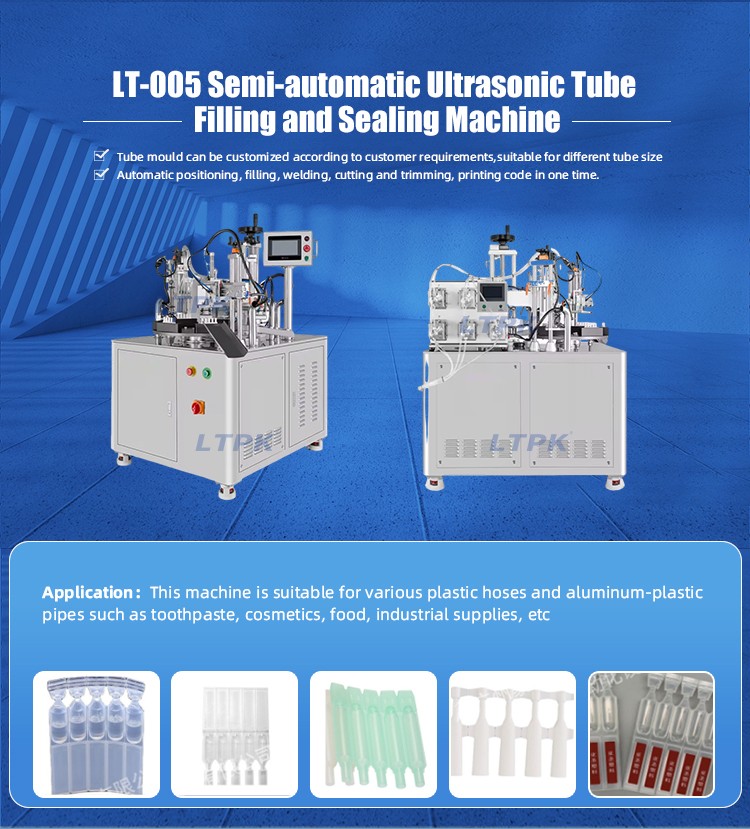

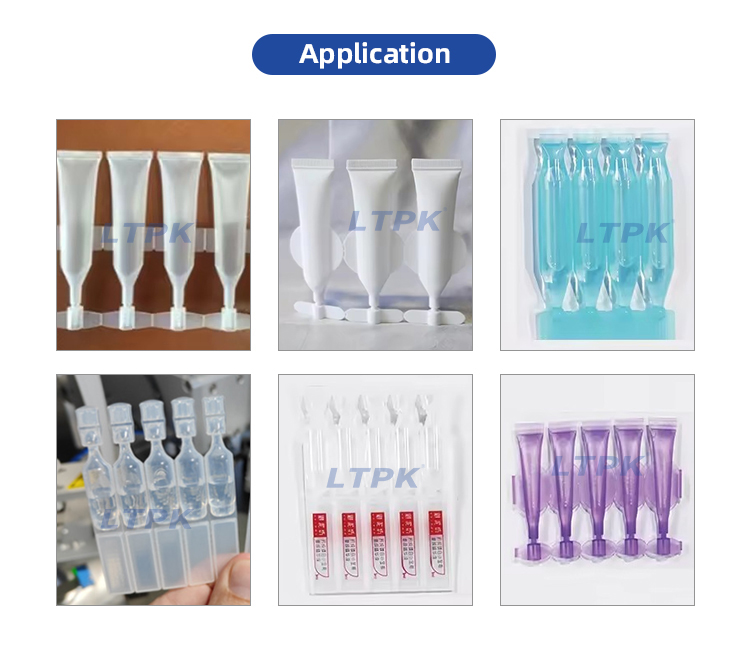

Application

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

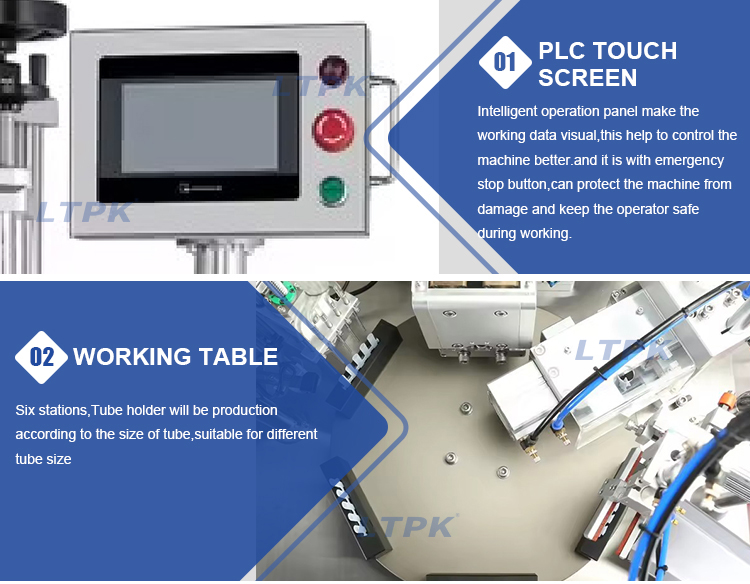

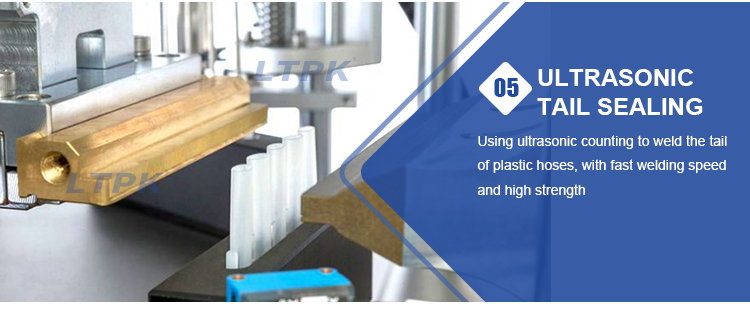

Detail Images
