Description

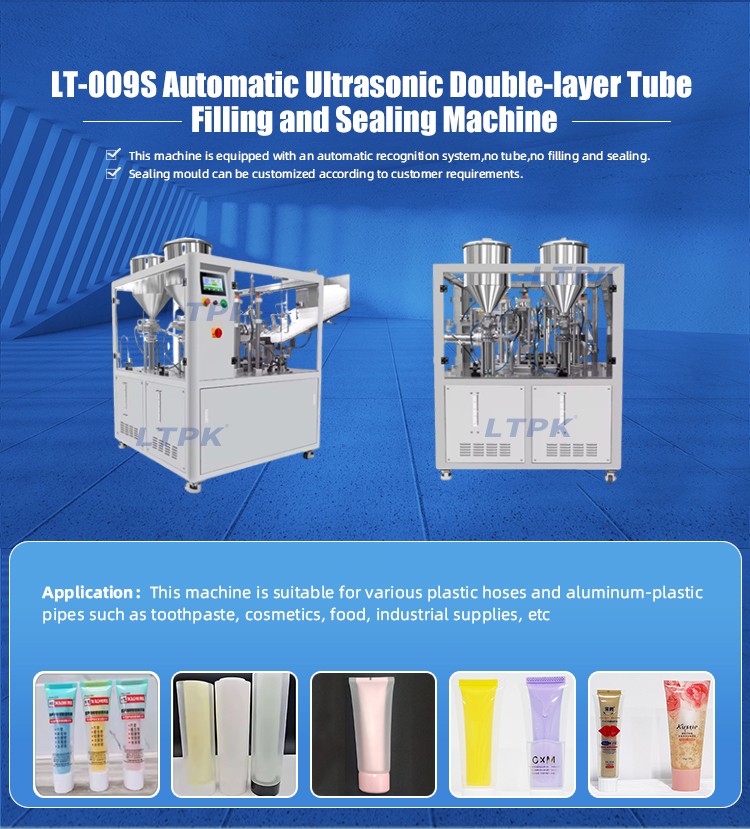

This machine adopts ultrasonic to calculate the sealing, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed;This machine automatically completes a series of actions such as sub-tube/double-layer tube feeding, filling outer tube, benchmarking, filling inner tube, sealing,cutting tail, and finished tube out. It is fully automated, saving labor, reducing production costs, and meeting the demand for differentiated products

Technical Parameters

Model:LT-009S

Voltage:220/110V

Power:2.6KW

Frequency:20kHZ

Workstation:ten station

Filling range:10-120ml/25-250ml

Filling accuracy:±1%

Sealing speed :10-15pcs/min

Tube height:50-210mm

Tube diameter :25-50mm(can custom)

Applicable tube material :Plastic composite tube, aluminum-plastic tube

Air pressure:0.5-0.6MPa

Air consumption:0.48m³/min

Size :1850*1400*1800mm

Weight:530kg

Application

This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc

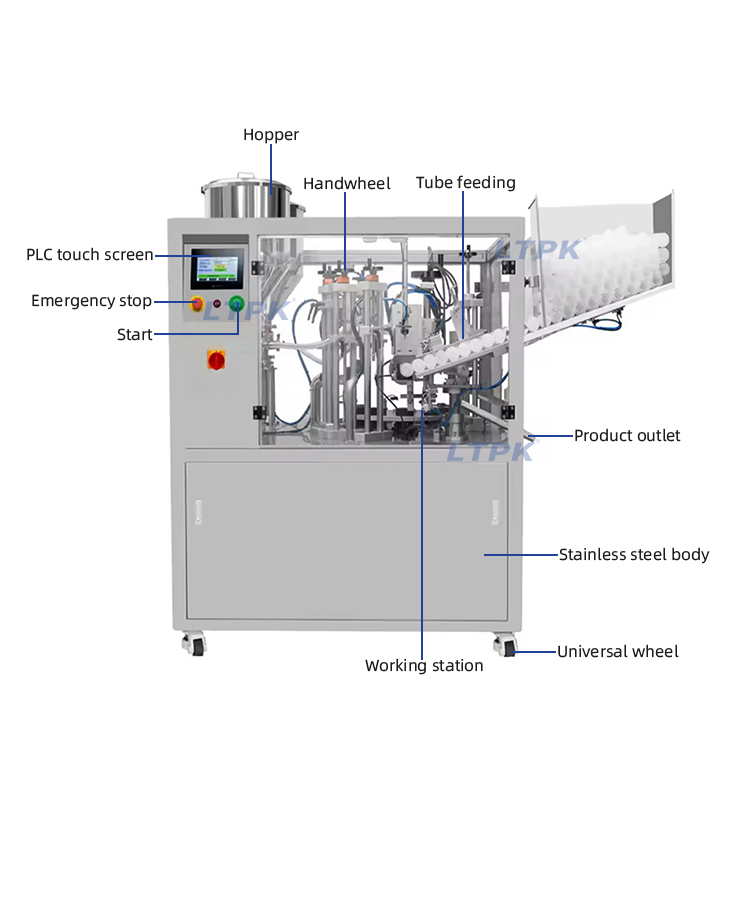

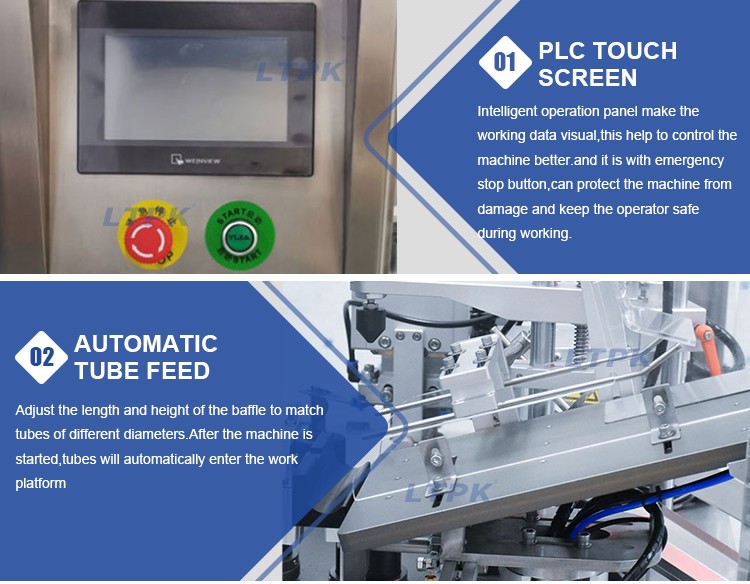

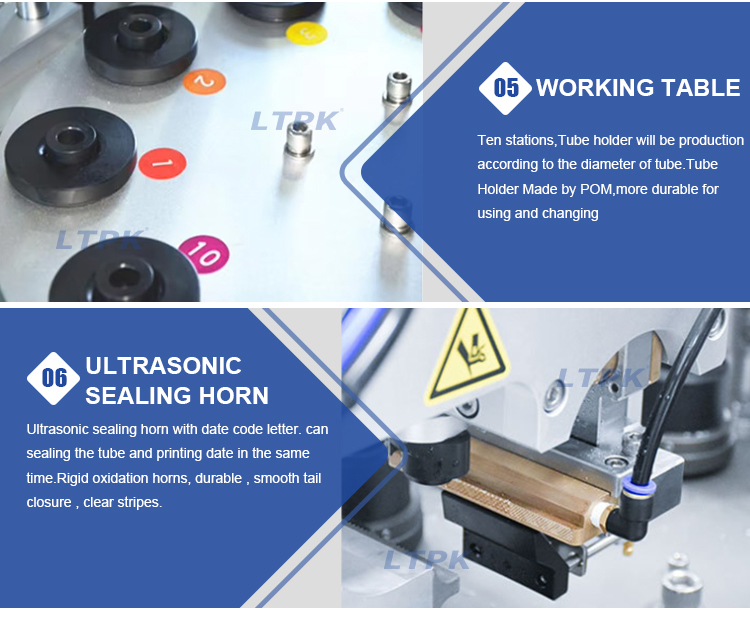

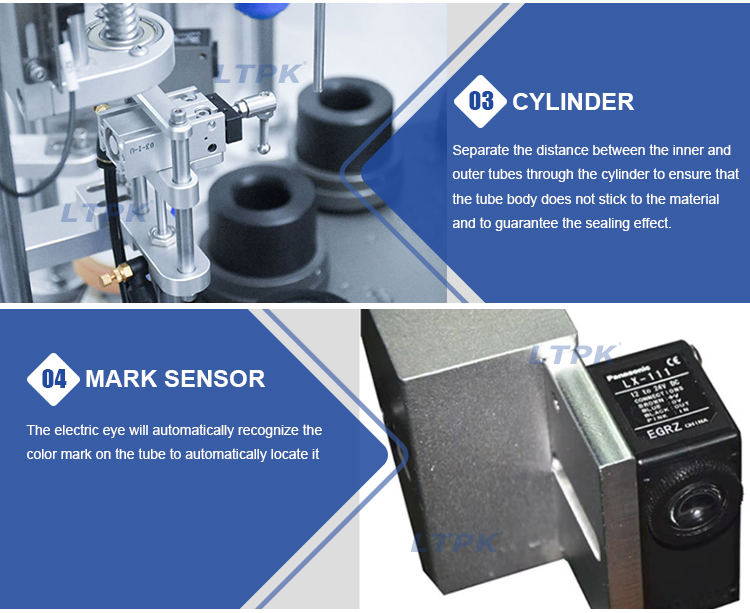

Details Images
